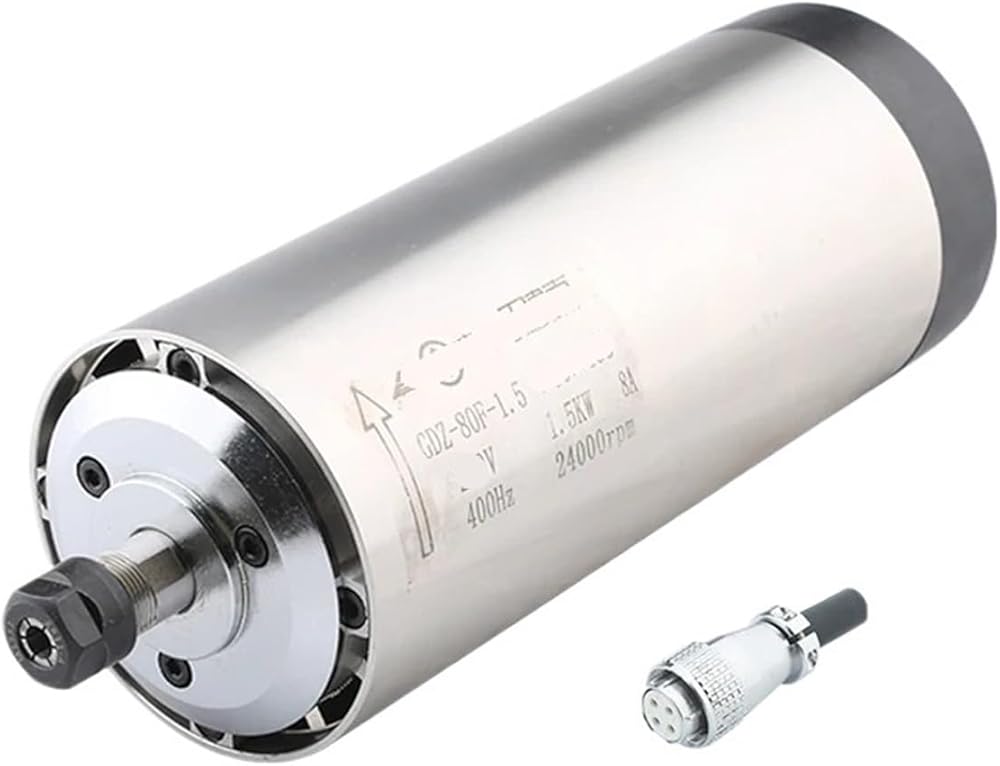

Spindle Sanders
Size: GDF-80F-1.5
Speed regulation mode: The spindle speed can be changed by a three-phase output inverter and the frequency of the inverter can be adjusted.
Cooling method: air cooling
Power interface: Optional 4-pin aviation .
The air plugs are labeled "1", "2", "3", and "4". "1", "2", and "3" are connected to the inverter (U, V, W), and 4 is connected to the inverter.
Equipment grounding.
Power: 1.5KW
Voltage: 220V 380V
Current: 8.0A
Frequency: 0-400 Hz
Speed: 0-24000RPM
Runout: less than 0.01mm
Diameter (mm): 80 mm
4 fully sealed angular contact bearings
Chuck: ER11
