Variable Speed Pen Lathe – 8" X 13" in Saudi Arabia

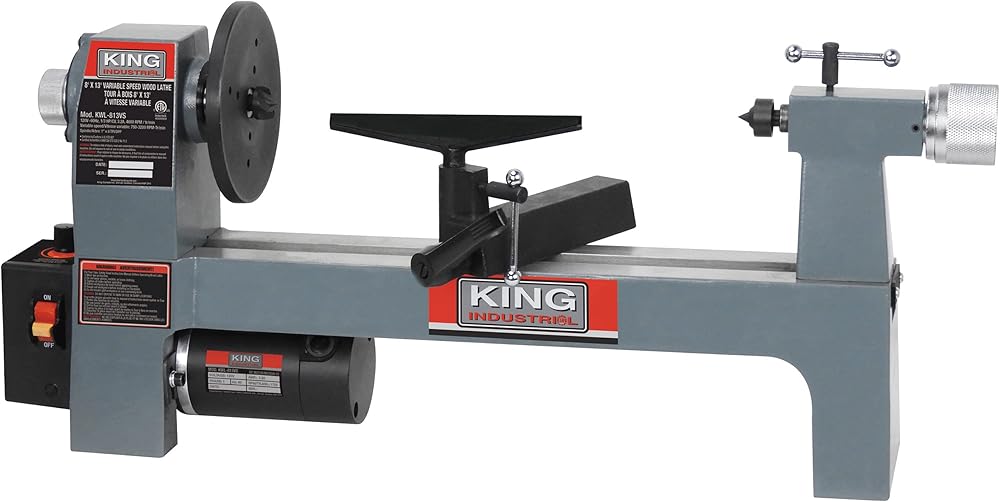

Variable Speed Pen Lathe – 8" X 13"

SAR 1,781

Category
Lathes
Weight
21.4 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

  • Features: 8" swing for small bowl turning, Maximum turning capacity of 13" between centers, Variable speed range of 750 – 3,200 RPM, Chrome plated hand wheels on both the headstock and tailstock
  • Specifications: Swing Over Bed: 8", Swing Over Tool Post Base: 5-1/4", Distance Between Centers: 13", Spindle Size: 1" x 8 TPI, Spindle Bore: 3/8", Variable Speed Range 750 – 3,200 RPM, Headstock and Tailstock Taper: #1MT, Tailstock Travel: 1-9/16", DC Motor: 1/3 HP, 3.2 Amp, 4,600 RPM, Voltage: 120V, 1 Phase, 60 Hz
  • Assembled Dimensions: (L x W x H)/Weight 27-3/4" x 10" x 12-1/4"/42 lb, Package Dimensions: (L x W x H)/Weight 28" x 13-1/4" x 7-5/8"/47 lb
  • Includes: (1) 4-1/4" And 7" Tool Rests With 1/2" Post, (1) 5-3/4" Faceplate, (1) #1 MT Live Center. (1) #1 MT Spur Center, (1) Steel Knock-Out Bar, (1) Wrench

Description

The King Canada VS Pen Lathe is ideal for pens and small turnings. A 1/3 HP variable-speed motor and precision-machined cast-iron bed, headstock and tailstock ensure stability and minimize vibration for smoother turning. Features: 8" swing for small bowl turning, Maximum turning capacity of 13" between centers, Variable speed range of 750 - 3,200 RPM, Chrome plated hand wheels on both the headstock and tailstock Specifications: Swing Over Bed: 8", Swing Over Tool Post Base: 5-1/4", Distance Between Centers: 13", Spindle Size: 1" x 8 TPI, Spindle Bore: 3/8", Variable Speed Range 750 - 3,200 RPM, Headstock and Tailstock Taper: #1MT, Tailstock Travel: 1-9/16", DC Motor: 1/3 HP, 3.2 Amp, 4,600 RPM, Voltage: 120V, 1 Phase, 60 Hz Assembled Dimensions: (L x W x H)/Weight 27-3/4" x 10" x 12-1/4"/42 lb, Package Dimensions: (L x W x H)/Weight 28" x 13-1/4" x 7-5/8"/47 lb Includes: (1) 4-1/4" And 7" Tool Rests With 1/2" Post, (1) 5-3/4" Faceplate, (1) #1 MT Live Center. (1) #1 MT Spur Center, (1) Steel Knock-Out Bar, (1) Wrench
