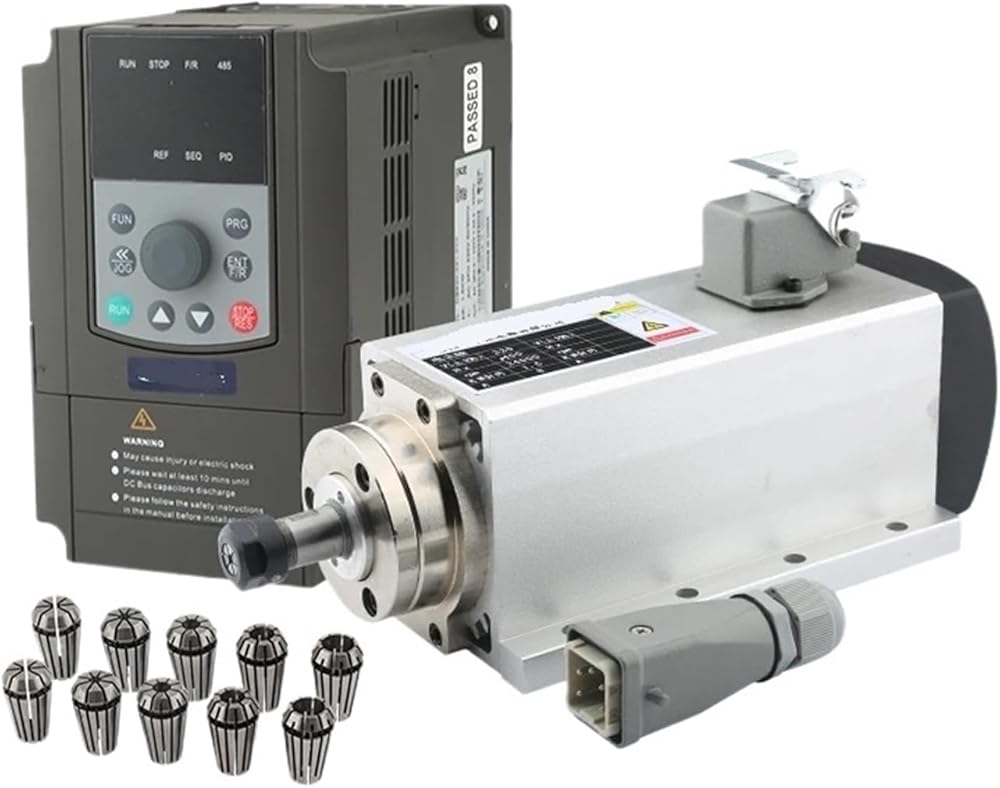

Spindle Sanders
Model: GDZ95x70-1.5
Speed regulation method: The frequency of the inverter is adjusted through the three-phase output inverter to change the spindle speed.
Cooling method: air cooling
Power interface: Optional 5-pin waterproof aviation connector. The aviation connector is marked with "1", "2", "3", "4", "5", and "GND". "1", "2", and "3" are connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
Power: 1.5 kW
Voltage: 220V/380V
Current: 8.0A
Frequency: 0-400Hz
Speed: 0-24000rpm
Accuracy 0.008mm
4 fully sealed angular contact ball bearings
Chuck: ER11
Tool diameter: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm
/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm
Air-cooled ER11 chuck fixture
