Spindle Sanders
Material: Spindle cover is 304 stainless steel, water jet is high pressure cast aluminum tube, copper coil
Power Connection
GX16 waterproof aviation , (1/2/3) are connected to the inverter (U/V/W) in sequence, 4 is connected to the inverter ground wire
Specification
Overall dimensions: 80*284m/m
Drive mode: motor
Operating speed: 24000rpm

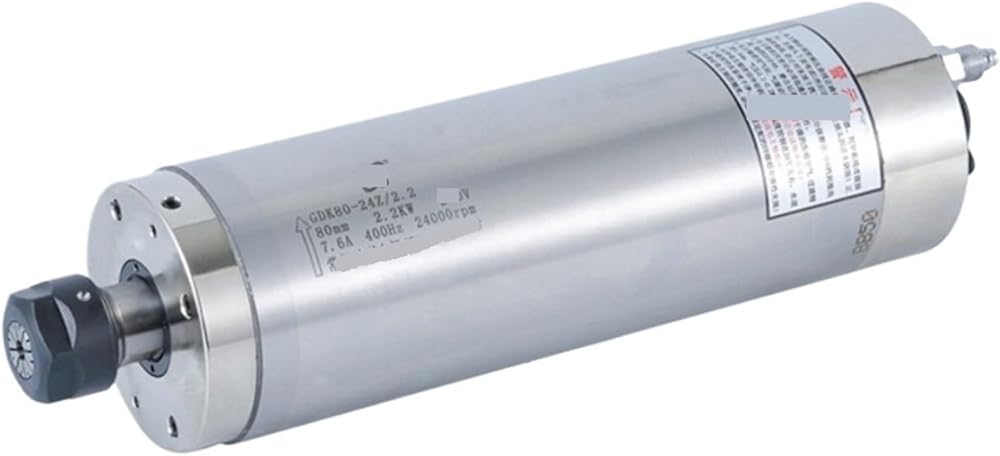

Model: GDK80-24Z/2.2
Power: 2.2KW
Voltage: 220V/380V
Working speed: 0-24000RPM
Current: 7.6/4.4A
Diameter: 80 mm
Size: 80*284MM long
Chuck: ER20
