مميزات خاصة

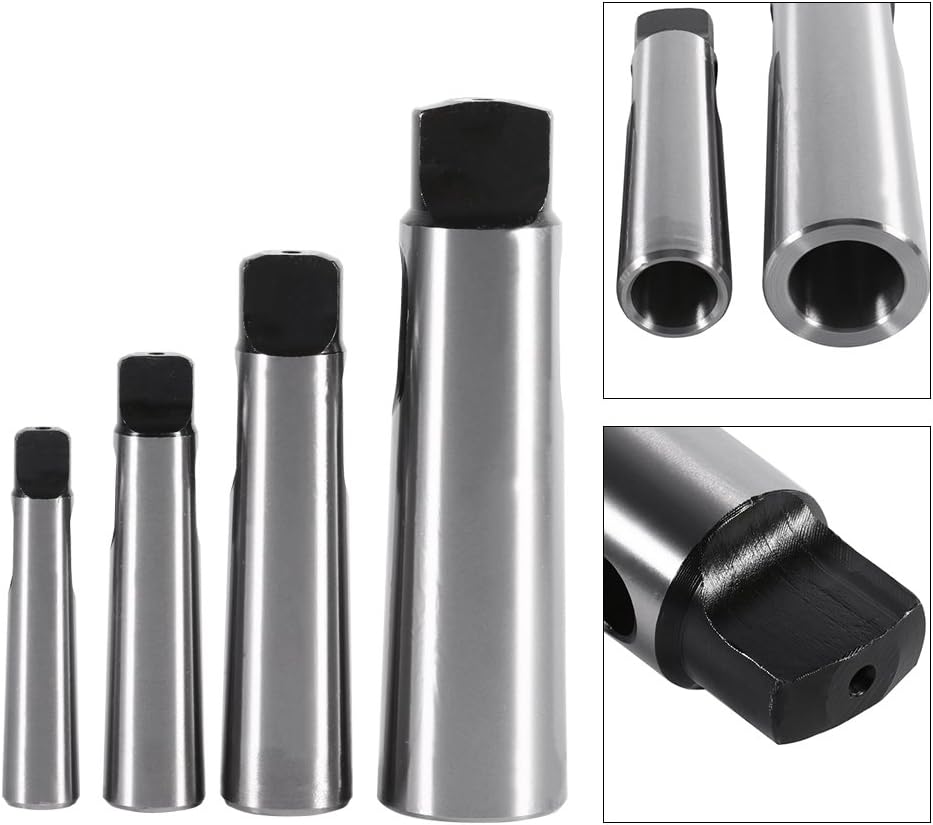

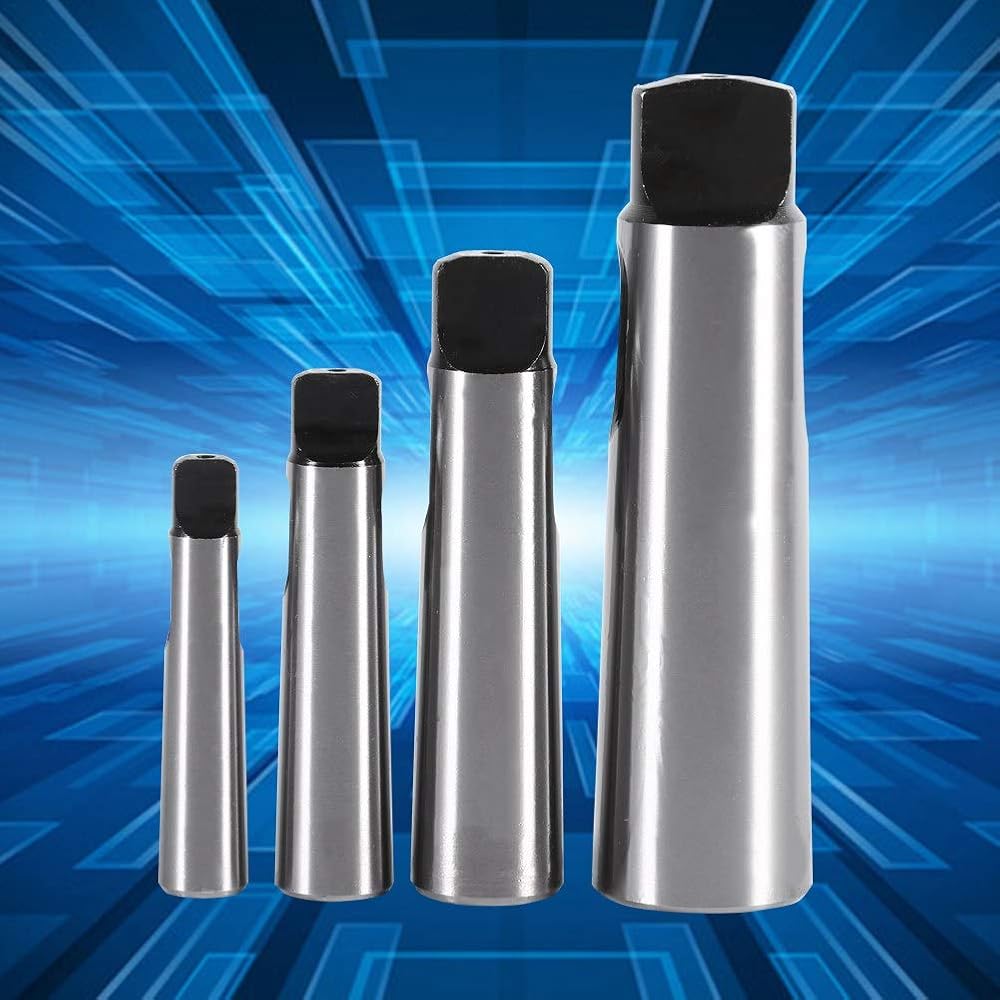

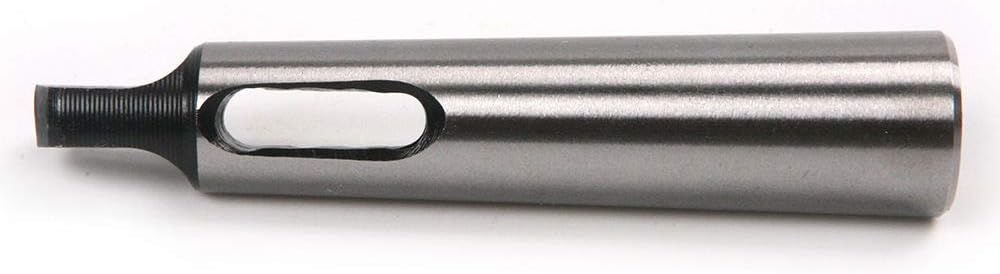

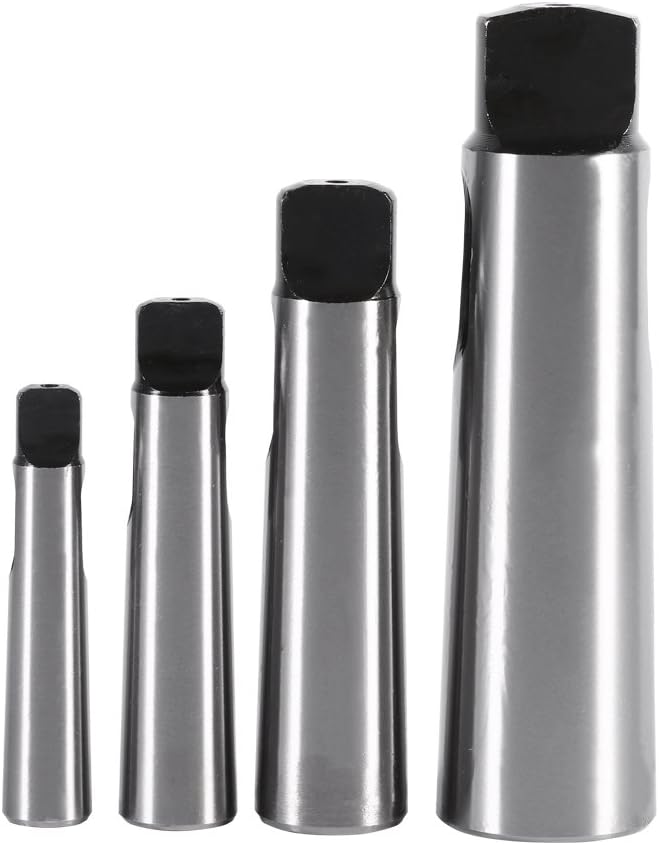

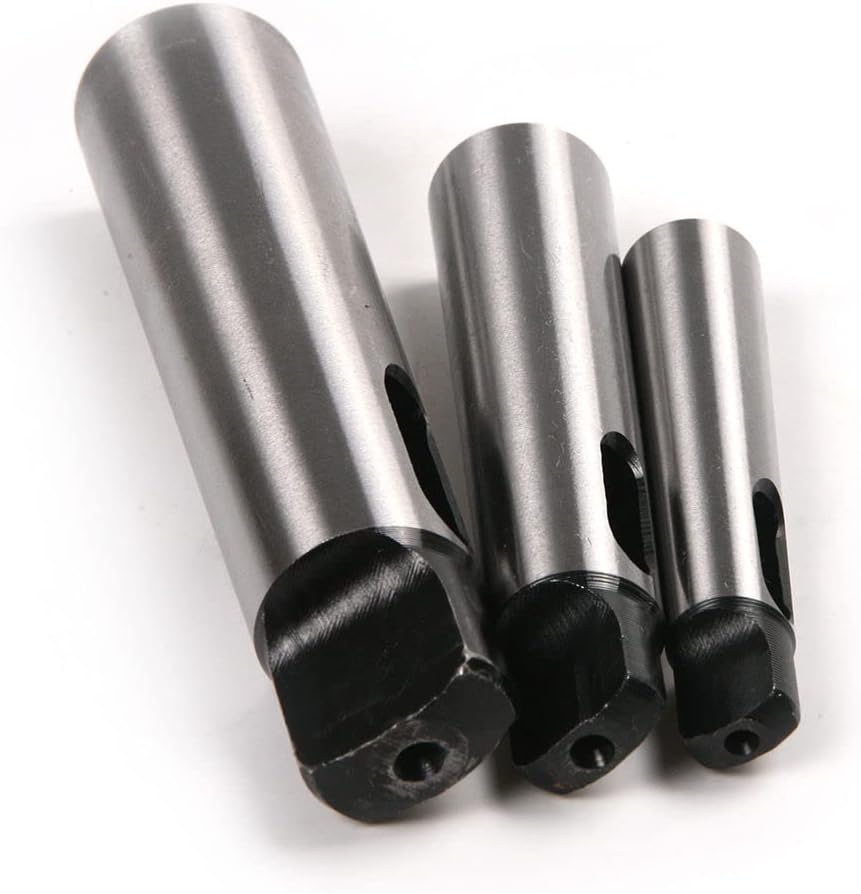

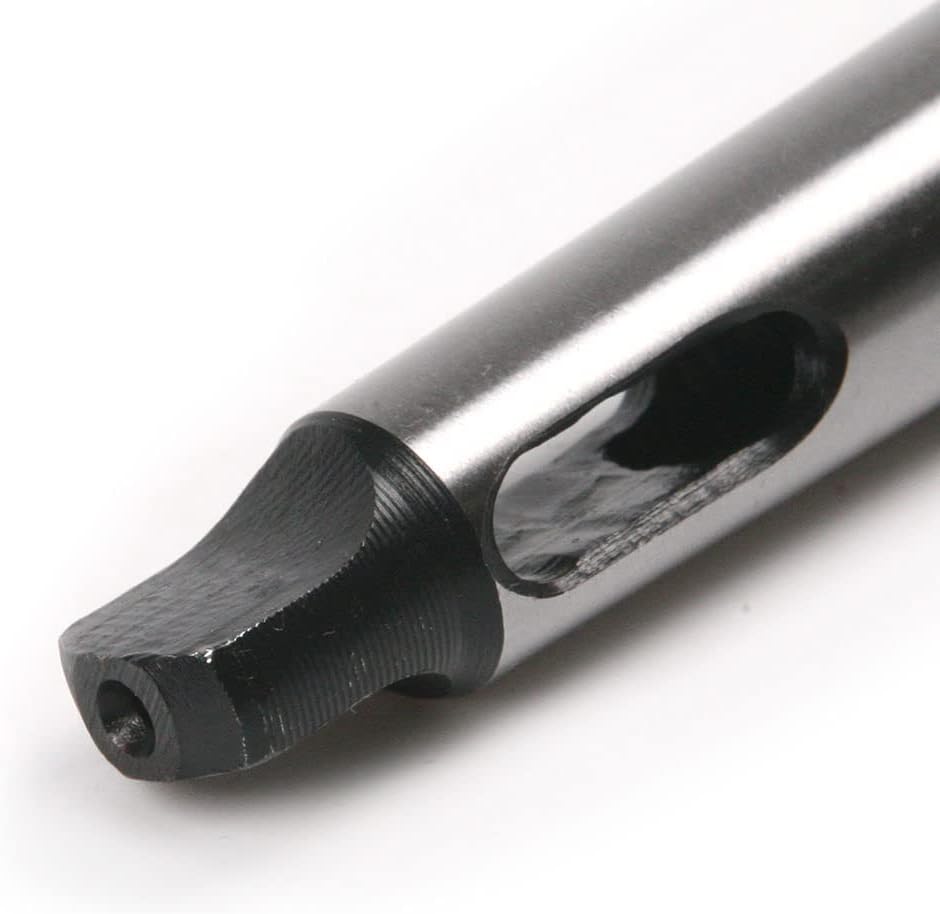

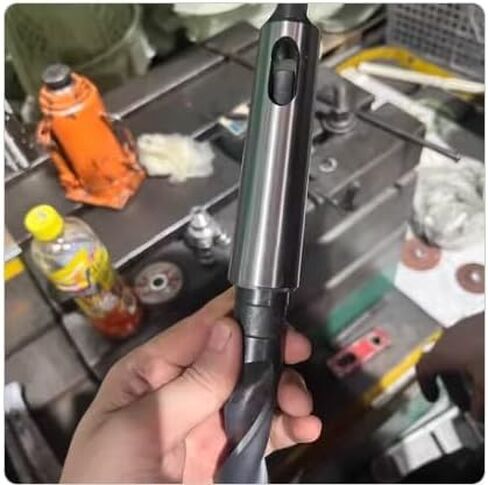

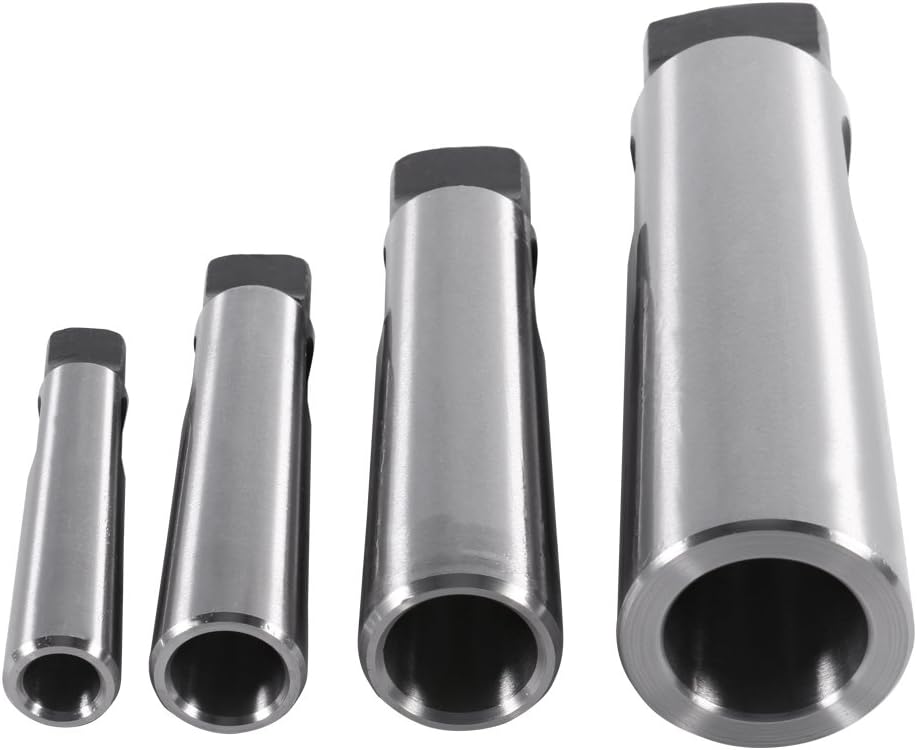

Taper Adapter: High precision, fine workmanship, smooth inside and outside, easy to store and maintain, very practical. There are four types for you to choose from. Each product has been strictly tested before leaving the factory, with quality assurance, so as to improve your shopping experience
Drill Sleeve: is made of high-quality 45# steel, , wear-resistant and long service life. adopts the overall quenching process and has strong impact . According to the factory quality control, the conical adapter sleeve has high performance.
Reducing Drill Sleeve: The use of taper shank cutter, taper shank drill bit and taper shank reamer improves the working efficiency, has high hardness, is not easy to break, and has long service life. is a substitute for the old cutter
After each Taper Adapter Sleeve is processed, has been refined for many times, and the optimal finish and refined full grinding ensures that the accuracy of the processing is easier, makes the drill sheeve possess higher performance
Overall Quenching Treatment: The Taper Reducing Adapter Drill Sleeve undergoes overall quenching treatment, with higher hardness and wear , is not easy to be damaged, and has a long service life

وصف

Description:
These adapters are made from steel, hardened and tempered, precision ground inside and outside for high concentricity. Taper shank allows the tool to be inserted directly into the machine's spindle to facilitate high- applications such as large cut diameters.

Specifications:
Material: 45# steel
Type: MT1 to MT2, MT2 to MT3, MT3 to MT4, MT4 to MT5(Optional)
Hardness: 50 HRC

Type
D(mm)
d(mm)
L(mm)
External Taper
(MT.NO.S)
Internal Taper
(MT.NO.T)
Inner Hole Length(mm)
Weight(g)
MT1 to MT2
17.78
12.065
92
2
1
56
89
MT2 to MT3
23.825
17.78
112
3
2
67
174
MT3 to MT4
31.267
23.825
140
4
3
84
350
MT4 to MT5
44.399
31.267
171
5
4
107
1000

Package Included:
1 x Taper Drill Sleeve

Note:
Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
