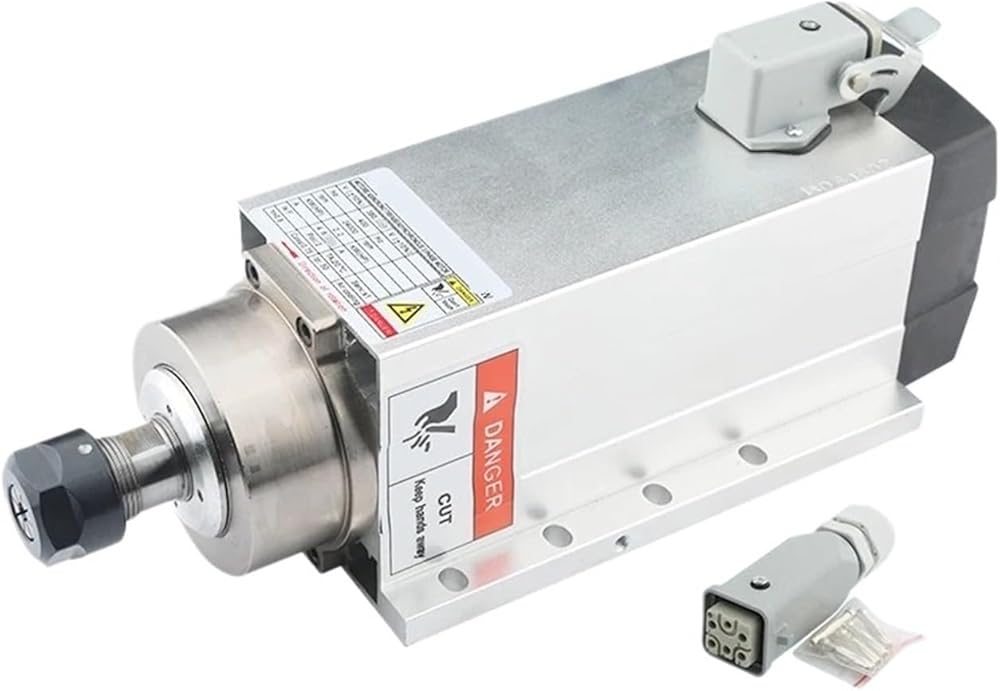

1PC 220v 2.2kw ER20 air-cooled spindle motor mounting flange 4 bearings
Dimensions: 184x84x82mm
Speed regulation method: Through the three-phase output inverter, adjust the frequency of the inverter to change the spindle speed.
Cooling method: air cooling
Power interface: An optional 5-pin waterproof aviation is available. The aviation is marked with "1," "2," "3," "4," "5," and "GND." Connect "1," "2," and "3" to the inverter (U, V, W), and connect "GND" to the inverter ground.
Power: 2.2kw (1HP=0.735w)
Current: 4.6A
Frequency: 0-400Hz
Speed: 0-24000rpm
Jump: less than 0.01mm
Bearing type: 4 ball bearings
Chuck: ER20
Clamping tool diameter: 13mm, 12.7mm, 12mm, 11mm, 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3.0mm, 2.5mm, 2mm, 1.5mm, 1mm
