Spindle Sanders

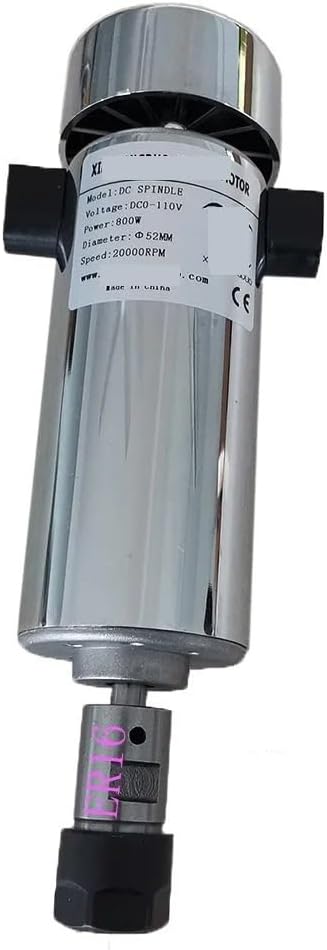

Spindle motor parameters:
Working voltage: 110VDC
Speed: 20000r/min
Power: 800W
Torque: 0.79NM
Insulation resistance: >2 megohms
Dielectric strength: 400V
Total length: 203.5mm
Diameter: 52 mm
Shaft chuck length: 45mm
Chuck size: 35mm shank (total length 43mm including nut and sandwich)
This product is equipped with ER11-3.175MM collet and ER16-8MM collet by default.
This product is equipped with ER11-3.175MM collet and ER16-8MM collet by default.
Preventive measures
Spindle ER11 Spindle Clamp (1mm-7mm) Default 3.175MM chuck
Spindle ER16 Spindle clamp (1mm-10mm) Default hairline 8 mm chuck drill chuck
Spindle spindle (drill chuck clamping range: 1.5-10mm)
