Spindle Sanders

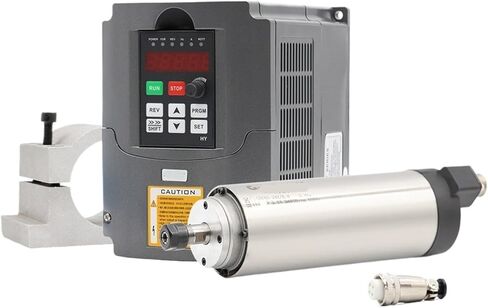

1&220v08kw ER11 air-cooled spindle motor
1 220V 15KW inverter
1 65mm spindle clamping bracket
Size 65x181mm (body diameter 65mm; length: 181mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: air cooling
Power: 0.8kw (1HP=0.735kw)
Voltage: 220vAC 110v
Current: 3A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: 0.01mm (high precision)
Bearing type: 2X7002C P4 DT and 2X7000C P4 DT
Fully sealed angular contact bearings
Chuck: ER11
Clamping knife diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm
Air-cooled ER11 chuck block
