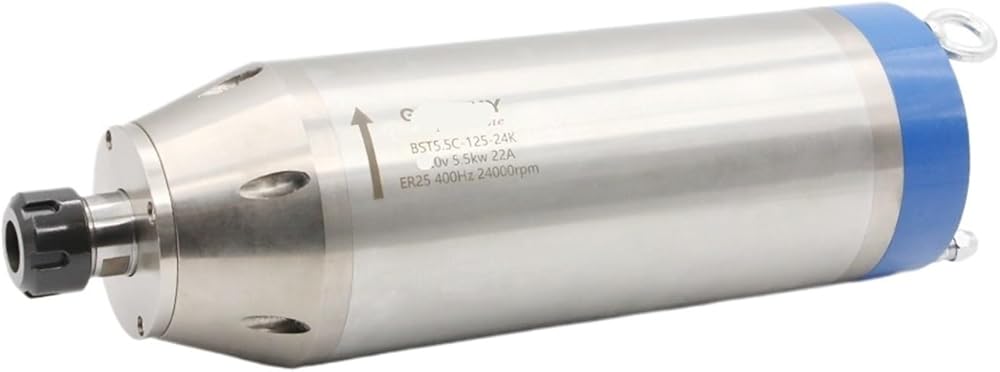

Spindle Sanders
Size: 125x300mm (middle body diameter: 125mmxlength: 300mm)
Material: 304 stainless steel jacket, water jacket is die-cast aluminum tube, high temperature resistant copper coil
Speed regulation mode: 0-24000 stepless speed regulation can be achieved by adjusting the inverter output voltage and operating frequency
Cooling method: water cooling
Power: 5.5KW
Voltage: 220V/380V
Current: 22A/14A
Frequency: 400Hz
Speed: 18000-24000rpm
Runout deviation: 0.01mm
Diameter(mm):125
Bearing type: 4 bearings
Chuck: ER25
Clamping knife diameter: 1-20mm, 3.175mm, 6.35mm, 12.7mm
Water-cooled ER25 chuck block
