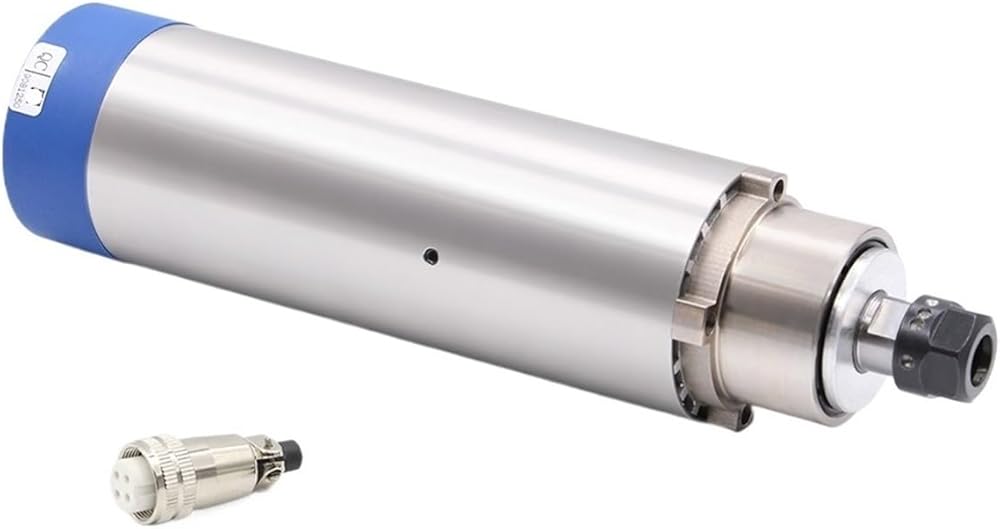

Spindle Sanders

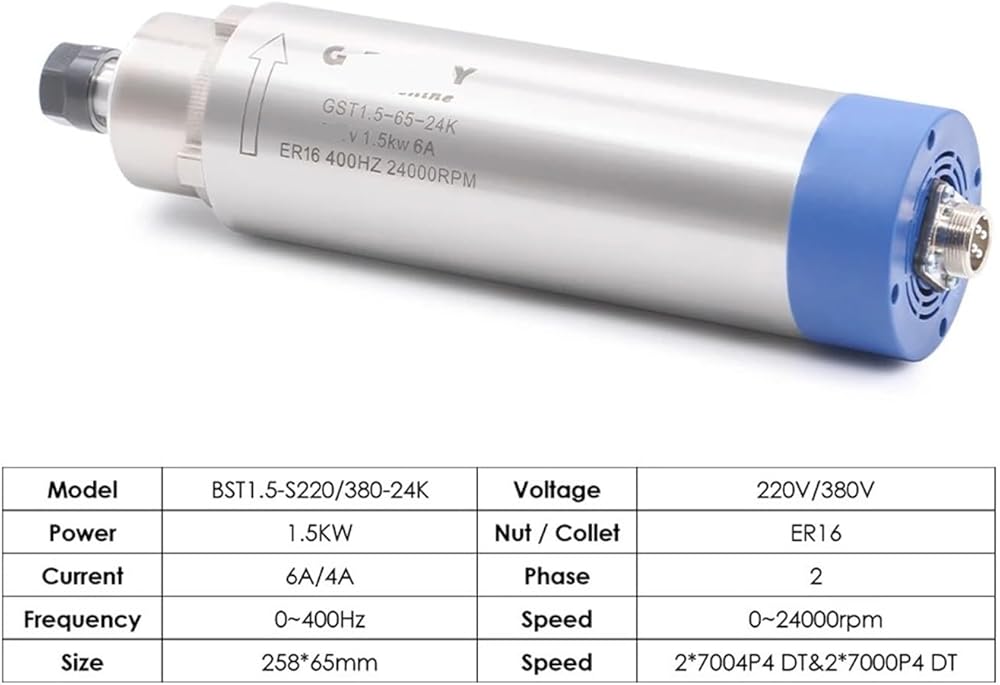

Basic parameters

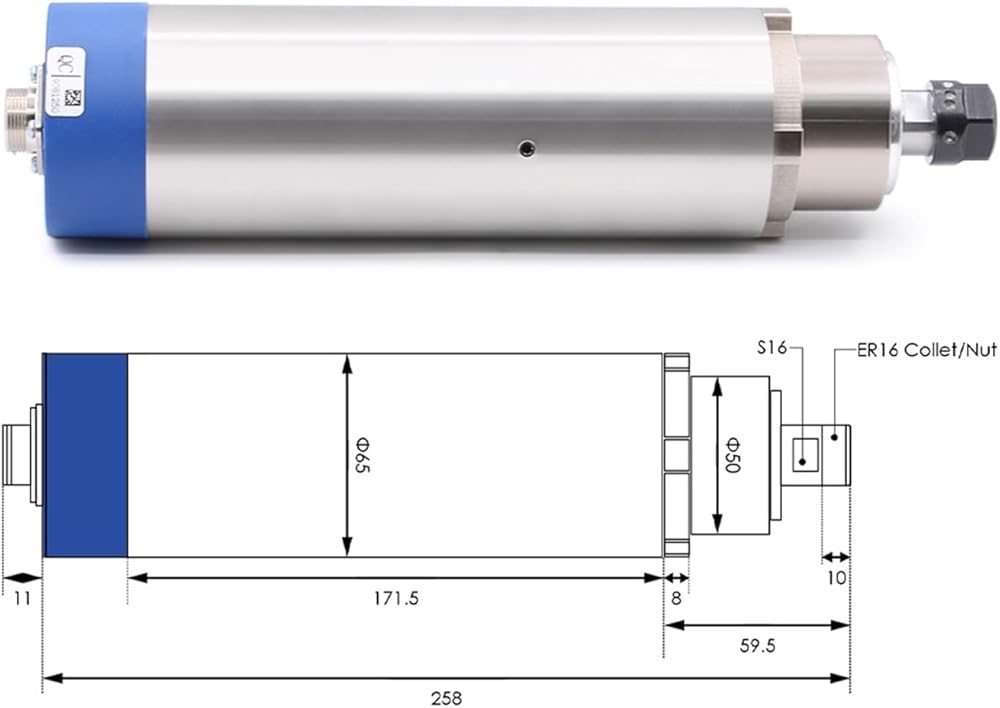

Size: 65x 258mm (body diameter 65mm; length: 258mm)

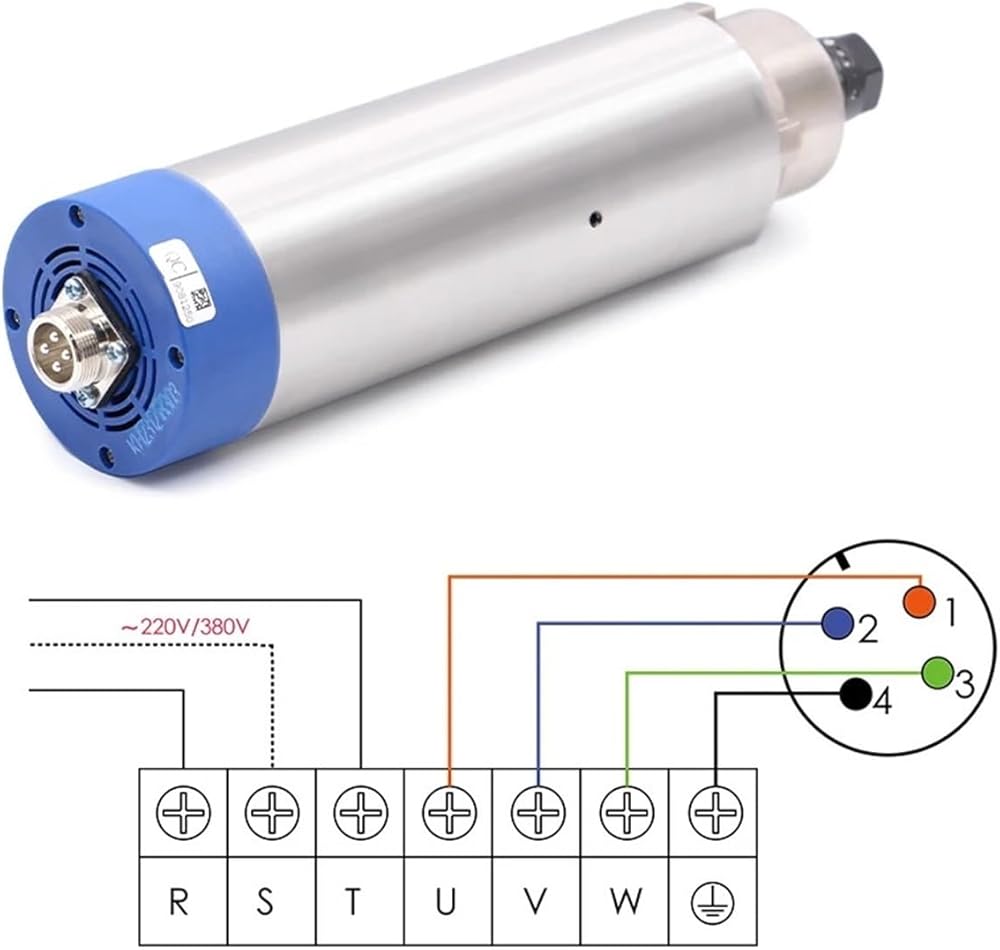

Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: air cooling
Power: 1.5kw (1HP=0.735kw)
Voltage: 220vAC 380v spindle
Current: 6A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout deviation: 0.01mm
Bearing type: 2X7004 P4 DT and 2X7000 P4 DT
Fully sealed angular contact bearings
Chuck: ER16
Clamping knife diameter: 10mm, 9mm, 8mm, 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm
Air-cooled ER16 chuck block
