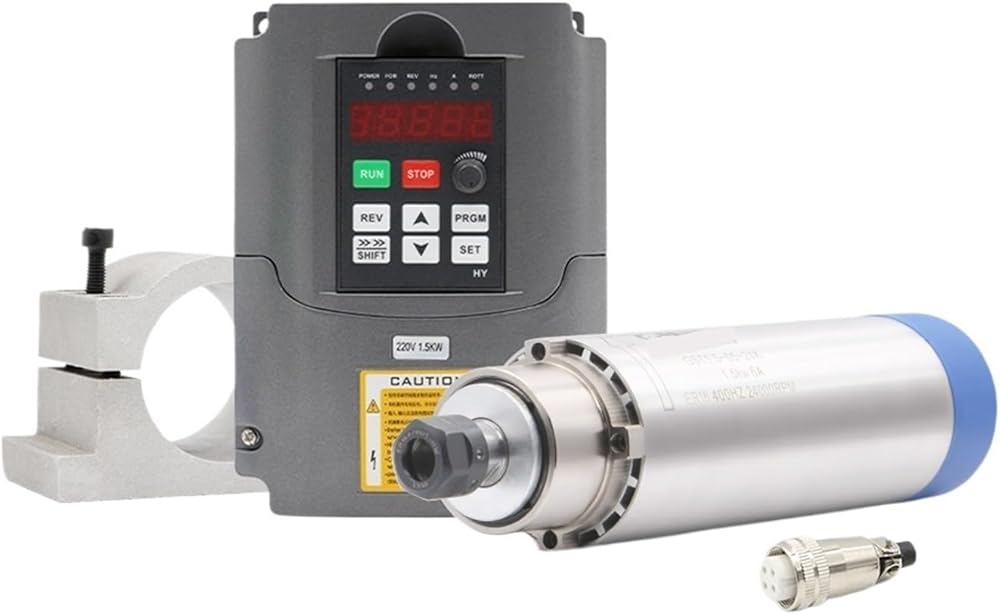

Spindle Sanders
Basic parameters
Size 65x258mm (body diameter 65mm; length: 258mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: air cooling
Power: 1.5kw (1HP=0.735kw)
Voltage: 110V/220V/380V
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout deviation: 0.01mm
4 fully sealed P4 angular contact ball bearings
Bearing type: 2×7004P4 DT&2×7000P4 DT
Air-cooled ER16 chuck block
Clamping knife diameter 10mm9mm8mm7mm635mm6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
