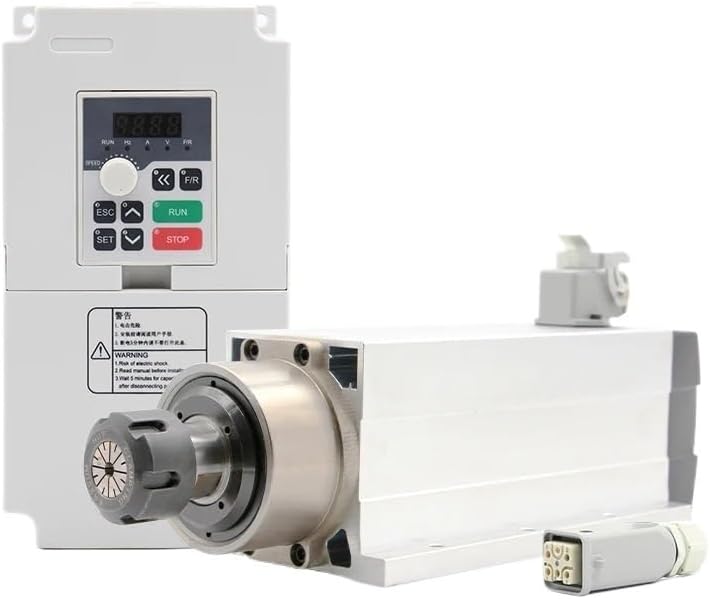

Spindle Sanders
Dimensions: 214x82x945mm
The speed regulation method is through the three-phase output inverter, adjusting the inverter frequency to change the spindle speed
Cooling method: air cooling
Power: 3.5kw (1HP=0.735w)
Voltage: 220v 380v spindle
Current: 14.5A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
Bearing type: 2x7007C P4 DB & 2x7002C P4DB 4 ceramic ball bearings
Chuck ER25
Clamping knife diameter 1mm2mm3mm3175mm18), 4mm, 5mm, 6mm, 6.35mm (1/4), 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 12.7mm (1/2), 13mm, 14mm, 15mm, 16mm
