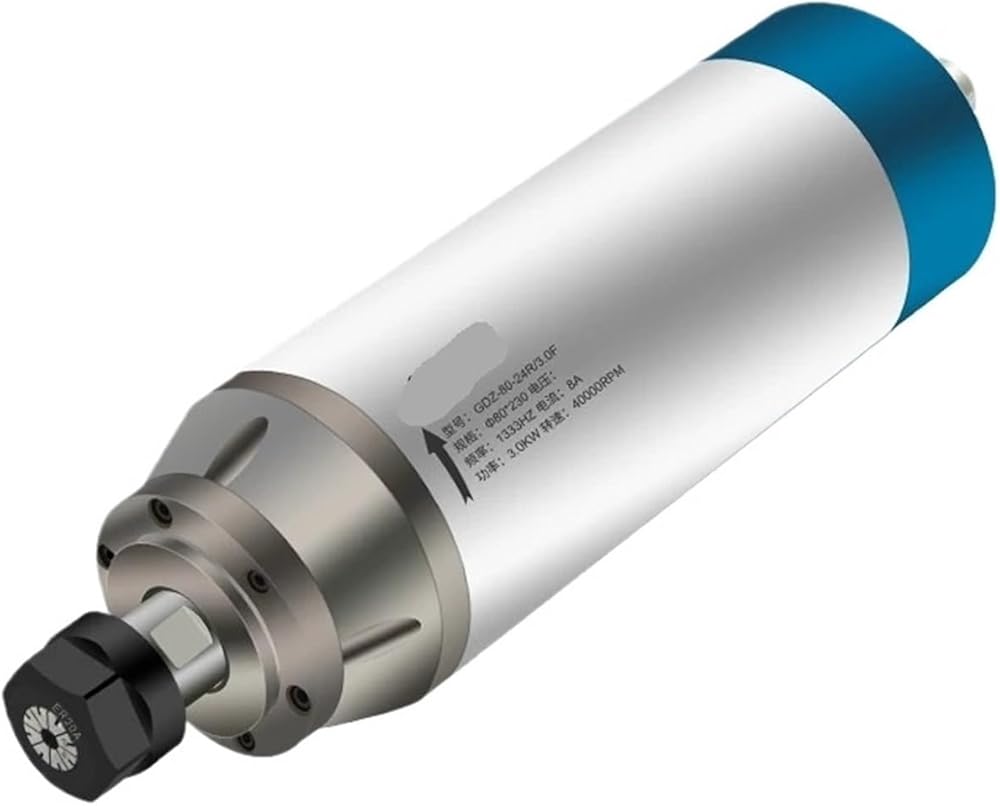

Spindle Sanders
Model: GDZ-80-24R/3.0F
Middle diameter: 80*230
Speed regulation mode: Change the spindle speed through the output of the three-phase inverter and adjust the inverter frequency.
Cooling method: water cooling
Power interface: Optional 4-pin waterproof aviation . Connect the aviation plugs marked "1", "2", "3", "4", "1", "2", and "3" to the inverter (U, V, W). Connect the four plugs connected to the inverter to ground the device.
Power: 3.0 kW
Voltage: 220V 380V
Current: 8.0A
Frequency: 1333Hz
Speed: 40000 rpm
Pulsation: less than 0.01mm
Bearing type: 4 bearings
Collet nut: ER20
