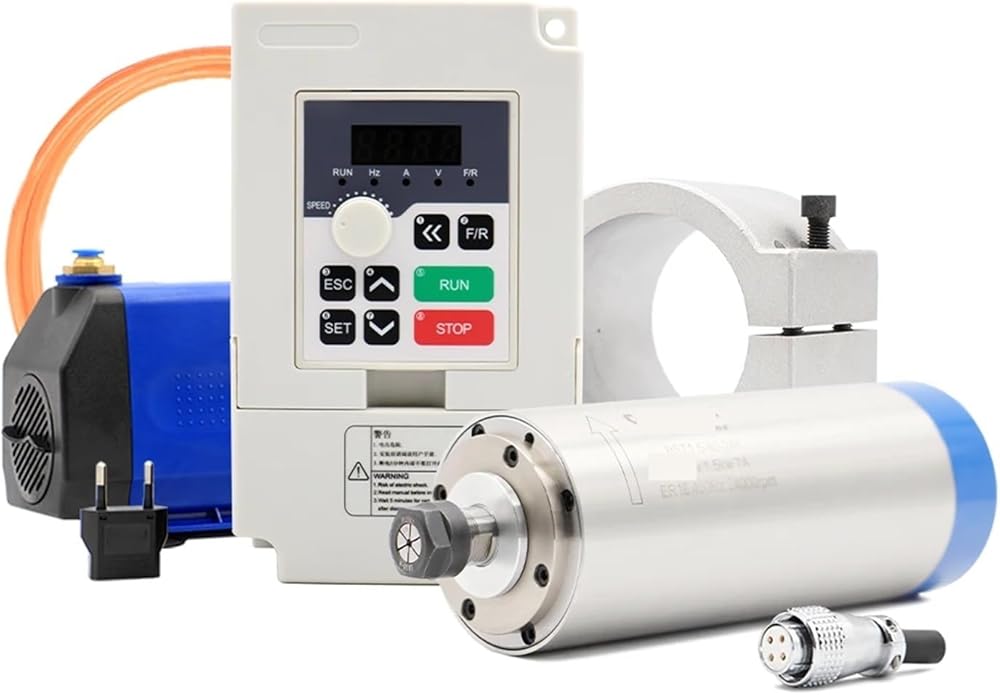

Spindle Sanders
Size 80x220mm, mid-body diameter 80mm x length 220mm
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling
Power: 1.5kw (1HP=0.735kw)
Voltage: 220vAC
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout deviation: 0.01mm
4 fully sealed angular contact bearings
Bearing type: 2×7004C P4 DT& 27002C P4 DT
Chuck ER16
Clamping knife diameter 10mm9mm8mm7mm635mm6mm,5mm,4mm,3.175mm,3mm,2mm,1mm (standard 6mm)
Water-cooled ER16 chuck block
