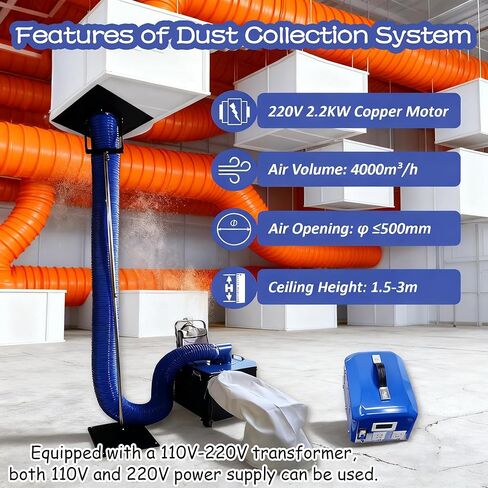

Parameters:

Voltage: 220V single-phase electricity

(Equipped with a 110V-220V transformer, both 110V and 220V power supply can be used)

Power: 2200W

Air volume: 4000m³/h

Length of air duct: 16.4ft(5m)

Diameter of air opening: ≤500mm (19.7 inches)

Ceiling height: 4.9-9.8ft (1.5-3m)

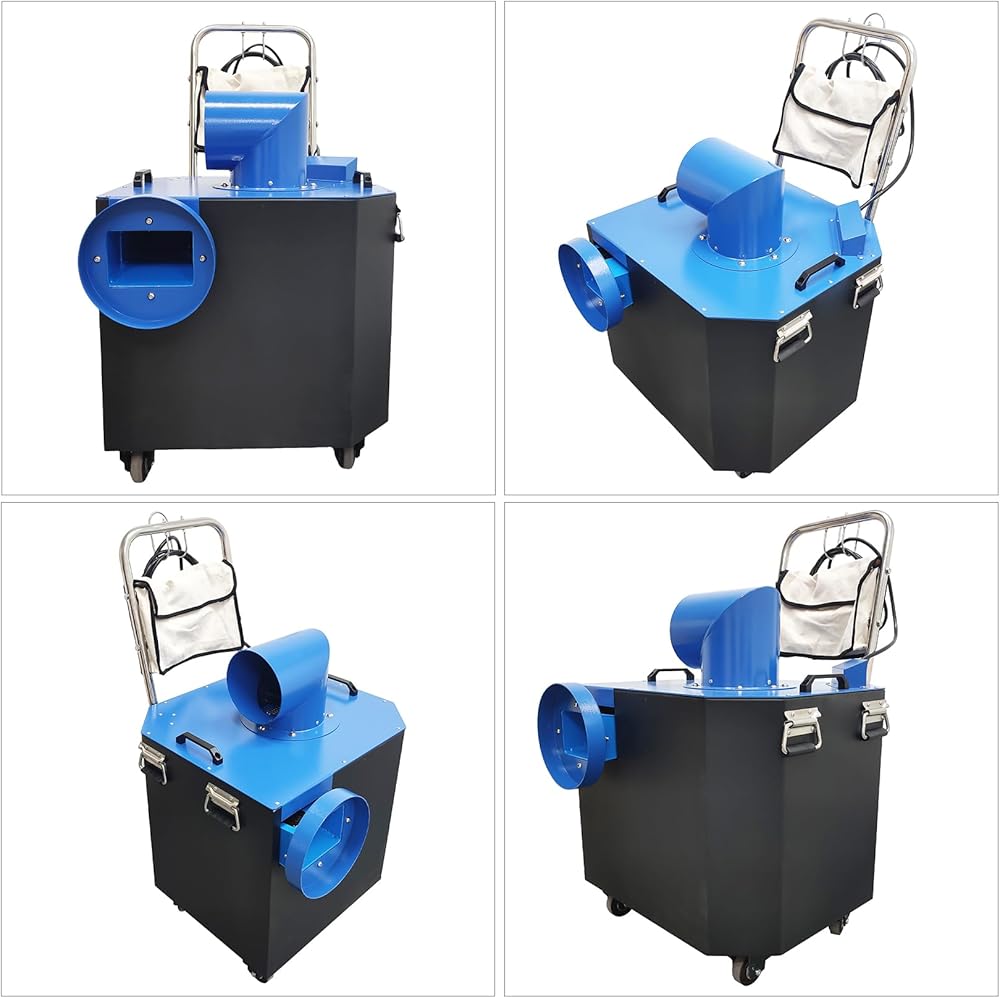

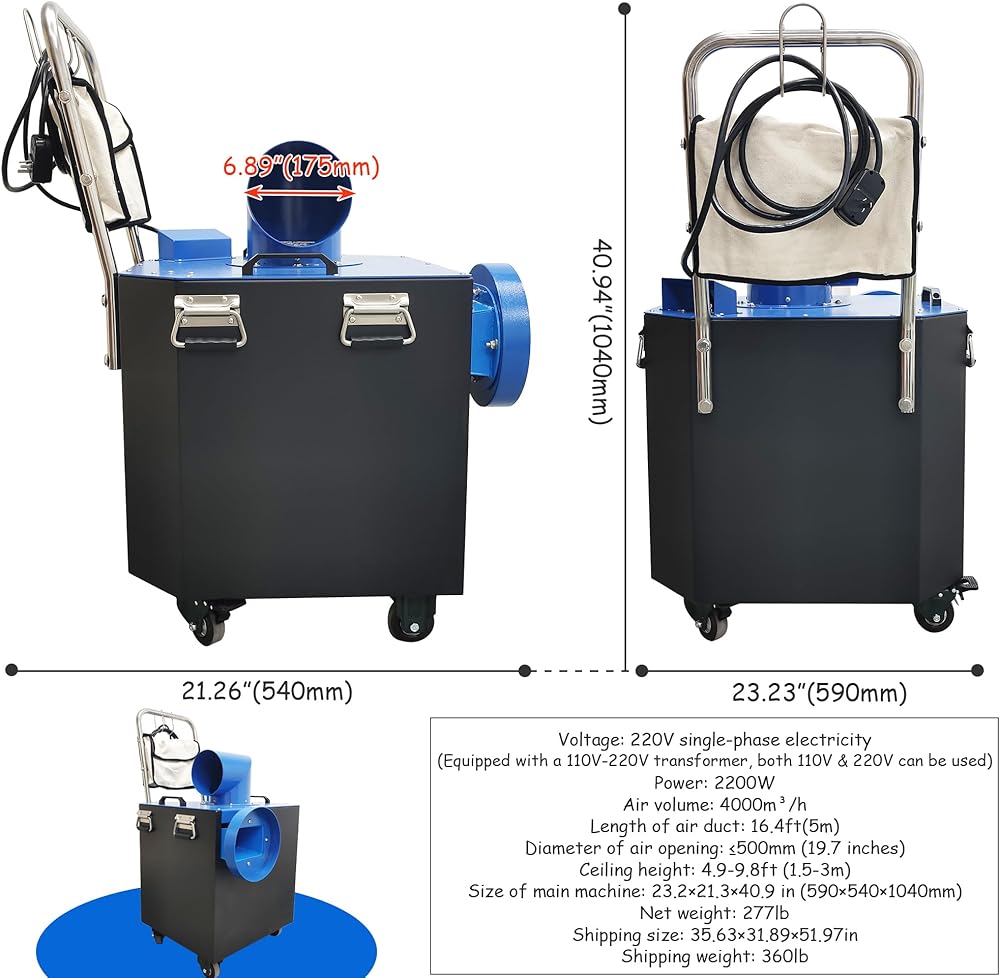

Size of main machine: 23.2×21.3×40.9 in (590×540×1040mm)

Net weight: 277lb

Shipping size: 35.63×31.89×51.97in

Shipping weight: 360lb

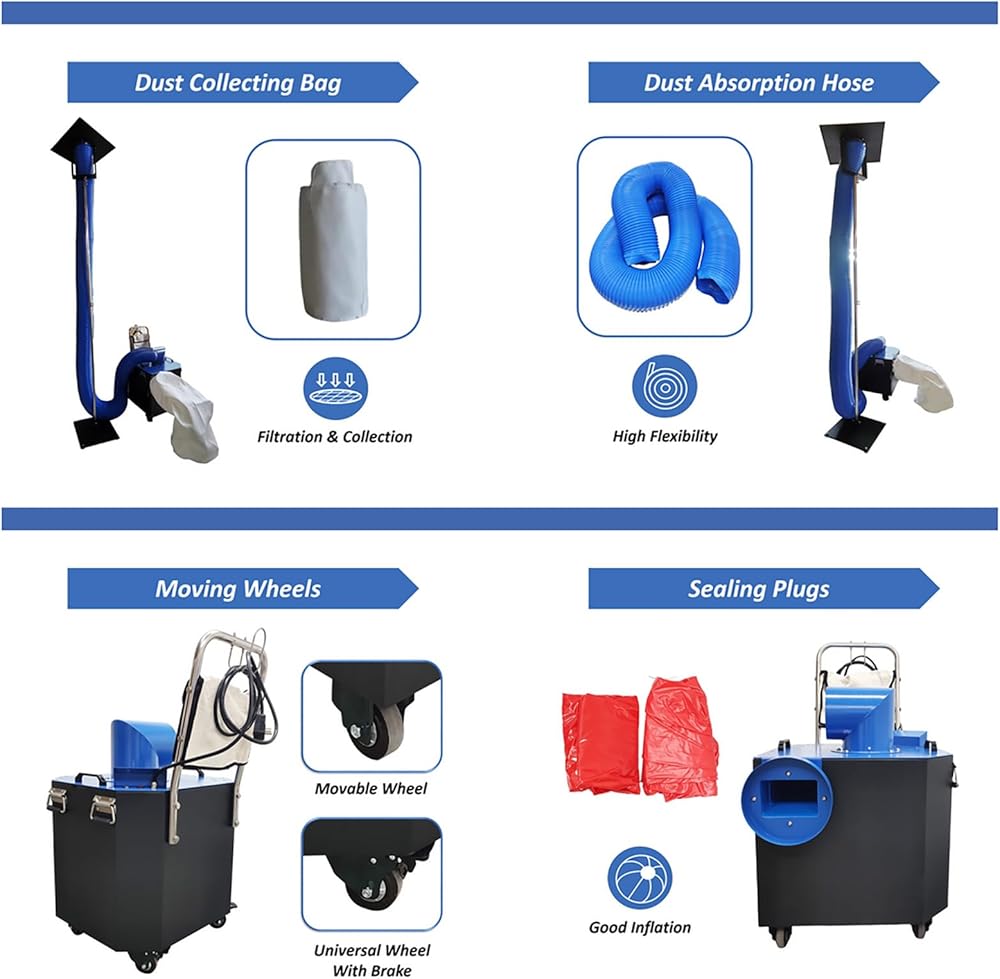

Item included:

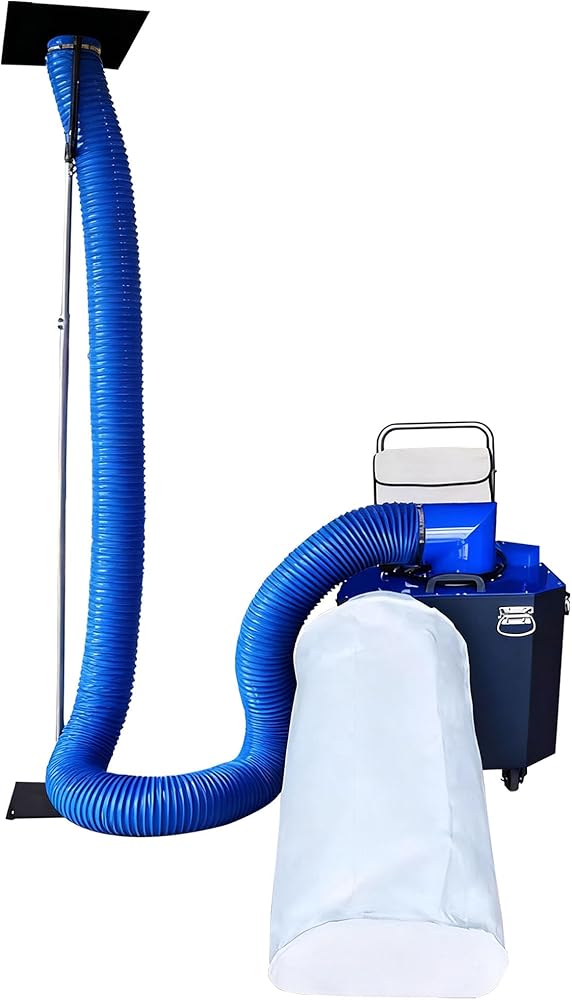

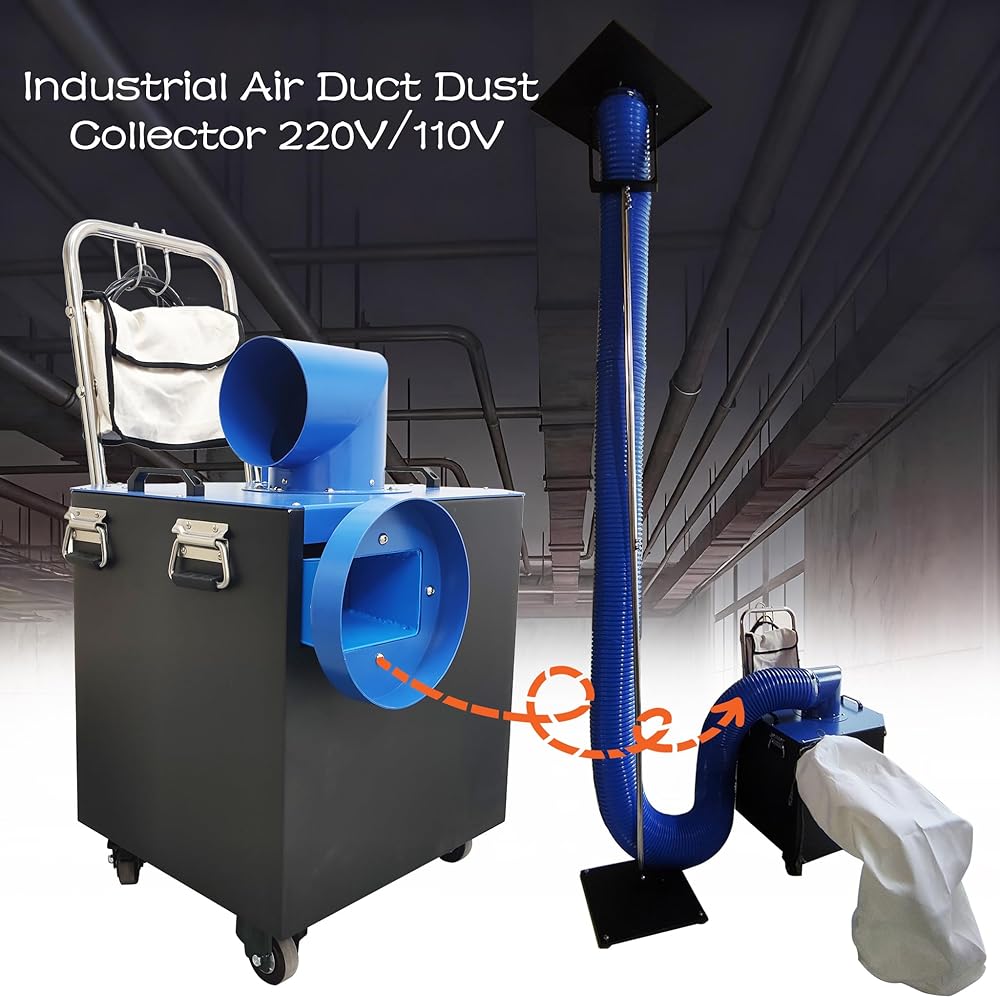

One set of 110V/220V 2200W INTSUPERMAI Industrial Air Duct Dust Collector Workshop Dust Collection System

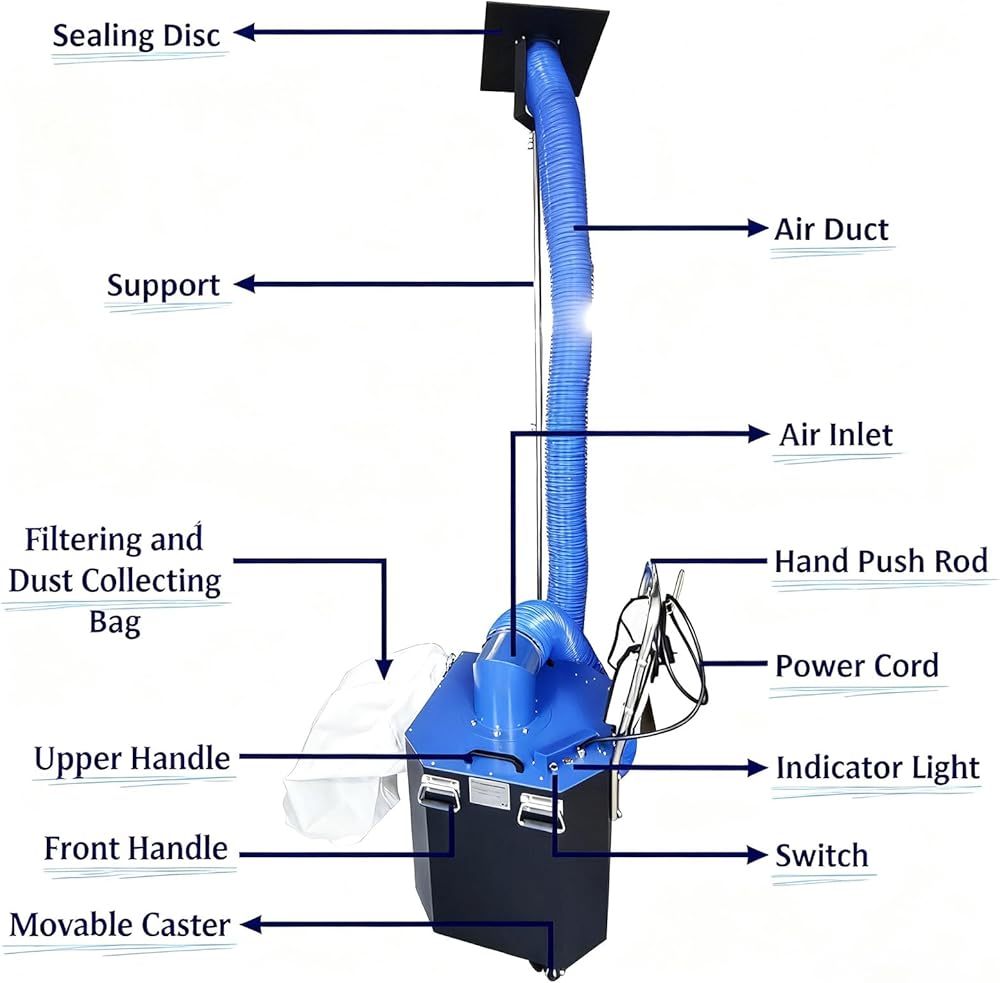

Operation Method:

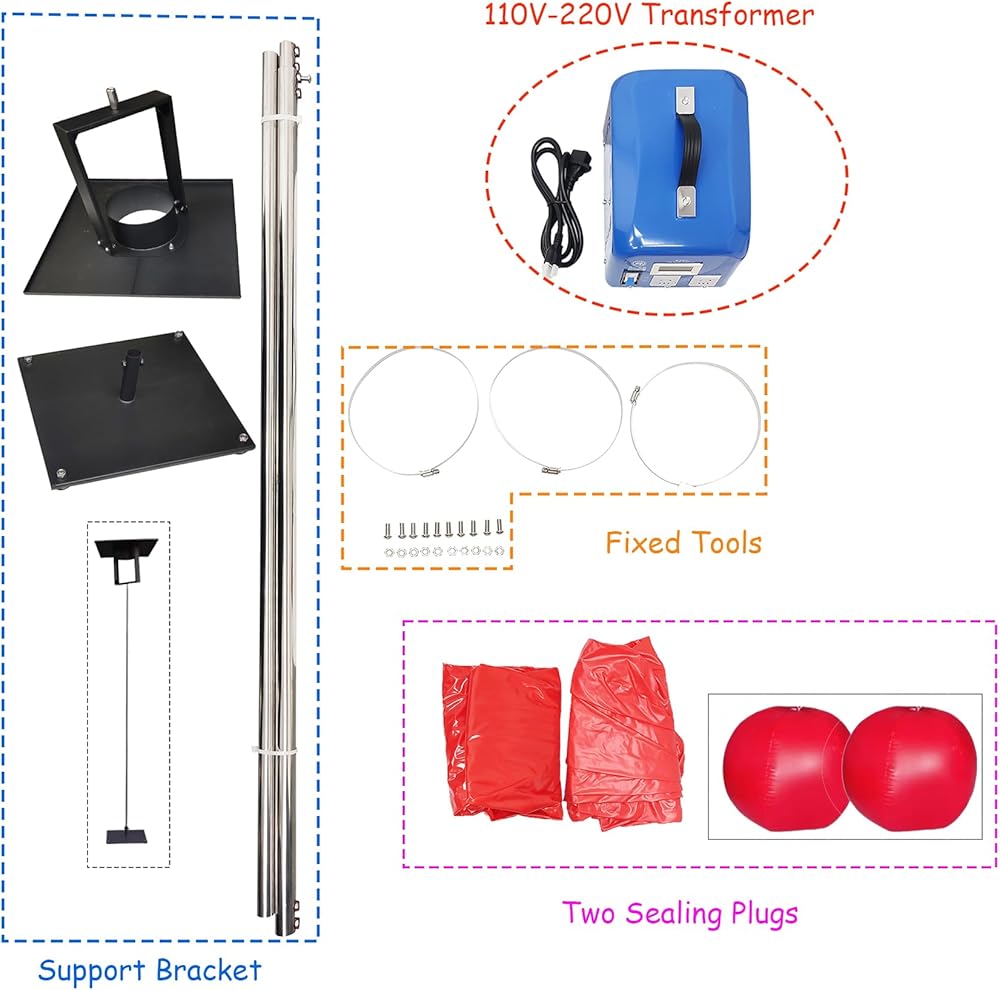

1. Inflate the sealing plugs and then install the sealing plugs at both ends of the pipeline that needs to be cleaned.

2. Install the two brackets onto the bottom plate and top plate respectively and tighten the screws.

3. Fix one end of the air duct to the bracket top plate with a pipe clamp and tighten the pipe clamp screw.

4. Fix the other end of the air duct to the dust absorption opening of the main machine with a pipe clamp and tighten the pipe clamp screw.

5. Lift the bracket top plate, align it with the pipeline that needs to be cleaned, and then fix it to the bracket bottom plate.

6. Install the dust collection bag to the dust removal opening and fasten the dust collection bag opening tightly.

7. After checking and ensuring that there is no looseness in the connections of all parts, the power can be turned on for operation.
