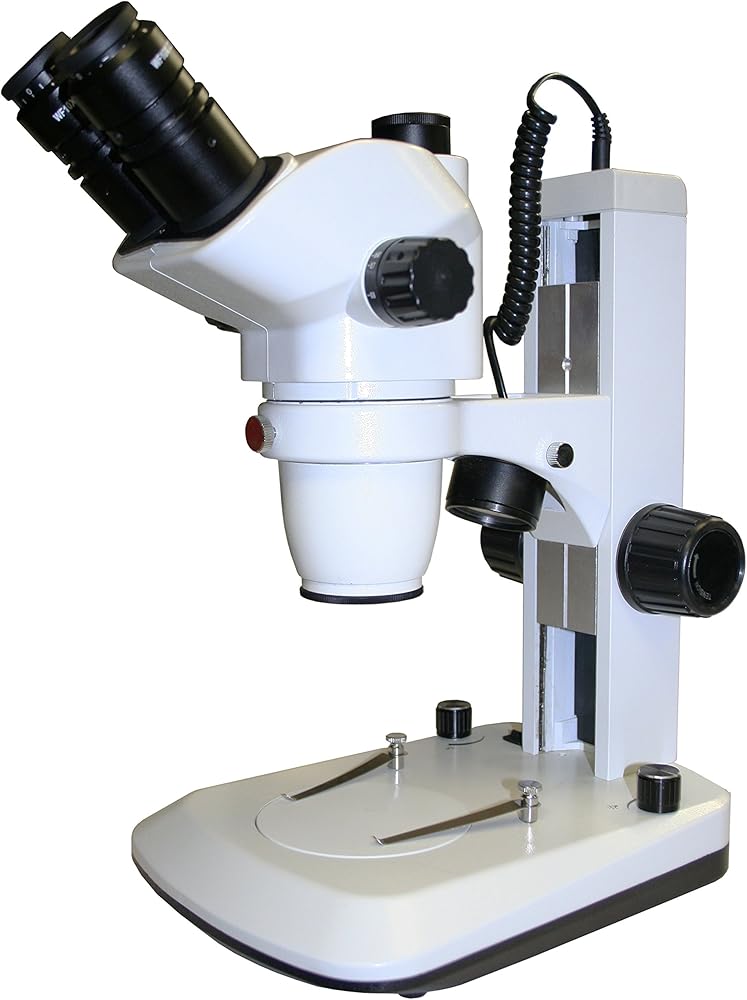

Fully coated optical system which provides a sharp and clear imaging with extreme flatness and contrast. This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments. Designed to be outfitted with a variety of lens accessories to increase or reduce magnification. With a large zoom range and long-working distance, it can produce the best reproduction and true color imaging. Ideal for high-magnification, high-resolution observation in biological research, semi-conductor and other precision-oriented industries.
Magnification:
Standard magnification: 6.7X~45X The magnification range can be changed to 3.4X~ 180X with optional auxiliary lens and optional eyepieces
Viewing Head:
Trinocular head, (50/50 split ratio), 45° inclined and 360° rotatable
Interpupillary distance adjustable from 54mm-76mm
Eyepiece:
Two diopter adjustment of +/-5 on both eyepieces
10X wide-field (Field of view number, FN22), high eyepoint
Paired 10X/22mm (Optional eyepieces WF15X/16mm, WF20X/12mm, Various reticle eyepieces WF10X/22mm available, not included)
Working Distance:
Standard objective zooming magnification range: 0.67x ~ 4.5x, Zoom ratio: 1:6.7, parfocal, working distance 105mm
Auxiliary lens (optional): 0.5X/177mm(working distance), 2X/26mm available ( working distance)
Packing List
One Trinocular zoom stereo microscope head
Track stand with a focusing arm
Pair of high eyes point 10x widefield eyepieces
Black & white reversible stage plate/Glass stage plate
Pair of stage clips
Pair of rubber eye guards
One dust cover
User manual
