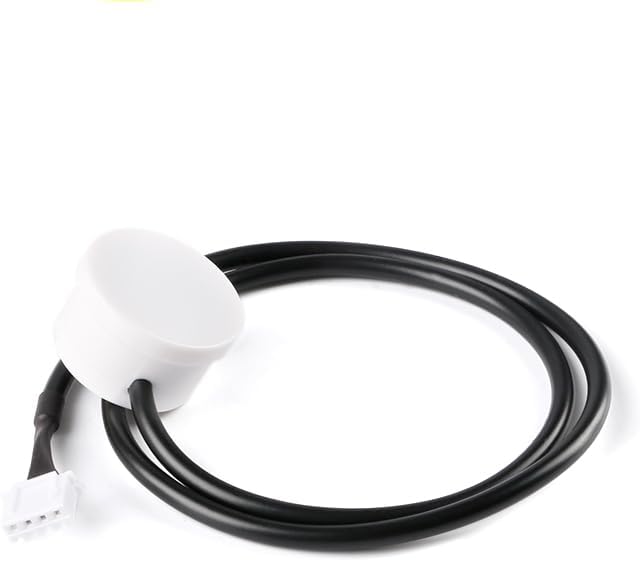

XKC-Y25-V Non Contact Liquid Level Sensor - Contactless Water Level Detection and Control

SAR 51
Brand
EC Buying
Category
Sensors
Weight
3 g
– 1 +

Special Features

  • The non-contact liquid level sensor adopts advanced signal processing technology and high-speed signal processing chips, breaking through the influence of container wall thickness and achieving true non-contact detection.
  • The non-contact liquid level sensor has strong compatibility and can penetrate various non-metallic containers, such as plastic, glass, ceramic, etc., with a sensing thickness of up to 20MM.
  • Suitable for liquid-level detection of various curved, curved, and cylindrical containers.
  • The liquid level sensor (probe) is installed above and below the outer wall of the measured container (high and low levels of the liquid level), non-metallic containers do not need to be perforated and are easy to install.
  • The tested liquid is required to conduct electricity, and the contact surface is non-metallic, which can be widely used.

Description

Product Parameters
Product specification and model: XKC-Y25-V
DC input voltage (VIN): DC 5-24V
Output method: high and low levels
Line length: 500mm (± 10mm)
Current consumption: 5mA
Response time: 500mS
Sensing thickness sensitivity range: ≤ 20mm (container wall thickness)
Humidity: 5%~100%
Output voltage (high level): VIN
Output voltage (low level): 0V
Power ripple requirement: ≤ 200 mV
Working environment temperature: -20 ℃~105 ℃
Liquid level accuracy: ± 1.5mm
Material: PC-V0 fireproof material
Waterproof performance: P67

Line end definition:
Brown (positive)
Blue (negative)
Yellow (signal output)
Black (signal selection)

Widely used in various fields
Household appliances
Sweeping robot
Sewage treatment equipment
Disinfection robot
Plant protection drone
