Dioche Signal Isolation Module 0-10V Analog Quantities Voltage Signal Isolation Module for PLC/MCU, AntiInterference, Voltage Calibration, Dual DC Power Supply

SAR 76
Brand
Dioche
Weight
40 g
– 1 +

Special Features

  • signal isolation module 0-10v High- Signal Isolation: The 0-10V Analog Quantities Voltage Signal Isolation Module employs advanced isolation technology to input and output an analog voltage signal with high conversion accuracy (±3%). This ensures reliable transmission of vital data in industrial control systems, enhancing the stability of PLC or MCU operations.

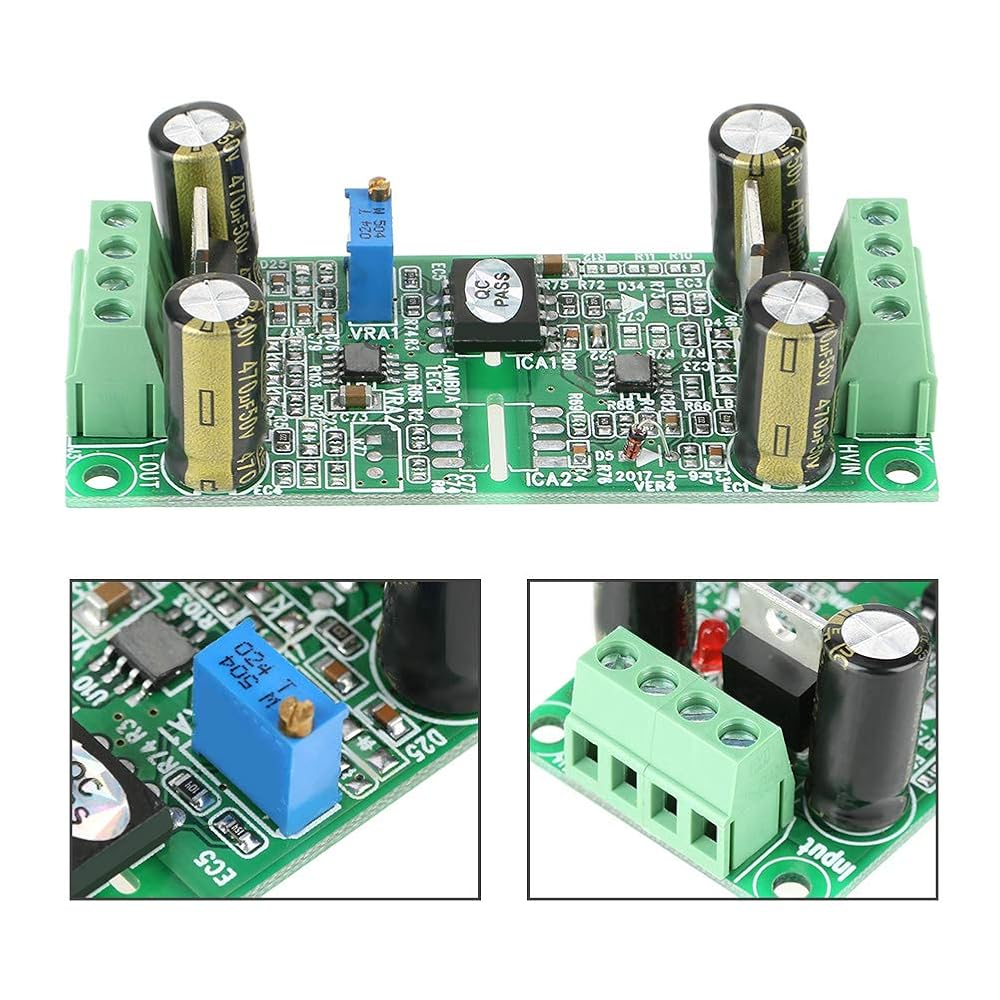

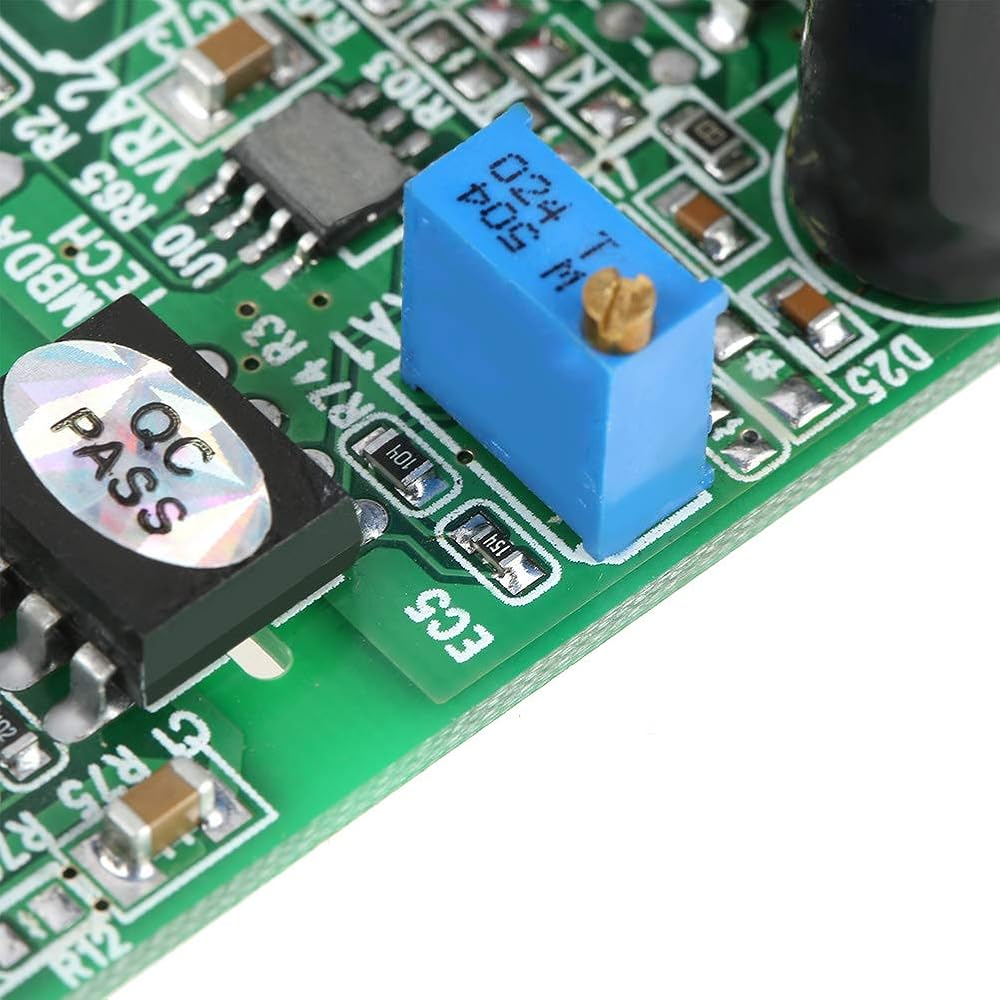

  • signal isolation module 0-10v User-Friendly Voltage Calibration: The module features a built-in potentiometer for easy voltage adjustment and calibration. This allows users to refine the output voltage relationship quickly, ensuring precise output according to your specific requirements, thereby improving overall system accuracy.
  • signal isolation module 0-10v Robust Anti-Interference Design: This module effectively isolates high voltage or interference-prone signals. By transferring the signal to your PLC/controller while safeguarding against electrical noise, it significantly improves system stability. For optimal performance, it is recommended to install both the module and controller within a grounded metal enclosure.
  • signal isolation module 0-10v Versatile Application Scenarios: Designed for use in various environments, this isolation module is perfect for industrial automation, robotics, and any application necessitating the transfer of delicate analog signals without interference. It accommodates multiple channels, providing flexibility for diverse setups and equipment.
  • signal isolation module 0-10v Complete with Essential Features: Each isolation module requires two independent DC power supplies (12V-32V) for functionality. Its compact size (8.53.52.8cm) and lightweight design (39g) make it easy to integrate into existing systems and projects. Technical specifications ensure it meets the demands of modern electronic applications.

Description

Specifications: Model: (single channel input) Power Supply: 12V-32VDC Input: 0-10V analog voltage signal Output: 0-10V analog voltage signal Conversion Accuracy: ±3% Conversion Speed: ≥200MS Size: 8.5*3.5*2.8cm/3.3*1.4*1.1in Weight: 39g(approx.) Wiring: 1) Input Voltage Terminals: HVIN: 12V-32V power supply positive HGND: 0V power supply negative AI1: Analog input first channel (0-10V voltage) : Analog Input second channel (0-10V voltage) 2) Output Voltage Terminals: VIN: 12-32V power supply positive GND: Power supply negative A1O: Analog output first channel (0-10V voltage) : Analog output second channel (0-10V voltage) Package Includes: 1 x Isolation Module Voltage Parameter How to Use Package List
