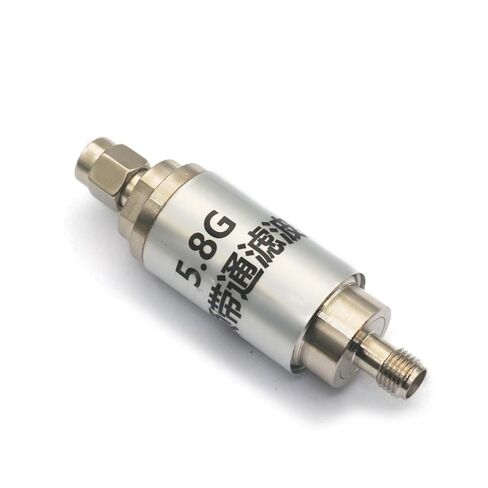

GAVATKLKCP RF Band Pass Filter BPF 433M 868M 915M 1.2G .5G 2.4G 5.8G LC Ham Radio Amplifier(BPF 2.4Ghz) in Saudi Arabia

BPF 5.8Ghz

SAR 168
SAR 214
Brand
GAVATKLKCP
Weight
50 g
SizeBPF 5.8Ghz
– 1 +

Special Features

  • High Rejection Performance:Outstanding out-of-band suppression, maintaining signal integrity for diverse applications.
  • Specific Frequency Isolation:Precise center frequencies with 1dB bandwidths ensure minimal out-of-band interference.
  • Band Pass Filter 433 Mhz 20 Mhz|High Frequency Coverage:Band pass filter supports a wide range from 433 MHz to 5.8 GHz, catering to diverse RF applications.
  • Compact and Versatile Design:SMA-M/F connectors and a consistent φ17*59mm module size for easy integration.
  • High RF Power Handling:Designed to withstand 20dBm power loads, perfect for robust RF amplifiers.

Description

433M bandpass filter
Center frequency: 433 MHz
1dB bandwidth: 20 MHz
Out-of-band suppression: > 60dB@120 MHz
> 45dB@700 MHz
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
868M bandpass filter
Center frequency: 868 MHz
1dB bandwidth: 10 MHz
Out-of-band suppression: > 42dB@700MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
915M bandpass filter
Center frequency: 915 MHz
1dB bandwidth: 30 MHz
Out-of-band suppression: > 58dB@600MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
1090M bandpass filter
Center frequency: 1090 MHz
1dB bandwidth: 10 MHz
Out-of-band suppression: > 65dB@915MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
1.2G bandpass filter
Center frequency: 1200 MHz
1dB bandwidth: 40 MHz
Out-of-band suppression: > 45dB@900MHz
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
1575M bandpass filter
Center frequency: 1575 MHz
1dB bandwidth: 20 MHz
Out-of-band suppression: > [email protected]
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
2.4G bandpass filter
Center frequency: 2450 MHz
1dB bandwidth: 100 MHz
Out-of-band suppression: > [email protected]
> [email protected]
Impedance: 50 Ohms
Maximum load power: 20dBm(100mw)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)

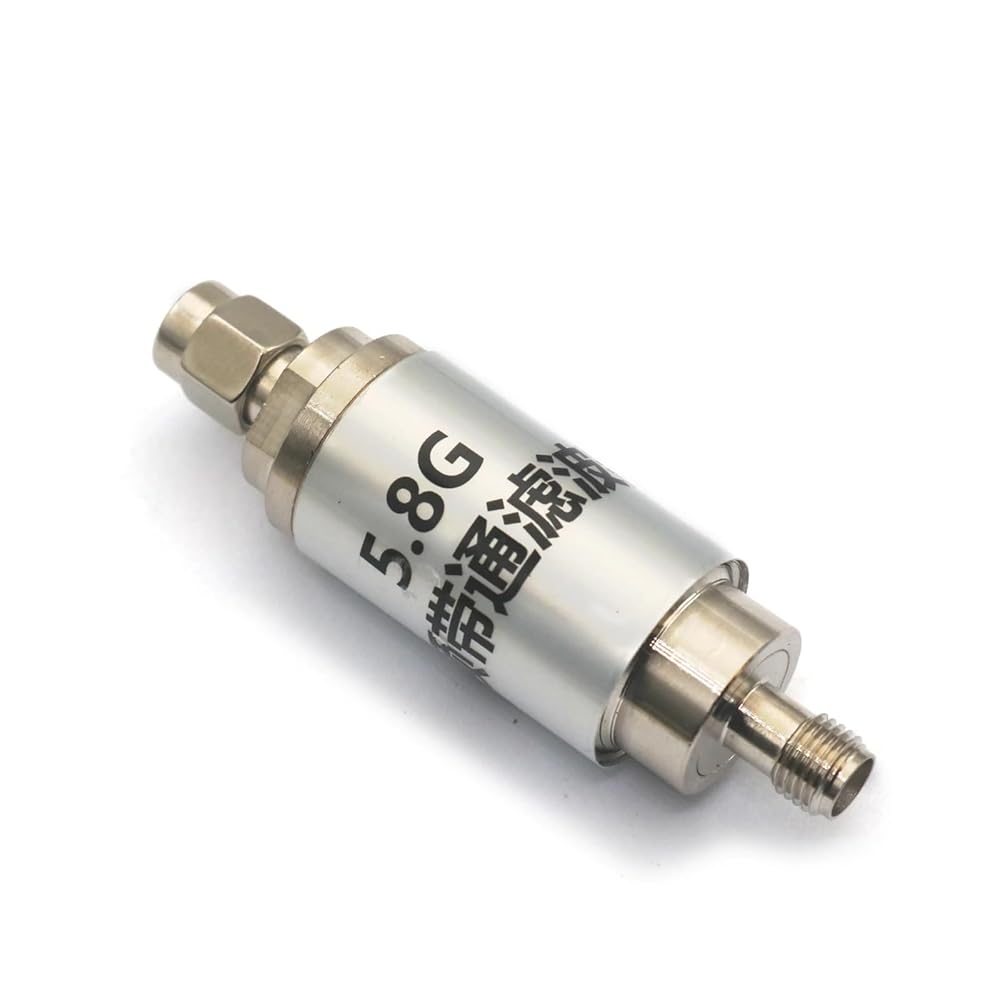

5.8G bandpass filter
Center frequency: 5800 MHz
1dB pass band: 600 MHz
Out-of-band suppression: > [email protected]
> 45dB@8GHz
Impedance: 50 Ohms
Maximum load power: 10 W (40 dBm)
Interface: SMA-M, SMA-F
Module size: 17 (diameter) *59mm (length)
