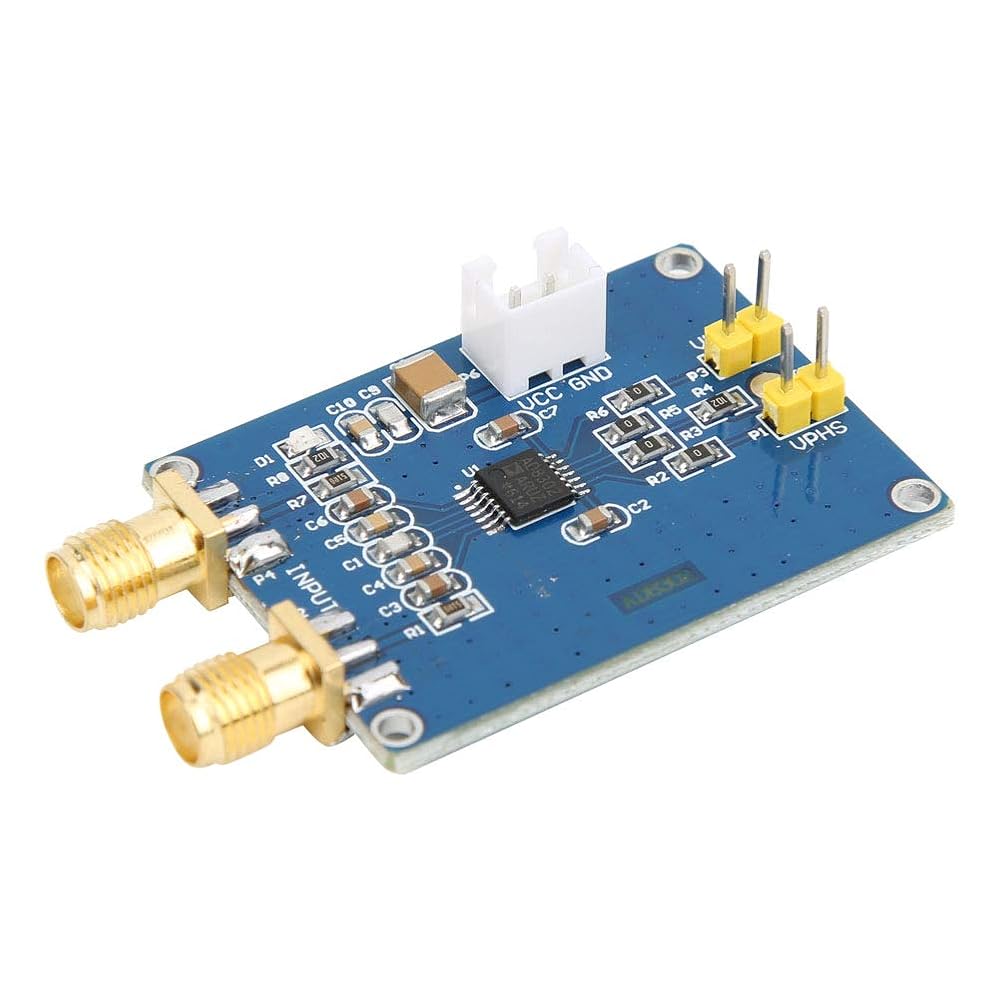

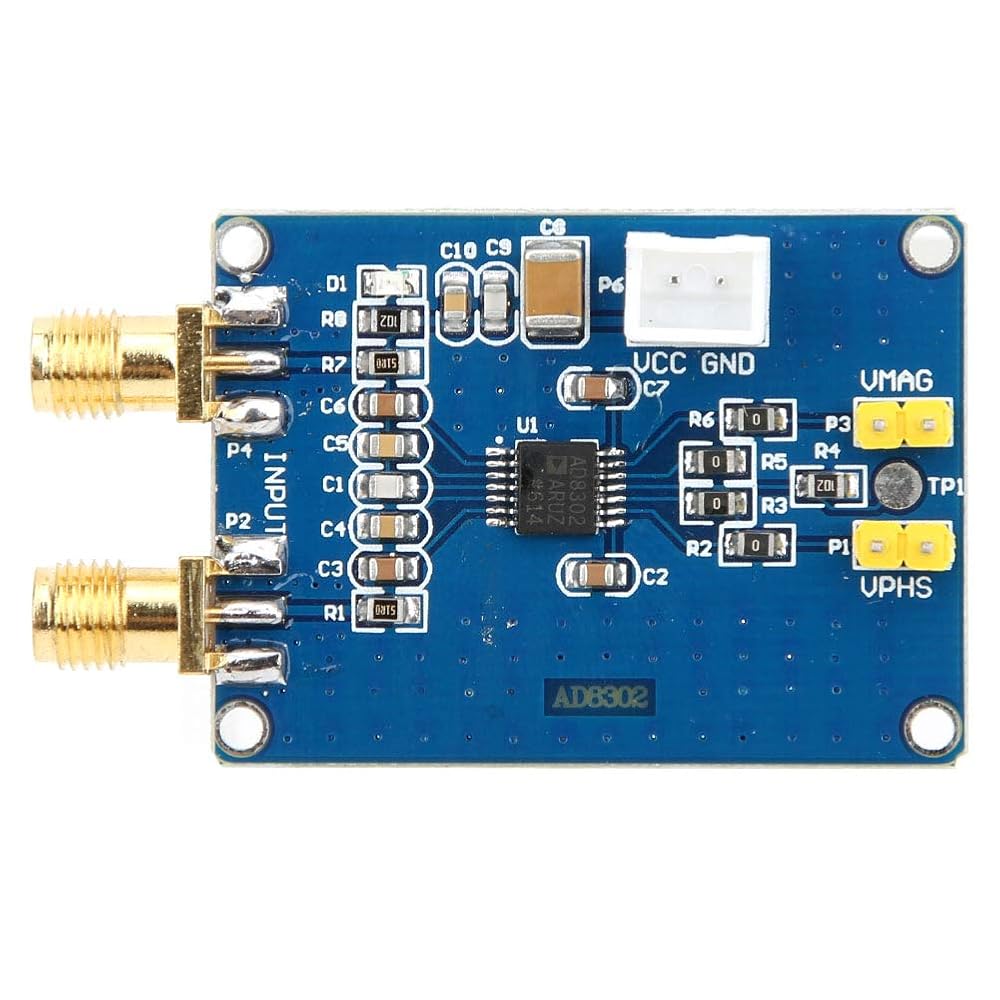

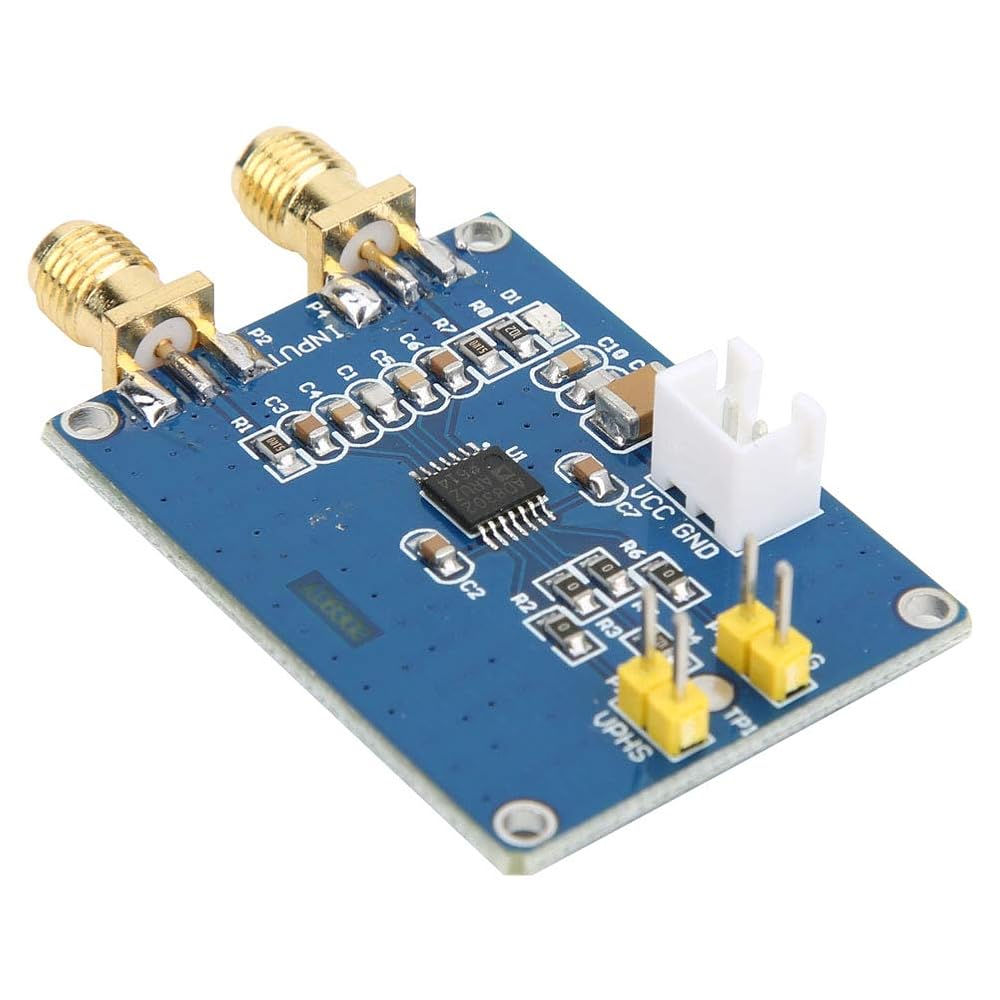

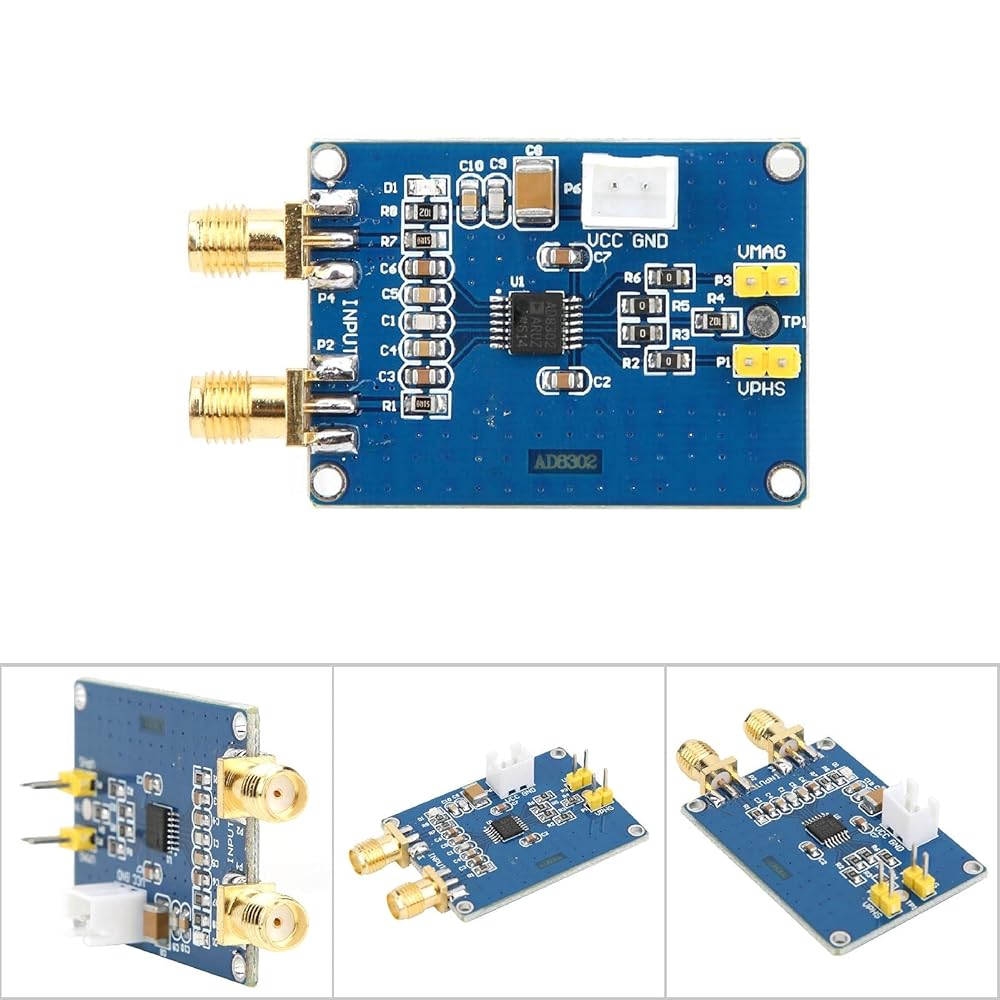

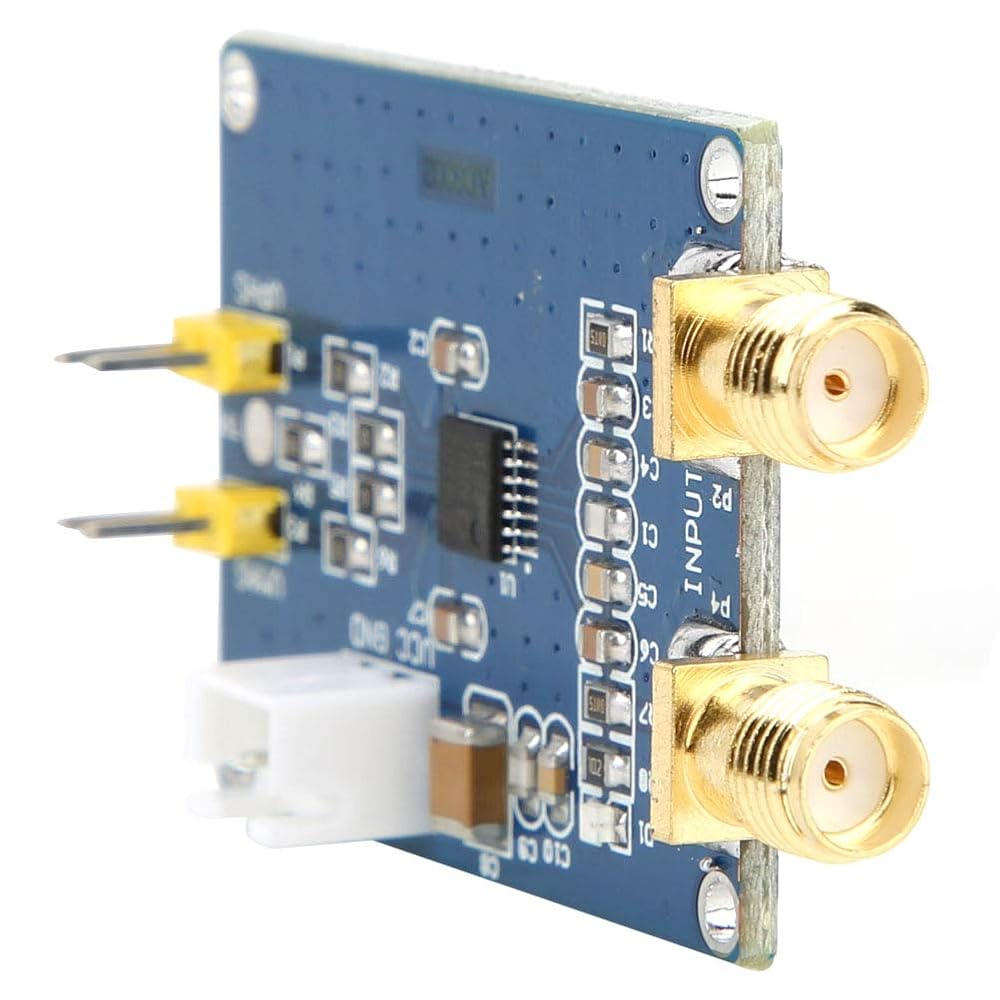

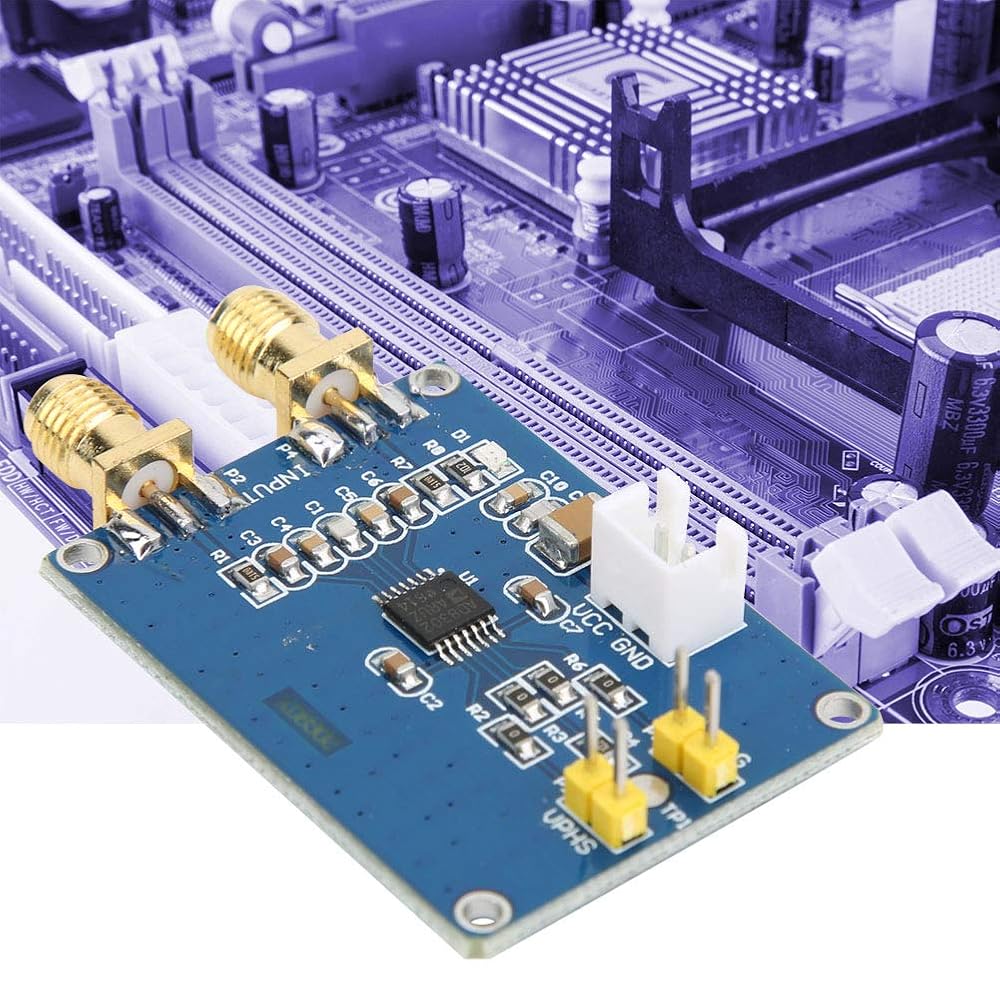

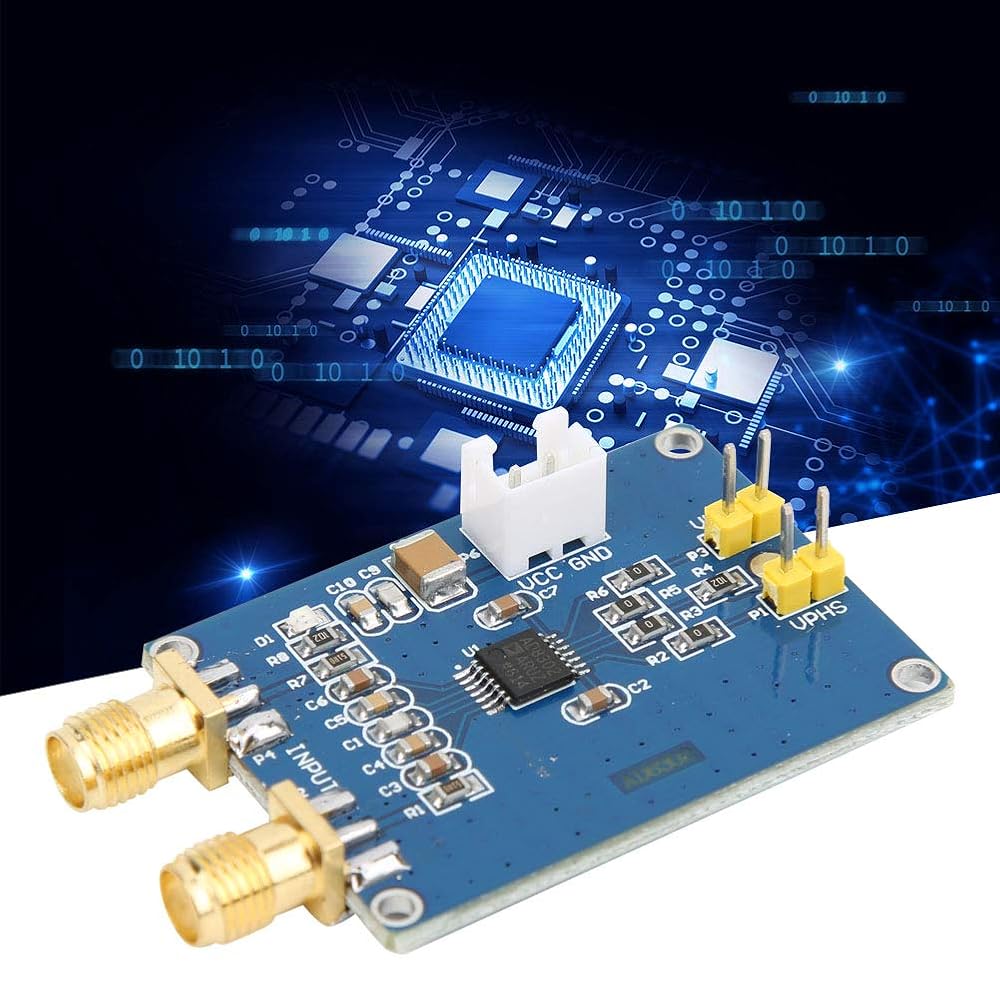

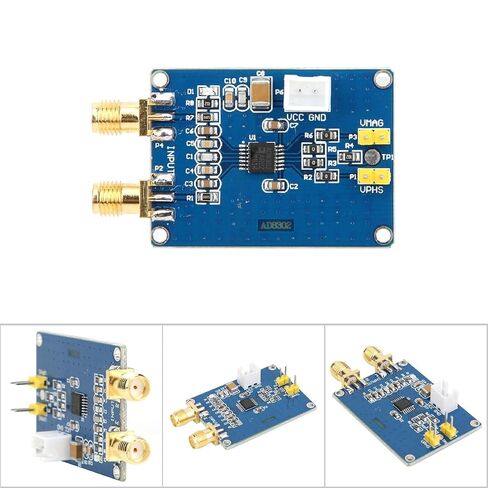

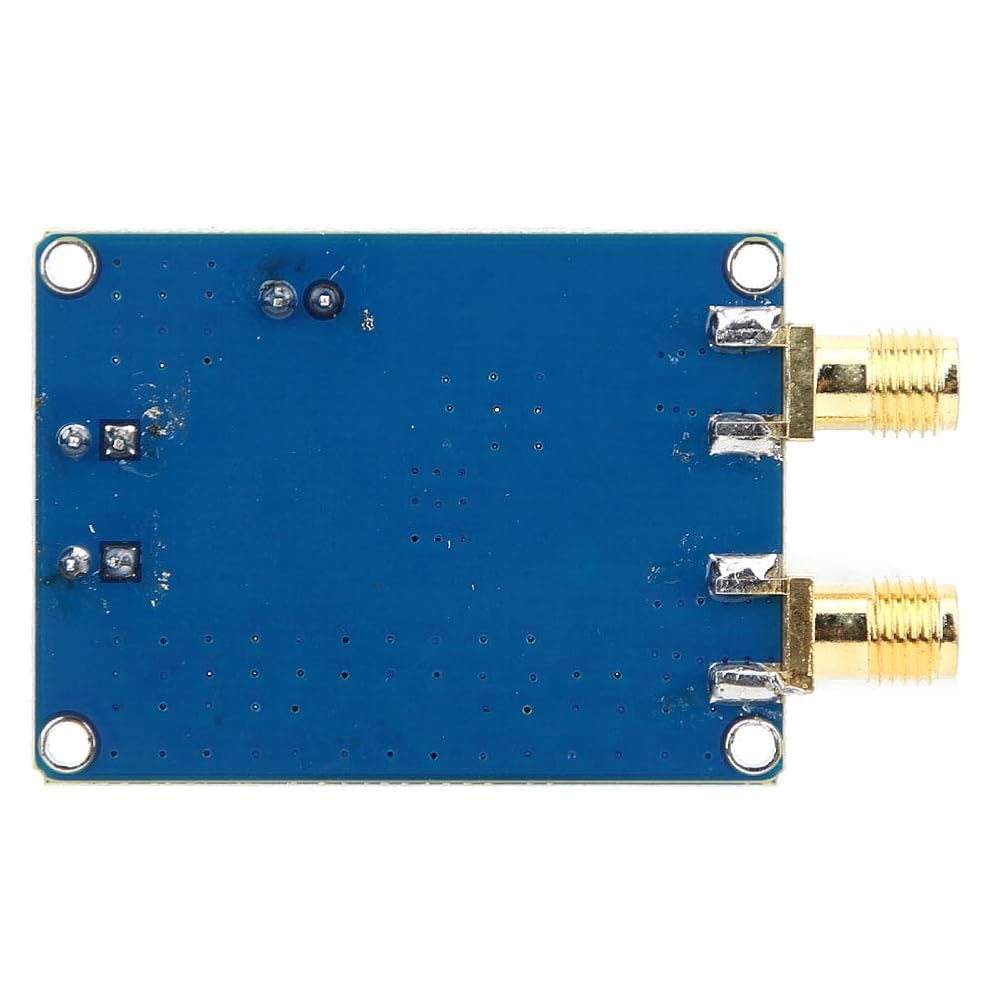

[ MEASUREMENT] The AD8302 Amplitude Phase Detection Module excels in measuring gain, loss, and phase up to an impressive 2.7 GHz, making it ideal for high-frequency signal analysis. Its wide bandwidth capability ensures accurate results across various RF applications, providing professionals with reliable data for critical measurements.
[DUAL DEMODULATION TECHNOLOGY] Featuring a sophisticated dual demodulating log amplifier and phase detector, this module delivers exceptional performance in signal processing. The advanced design allows for simultaneous amplitude and phase detection, offering comprehensive analysis capabilities for complex RF systems and communication devices.
[WIDE INPUT POWER RANGE] With an extensive input power level range of -60dBm to 0dBm, this module accommodates various signal strengths in 50Ω systems. This versatility makes it perfect for diverse testing scenarios, from low-power sensor signals to stronger communication transmissions, ensuring accurate measurements across the spectrum.
[PRECISION AMPLITUDE MEASUREMENT] Boasting an accurate amplitude measurement scale factor of 30mV/dB with typical nonlinearity below 0.5 dB, this module provides exceptional measurement precision. The high linearity ensures minimal distortion, delivering trustworthy data for sensitive applications where accuracy is paramount.
[ACCURATE PHASE DETECTION] The module features a precise phase measurement scale factor of 10mV/degree with typical nonlinearity under 1 degree, offering outstanding phase difference analysis. This level of accuracy is crucial for applications requiring exact phase alignment, such as in systems and advanced communication networks.

Spec:
Condition: 100% Brand New
Item Type: Amplitude Phase Detection Module
Supply Voltage: 5V
Three Operating Modes: Measurement/Controller/Level Comparator Mode
Product Size: Approx. 42 x 30.5 mm / 1.7 x 1.2 in

Package List：
1 x
