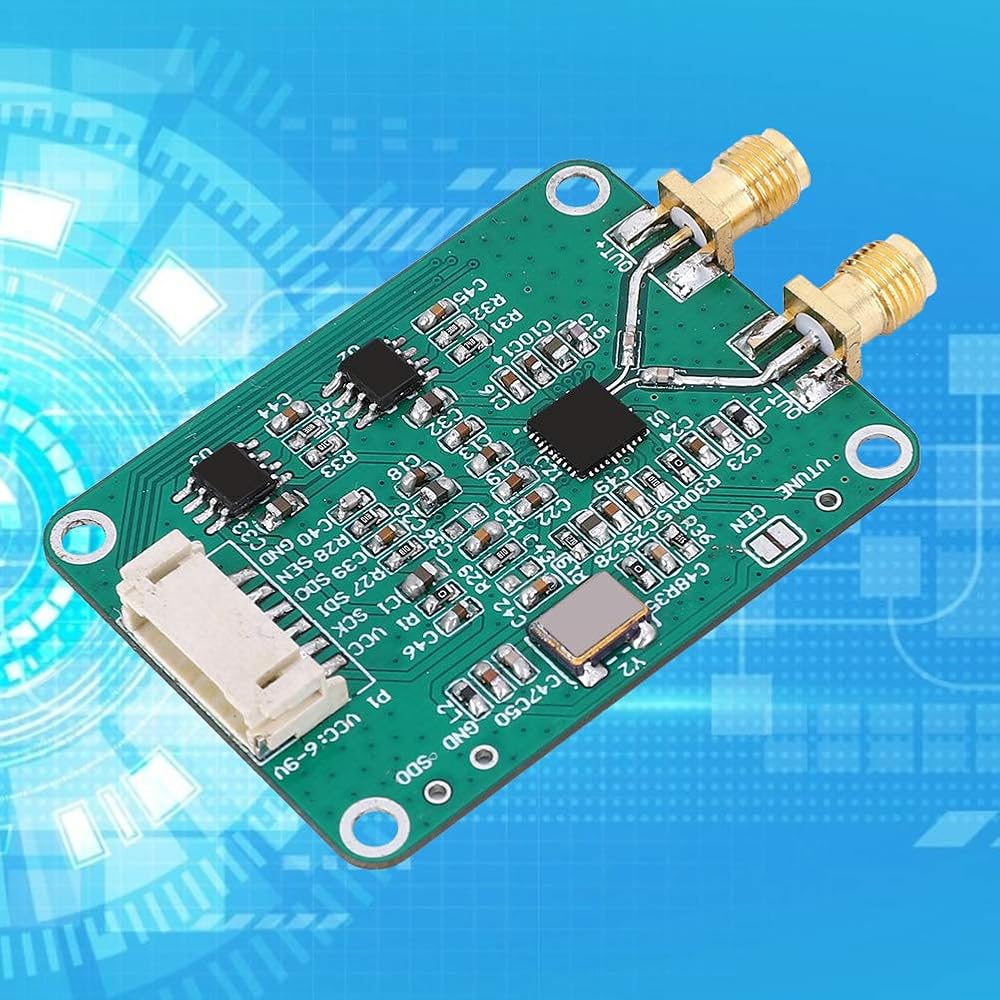

Programmable RF Output Module 25MHz - 3GHz | Low Noise Board with HMC830 Chip | Phase Locked Loop for Electronics/Communications/Testing

SAR 137
Brand
ZYLARUM
Weight
15 g
– 1 +

Special Features

  • Industry-Leading Low Phase Noise - HMC830 broadband phase-locked loop chip delivers -110dBc/Hz typical phase noise, ensuring excellent quality and transmission-to-noise ratio for sensitive electronics and communication systems.

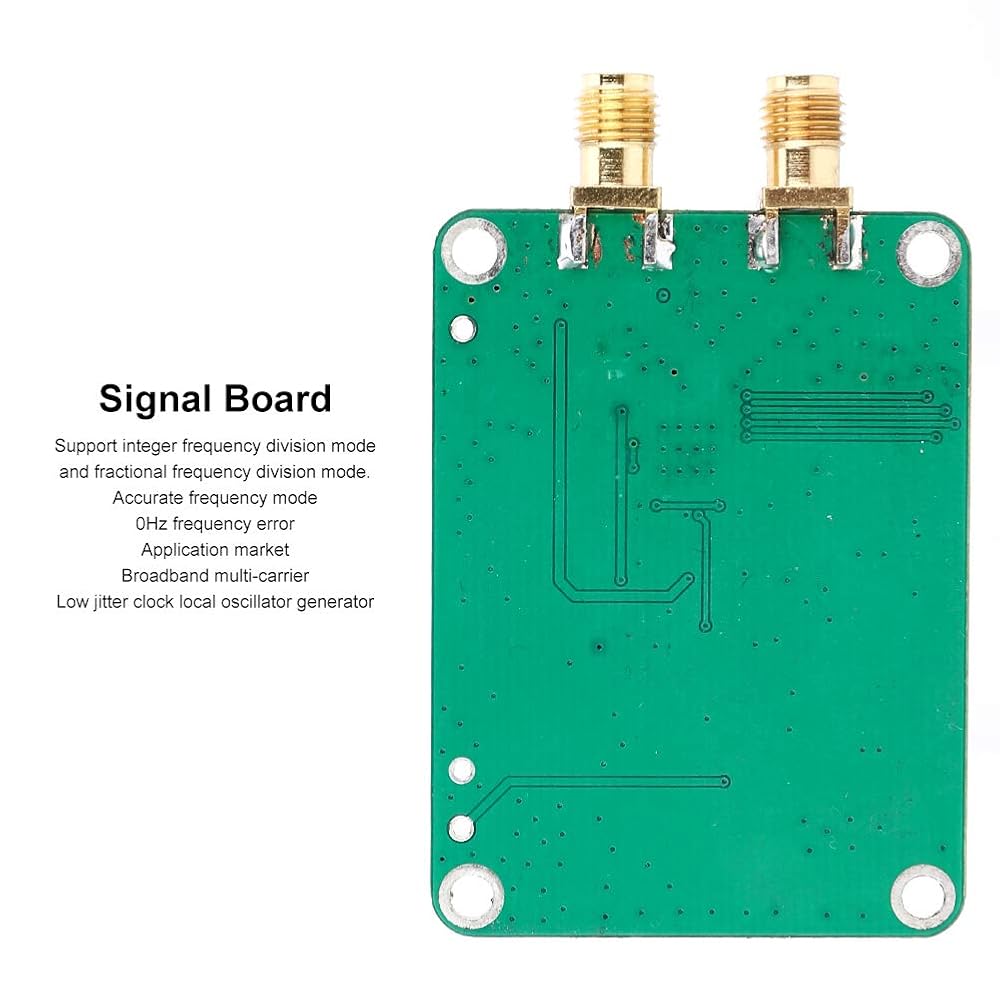

  • Accurate Frequency Control - Programmable output module operates in integer and fractional division modes with exact frequency mode, achieving 0 Hz frequency error and very small output steps from 25MHz to 3GHz for specific testing and calibration needs.

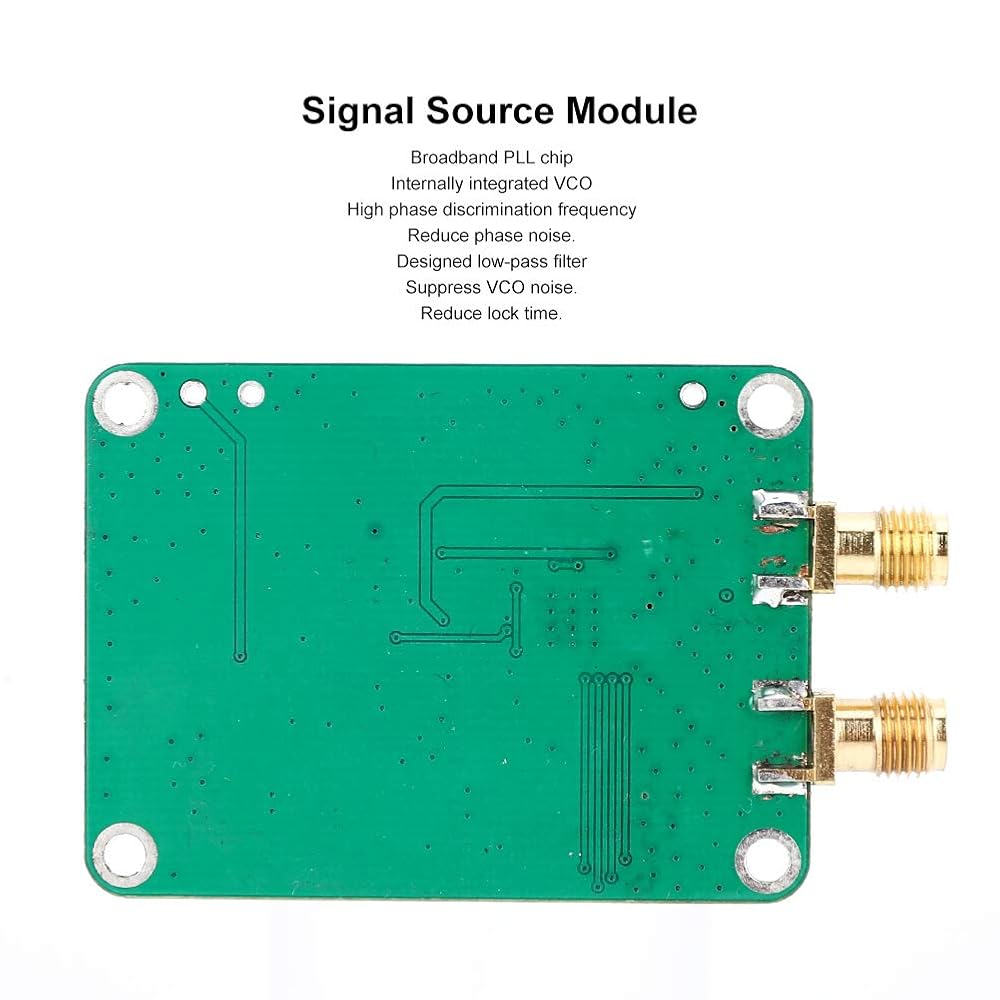

  • Fast Lock Time & High Stability - 125MHz internal phase detector frequency reduces phase noise while low-pass circuit design suppresses VCO noise, shortening lock time to 250 microseconds wake-up with 180fs RMS jitter in -40 to +85°C range.
  • Optimized Output Performance - RF output module features 9dB output dynamic range with 3dB step adjustment and typical 6dBm output, maintaining 50-ohm impedance matching across broadband for consistent laboratory and field applications.
  • Dependable Integrity - Low noise board with integrated VCO provides industry-best spurs suppression and thermal stability, eliminating degradation risks in demanding environments like research facilities and radio systems.

Description

Struggling with interference and inaccurate frequency outputs that compromise your electronic projects? Imagine achieving crystal-clear purity with zero frequency errors for ideal testing and communication. Our RF Output Module delivers the solution with its HMC830 phase-locked loop chip, offering 25MHz-3GHz programmable range and 180fs jitter. Experience -110dBc/Hz low phase noise, 125MHz phase detection, and 250μs wake-up time across -40 to +85°C. This 6x6mm module ensures 50-ohm matched output with 9dB control, giving you consistent performance for labs, radio devices, and accurate instruments.\n\nItem Type: Output module
Phase Frequency of Internal Phase Detector: 125MHz
Output Frequency Range: 25MHz~3GHz
Quality Factor of HMC830 in Integer and Decimal States: -230/-227
Bilateral Band Root Mean Square Jitter: Less than 180fs
HMC830 Already in the Broadband Range: Matched to 50 ohms
Output Dynamic Range: 9dB (3dBstep)
Wake Up Time: 250 microseconds
Typical Output of Chip: 6dBm
Step Adjustment: 3dB step adjustment
Typical Phase Noise: -110dBc/Hz

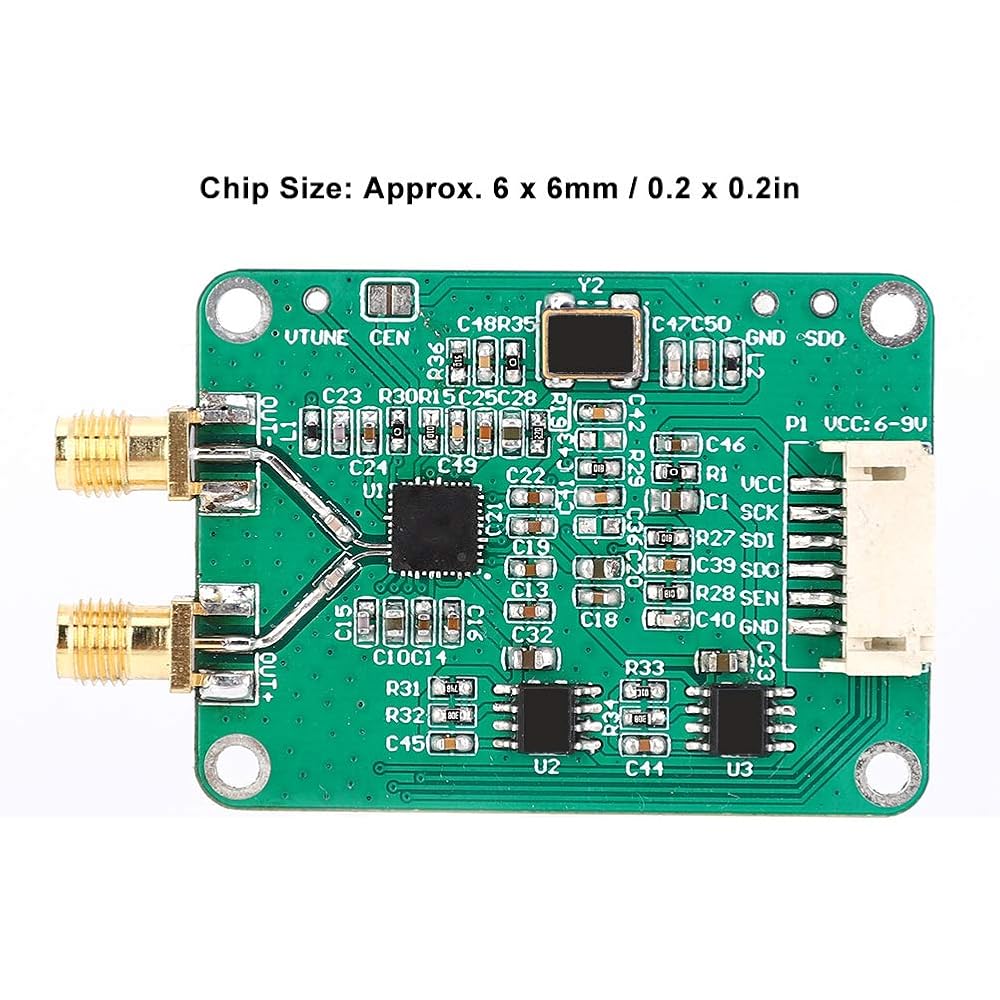

Chip Size: Approx. 6 x 6mm / 0.2 x 0.2in
Maintain Good Performance Temperature Range: -40~+85℃

Package List：
1 x Output Module
