مميزات خاصة

Simpler Works: ---- The multiplexer is at I2C address 0x70 and can support 8 Channel Expansion Development Board for up to 0x77. You just write a single byte with the desired multiplexed output number to that port, and bam, any future I2C data packets will be sent to this port.
Great Control: ---- You can use 8 of these multiplexers at each 0x70‑0x77 address in order to control 64 identical I2C addressing sections. This feature highlights the flexibility of the TCA9548A Development Board, making it suitable for various applications.
Wide Matching: ---- Compatible with 3V and 5V, this Expansion Module allows you to use it with any logic level, ensuring practicality, reliability, and efficiency in diverse setups.
Practical Use: ---- Connect up to 8 I2C devices of the same address to a microcontroller and route commands to a selected set of I2C pins, making it a versatile solution for complex projects.
Easy to Install: ---- Comes with 5 sets, and each set includes 2pcs pin header, which can also be plugged into a solderless breadboard for straightforward integration into your projects.

وصف

Specification

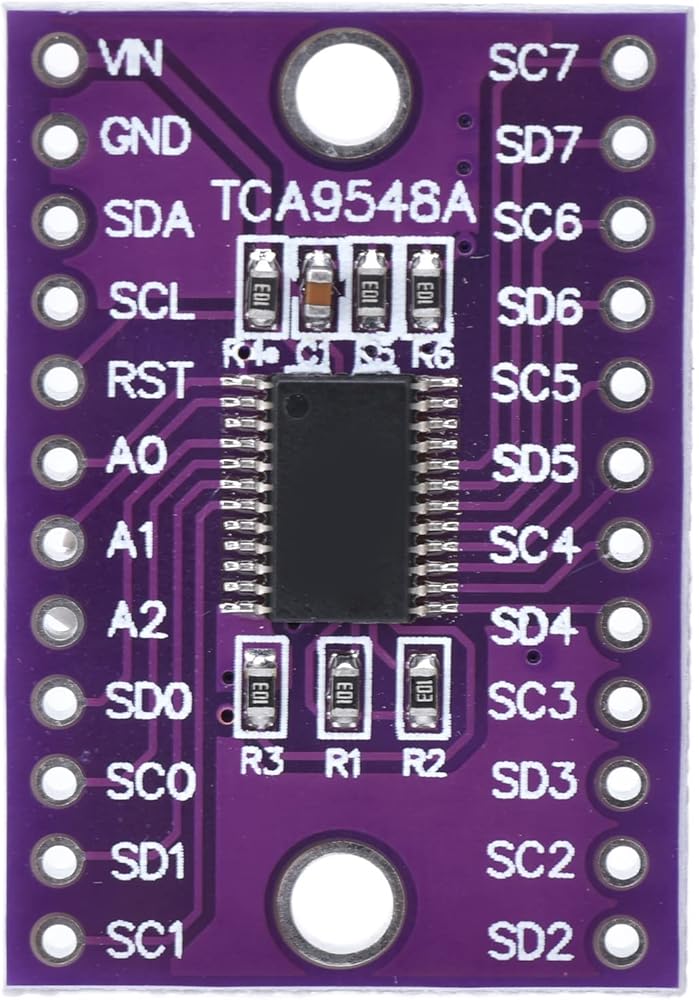

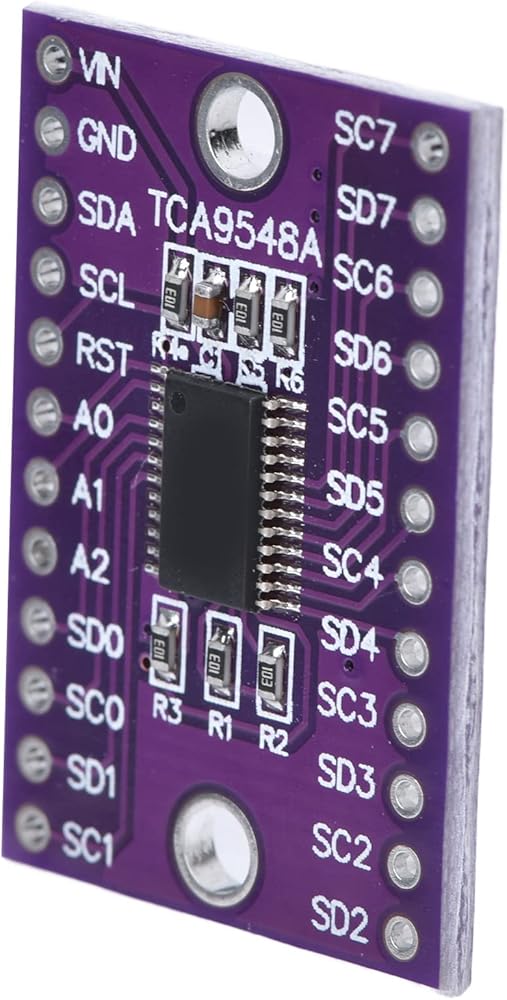

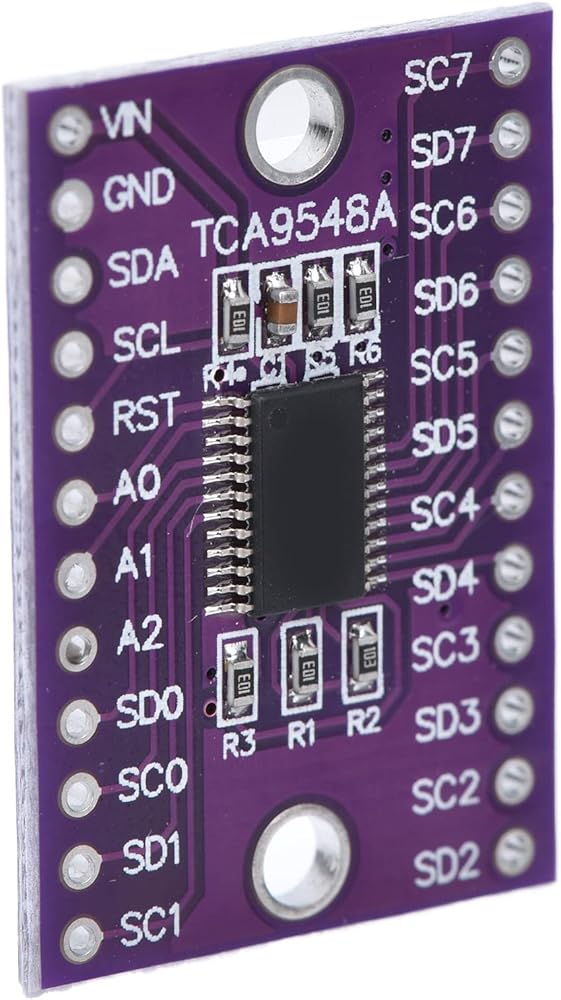

Item Type: Development Board
Supply Voltage: 1.65V to 5.5V.
IIC Address: 0x70 - 0x77
Frequency: 0 to 400kHz.
Channel: 1 to 8 channels.
Resetting: Power on reset.

Voltage Parameter

How to Use

The multiplexer itself is at I2C address 0x70 (but can be adjusted from 0x70 to 0x77), you just write a single byte with the desired multiplexed output number to that port, and bam, any future I2C data packets will be sent to this port. Theoretically, you could use 8 of these multiplexers at each 0x70‑0x77 address in order to control 64 identical I2C addressing sections.

Package List

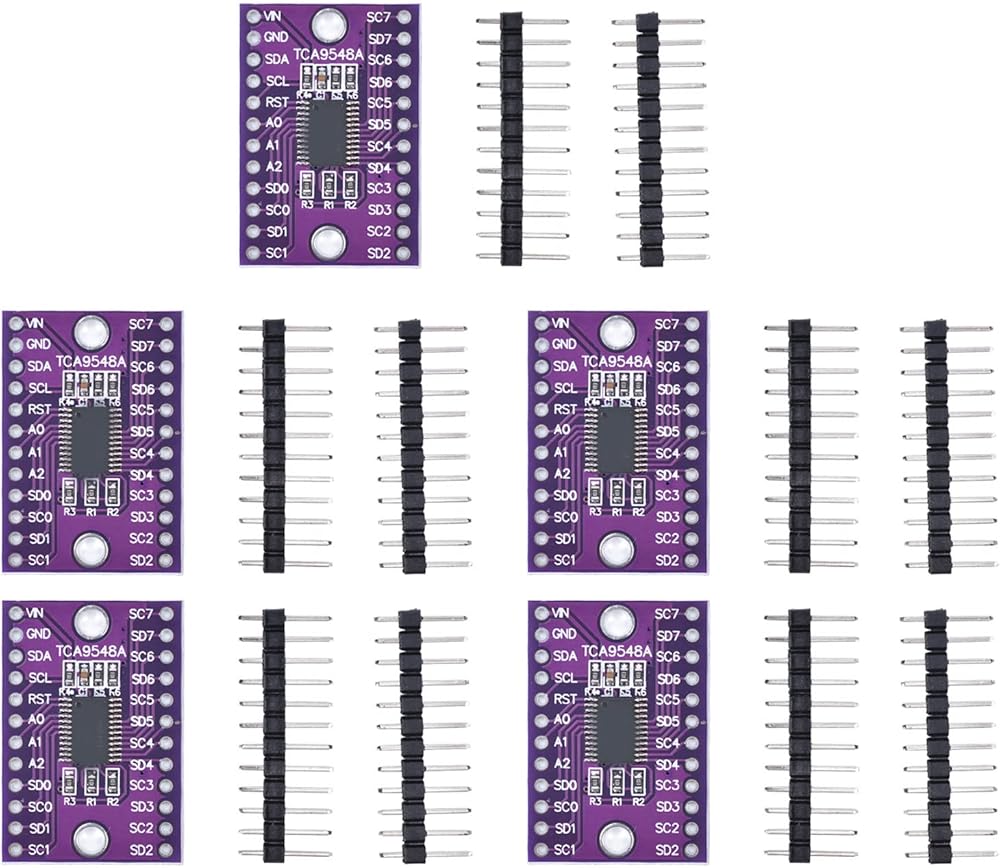

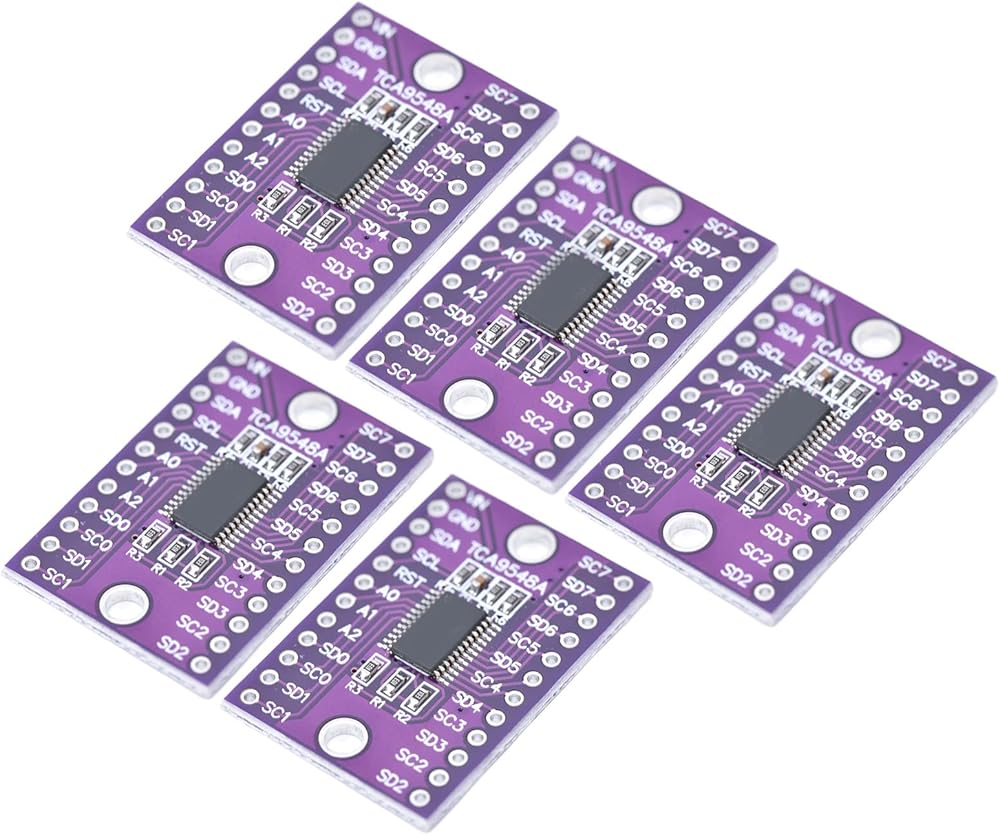

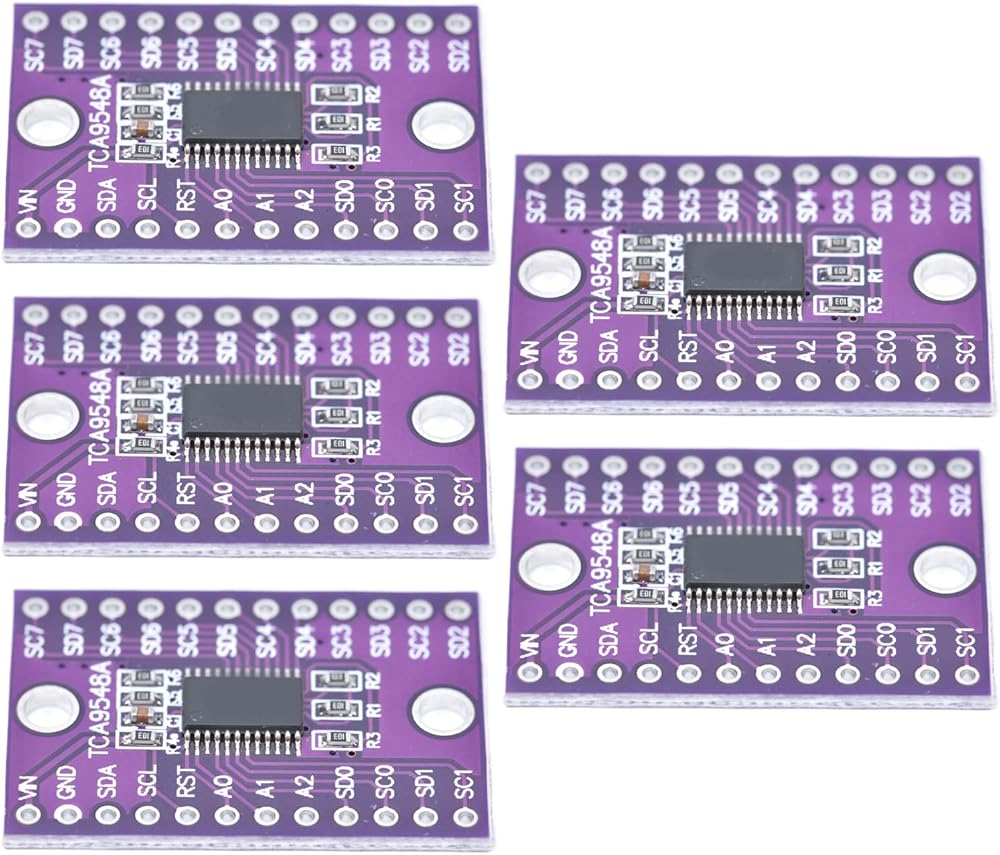

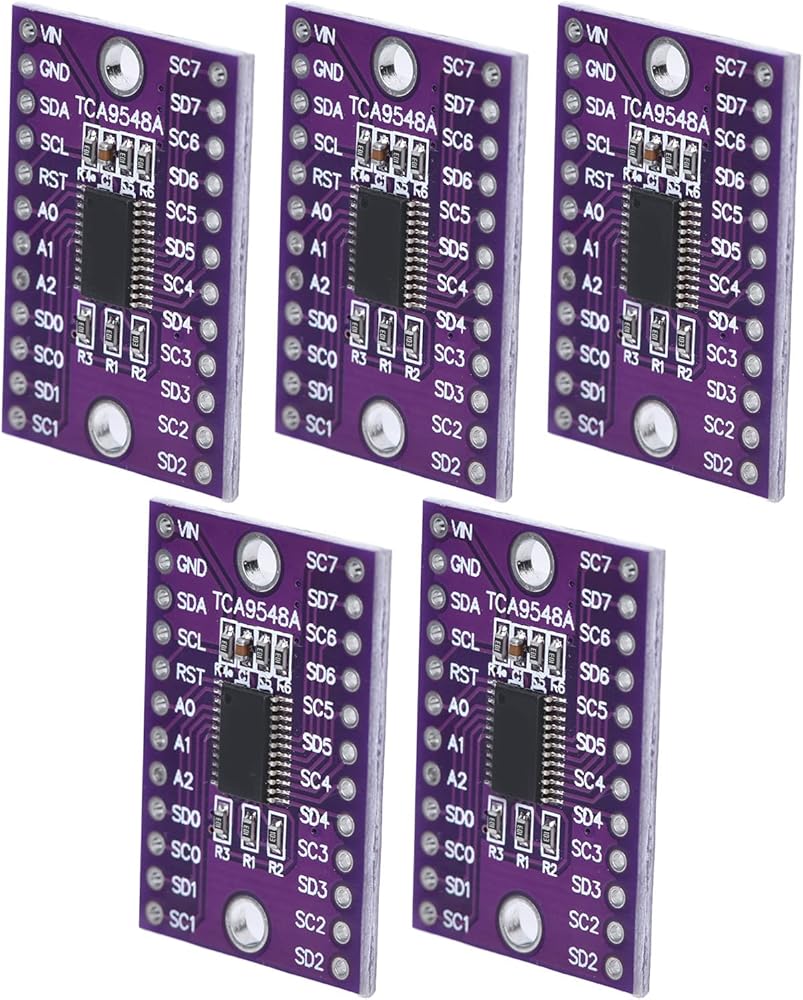

5 x Development Board

10 x Pin Header

Note

مرحبًا،

بحث

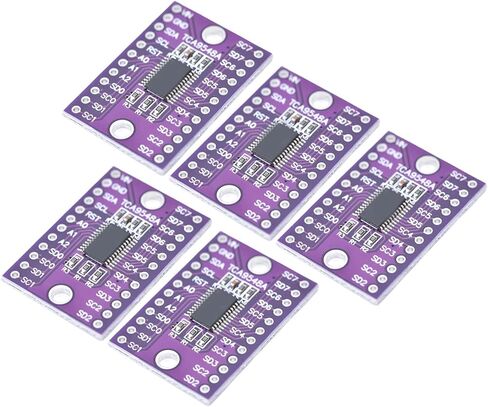

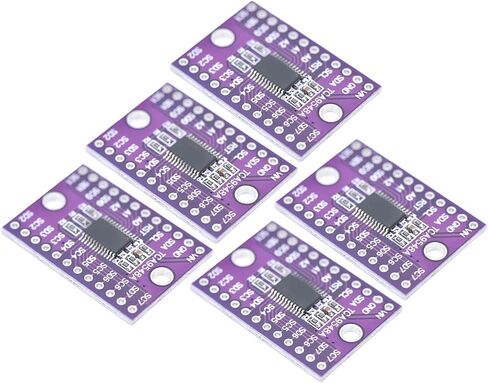

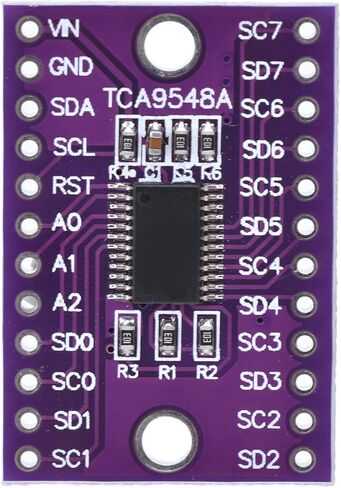

لوحة توسيع Qiilu 8 قنوات لـ - مجموعة لوحة تطوير TCA9548A مكونة من 5 قطع - وحدة معدد I2C
