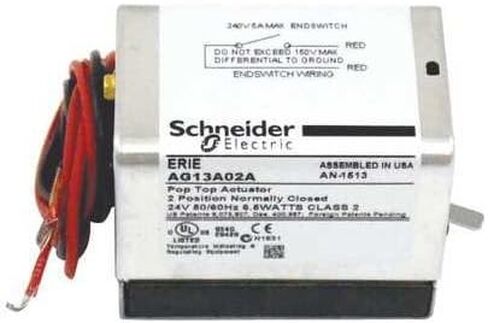

Erie 24V General Purpose Normally Closed Acutator With End Switch AG13A02AErie's PopTop motorized hydronic valves provide convenient, reliable and easy installation for a variety of heating and cooling applications. Installation is a snap with easy, one-handed removal or engagement of the actuator to the valve body. Push the button and lift. It's that simple. Made in the USA.
Actuator can be easily attached after the valve body has been installed into the system
Mounts quickly and easily without the need of linkages or calibration
Temperature Range: 32° to 200°F
18" leads for actuators with end switches
Voltage - 24 Vac @ 50/60 Hz, 110 Vac @ 50 Hz and 120 Vac @ 60 Hz, 230 Vac @ 50 Hz, 240 Vac @ 60 Hz, 208 Vac @ 50/60 Hz., 277 Vac @50/60 Hz.
Up to 60 psi pressure differential close-off
Power Requirements 6.5 watts, 7.5 Va.
Control Signal - on/off, 2 position, spring return
Materials - stainless steel base plate, aluminum cover

Specification:
BRAND: Erie
WIDTH INCHES: 3
DEPTH INCHES: 2-3/4
HEIGHT INCHES: 5-1/2
WEIGHT LBS: 1.2
COLOR: Silver
CONSTRUCTION: Stainless Steel, Aluminum
PRESSURE DIFFERENTIAL PSI: 60
TEMPERATURE CONTROL RANGE °F: 32 to 200
VOLTAGE: 24
WATTS: 6.5
USED WITH: VT VALVES
MANUFACTURER'S PART NUMBER: AG13A02A
