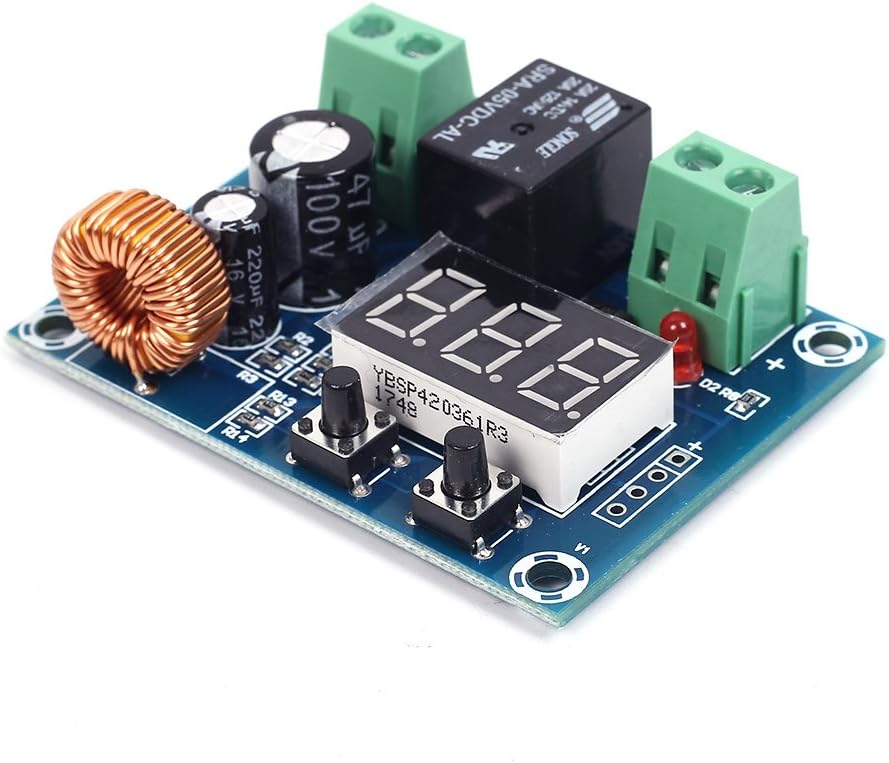

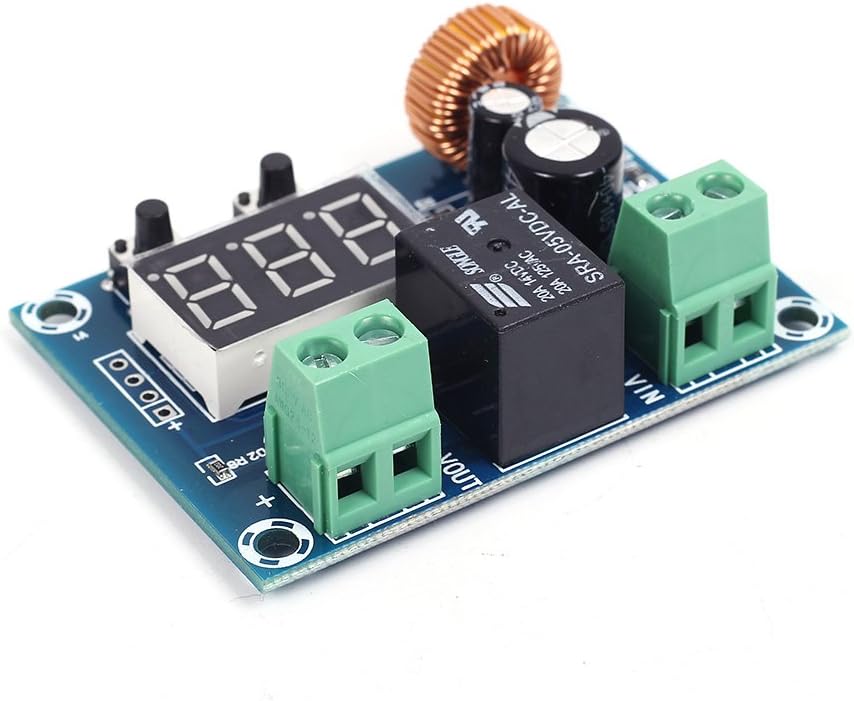

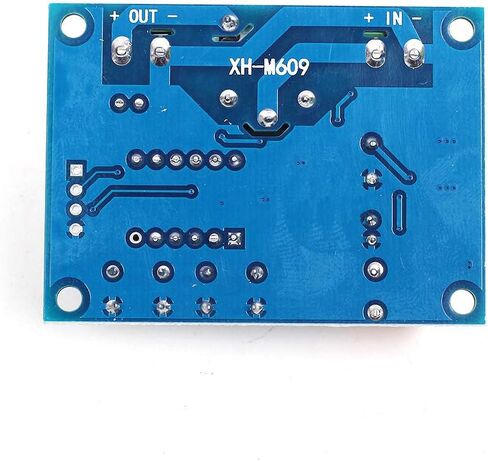

DAOKI 2PCS Digital Low Voltage Discharge Protection Module Disconnect Switch Over Discharge Protection Protector for 12-36V Lithium Battery with 24AWG Wire

Sorry, this product is not available
Brand
DAOKI

Special Features

  • Input Voltage Range: DC12-36V, Control Accuracy: 0.1V, Power Consumption: <1.5W, Maximum Amperage before Breaker Trips: 20A.

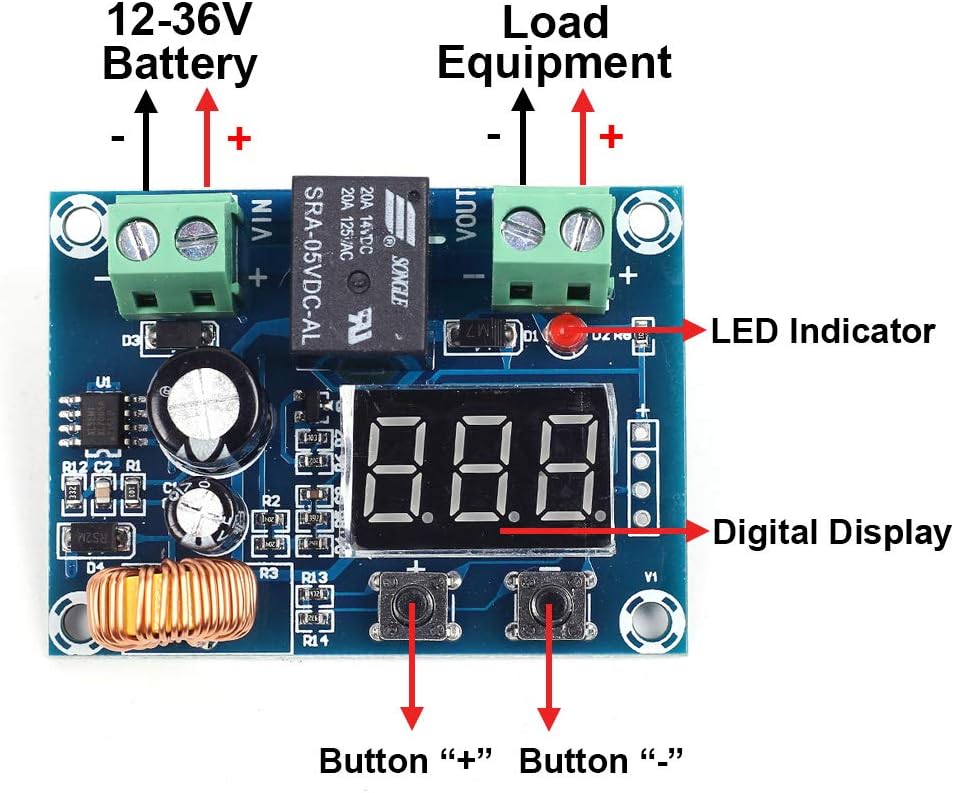

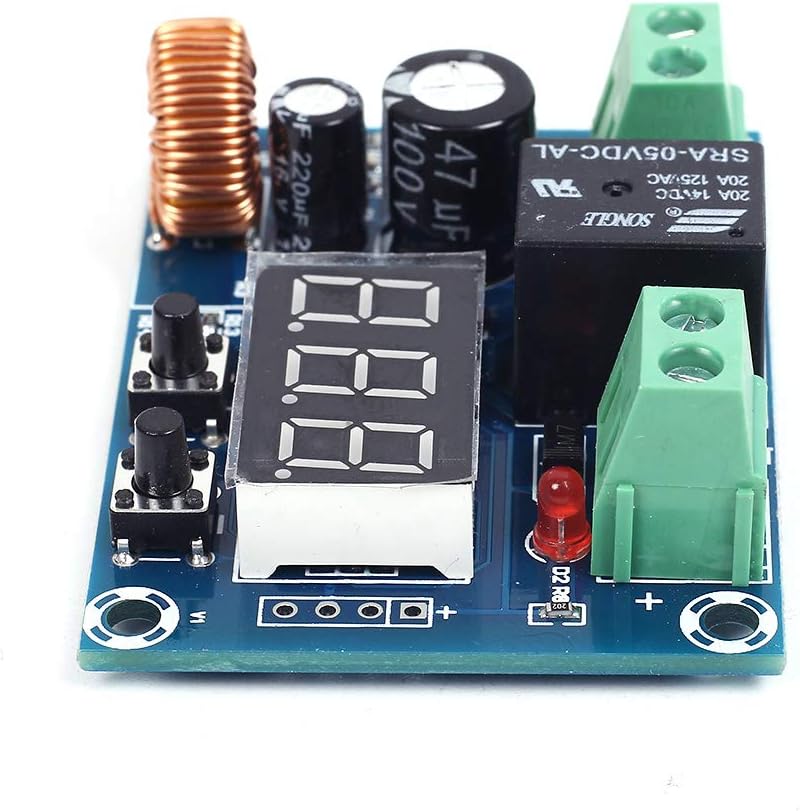

  • LED digital tube display to display the real time battery voltage, shut off voltage and guard voltage. Two adjustment buttons to set the shut off voltage and guard voltage. One LED indicator light, lighting on/off when the voltage protection module connect/disconnect the battery.
  • When the battery voltage reach the setting values, the module will disconnect load automatically to aviod the battery from over discharging to prolong the battery lifetime. Note: The module only work for a single battery, not for battery pack.
  • Set shut off voltage: Press button “+” for 3 seconds and the LED digital display will flash. Press button “+” or “-” to set the value when it flash. After that, release the button until the screen no longer flickers, the setting is saved successfully
  • Set guard voltage: Press button “-” for 3 seconds and the LED digital display will flash. Press button “+” or “-” to set the value when it flash. After that, release the button until the screen no longer flickers, the setting is saved successfully.

Description

Description:
Power supply voltage: 12-36V
Output voltage: equal to the supply voltage
Control accuracy: 0.1V
Power:

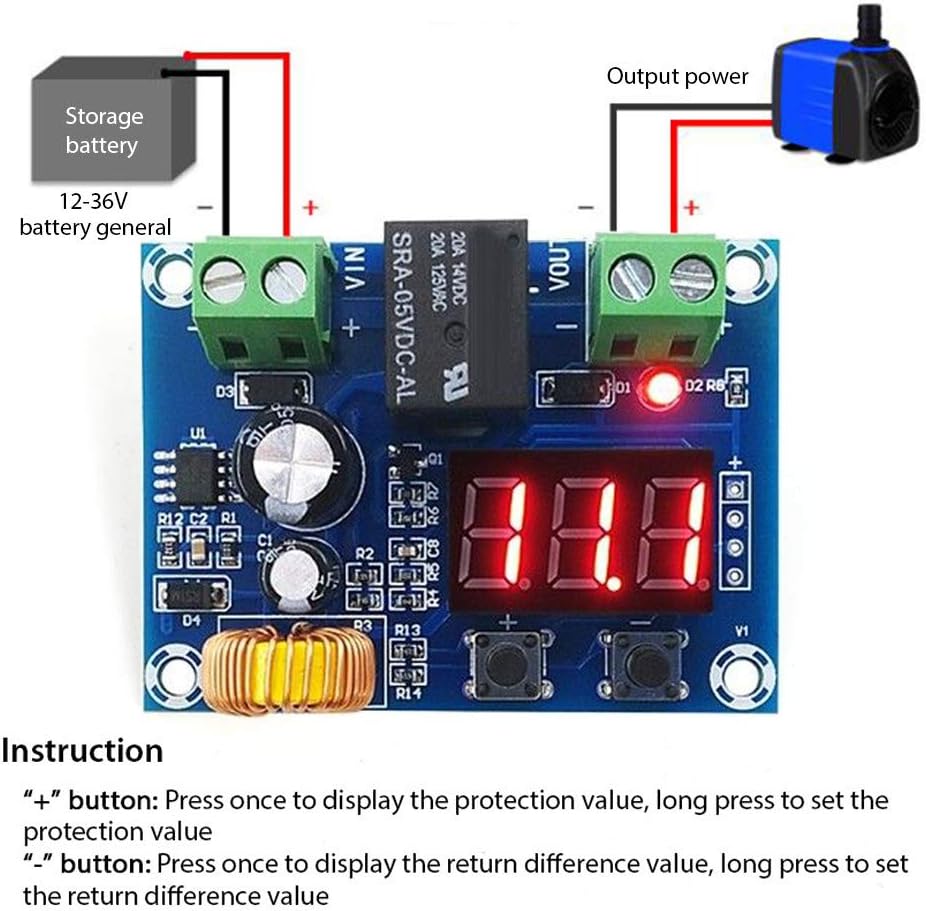

Usage:
1.Set shut off voltage: Press button “+” for 3 seconds and the LED digital display will flash. Press button “+” or “-” to set the value when it flash. After that, release the button until the screen no longer flickers, the setting is saved successfully
2.Set guard voltage: Press button “-” for 3 seconds and the LED digital display will flash. Press button “+” or “-” to set the value when it flash. After that, release the button until the screen no longer flickers, the setting is saved successfully.

Note:
The module only work for a single battery, not for battery pack.

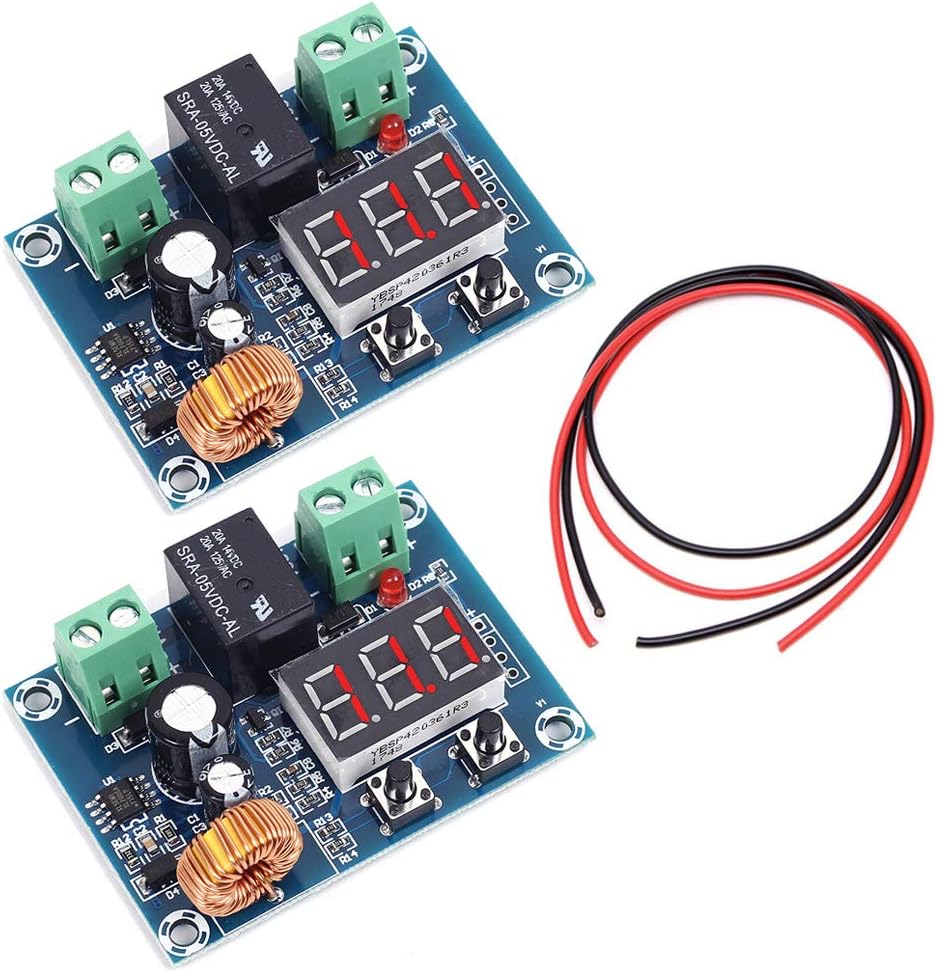

Package Included:
2 x Digital Low Voltage Discharge Protection Module
1 x 19.6Inch/50CM 24AWG Wire
