Specification:

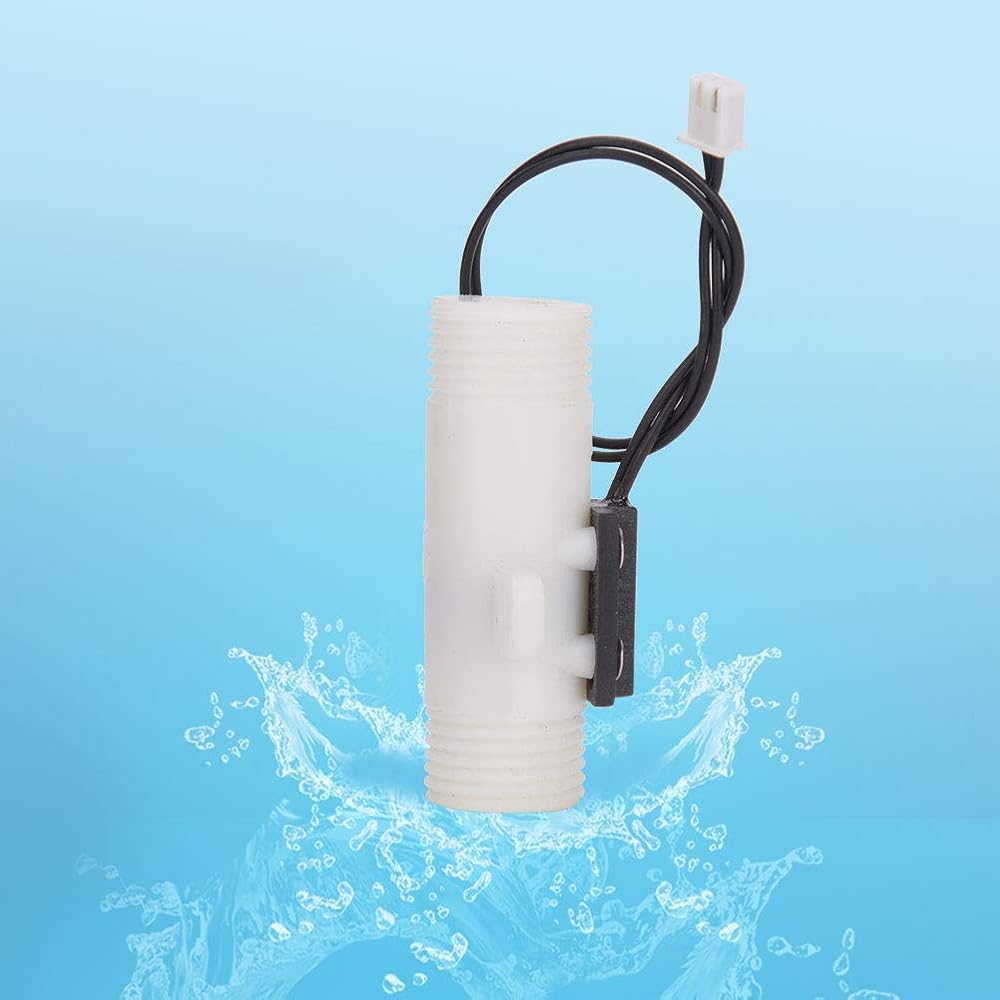

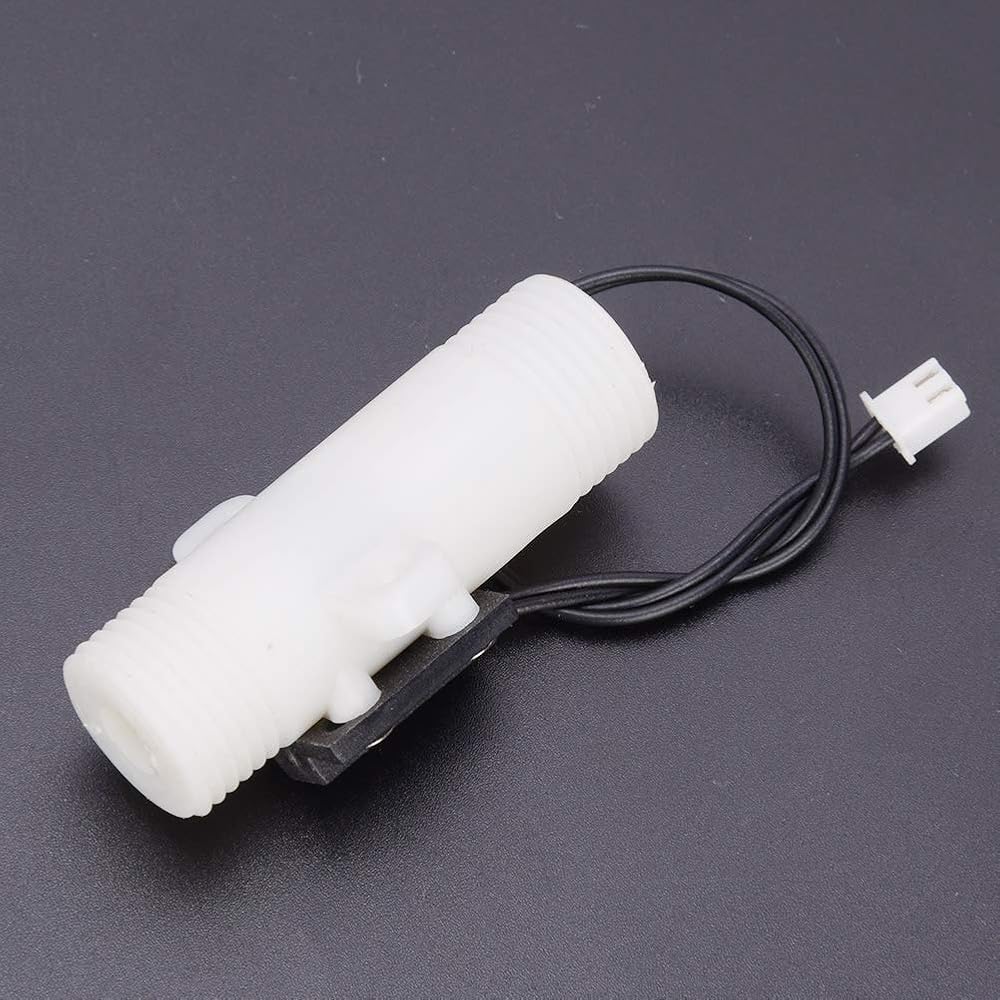

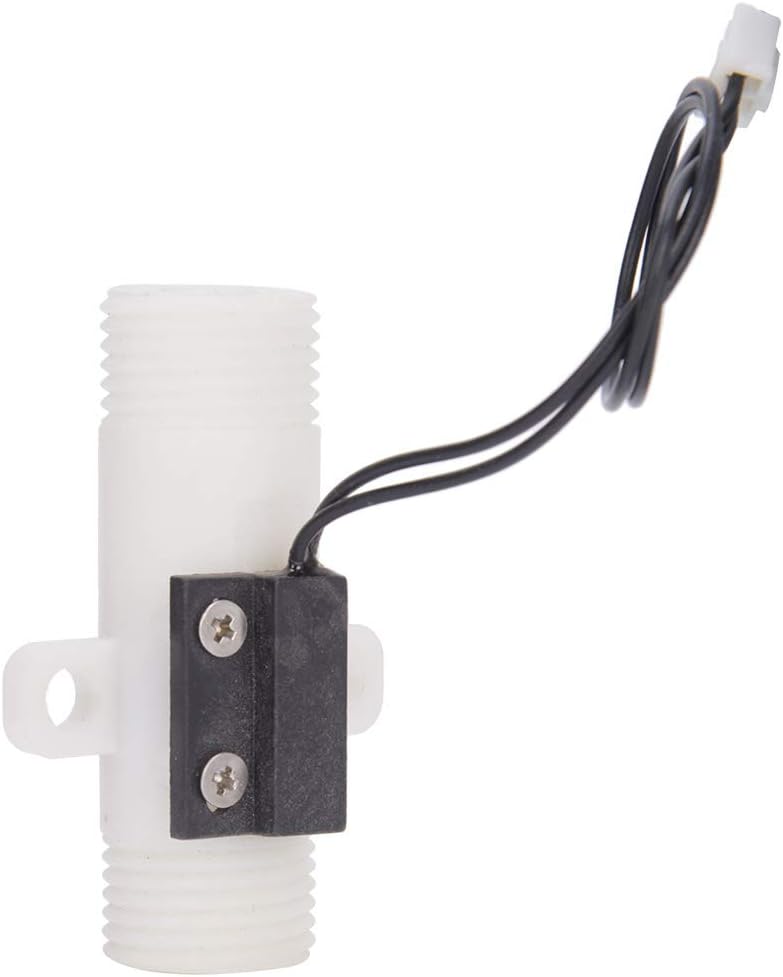

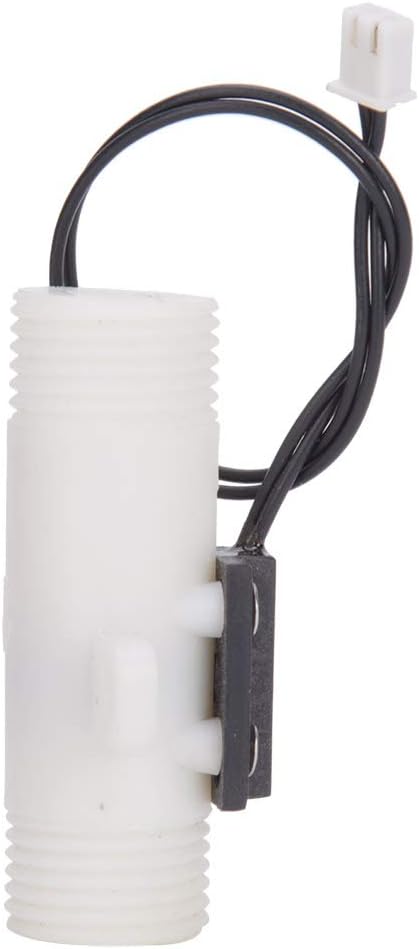

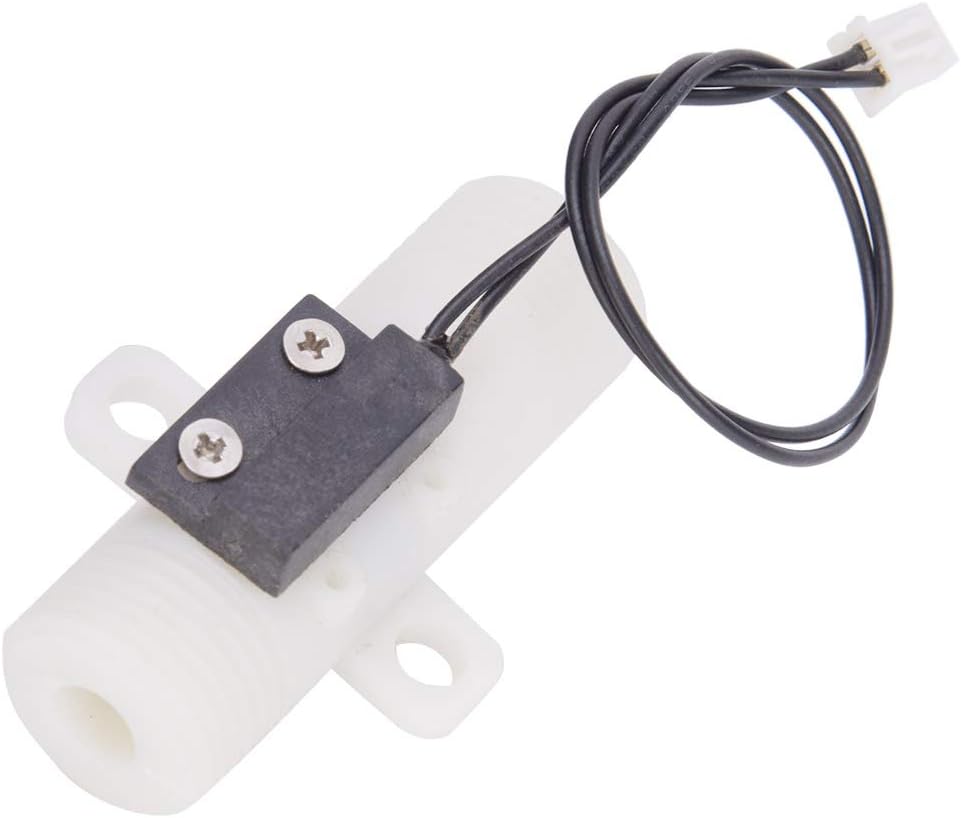

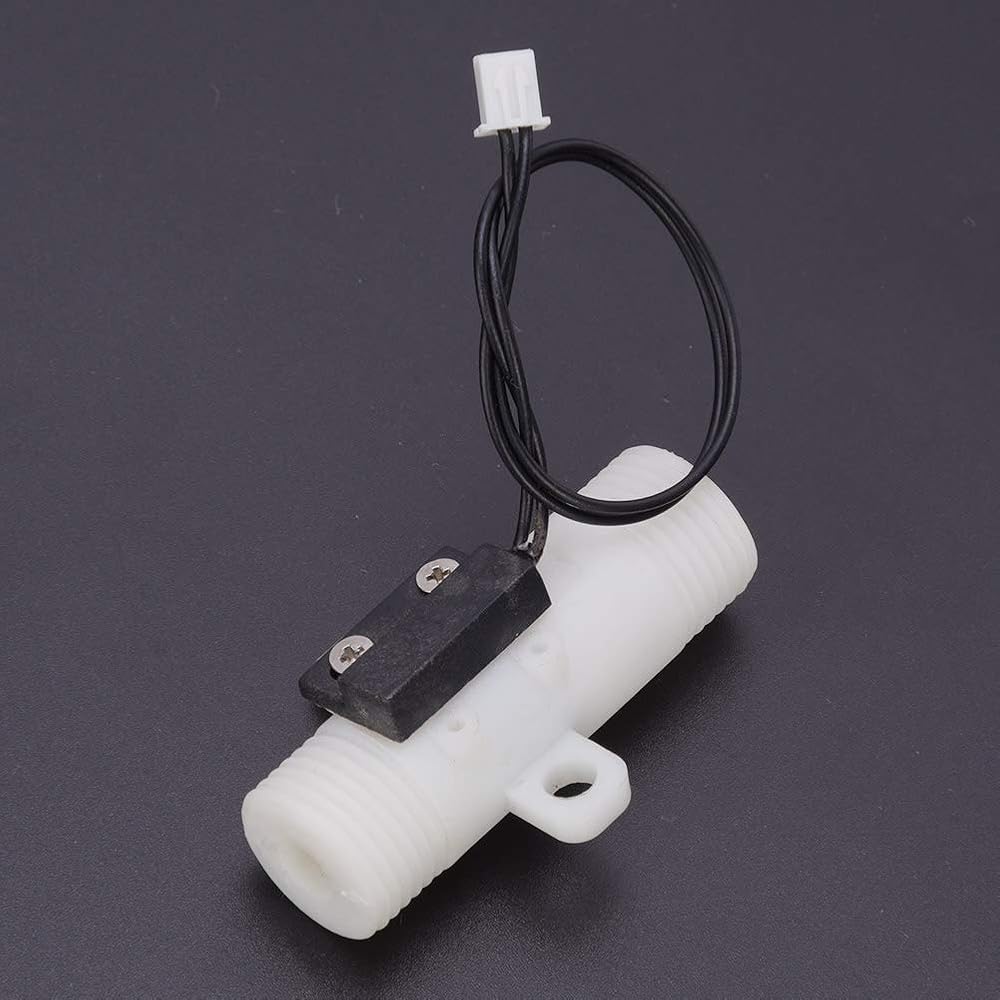

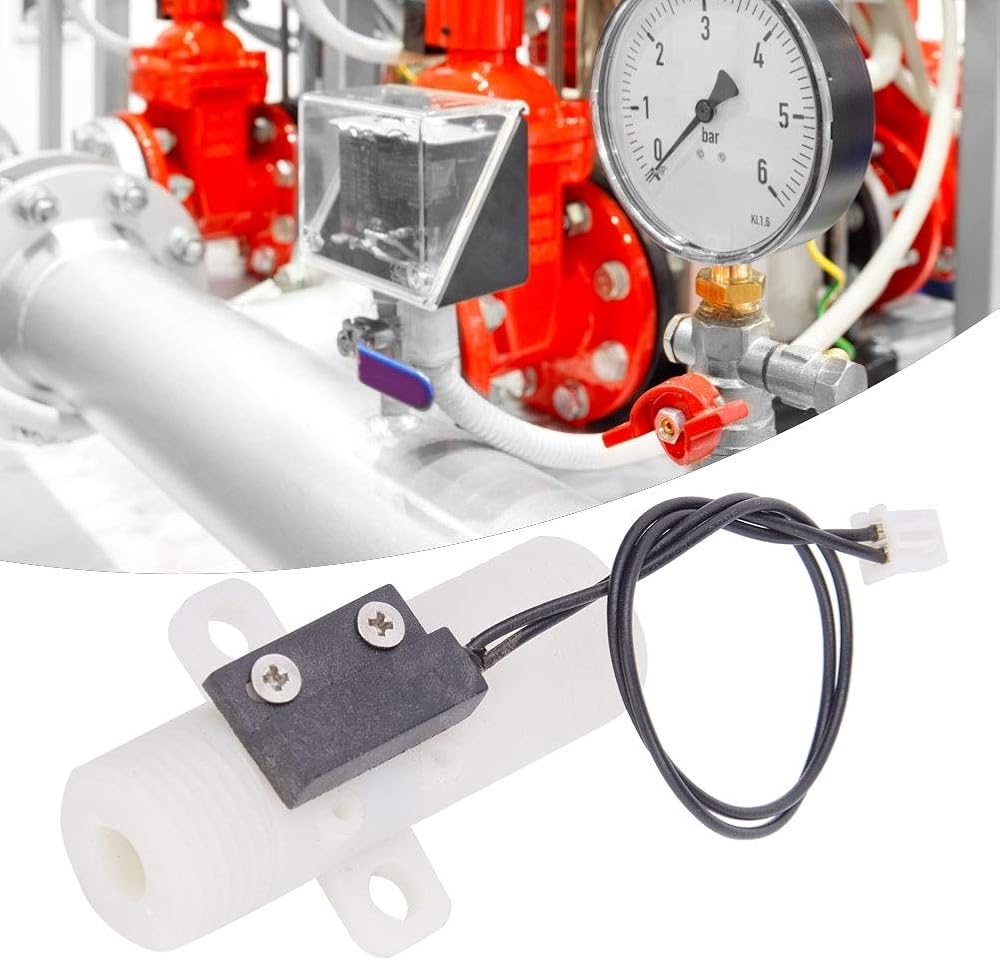

Item Type: Water Flow Sensor Switch
Model: FS G1/2 double male thread
Working Voltage: DC0-210 (V)
Working Current: 0.5-1 (A)
Working Temperature: -10 ~ 85()
Maximum Temperature Resistance: 85()
Working Pressure: 0.2 (Mpa)
Medium Specific Gravity: 0.7
Thread Size: Double male thread G1/2
Minimum Starting Flow: 0.75L / min
Maximum Throughput: 5L / min
Rated Working Pressure: 0.65Mpa
Maximum Pressure of the Shell: 1.5Mpa
Signal Output Load: DC24V/0.5A, 36V/0.5A or AC220V/0.1A
Adaptation Scope and Conditions:
(1) The ambient temperature is not lower than 0. Do not knock on the case. Keep away from magnetic objects.
(2) The output of the signal is a switch value, so the connection method of the control object must also be a switch control relationship.
(3) The power of the control object must not be greater than the signal load capacity.
(4) This device is a water medium control device and cannot be used for other medium control.

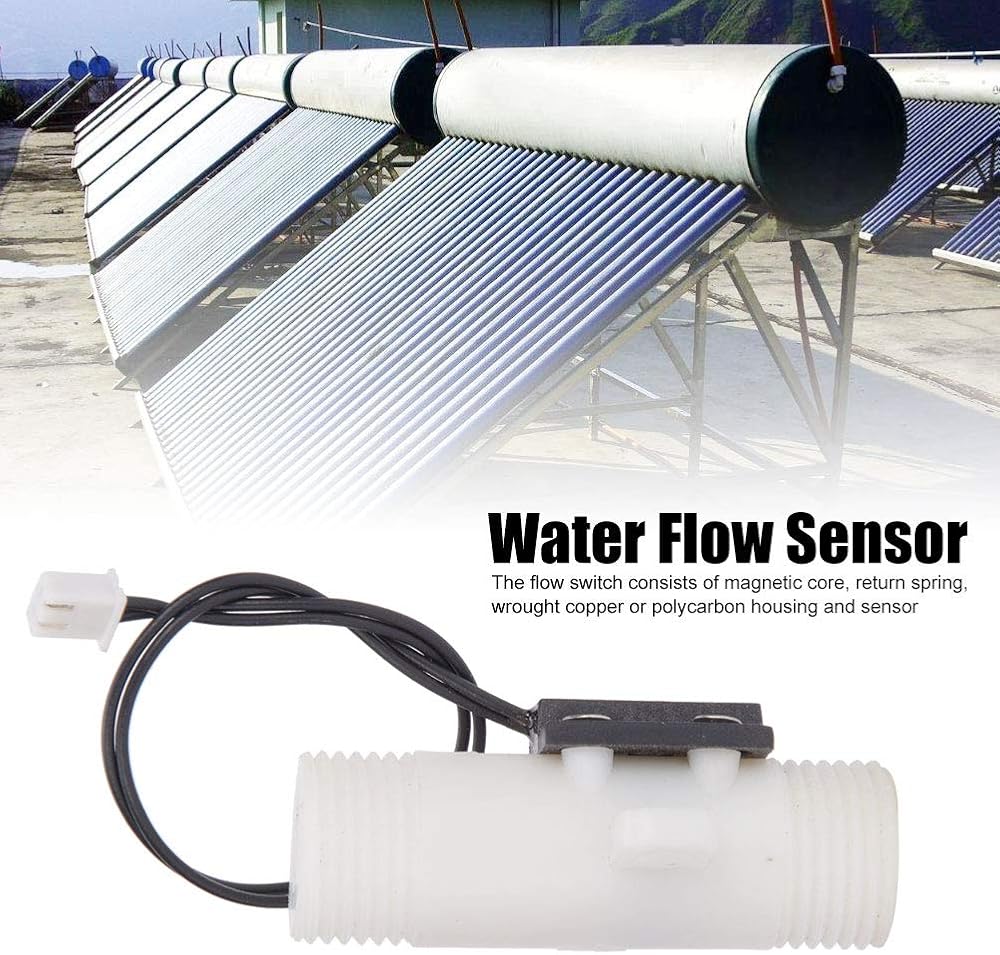

When the water flow in the pipeline is greater than 0.75L / min, the magnetic core will be displaced under the action of the water flow and drive the magnetic source to generate a magnetic control action to cause the sensor to output a "1" switching signal. After expansion and amplification, the purpose of water flow control is achieved. When the water flow in the pipeline is less than 0.75L / min, the magnetic core will drive the magnetic source back under the force of the return spring, causing the sensor to output a "0" switching signal to stop the system. Recommended for use with small relays

Package List:

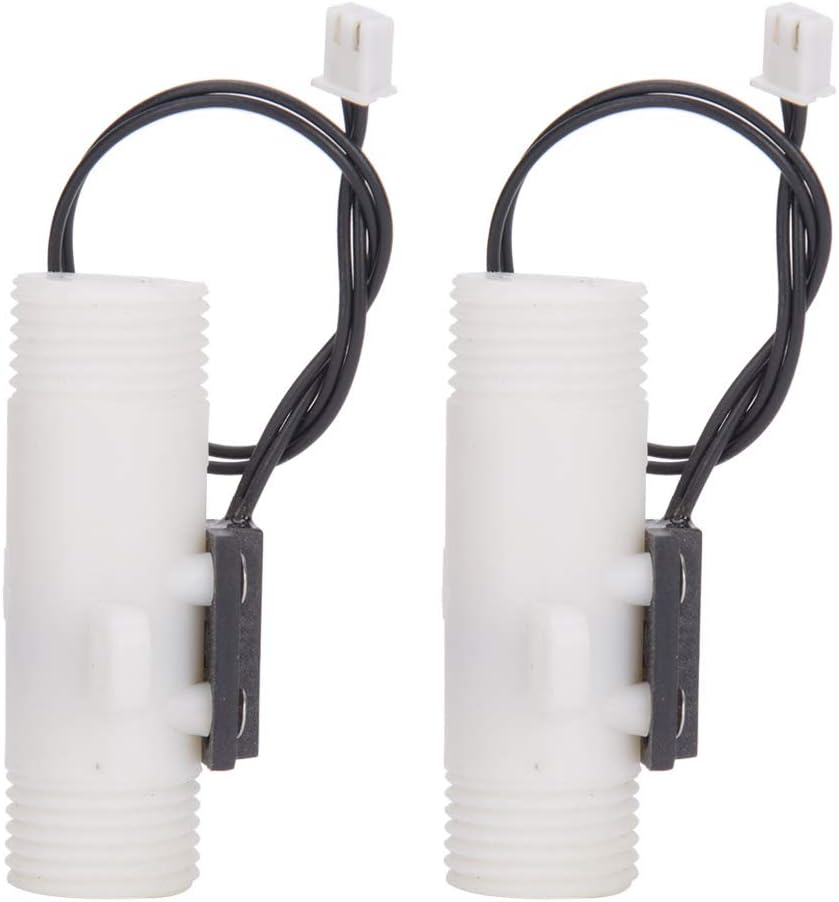

2 x Water Flow Sensor Switch
