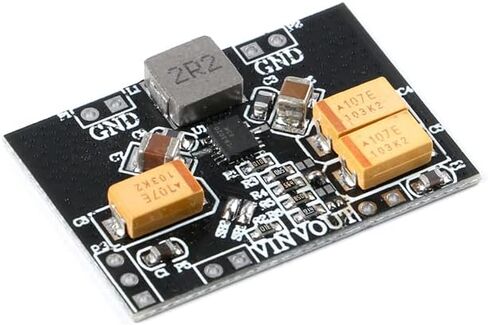

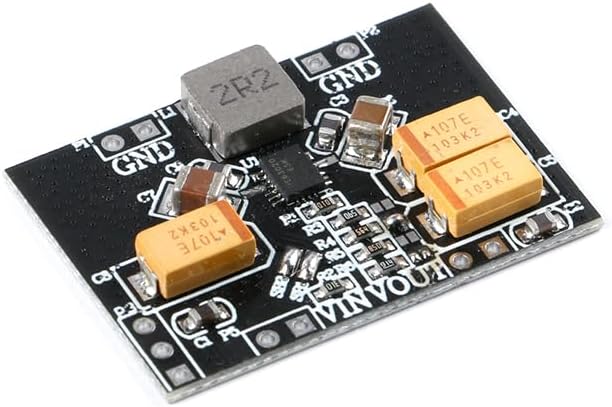

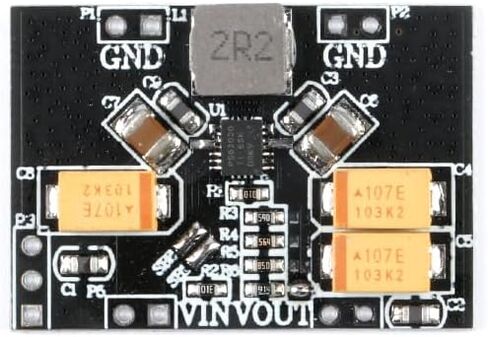

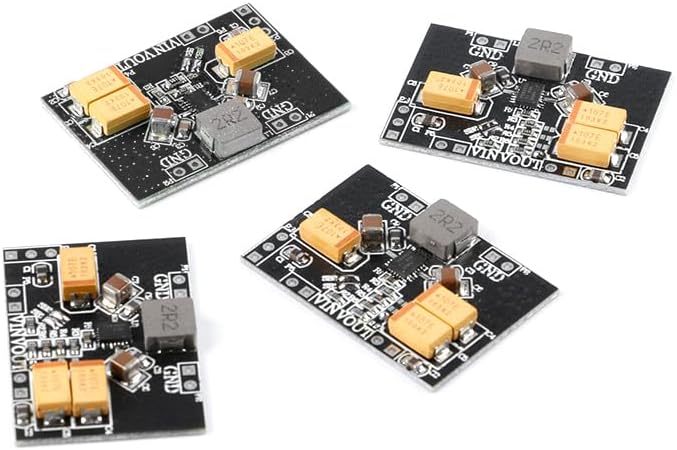

JESSINIE TPS63020 Power Supply Module Automatic Buck-Boost Step Up Down 3.3V Lithium Battery Low Ripple

Sorry, this product is not available

Special Features

  • Input voltage ranging from 1.8V to 5.5V, output current up to 3A
  • Conversion efficiency: 96% (The smaller the input-output pressure difference, the higher the efficiency)
  • Static power consumption: 6mA; 50uA (power saving mode)
  • Switching frequency: 2.4MHz; Output ripple: 10mV (no load), 10mV (buck with 0.5A), 30mV (boost with 0.5A)
  • It can be used for all devices powered by two or three Alkaline batteries, NiCd or NiMH or a single lithium battery, ultra-small mobile PCs and MIDs, digital media players, DSC and video cameras

Description

Product Parameters
Module model: TPS63020
Module type: Switching power supply automatic lifting and lowering power supply module
Input voltage: 1 8V-5.5V
Output voltage: 2.5V, 3.3V, 4.2V, 5V
Output current: Within 3A
Conversion efficiency: 96% (The smaller the input-output pressure difference, the higher the efficiency)
Static power consumption: 6mA; 50uA (power saving mode)
Switching frequency: 2.4MHz
Output ripple: 10mV (no load), 10mV (buck with 0.5A), 30mV (boost with 0.5A)

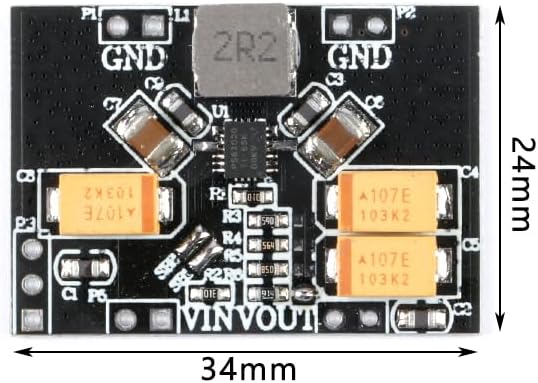

Module size: 34*24*4.5mm/1.34*0.94*0.18inch (L*W*H)
Module heating: The higher the load, the greater the heating

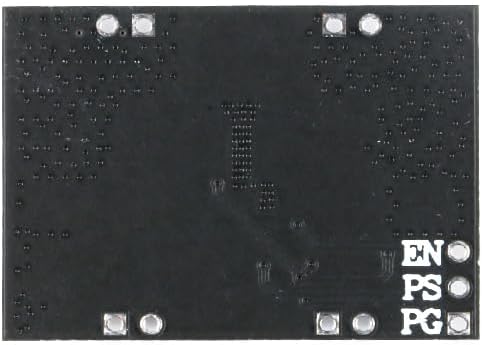

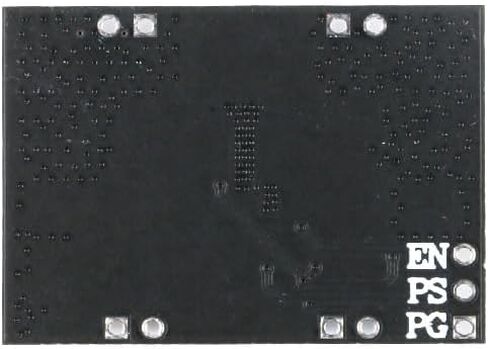

Module interface: 2.54mm Pin Pitch
