Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2" Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V in Saudi Arabia Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2" Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V in Saudi Arabia Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2" Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V in Saudi Arabia Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2" Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V in Saudi Arabia Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2" Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V in Saudi Arabia Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2" Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V in Saudi Arabia

Duckbill Side-Mounted Water Level Sensor, 304 Stainless Steel G1/2" Threaded Tanks Horizontal Liquid Float Switch, 2 Bar Load for Aquariums Fish Tank Hydroponics Pool, DC 0-220V

SAR 90
Brand
Thincol
Category
Sensors
– 1 +

Special Features

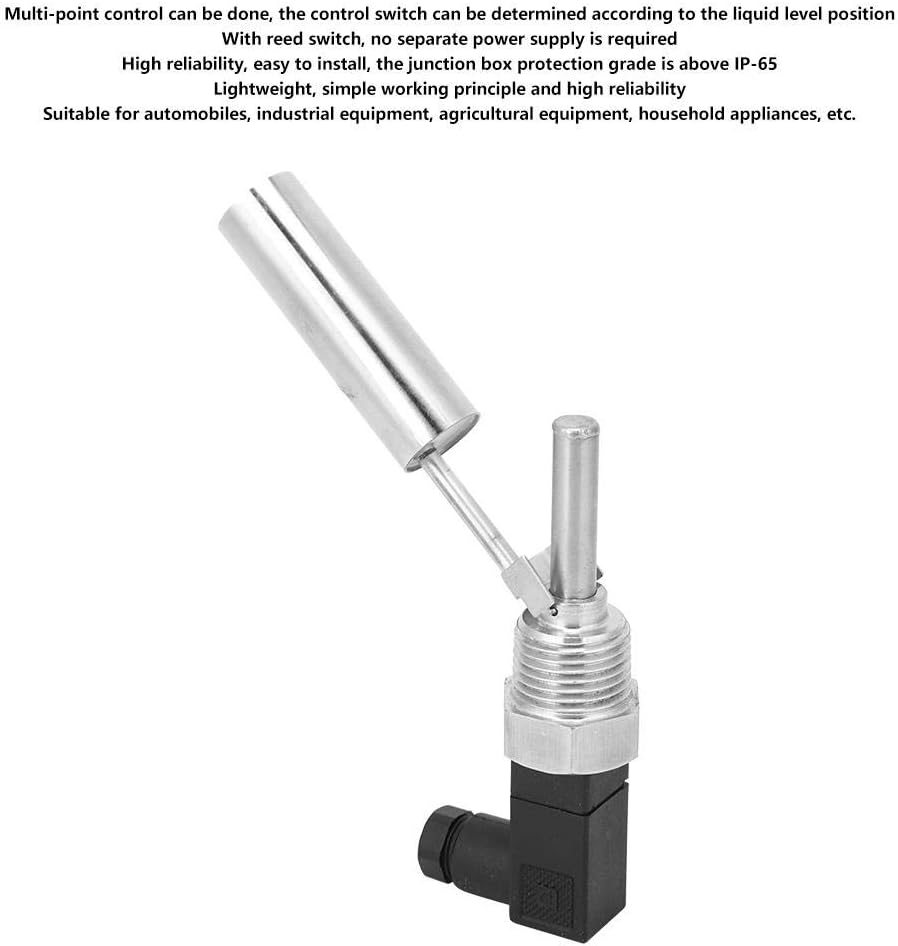

  • Multi-point control can be done, the control switch can be determined according to the liquid level position
  • With reed switch, no separate power supply is required
  • High reliability, easy to install, the junction box protection grade is above IP-65
  • The material is stainless steel SUS304, can be used in high temperature and high pressure places, suitable for different density, different acid and alkali, different pressure and temperature
  • Lightweight, simple working principle and high reliability

Description

Feature:
1. Suitable for automobiles, industrial equipment, agricultural equipment, household appliances, etc.
Specification:
Item Type: Duckbill Float SwitchContact Capacity: 10W (low pressure) / 50W (high pressure)
Working Voltage: 0-220 (V)
Working Current: 0.5-1.5 (A)
Maximum Temperature Resistance: 120(℃)
Maximum Withstand Voltage: 0.2(Mpa)
Material: 304 stainless steel

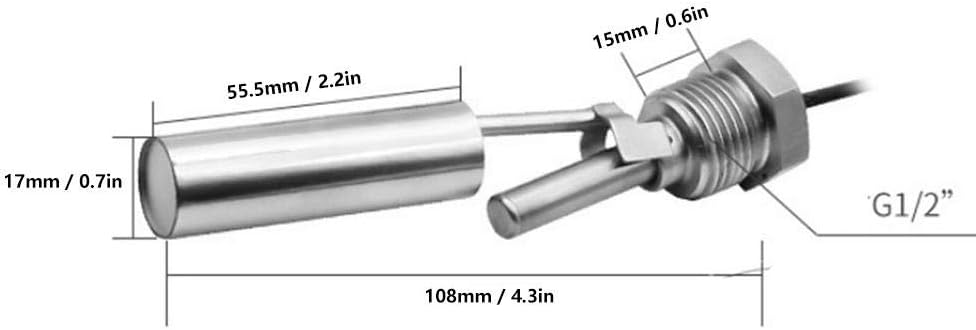

Thread: G1/2"Size: Approx. 108 x 17 x 55.5mm / 4.3 x 0.7 x 2.2in
15mm / 0.6in

Working Principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a magnetic reed switch and a float. There are magnetic materials in the float. When the float moves up and down with the measured liquid level, the magnetic reed switch is touched to detect the liquid level position.

Package List:
1 x Duckbill Float Switch
