4.3-10 Mini DIN Female to N Female Adapter, 50 Ohm, 1 Piece in Saudi Arabia 4.3-10 Mini DIN Female to N Female Adapter, 50 Ohm, 1 Piece in Saudi Arabia 4.3-10 Mini DIN Female to N Female Adapter, 50 Ohm, 1 Piece in Saudi Arabia 4.3-10 Mini DIN Female to N Female Adapter, 50 Ohm, 1 Piece in Saudi Arabia 4.3-10 Mini DIN Female to N Female Adapter, 50 Ohm, 1 Piece in Saudi Arabia

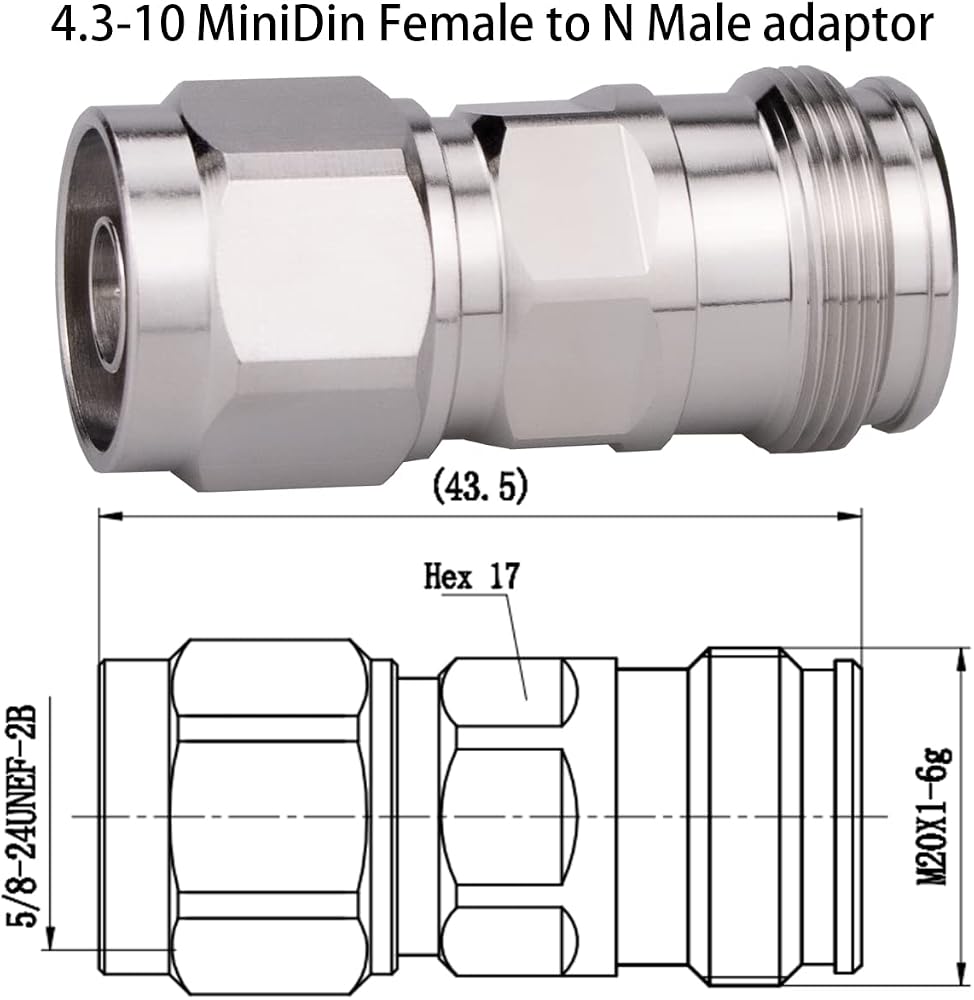

4.3-10 Mini DIN Female to N Female Adapter, 50 Ohm, 1 Piece MiniDin female to N male

SAR 68
Brand
Whisary
Weight
59 g
SizeMiniDin female to N male
– 1 +

Special Features

  • 1.connector : one size is MiniDin 4.3-10 male , another side is N female connector
  • 2.Impedance :50 Ohm, Frequency :DC-6GHz VSWR ≤1.10 Insertion loss≤0.11dB PIM3 ≤-163dBc
  • 3.Material :Body Brass with Tri-Alloy plated, insulator :PTFE(Teflon)
  • 4.N female to 4.3/10 Mini DIN male adapter, used in RF Applications,Antennas,Coaxial cable,Wireless LAN Devices and so on
  • 5. Package：1 piece adaptor 4.3-10 MiniDIN male to N female jack

Description

Whisary 4.3/10 MiniDIN Female to N Female Adaptor
1.Material :
Body ：Brass Tri-Alloy plated
Insulator: PTFE (teflon) Center conductor: Phosphor bronze Ag plated
2.Performance index: Characteristic Impedance : 50 ohm
Frequency Range :DC-6GHz

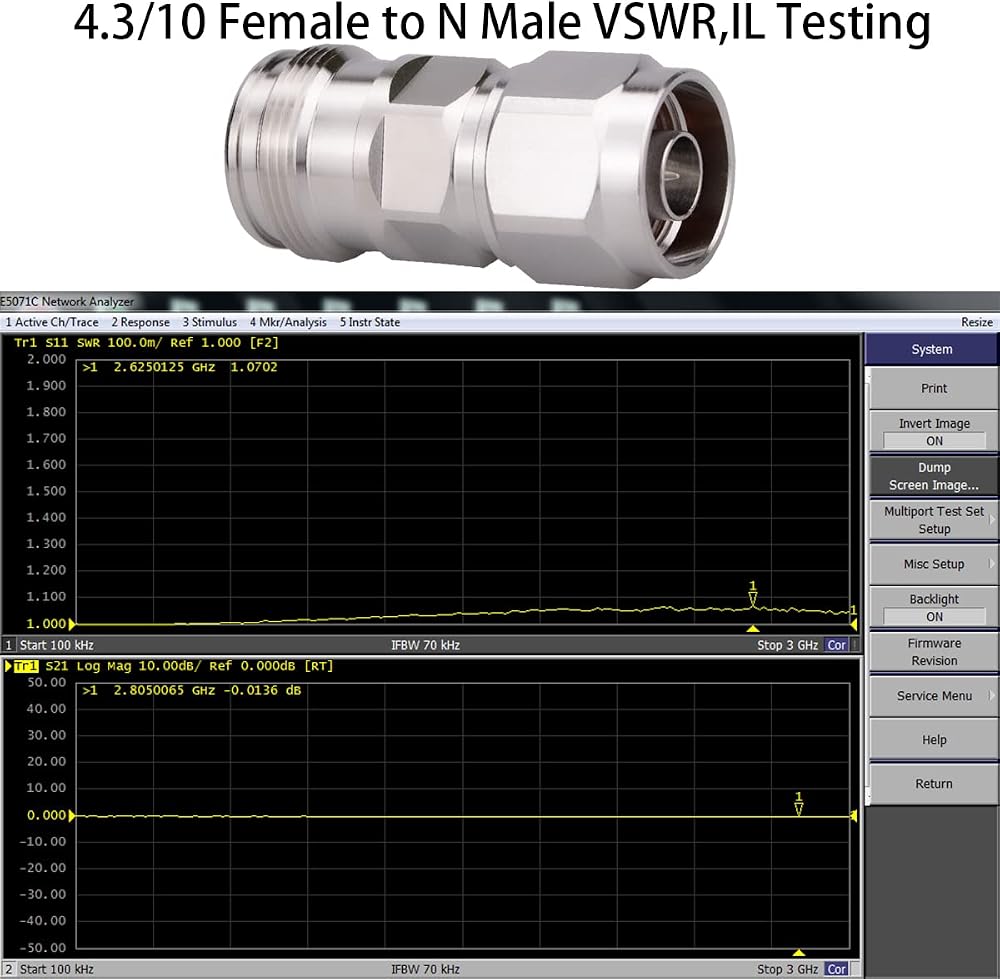

VSWR ≤1.10
Insertion loss≤0.11dB

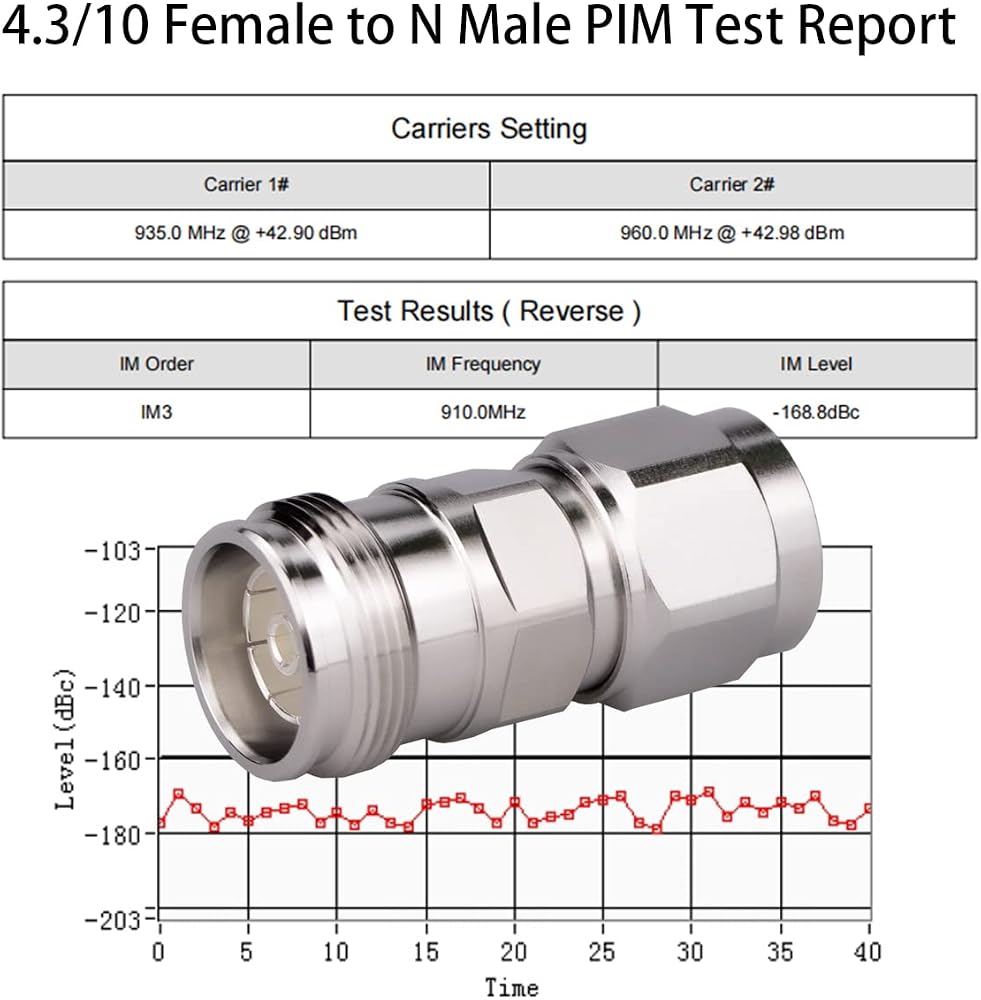

PIM3 ≤-163dBc
Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance : Outer contact≤1mΩ;Center Contact≤1.0mΩ
