Our camera are applicable to all type vehicles.They should be installed at proper position of the vehiche and used with monitor/GPS/parking sensor etc.

When used for rear view at reversing,while the reverse fear shift is power on,camera with monitor image function is working and this kind of image function also could be used for front view and side view.

Note:The camera swith is controlled by the reverse gear shift.
Specification:

TV system:PAL/NTSC optional

Effective Pixels: PAL:628*586 pixels NTSC 510*496 pixels

Horizontal Resolutions: 480 TV lines

Video Output: RCA Connector, 1.0V P-P, 75 ohm

Power Consumption: 110mA,max 300mA with IR on

Power Supply: DC12V/24V

Operating Temperature: -20 - 90 (Celsius Degree) RH95%MAX

Storage Temperature:-30-80(Celsius Degree) RH95%MAX

Lens angle:135/170 degree

Waterproof:IP67/IP68

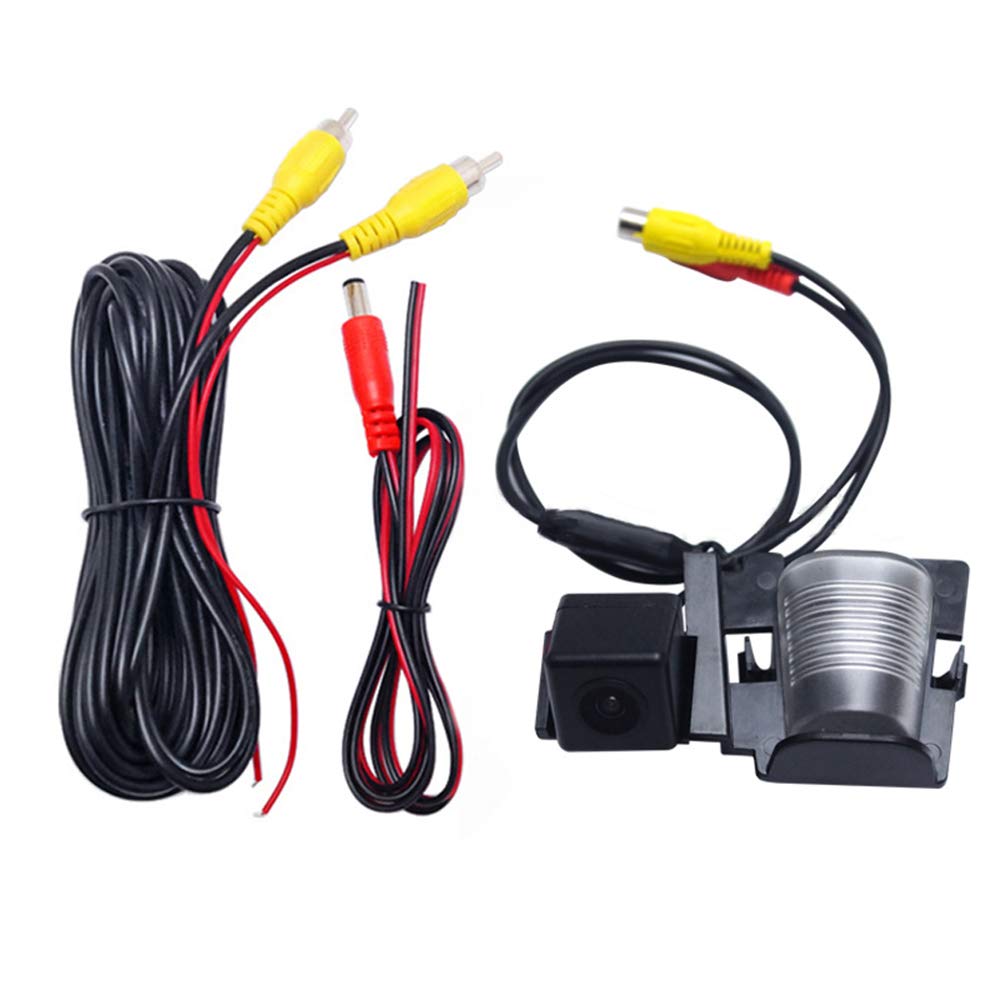

Package include:

1xRear view camera

1xPower cable 1.3m

1xVideo cable 5.5m
