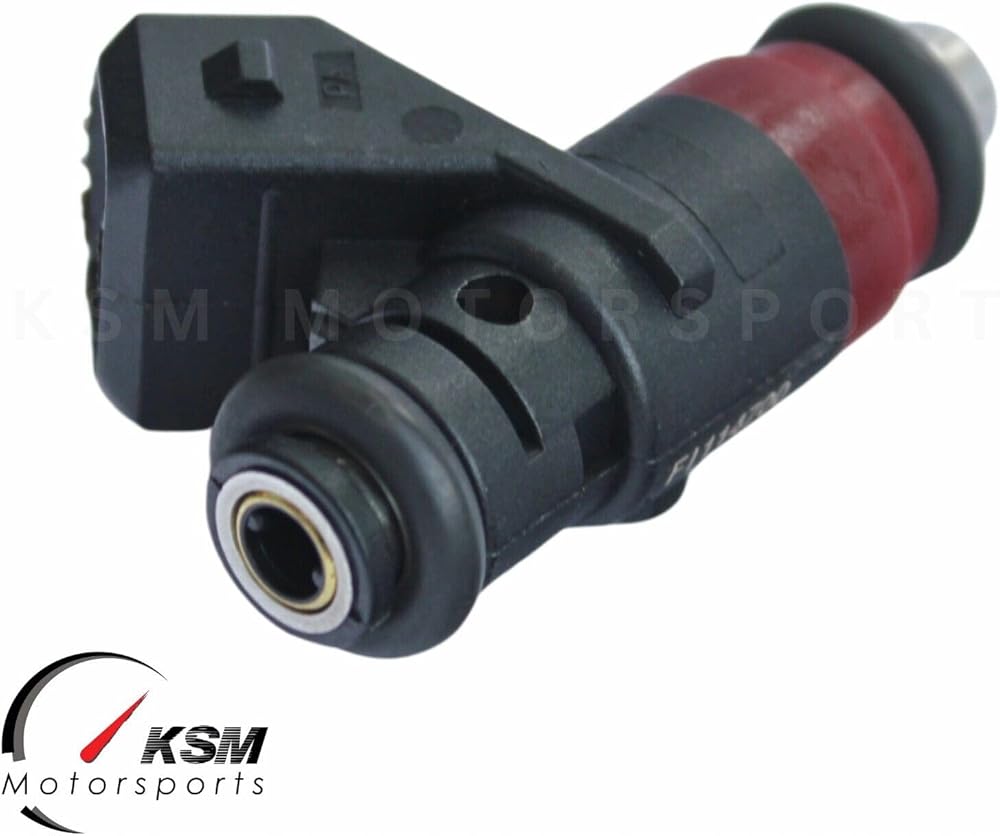

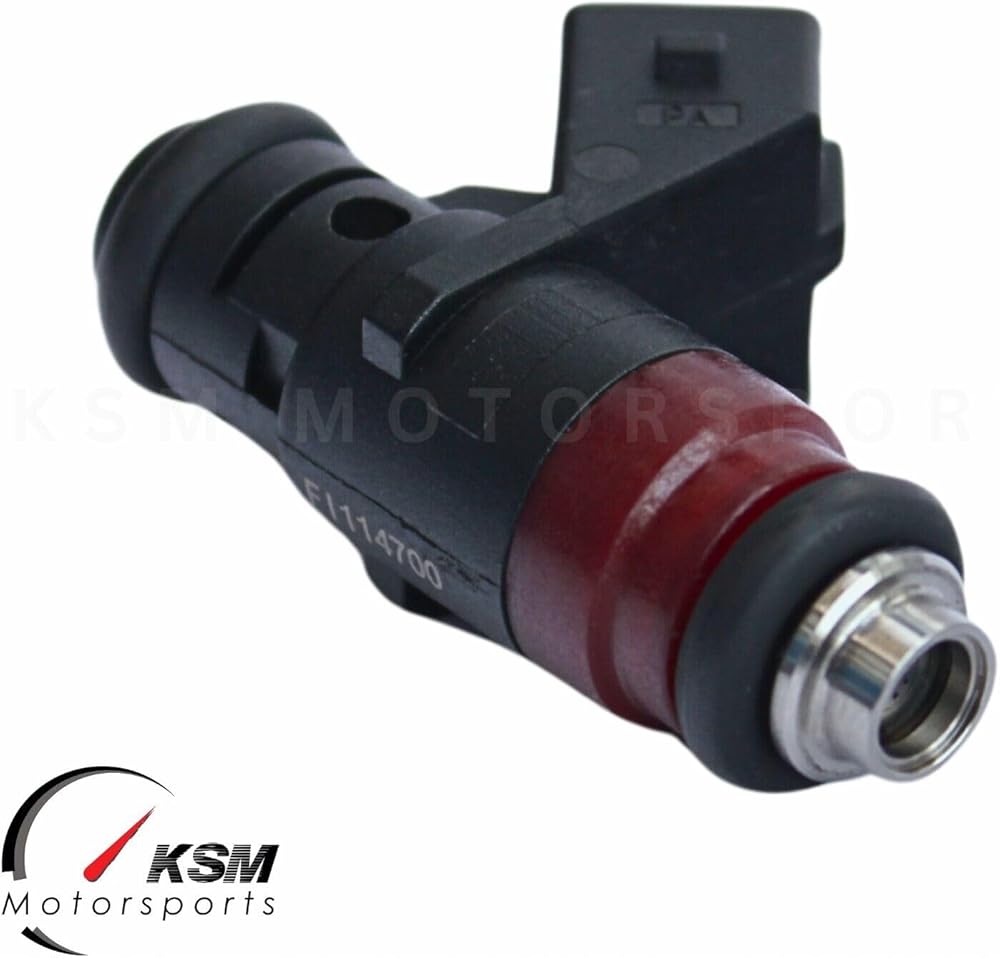

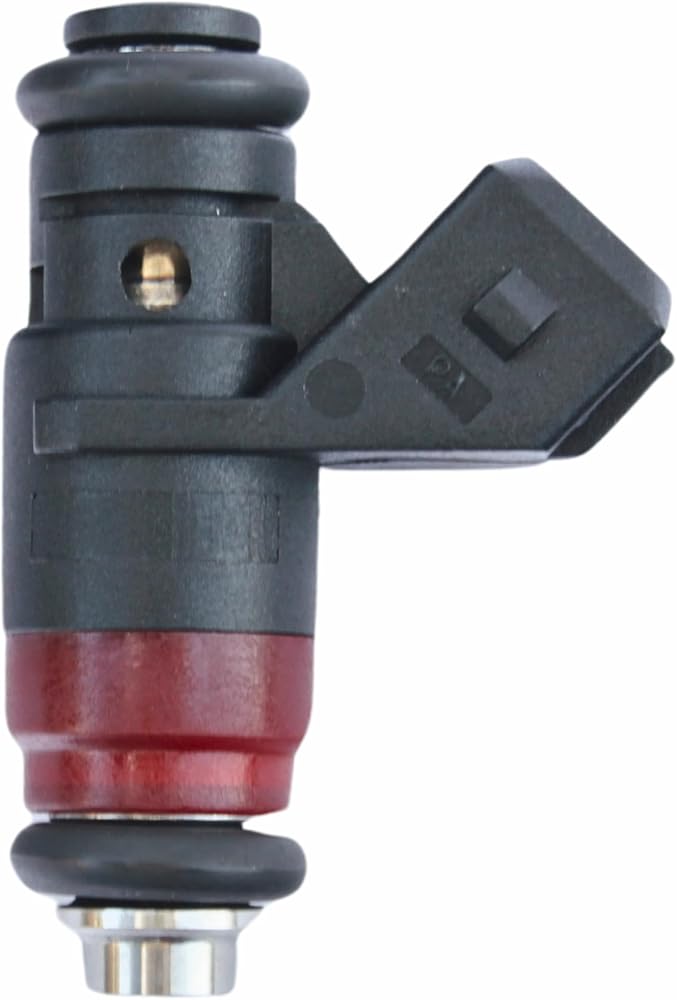

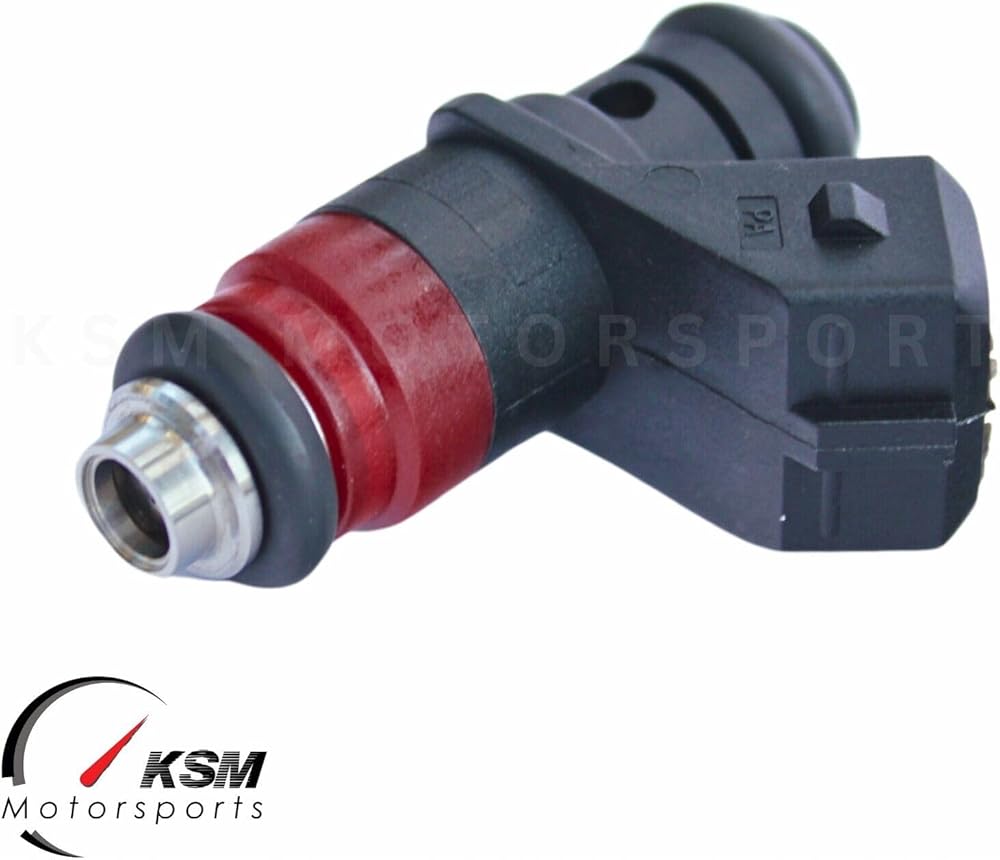

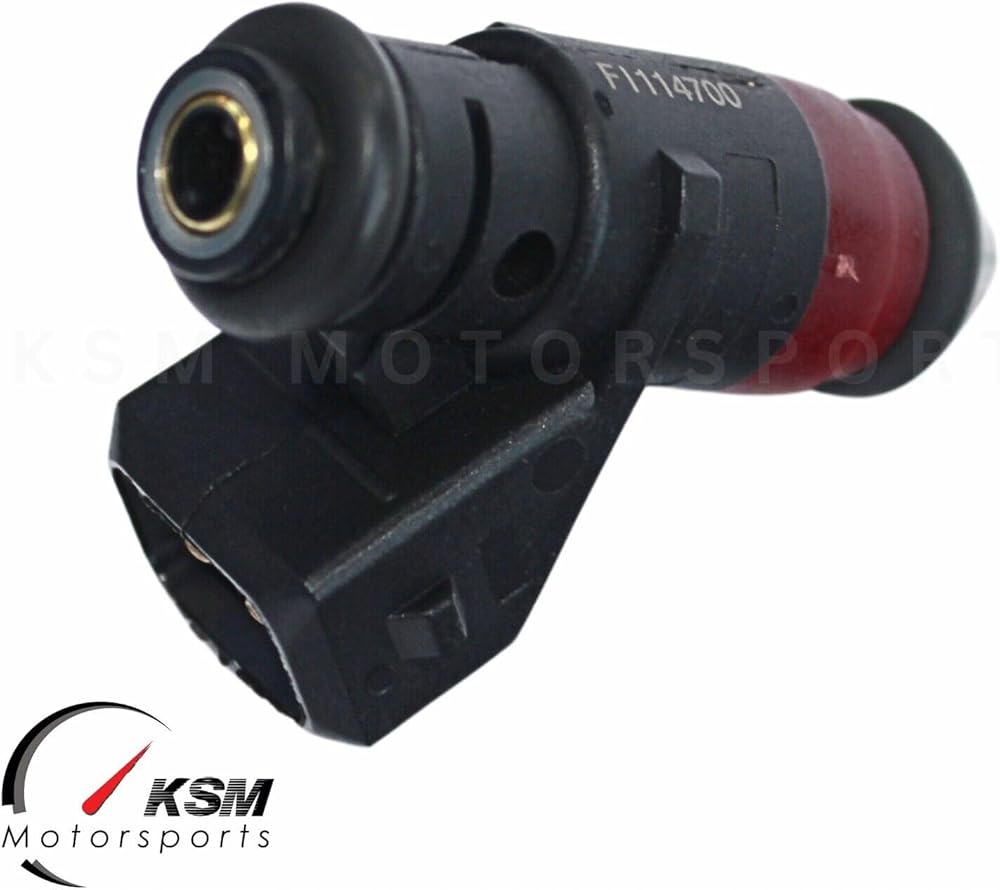

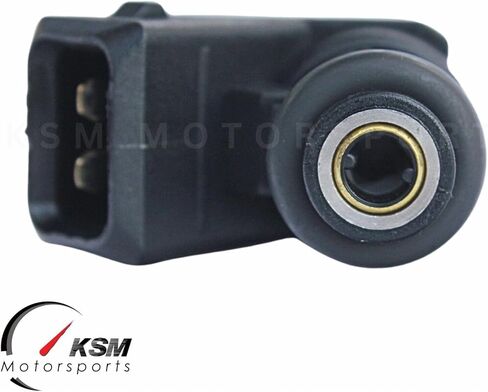

1 x 80lb 840cc Compact Fuel Injector FI114700 875cc EV1 High Impedance

Details:

Manufacturer Part Number: FI114700, A2C32624700
Compatible part numbers:114700
Manufactured with precision to meet OE standards; Easy installation
The fuel injector has been 100% tested and exactly match the internal coil resistance and fuel flow rate of OEM fuel injector
Flow rate @ 43.5 psi/3 bar: 80 lb/hr / 840cc/min
Static Flow Rate: 875cc /min
Quantity: 1 piece
Condition: New
Compact size fuel injector

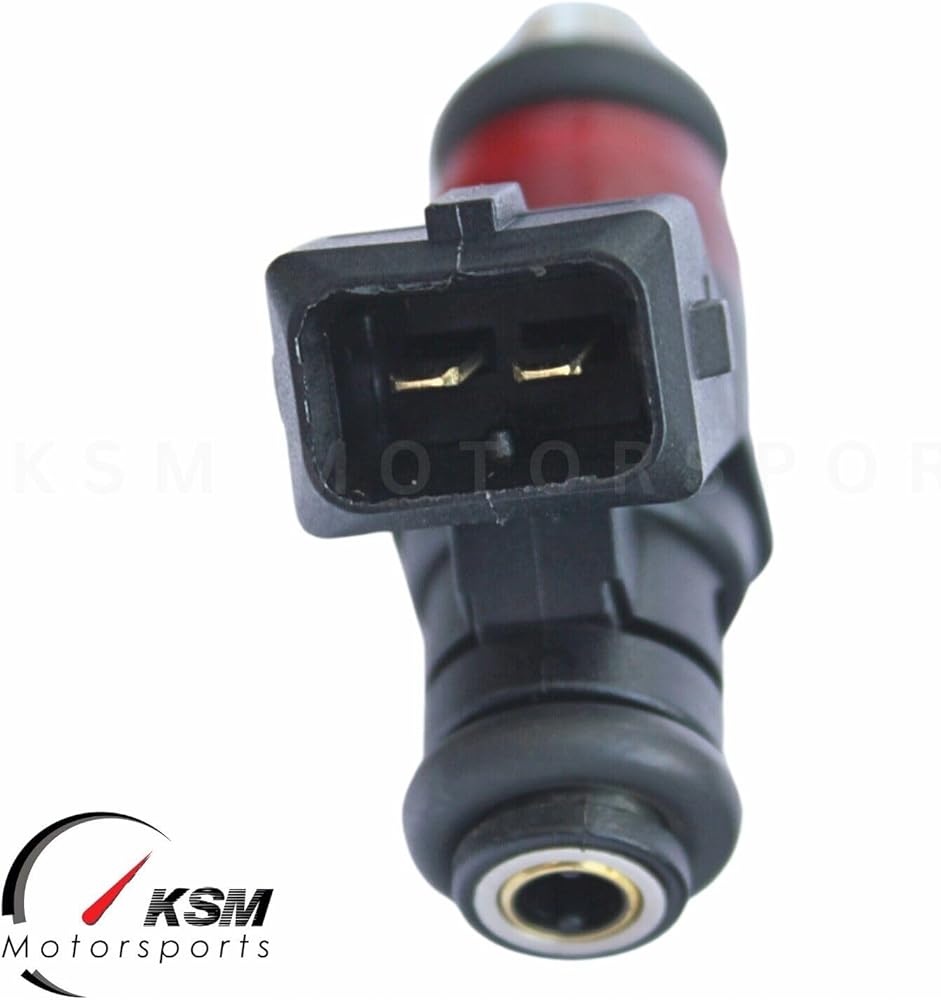

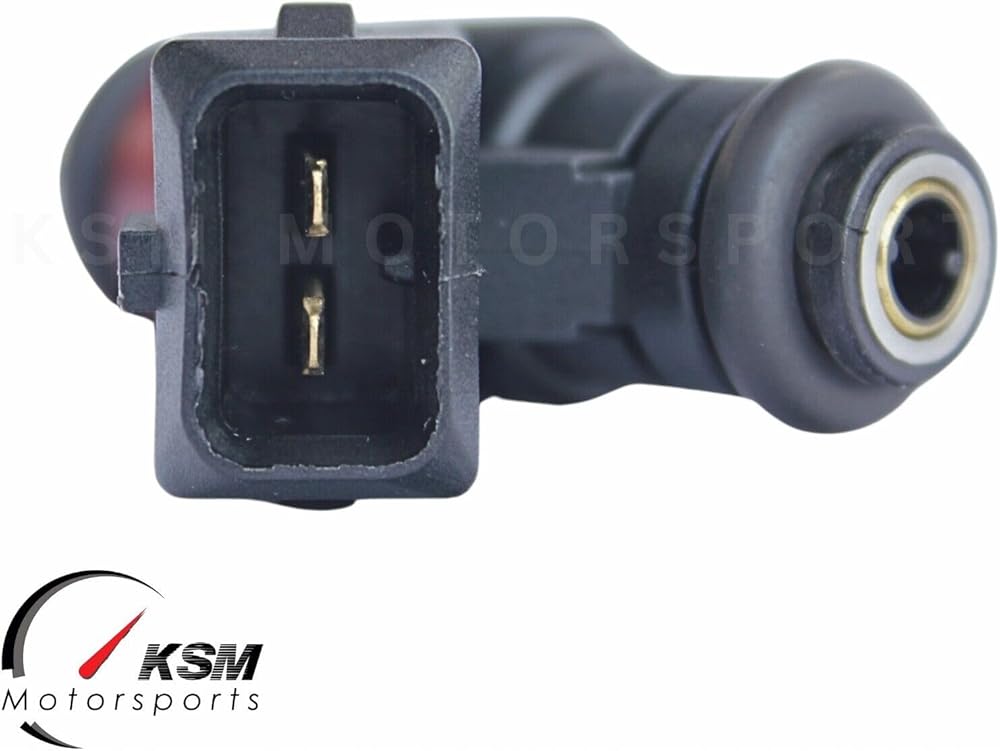

Electrical connector type: EV1 (Minitimer, Jetronic)

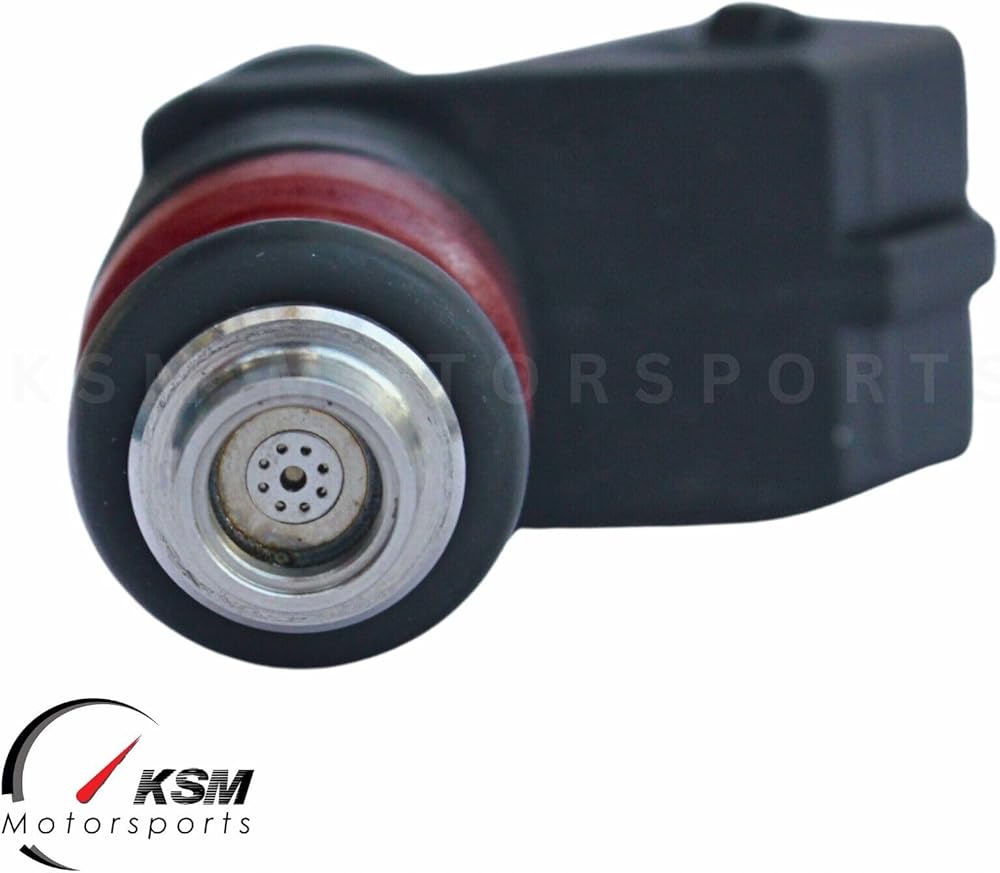

8 hole nozzle
O-Ring Type: Viton
E85 Compatible: Yes
Series: Fit DEKA 5 ( DEKA V )
Offset: 0.065ms
Turn on time @ 14VDC: 1.3ms
Turn off time: 0.7ms @ 600KPa
Increased fuel economy and Throttle response / Smoother Idle
Coil Resistance: 12 Ohms / High Impedance / High-Z (No ECM driver modifications required)
Low Impedance performance characteristics with High Impedance Compatibility
Pressure/Leak tested, Spray/Flow Tested
Fitment details:
Overall Length: 48 mm
Oring to Oring Length: 34,5 mm
Diameter: 16 mm
Orings: Top and bottom 14,5 mm

Application/Compatibility:
Despite the high flow rate, they are linear and controllable at low pulse widths and have been used in ULEV applications! This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector.
These injectors are able to function at high fuel pressures and don't exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures.
They are based on the same design as the popular FI114992 80 lb/hr DEKA IV ( DEKA 4 ) injector. The EV1 injector connector can be found on many older and late-model OEM applications such as the GM TBI, TPI, LT1, LT4, LS1, some LS2, some LS6 and most European applications.
