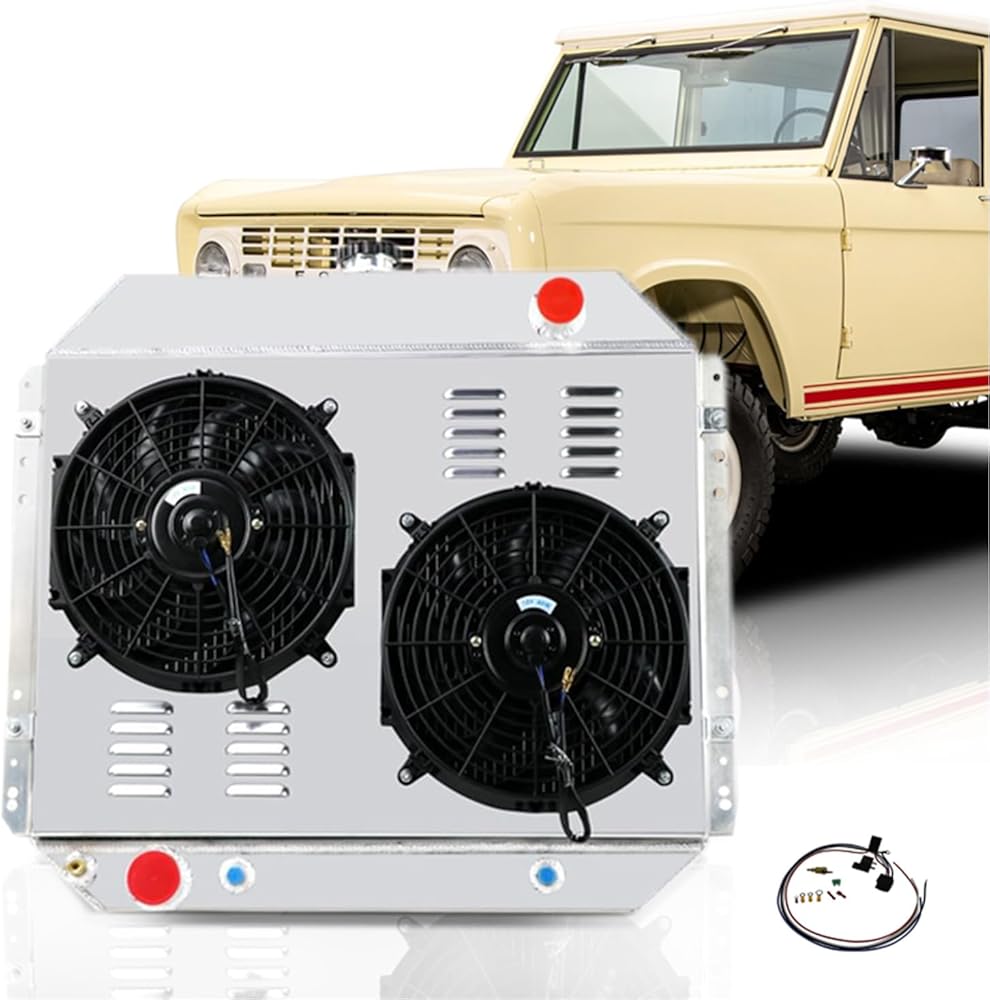

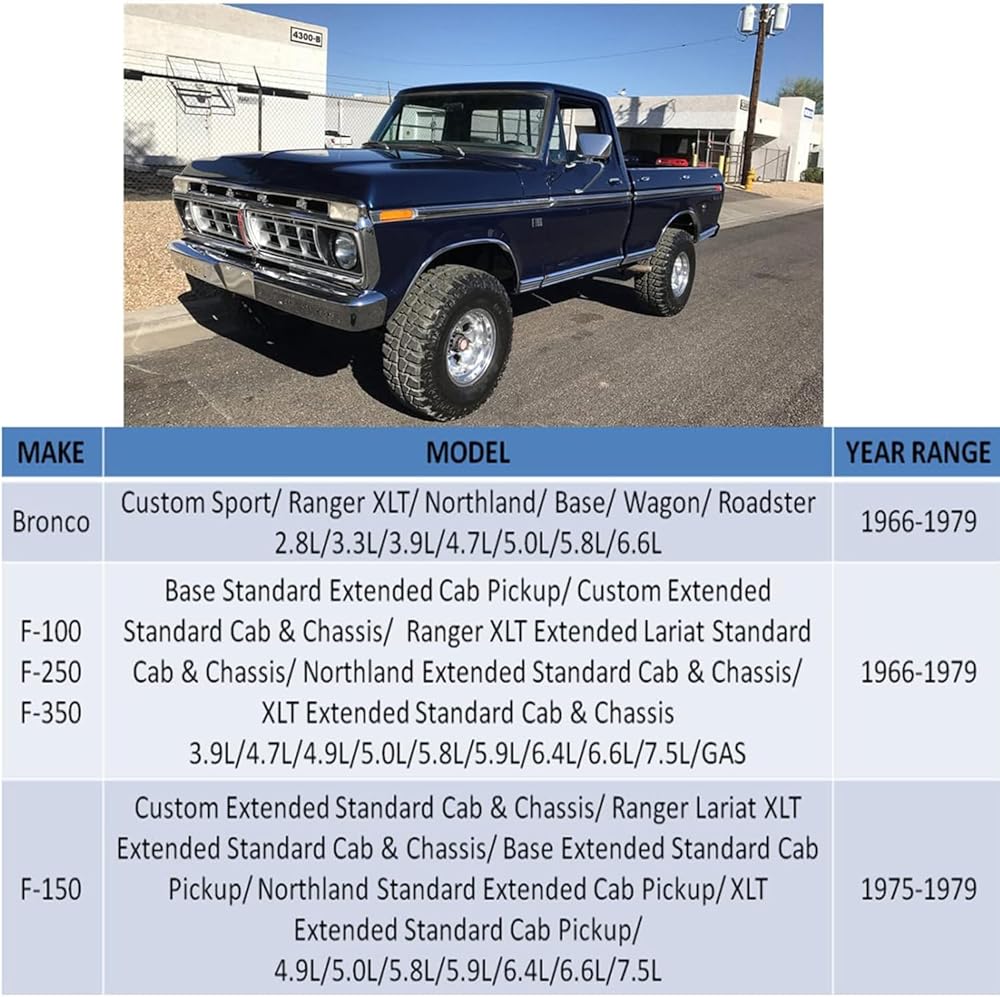

This Radiator Compatible With:
1978-1979 Ford Bronco (351ci V8, 400ci V8)
1968-1969 Ford F-Series Truck (4.9L Straight 6-cylinder, 360ci V8, 390ci V8)
1970-1972 Ford F-Series Truck (360ci V8, 390ci V8)
1973-1975 Ford F-Series Truck (302ci V8, 360ci V8, 390ci V8)
1976 Ford F-Series Truck (302ci V8, 351ci V8)
1977-1979 Ford F-Series Truck (302ci V8, 351ci V8, 400ci V8)
For the year and models, please check the compatibility.
Only Fits Chevy V8 Engine Only!

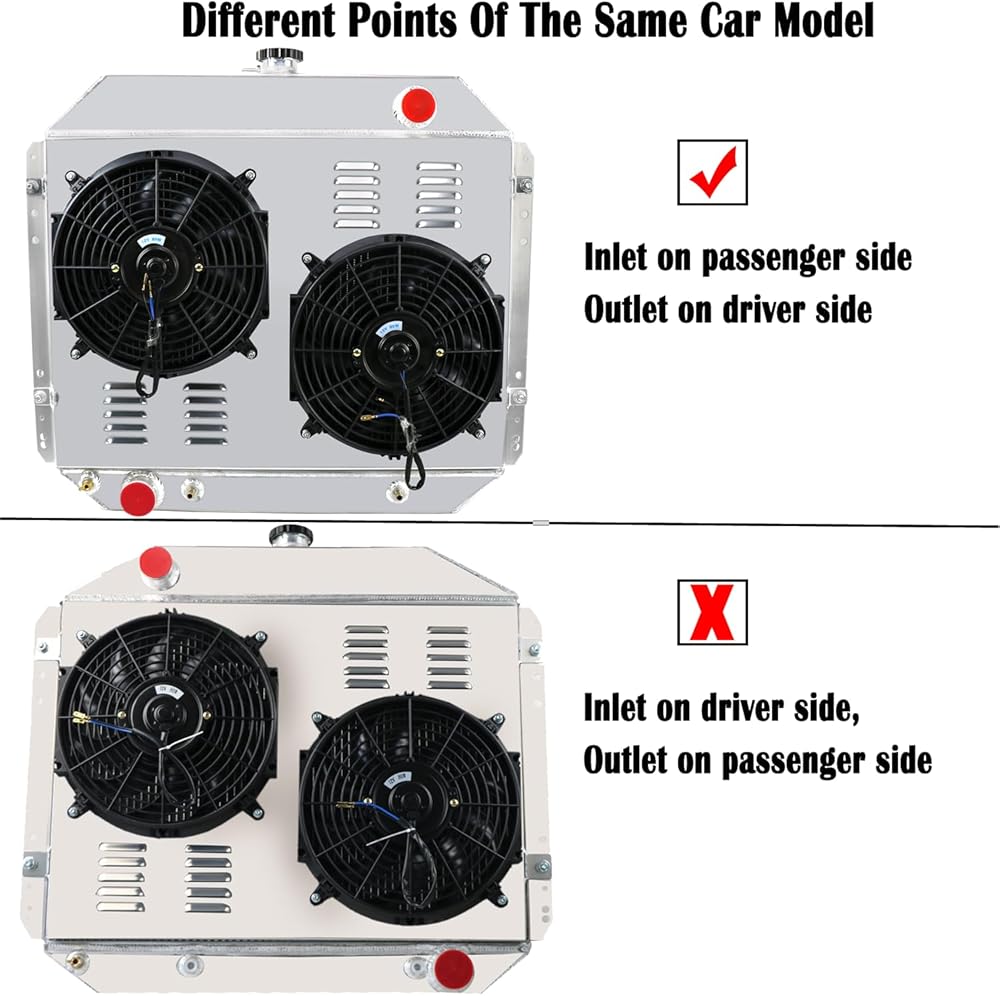

(top hose on driver side, bottom hose on passenger side)

OE/OEM Part Number: 433, SBR433, CC433, CU433, DPI433, KKS433, DPI132, CU132

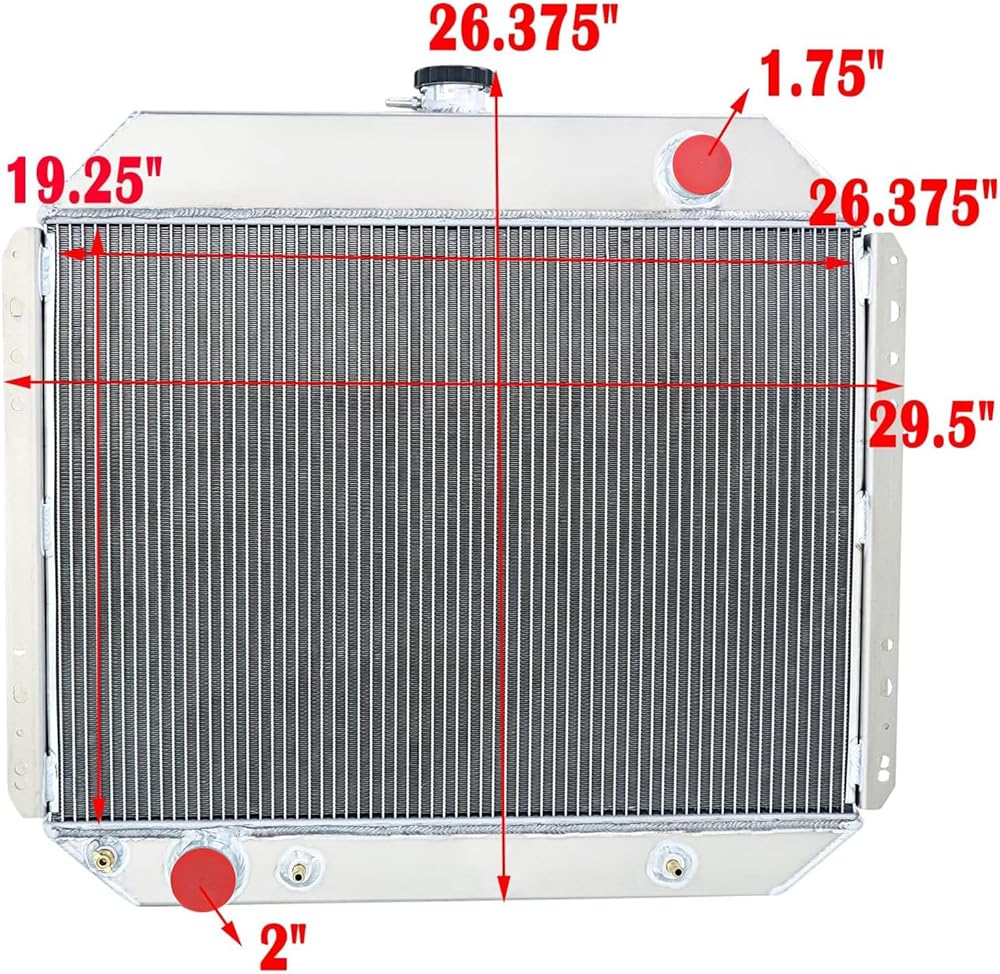

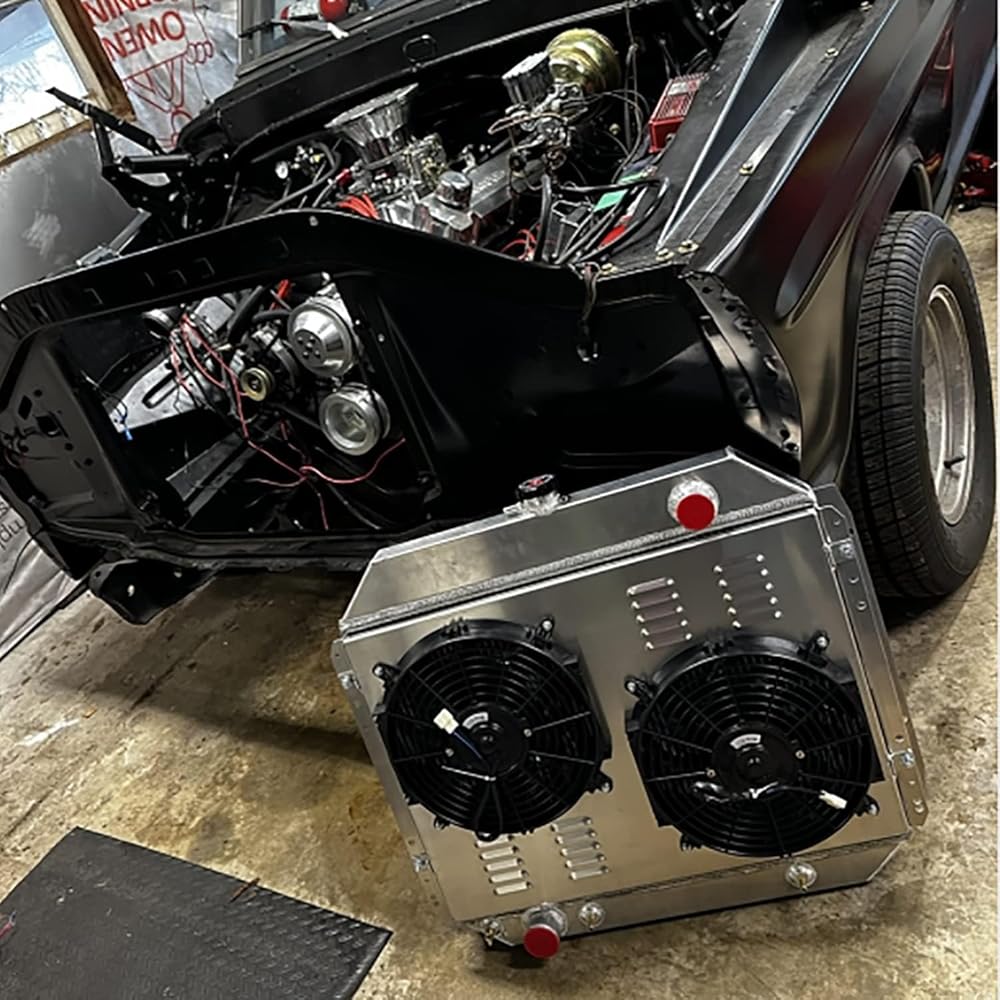

Radiator Size:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Material: AA5052 Aluminum
Performance Part: Yes
Items Included: Cap
Radiador de aluminio
Crafts: 100% Tig welded,no epoxy
Fitment Type: Direct Replacement
High Performance: Up to 30%-45% Cooling
Placement on Vehicle: Engine Compartment

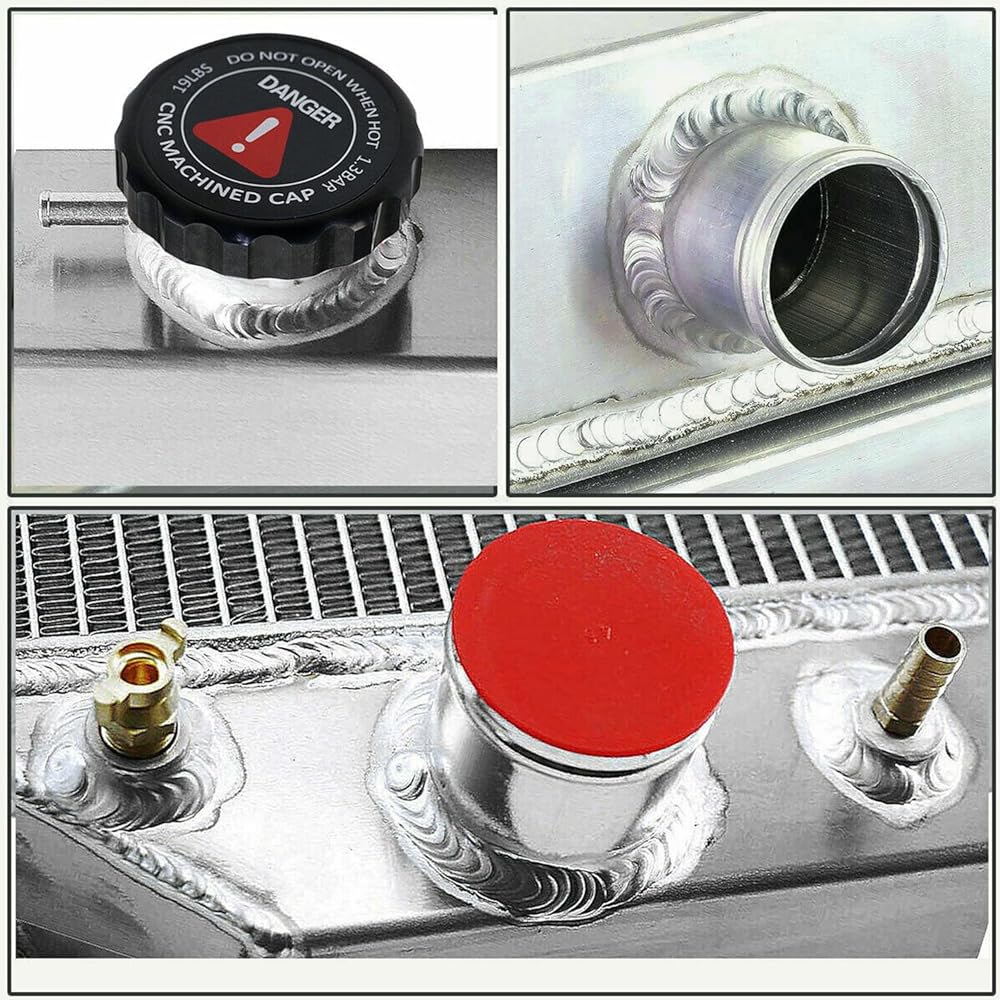

Radiator Cap: CNC Precision Machined Radiator Cap
Radiator Drain Plug: OEM Style Brass Petcock Drain
Features: 100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation

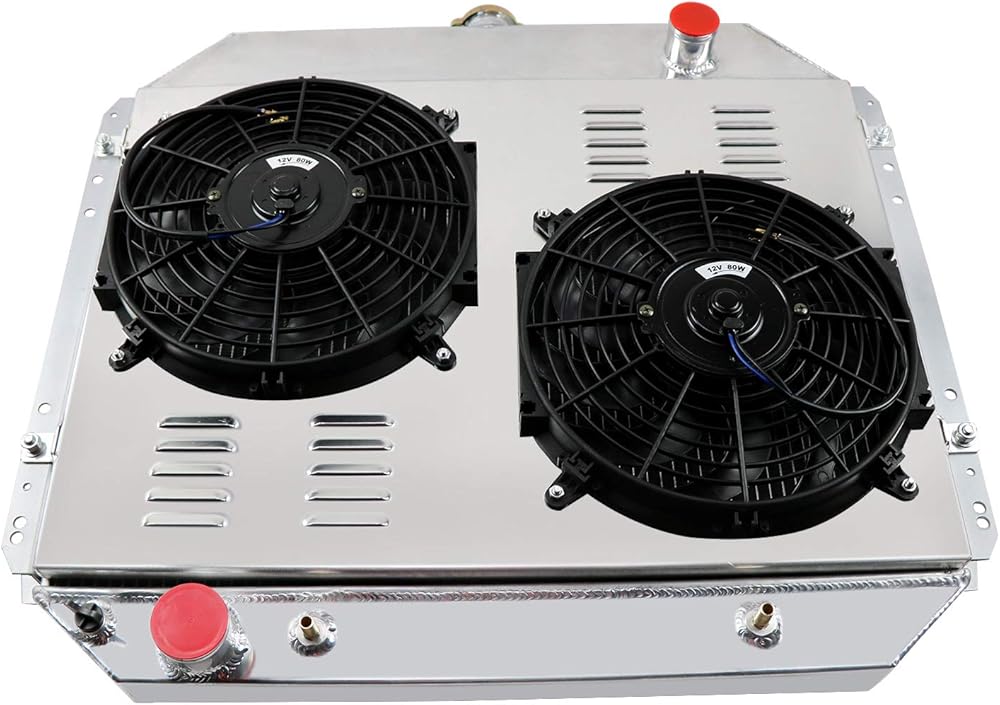

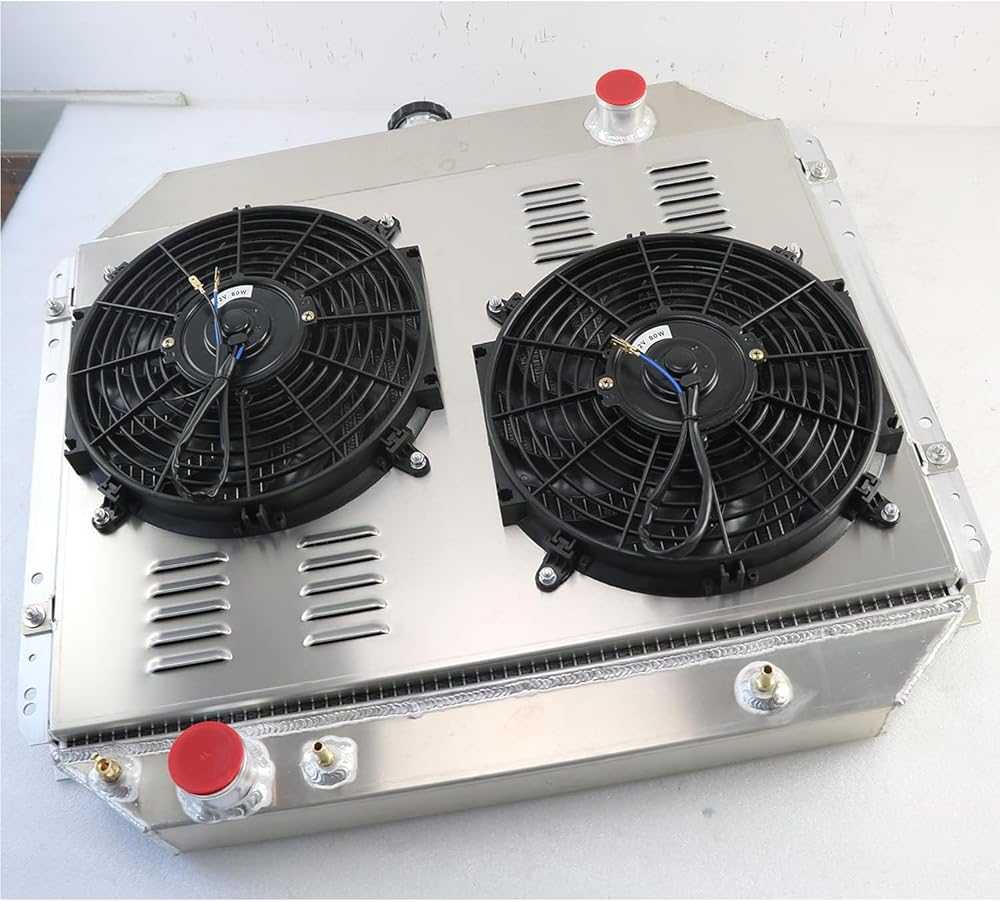

Fan Details:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050
Thickness (in): 2.500
Number of Blades: 10 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan
Activates by grounding electric fans at preset temperature
180'F turn-on temperature, 165'F turn-off temperature
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included
Probe typically threads into radiator, water outlet or manifold

Thermostat Relay Kit Instructions:
RED + connect directly to battery
WHITE wire to ignition switch power source
BLACK goes to thermos switch
BLUE wire goes to the Fans
This set up will run Fans & pull air in through radiator

KUUHLERSAT Radiador:
1. Made from Aircraft T-5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All T-5052 Aluminum 2mm thick tanks and fittings, ensure it's hard and durable
4. Carefully crafted to exceptional OE standards for precise fit

Description:

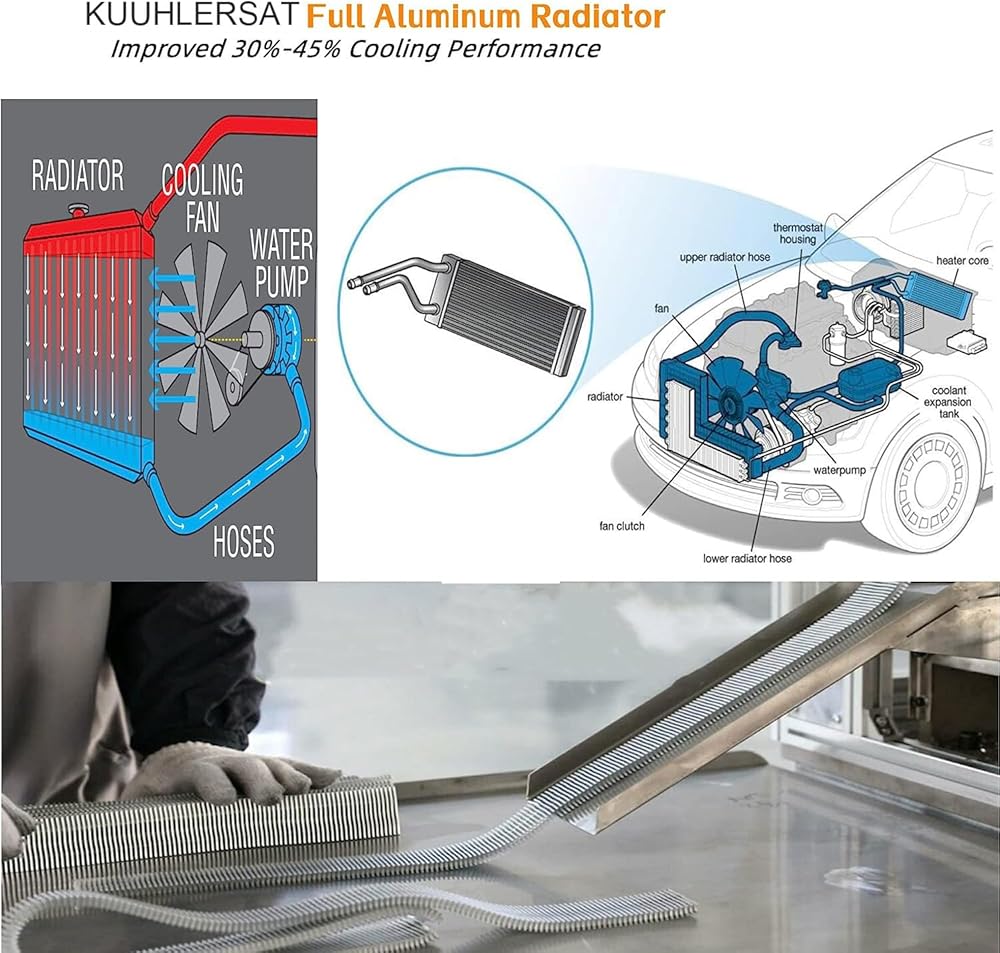

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure
Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently
This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones
Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications

About us:
Pls use AmazonConfirmedFit to check whether this Radiator compatible with your vehicle
If there is something wrong with your purchase please let us know and we will do all in our power to fix the issue to you. Thank you for your cooperation
