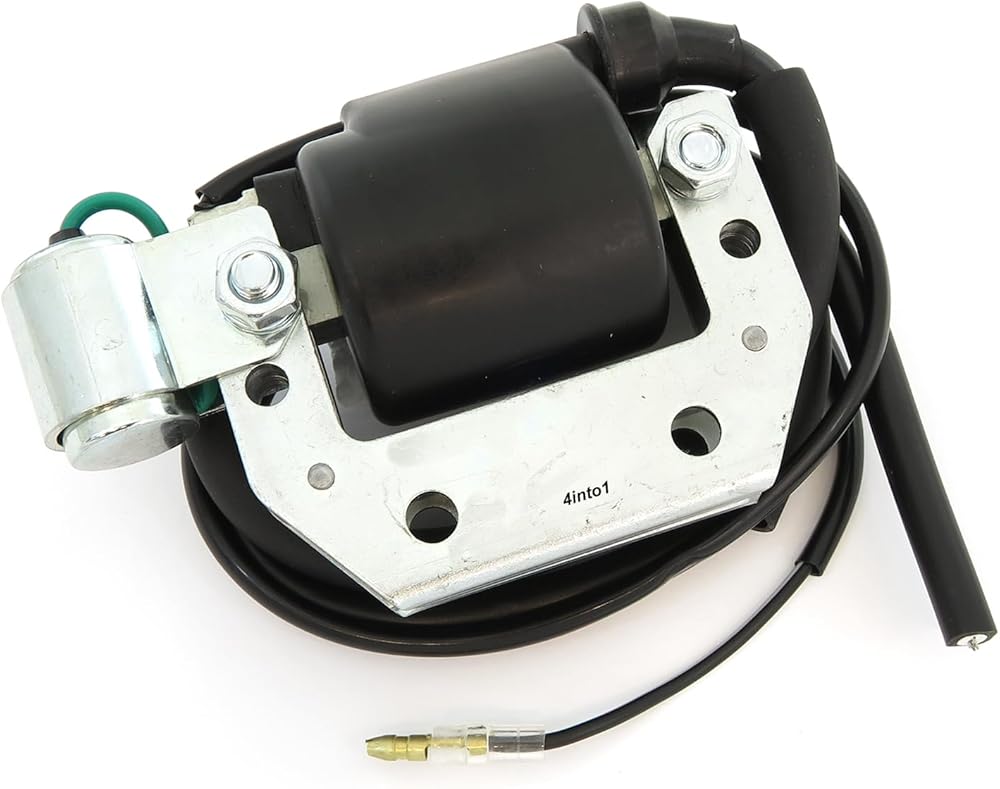

High quality ignition coil for the Honda trail bikes from the 70's. It comes with a condenser for a quick and easy installation! Get that MT250 sparking again and back on the trails!
Specifications: Mounting Hole Spacing: 35mm (1.4") (measured center to center)
Lower Hole Spacing: 65mm (2.5") measured center to center)
Overall Width: 99mm (3.9") (including condenser)
Coil Length: 42mm
High Tension Wire Length: 22" (spark plug wire)
Low Tension Wire Length: 16" (male bullet terminals)
Primary Resistance: 1.8 ohms +/- 10%
Secondary Resistance: 11k ohms +/- 10%
Voltage: 6V
Replaces Honda part number: 30500-950-405
Fits Honda: XL100 - 1977-1978
CT125 Trail - 1977
MT125 Elsinore - 1974-1976
TL125 Trials - 1973-1976
XL125 - 1974-1978
MR175 Elsinore - 1975-1977
XL175 - 1976-1978
FL250 Odyssey - 1977-1980
MT250 Elsinore - 1974-1976
XL250 Motosport - 1972-1975
XL350K - 1974-1975
