Fitment for Golf Cart:
for EZGO TXT48 TXT Fleet 48V 2010-2022
for EZGO TXT48 Freedom TXT 48V 2010-2022
for EZGO TXT48 TXT 2+2 48V 2010-2022

Specifications:
Color: Black
Material: Plastic
Length: 222cm / 87.40"

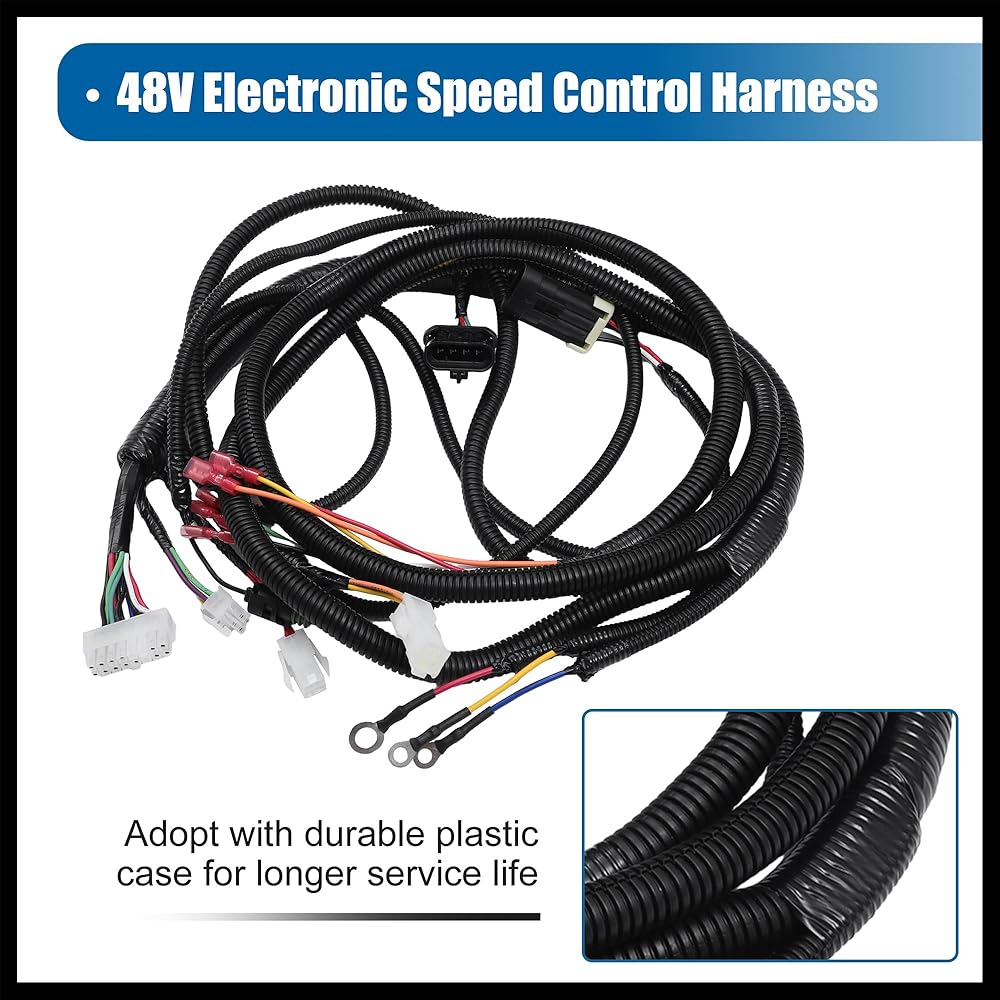

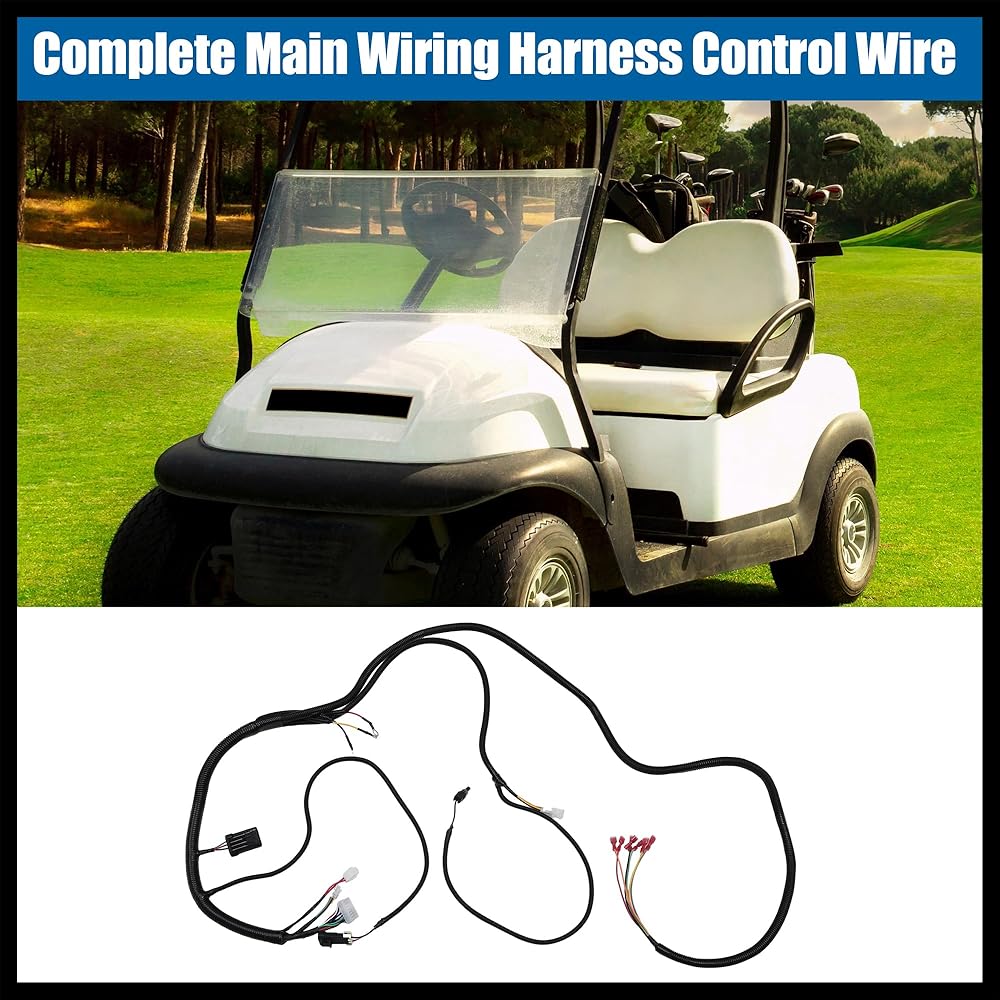

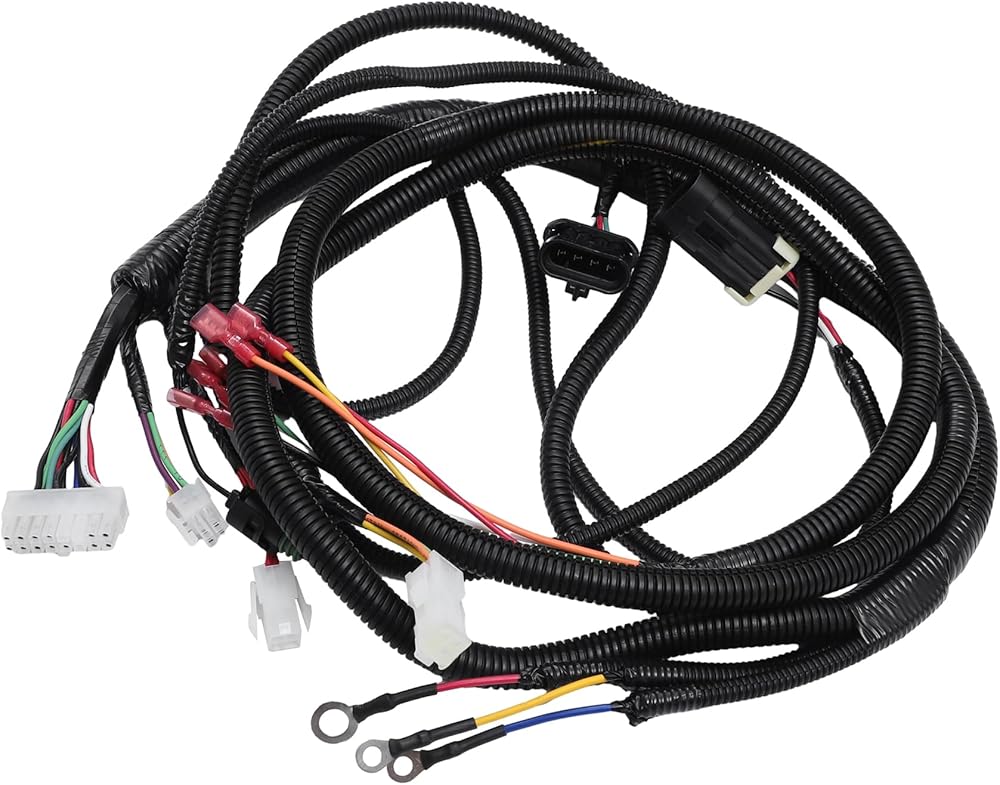

Included 1 × 48V Complete Main Wiring Harness Control Wire

Connection Diagram

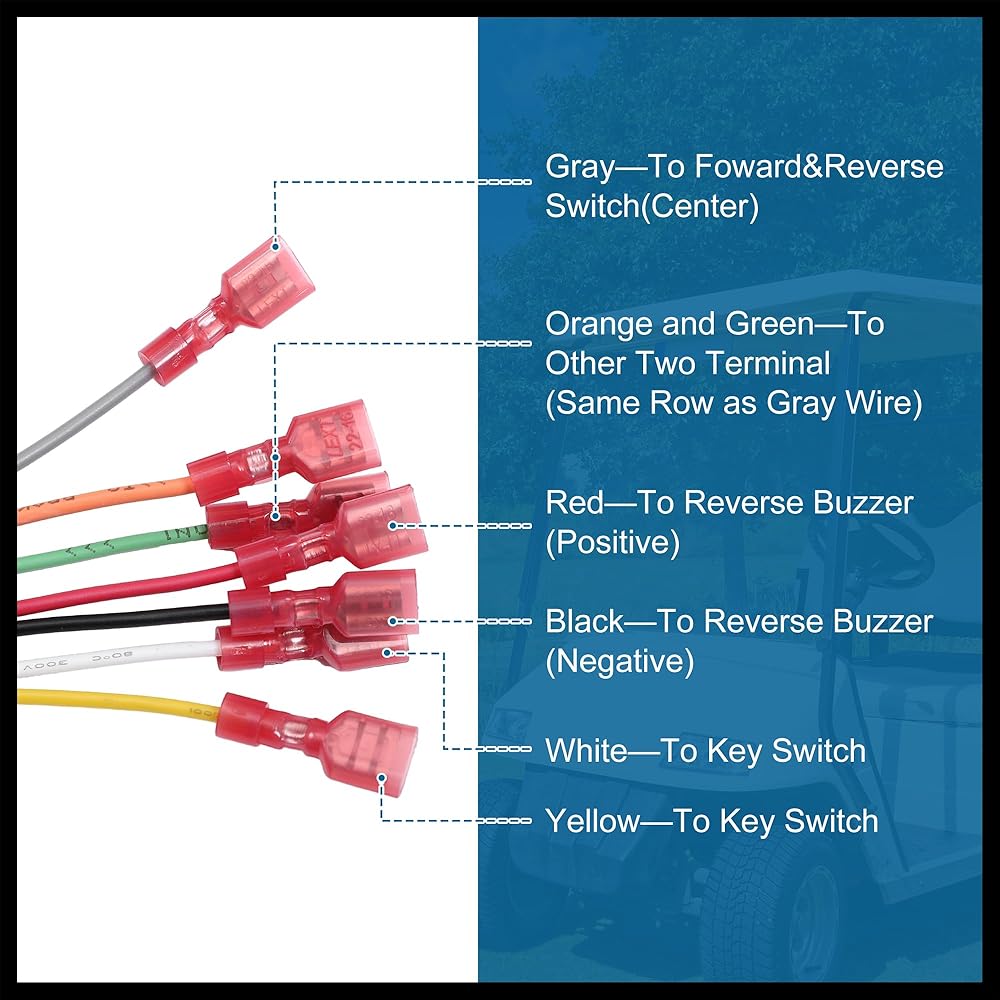

7 Wire Connection with blade terminals
Gray—To Foward&Reverse Switch(Center)
Orange and Green—To Other Two Terminal(Same Row as Gray Wire)
Red—To Reverse Buzzer(Positive)
Black—To Reverse Buzzer(Negative)
White—To Key Switch
Yellow—To Key Switch

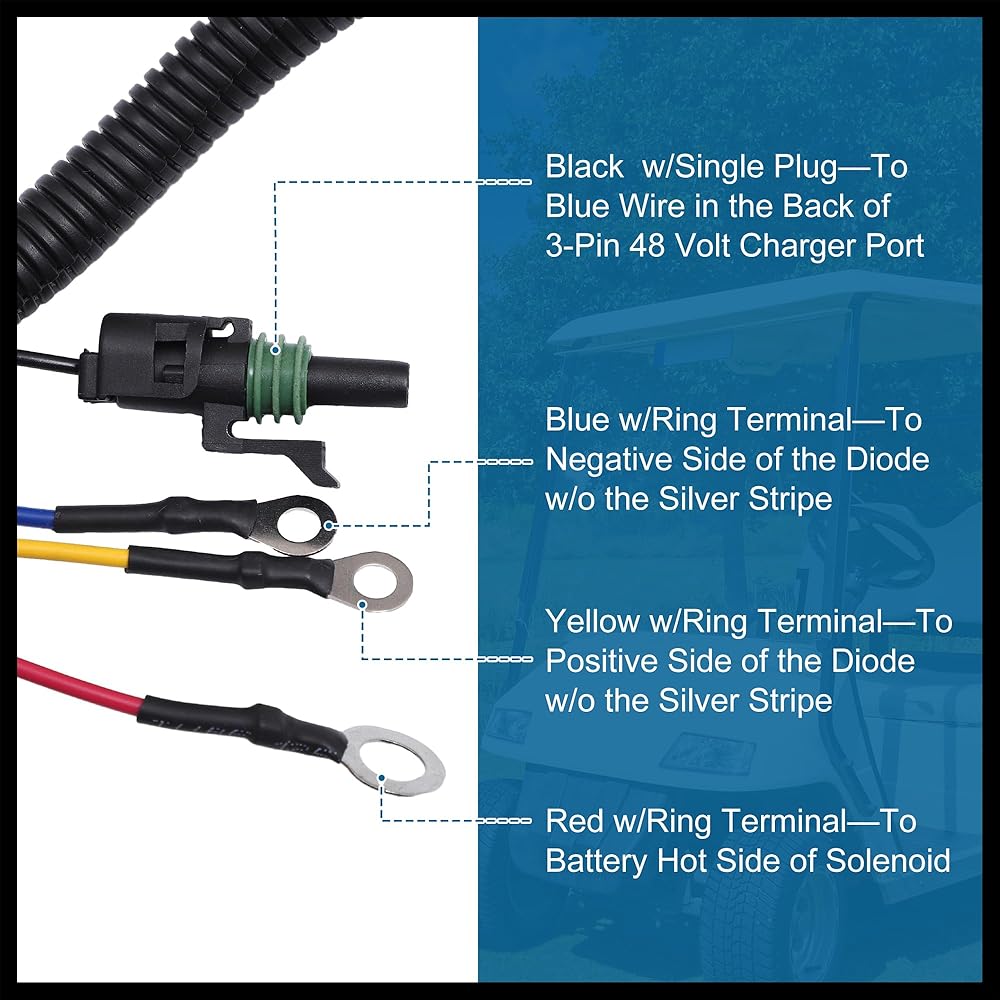

Black w/Single Plug—To Blue Wire in the Back of 3-Pin 48 Volt Charger Port
Blue w/Ring Terminal—To Negative Side of the Diode w/o the Silver Stripe
Yellow w/Ring Terminal—To Positive Side of the Diode w/o the Silver Stripe
Red w/Ring Terminal—To Battery Hot Side of Solenoid

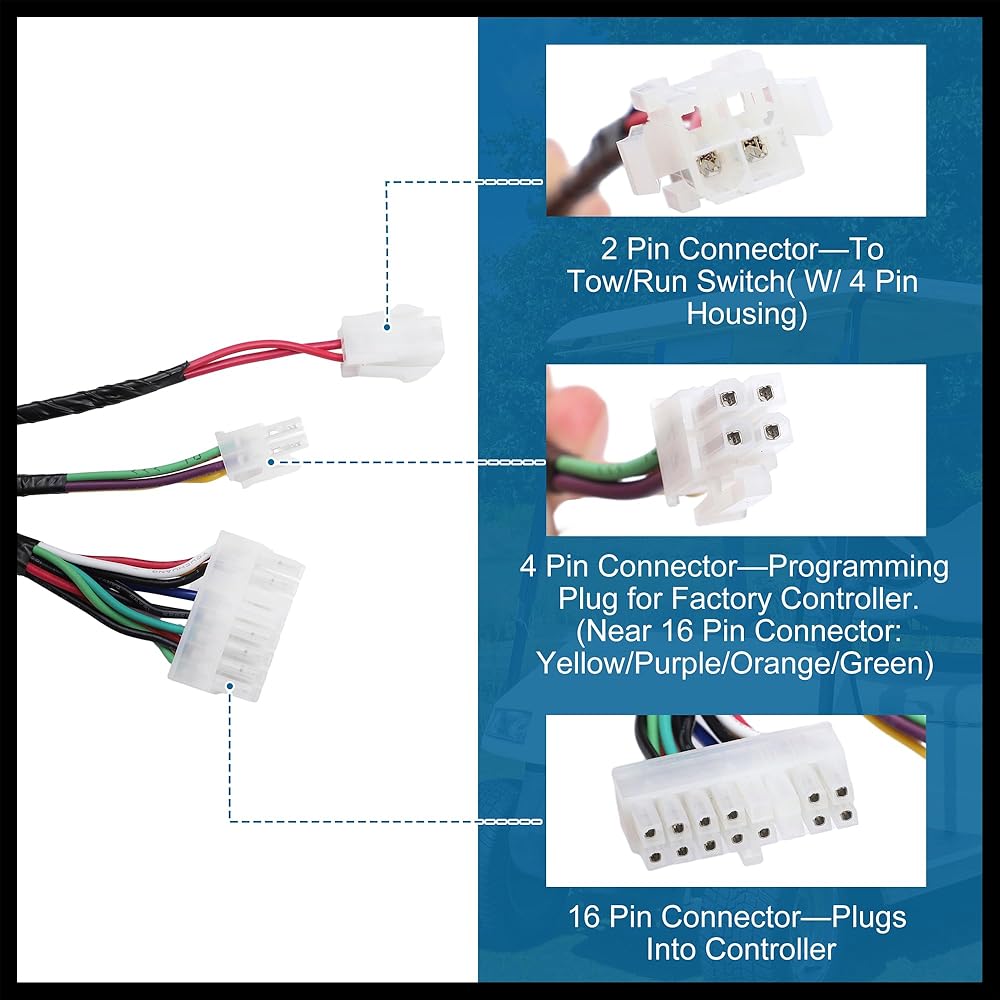

16 Pin Connector—Plugs Into Controller
4 Pin Connector—Programming Plug for Factory Controller (Near 16 Pin Connector: Yellow/Purple/Orange/Green)
2 Pin Connector—To Tow/Run Switch( W/ 4 Pin Housing)

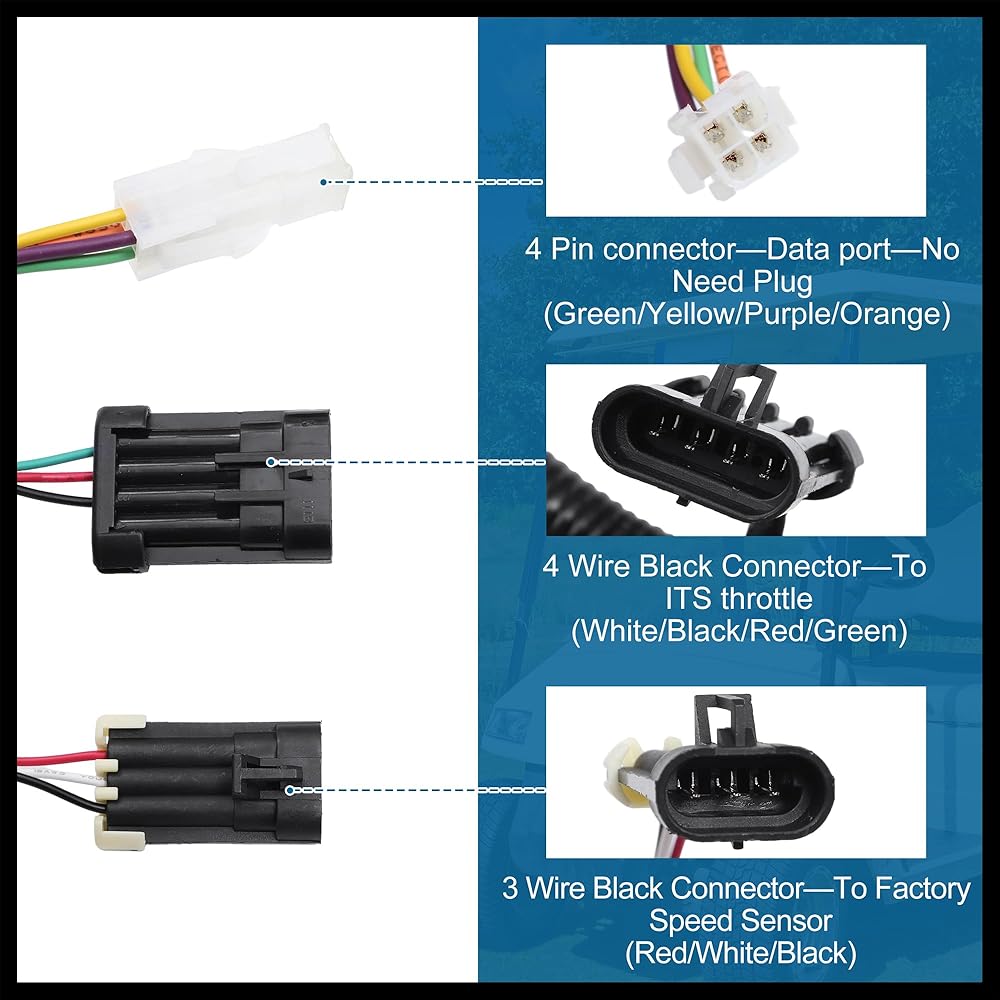

4 Pin connector—Data port—No Need Plug (Green/Yellow/Purple/Orange)
4 Wire Black Connector—To ITS throttle (White/Black/Red/Green)
3 Wire Black Connector—To Factory Speed Sensor (Red/White/Black)

Notice
Double check our pictures or search online to get correct connection diagram.
The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include)
