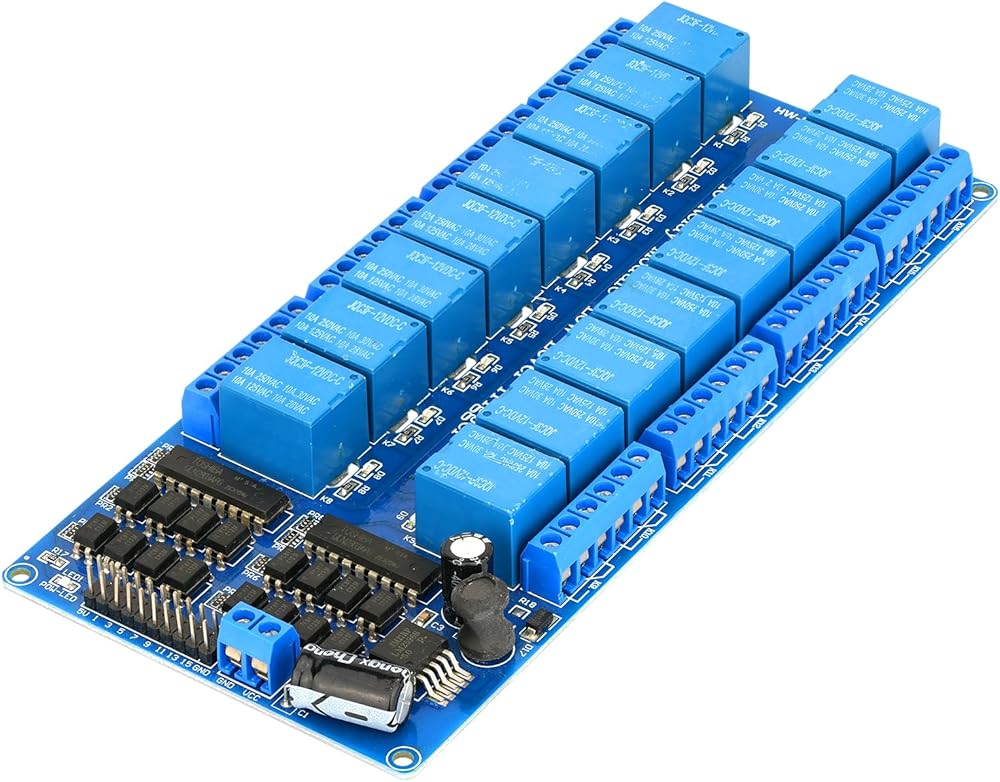

💎【Relay Module】Standard interface can be directly connected with microcontrollers and be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, DSP, etc., very convenient.
⚡【Maximum load】: AC 250V/10A, DC 30V/10A. trigger current 5mA.
🥇Support Optocoupler Isolation
🥈Support High and Low Level Trigger
🥉Support 1/2/4/6/8/16 channels 5V 12V 24V multi-pack optional

💎【Technical Parameters】:
💎The module uses high quality relay , normally open interfaces Maximum load : AC 250V 10A, DC 30V 10A.
💎The power indicator (green) , relay status indicator (red)

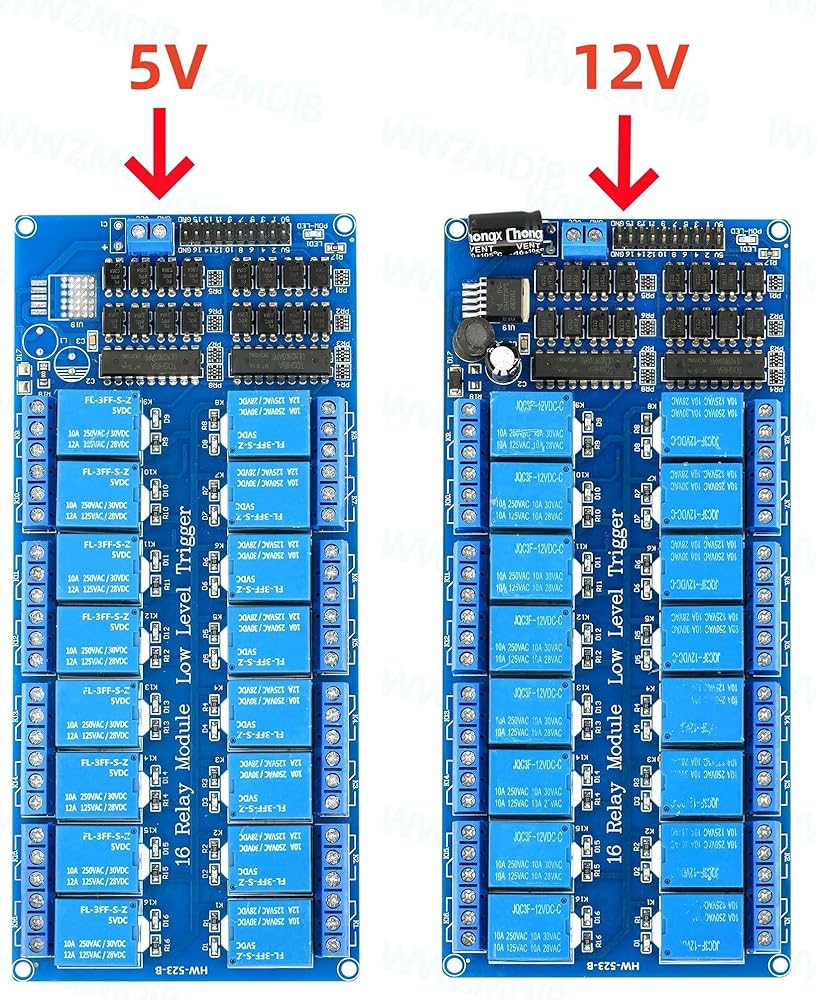

💎【5V relay version】:
Quiescent current: 5mA
Maximum current: 190mA
Trigger current: 2-4mA
Low level trigger voltage: 0-1.5V
High level trigger voltage: 2.5-5V

💎【12V relay version】:
Quiescent current: 5mA
Maximum current: 80mA
Trigger current: 2-4mA
Low level trigger voltage: 0-4V
High level trigger voltage: 4.5-12V

💎【24V relay version】:
Quiescent current: 5mA
Maximum current: 50mA
Trigger current: 2-4mA
Low level trigger voltage: 0-8V
High level trigger voltage: 8.5-24V
