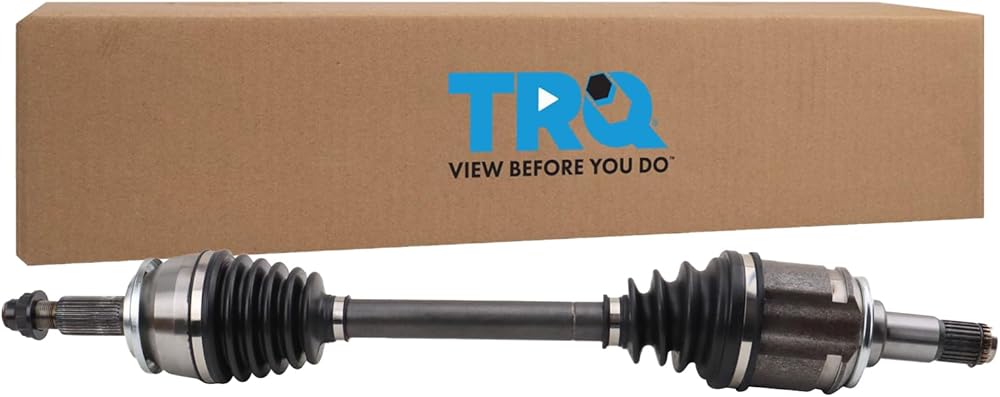

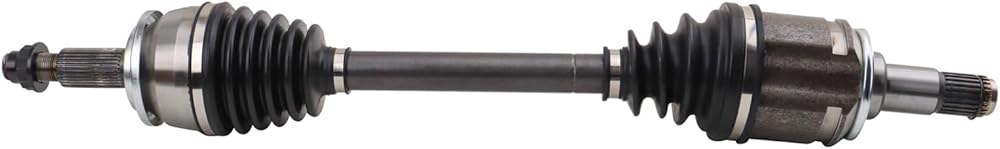

CV Axle Assembly

Fitment
Compatible with: 2020-23 Toyota Highlander Hybrid Platinum Front Wheel Drive Front Driver Side
Compatible with: 2020-23 Toyota Highlander Hybrid XLE Front Wheel Drive Front Driver Side
Compatible with: 2020-23 Toyota Highlander Hybrid LE Front Wheel Drive Front Driver Side
Compatible with: 2020-23 Toyota Highlander Hybrid Limited Front Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander Limited All Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander L All Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander XLE All Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander Limited Front Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander Platinum All Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander Platinum Front Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander L Front Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander LE All Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander LE Front Wheel Drive Front Driver Side
Compatible with: 2020-22 Toyota Highlander XLE Front Wheel Drive Front Driver Side
Compatible with: 2021-22 Toyota Highlander XSE All Wheel Drive Front Driver Side
Compatible with: 2021-22 Toyota Highlander XSE Front Wheel Drive Front Driver Side
Compatible with: 2022-23 Toyota Highlander Hybrid Bronze Edition Front Wheel Drive Front Driver Side

Product Attributes

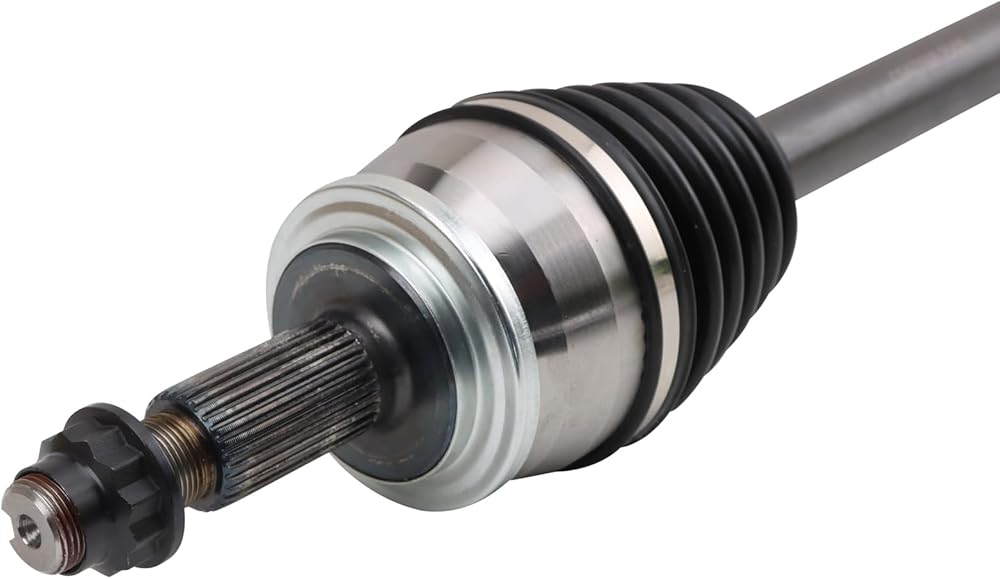

Axle Nut Socket Size: 1.18 in
Inboard Spline Quantity: 24
Compressed Length: 27.32 in
Outboard Spline Quantity: 30
Axle Nut Socket Size: 30 mm
Compressed Length: 694 mm
Axle Nut Thread Size: M22x1.5
Outboard Joint Type: Male
Inboard Joint Type: Male
ABS Tone Ring Included: No
Grade Type: Standard Replacement
Axle Nut Included: Yes
Inboard Boot Material: Neoprene
Outboard Boot Material: Neoprene

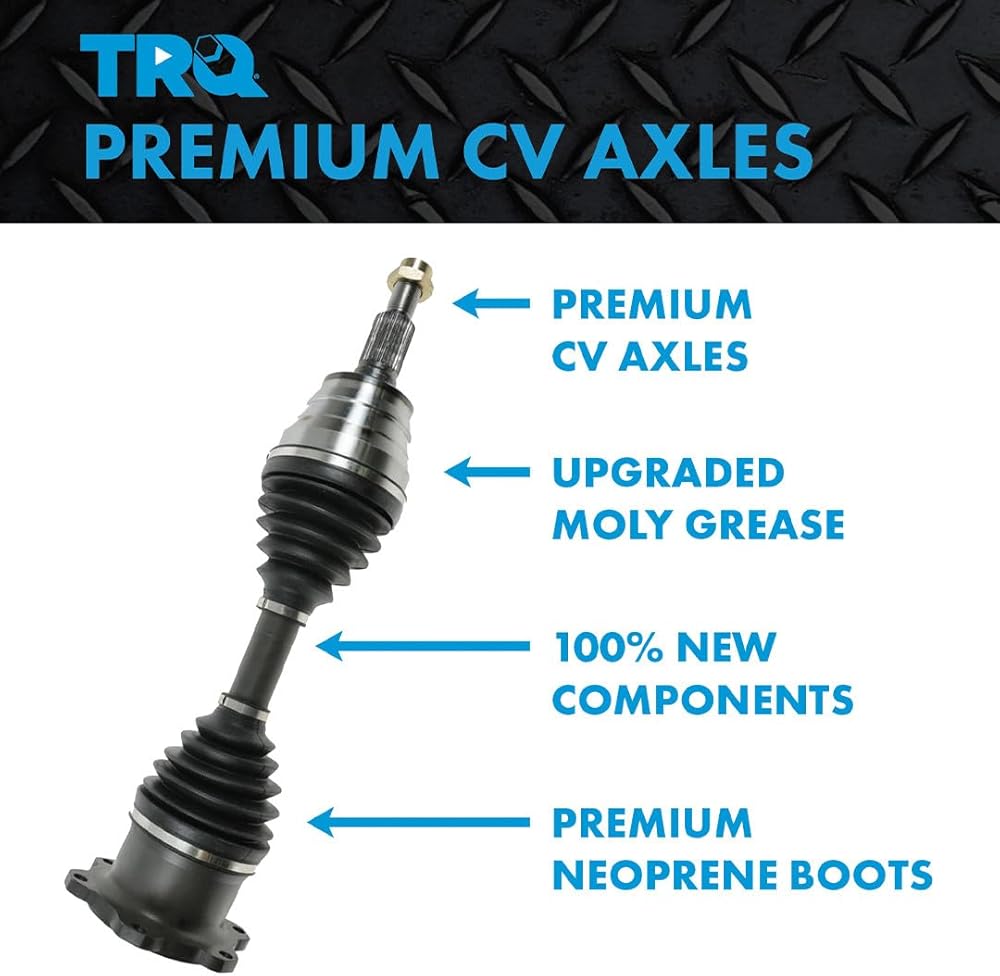

Product Features
100% New: Manufactured to tighter tolerances for extended service life
Neoprene Boots: Improved durability compared to stock material
Moly Greased: Specifically-designed grease shield to reduce premature wear
Application Specific Design: No modification

Item Details
TRQ CV (constant velocity) drive axles are manufactured using premium raw materials designed to restore original performance. TRQ CV drive axles are new, so there is no core charge with your TRQ purchase. TRQ-designed drive axles utilize neoprene boots, moly grease, stainless steel clamps, and heat-treated ball tracks to ensure extended service life. Each TRQ axle is application-specific so each spline and thread will mate properly for a seamless fit. All products are fit and road-tested in our Massachusetts R&D facility to ensure we deliver on our promise of Trusted Reliable Quality.

Reference Numbers
43420-0E230
NCV69228
TO-86044
