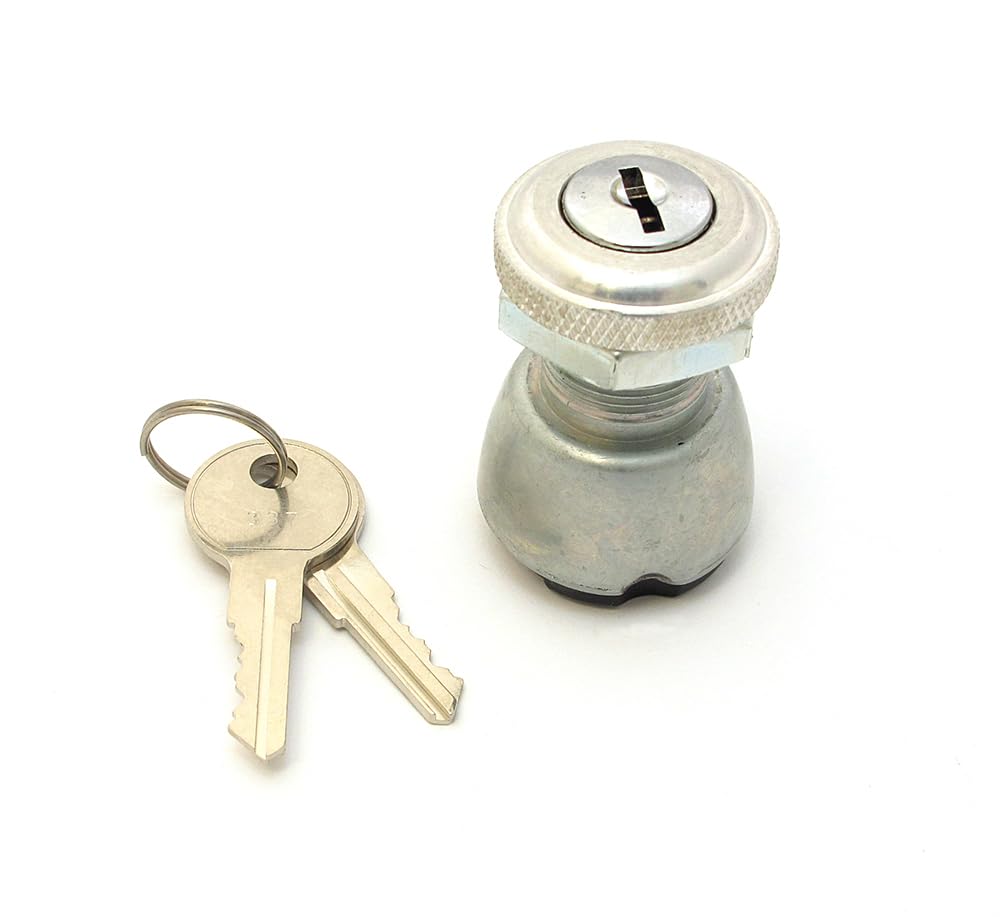

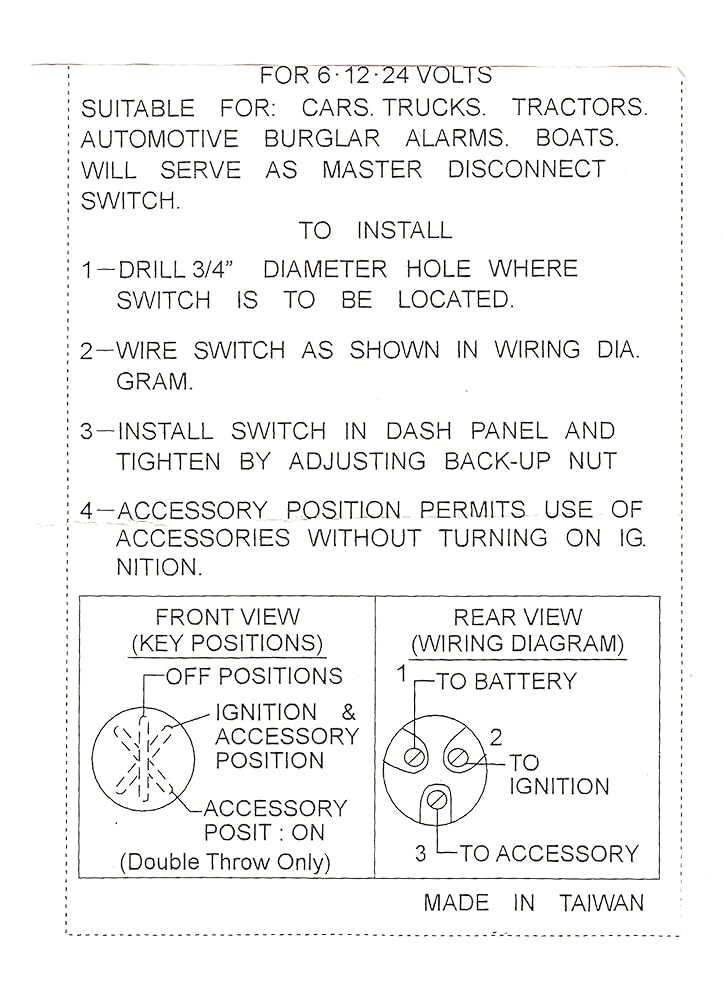

Universal Ignition Switch with a sturdy die-cast housing. 3 position switch just like the Honda CB's from the 70's as well as many other bikes, such as Triumphs, BSA, Norton, Suzuki, Kawasaki and Yamaha. Comes with installation instructions and a wiring diagram. Be sure to use heat shrink or some other insulator to protect the connections. This switch is a great economical replacement for worn out or broken ignition switches, stop fussing with that old switch!
Diameter of the threaded post - 18.84mm (3/4")
Overall Length - 50.7mm (2")T
Diameter at the widest point - 33.16mm (1 5/16")
Bracket to hold the switch is not included.
Positions: 1. Off
2. Ignition and Accessory
3. Accessory On

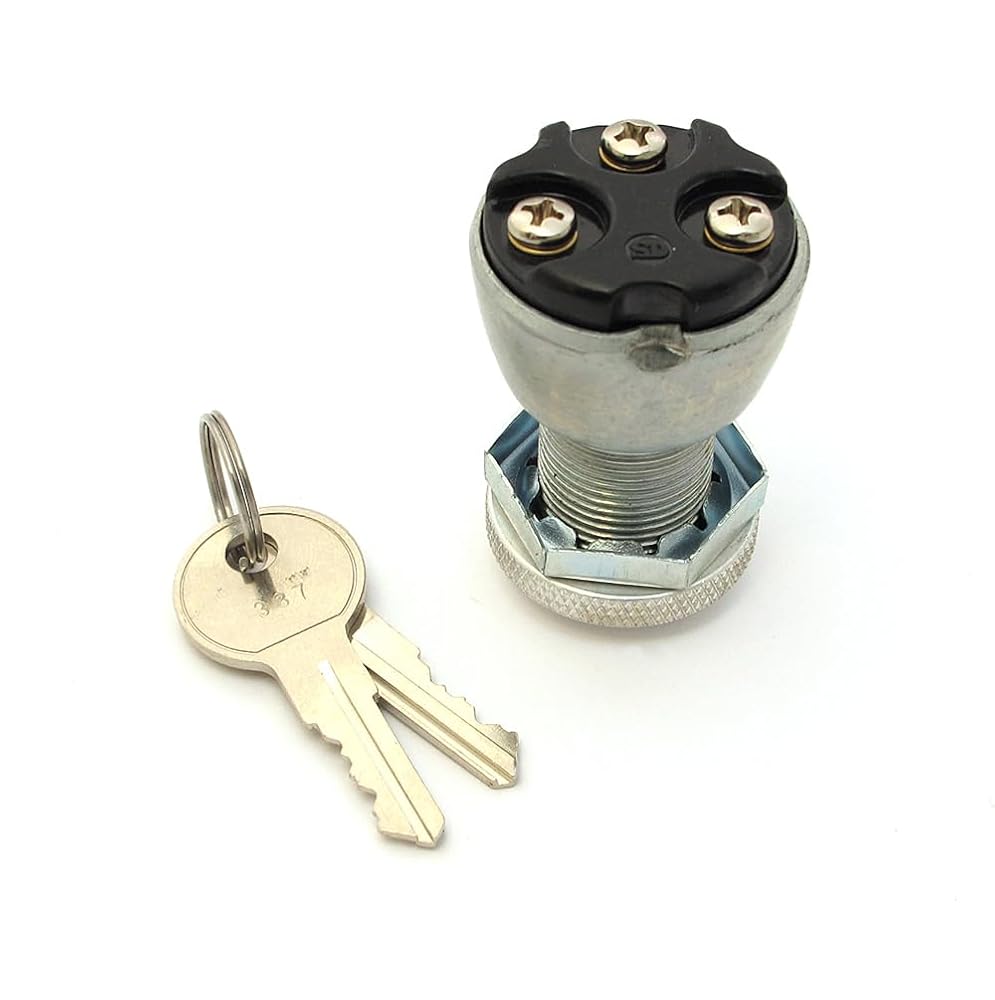

Connections: 1. Battery
2. Ignition
3. Accessory
Check the connection terminal on your bike to make sure this will fit your bike.
