Electronic Engine Control

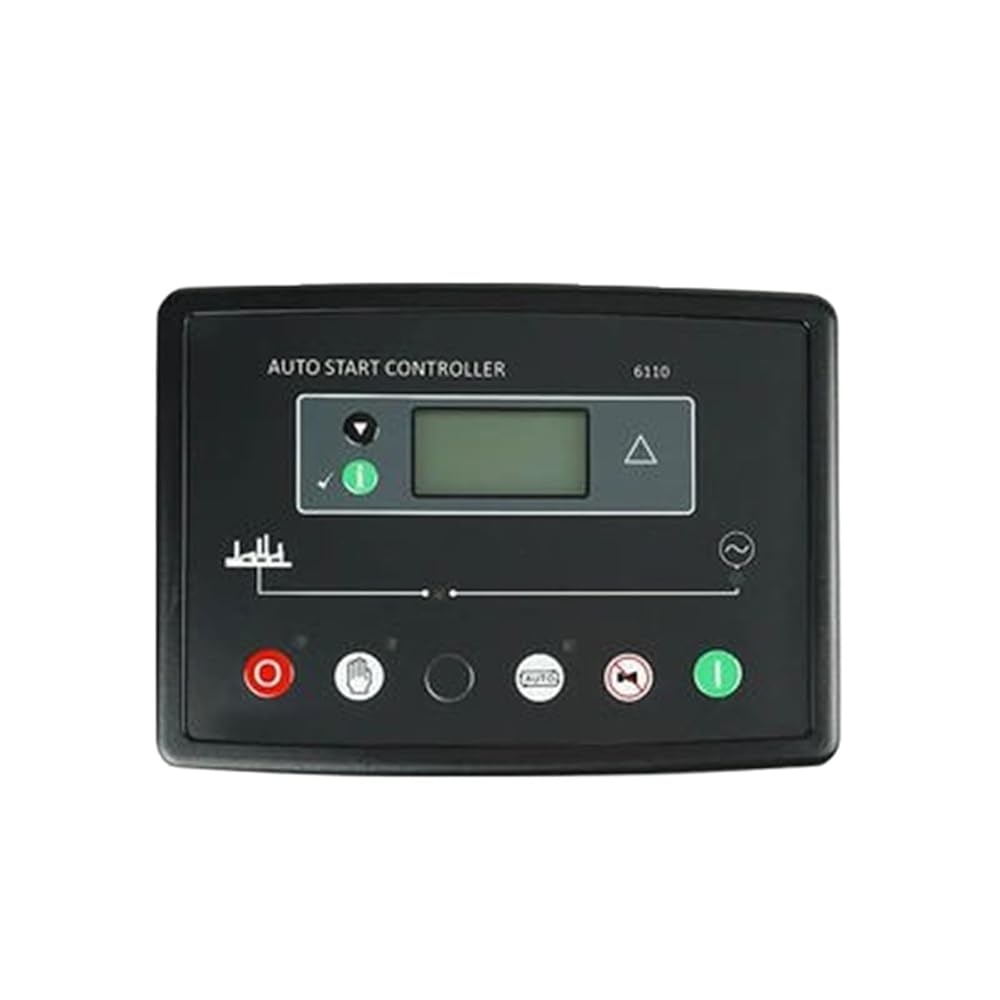

DSE6110 is an automatic start control module, and DSE6120 is an automatic mains (mains) fault control module, which is suitable for a variety of single genset applications. Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature, and fuel level, the module will display warning, shutdown, and engine status information on a backlit screen and illuminated LEDs.
Key features:
Backlit text display board editing LED and alarm indication Power saving mode available in CAN and magnetic pickup/Alt versions (specified at time of ordering) PC and front panel configurations 6 digital inputs 3 analog inputs 6 outputs (4 configurable on magnetic pickups/Alt. and 6 configurable on CAN version)
Configurable timers and alarms
Alternate configuration
Event Logs (10)
Remote start input
Three-phase generator monitoring
Current monitoring and protection
Three-phase mains (mains) monitoring (DSE6120 only)
Test Button (DSE6120 only)
Battery voltage monitoring
Engine warm-up
Hour counter
Full shutdown or warning in case of failure
specification
Continuous voltage rating: 8 to 35 Vdc Continuous starting voltage drop: Able to survive 50 mS at 0 volts, provided that the supply voltage is at least 10 V before dropout and the supply voltage returns to 5 V. This is achieved without the need for a built-in battery. LEDs and backlights are not maintained during start-up. Maximum operating current: 178 mA at 12 V, 95 mA at 24 V Maximum standby current: 88 mA at 12 V, 50 mA at 24 V Mains (utility) only
DSE6120 voltage range: 15 V - 333 VAC (L-N)
Frequency range: 3.5 Hz to 75 Hz
Operating temperature range: -40 oC to +85 oC
Packing size: 200*150*70mm
Package weight: 1000g
Material: ABS and metal
Color: Black
Package contents: a controller and its accessories, a copy of instructions
