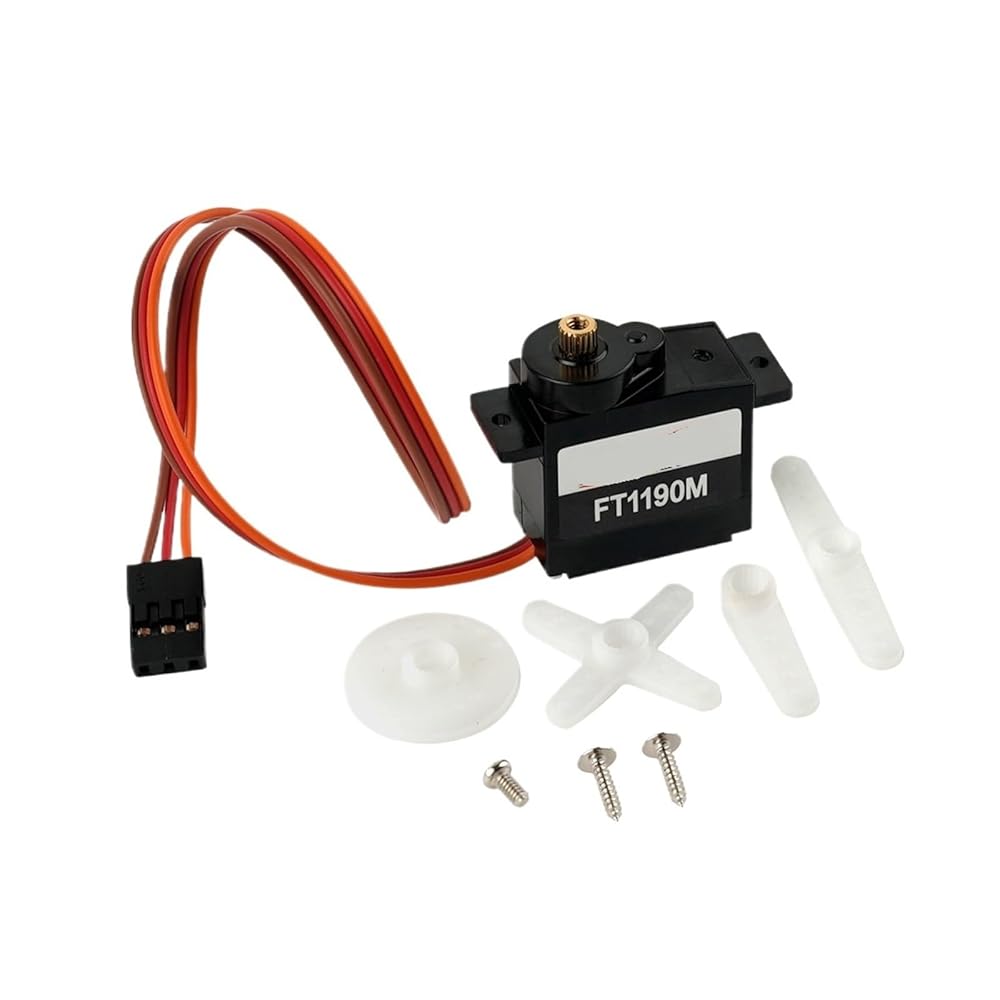

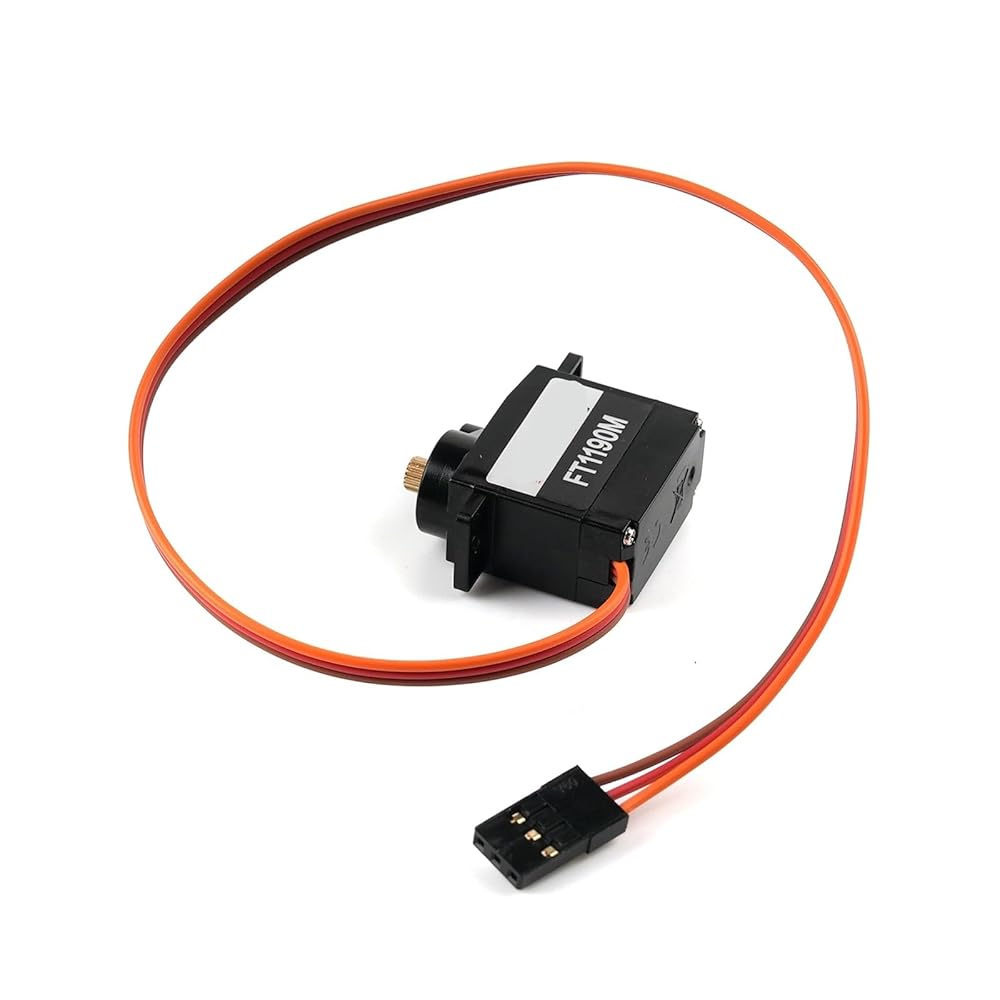

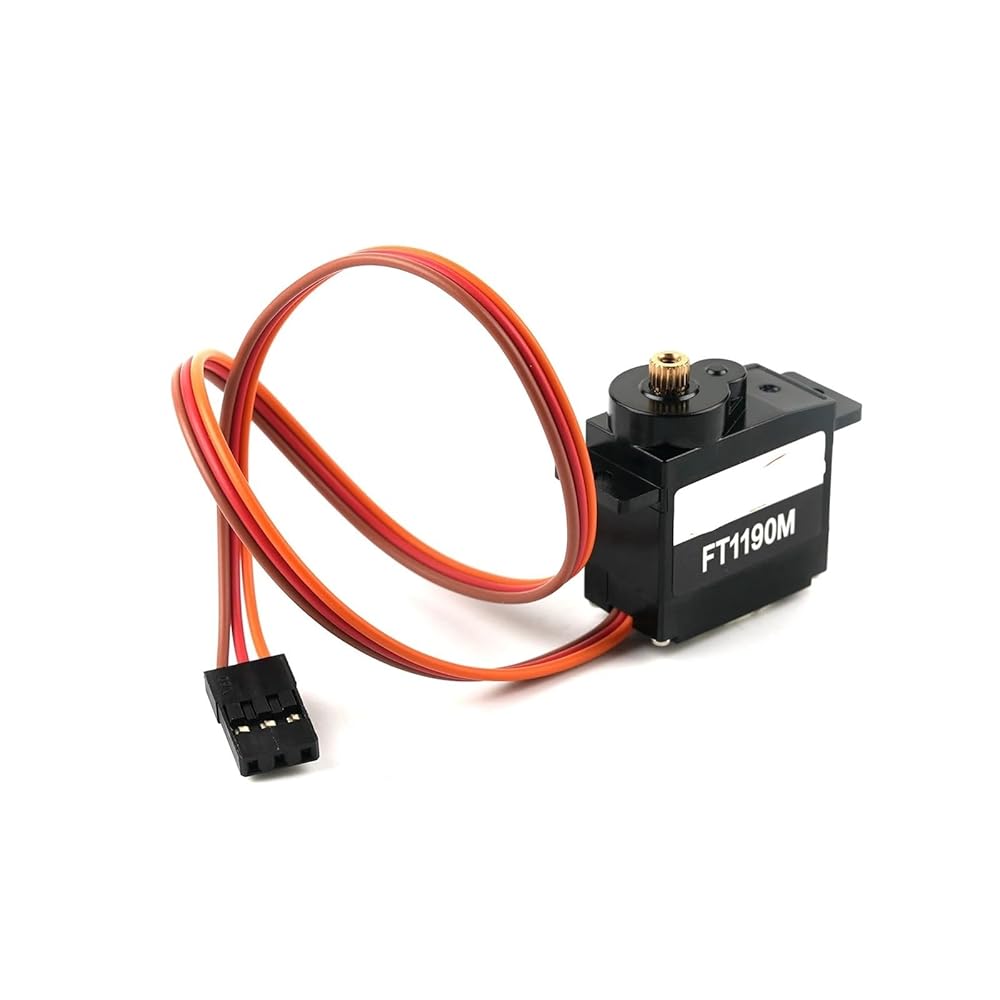

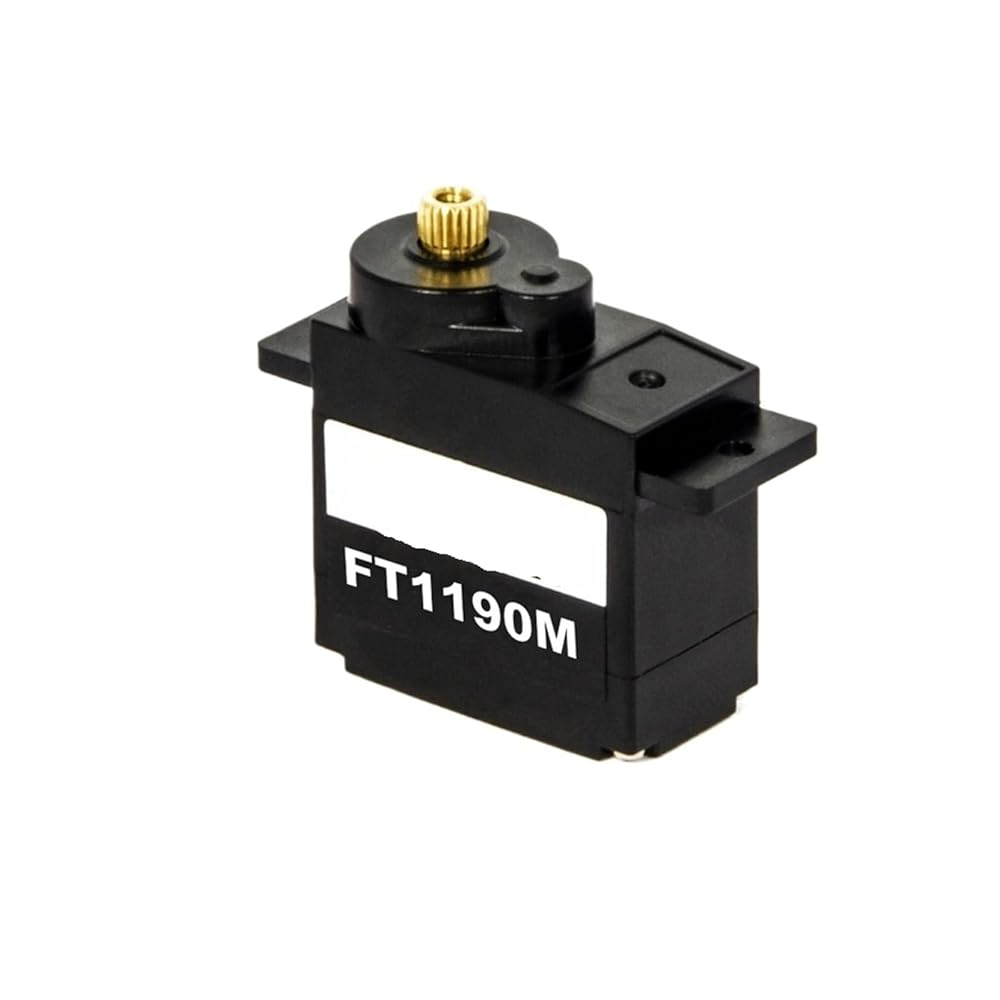

Steering Gear
Mechanical specifications: Dimensions: 23.2*12.1*25,25mm
Weight: 13.5g

Gearbox ratio: 1/416
Motor: Coreless motor

specifications: Voltage: 4.8-6V
Speed: 0.1s/60°/6V
Current: 170mA (no load)
Stall current: 1100mA (when locked)
No-load current: 6mA (when stopped)
Stall torque: 3.5 kg.cm/6V
Nominal torque: 1.16 kg.cm/6V
KT constant: 3.2 kg.cm/A
Pulse width range: 500-2500 seconds
Test life: at least 100,000 times

Size: 23.2*12*25.5mm
