Steering Gear

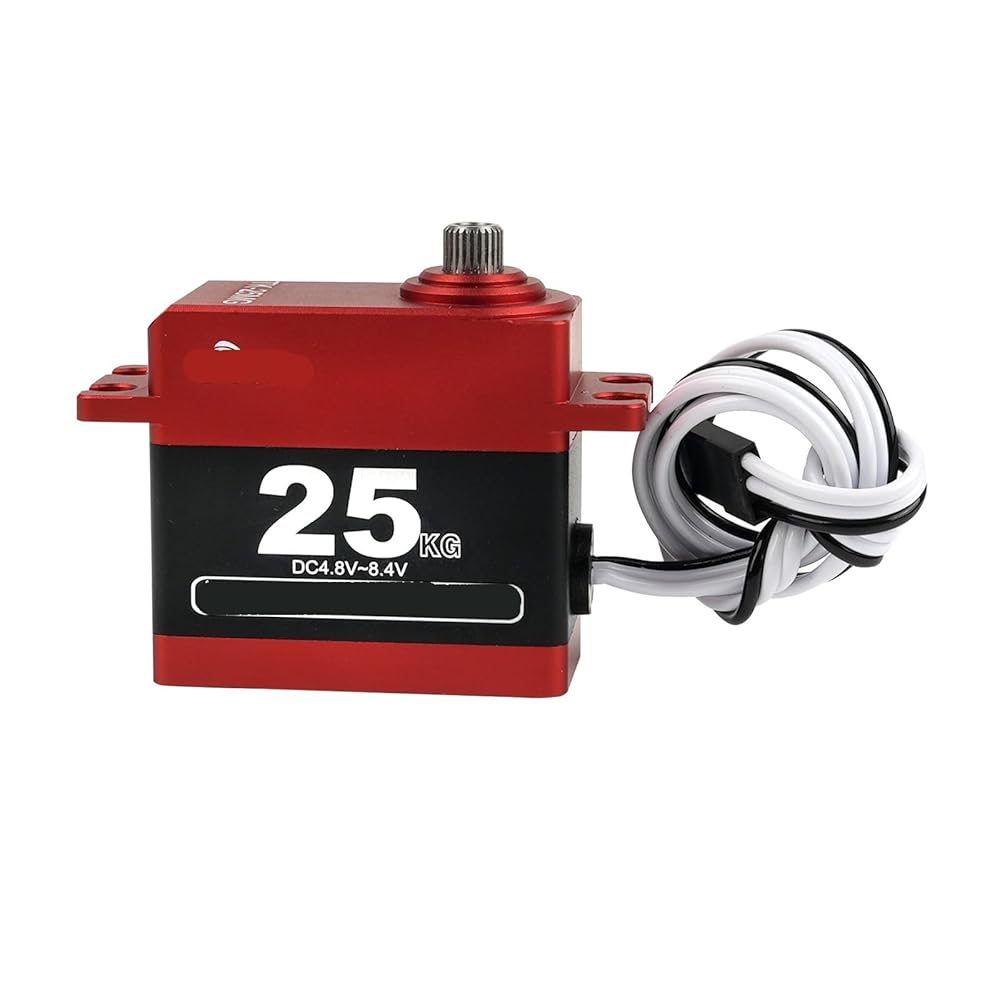

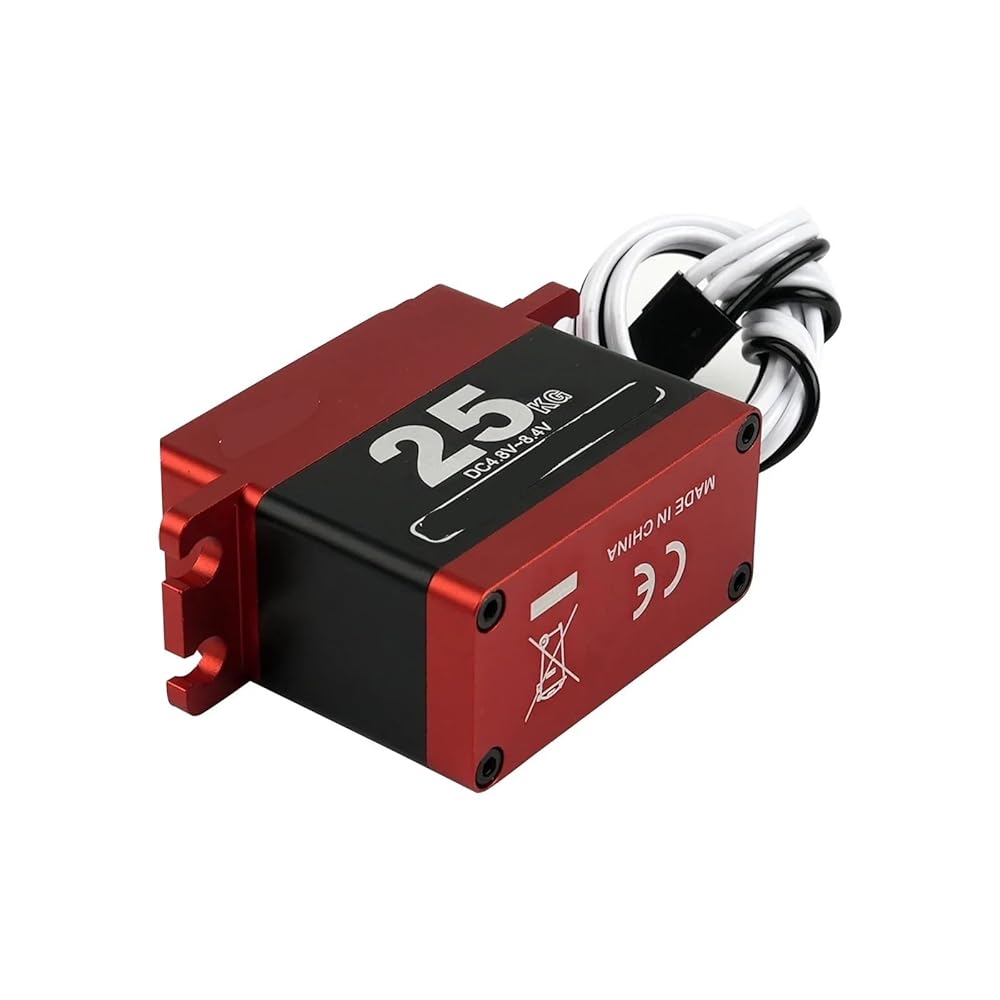

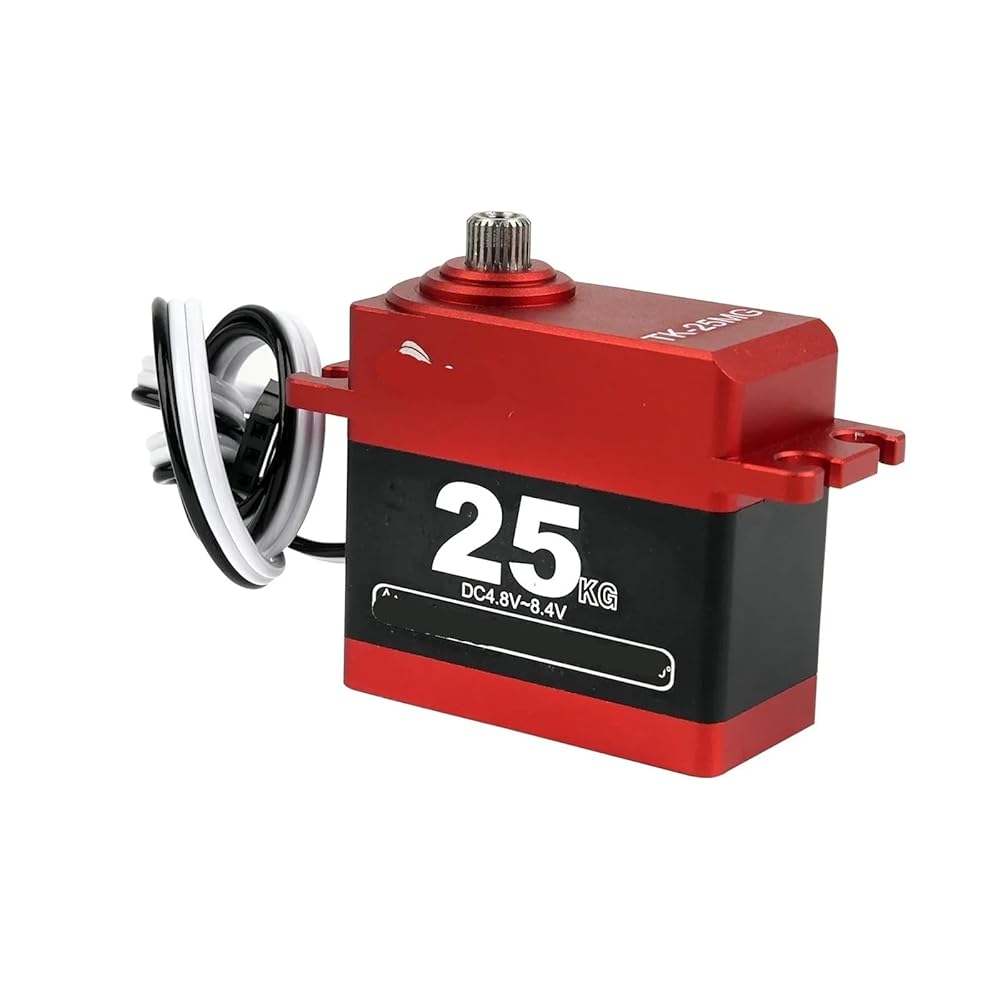

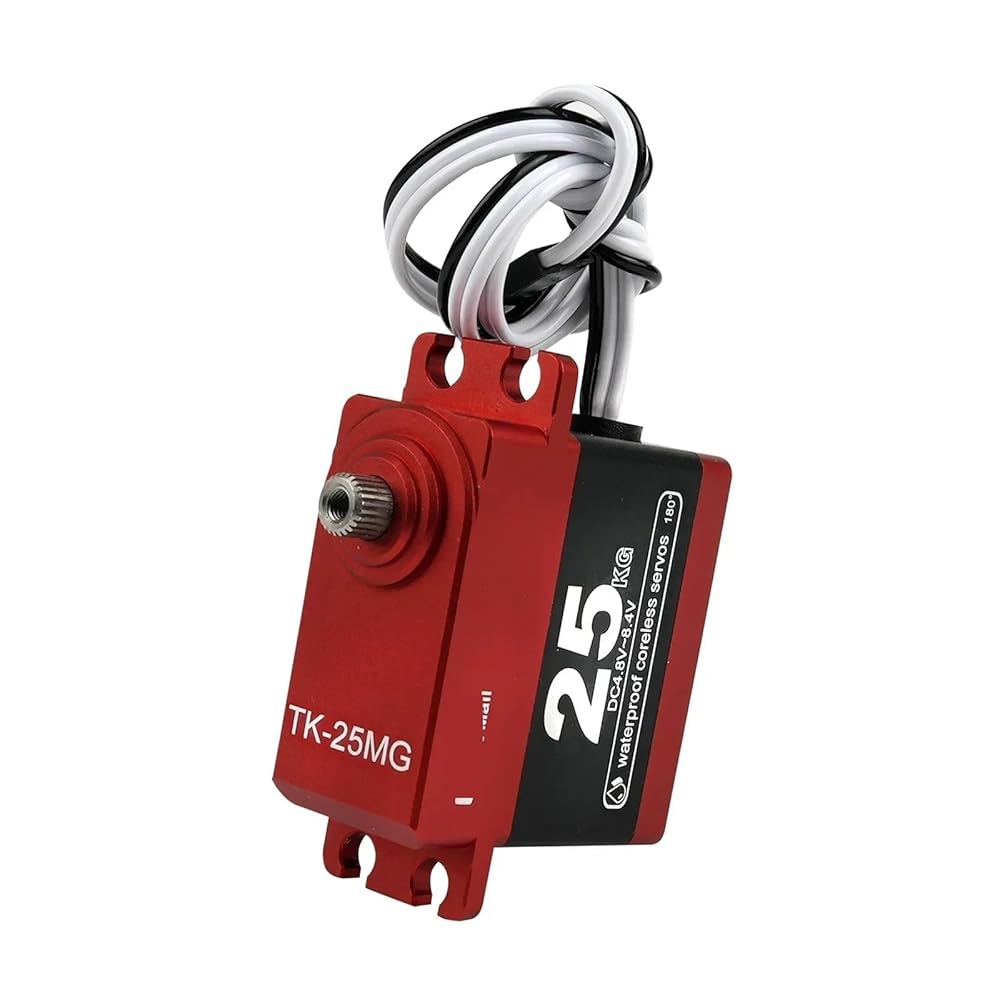

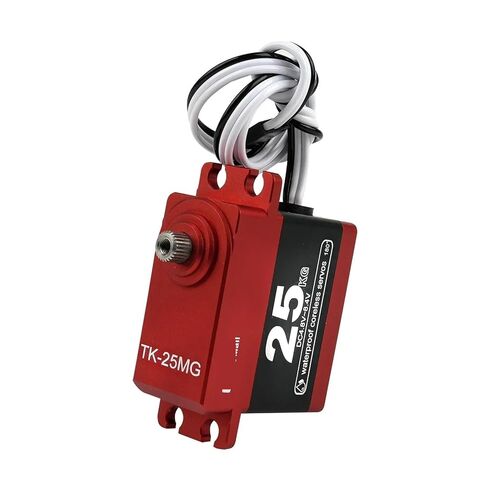

Description: Model: TK-25MG

Storage temperature range -30°C-80°C
Operating temperature range -25°C-70°C
Standard test environment
Temperature range -25°C-70°C
Humidity range 65%±10%

Dimensions: 40.0*20.0*37.8mm
Weight: 80g±5%

Speaker gear spline: 25T: 5.9mm 4.0mm

Connecting wire: 320mm±5mm

Operating voltage: 4.8V/8.4V
No-load speed: 0.14 seconds/60 degrees 0.11 seconds/60 degrees
Operating current: 480mA/810mA
Peak stall torque: 23.5kg.cm/27.5kg.cm
Locked rotor current: 3600mA±10%/4500mA±10%
Operating voltage range: 4.8-8.4V
