20mm Bore Outter Dia 54-150mm 5 Step A Type V-Belt Pagoda Pulley Belt

SAR 113
Brand
Generic
Weight
0.6 kg
– 1 +

Special Features

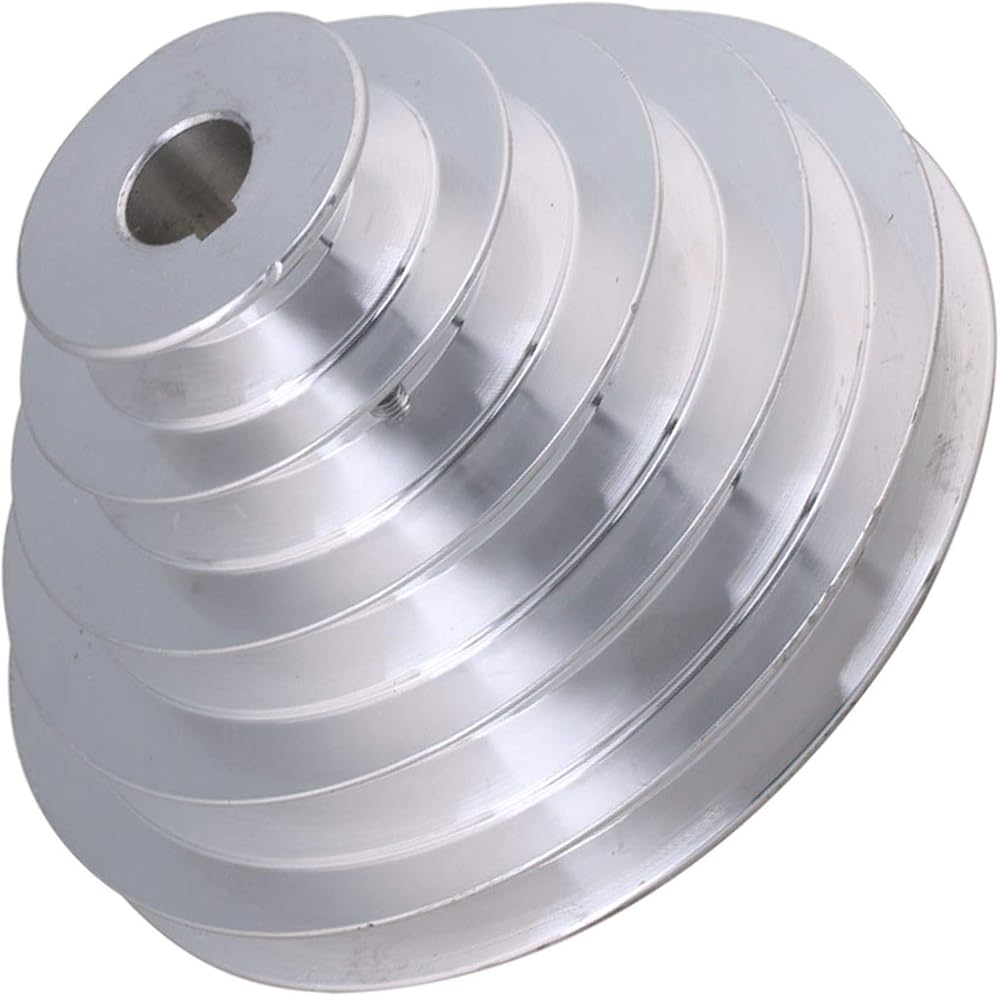

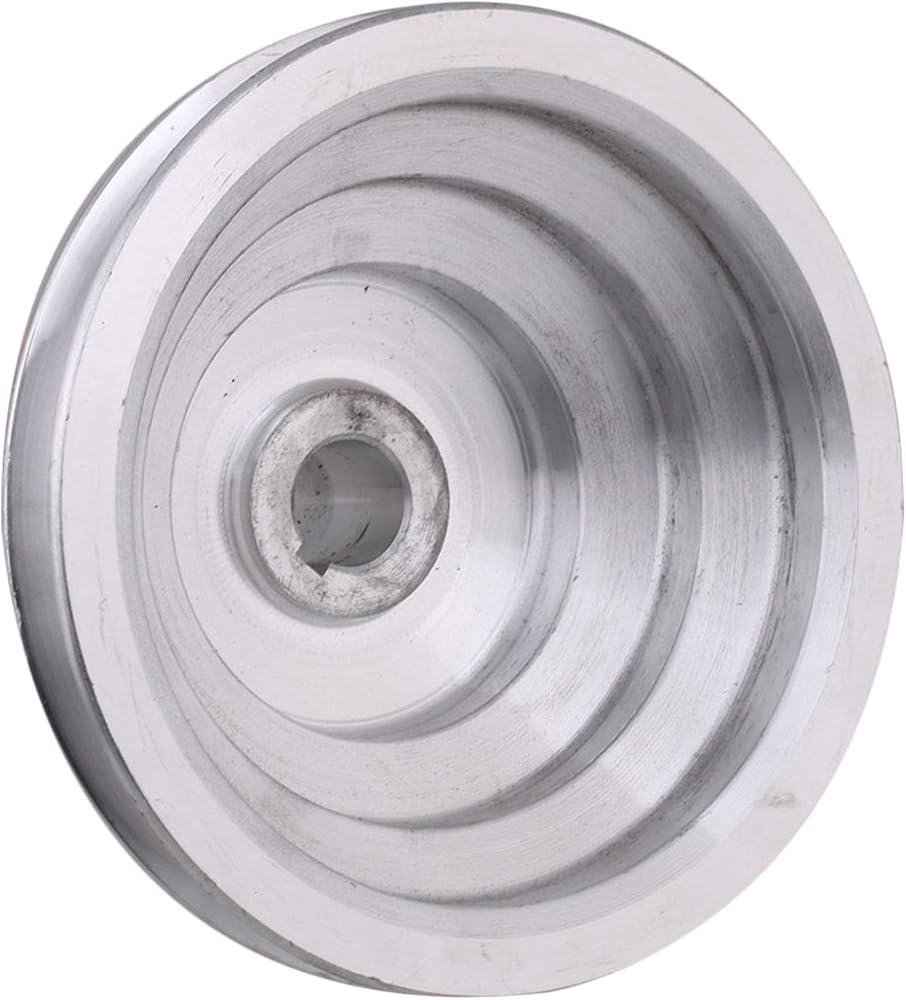

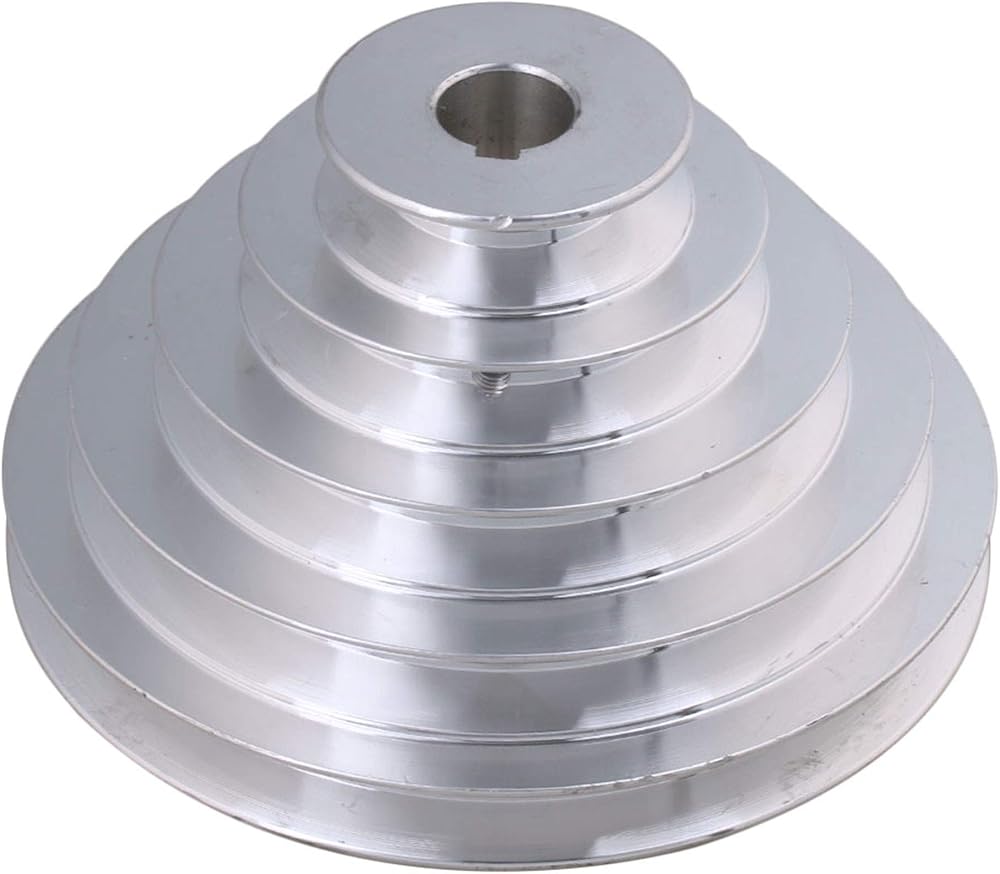

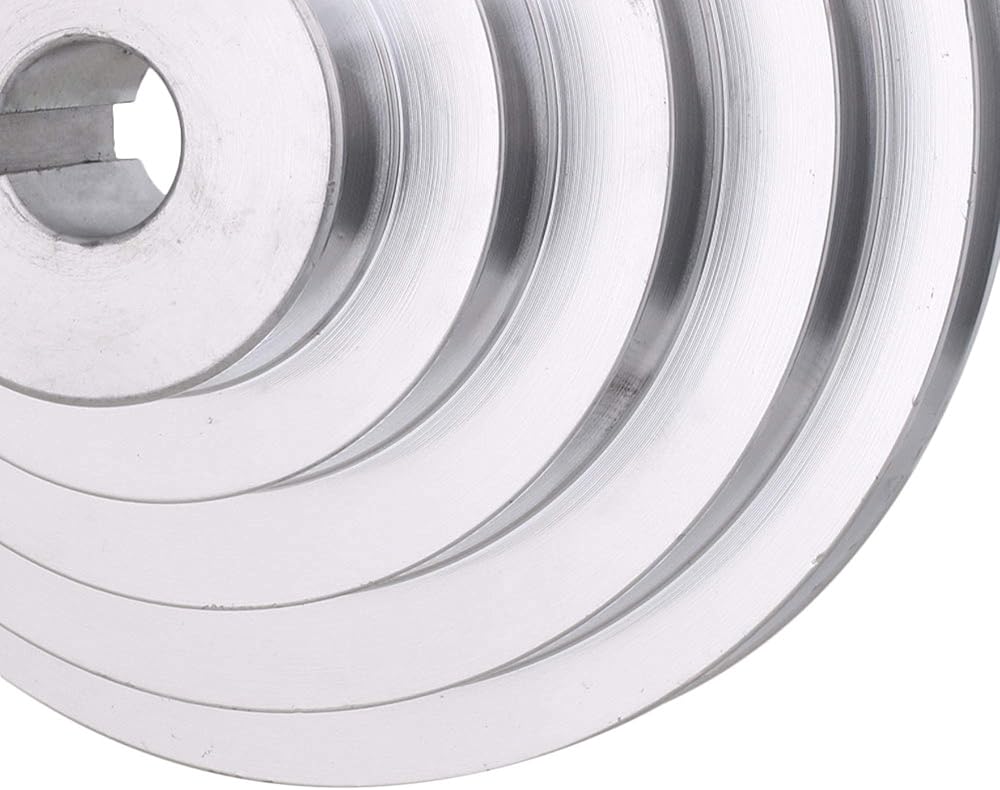

  • The 5-step belt pulley is made of aluminum material, durable and long service life.
  • Aperture 20mm/0.78inch, 5 levels of outer diameter: 54mm/2.12inch, 76mm/2.99inch, 102mm/4.01inch, 128mm/5.04inch, 150mm/5.9inch, 5-step design can be applied to different speed ratio requirements.
  • V-type 5-speed motor shaft drive pulley can be used for all types of machines. It can be adapted to different speed requirements.
  • Suitable for A-type V-belts and timing belts. The A-type pagoda pulley has cushioning properties, strong damping capacity and low noise.
  • installation method: 1. After receiving the pulley, heat the pulley for 2 minutes 2. Align the keyway of the pulley and the motor shaft 3. When knocking, you must pad the shock-absorbing wooden blocks, otherwise it is easy to damage the pulley

Description

"Specifications:
Material:Aluminum
Color:Silver

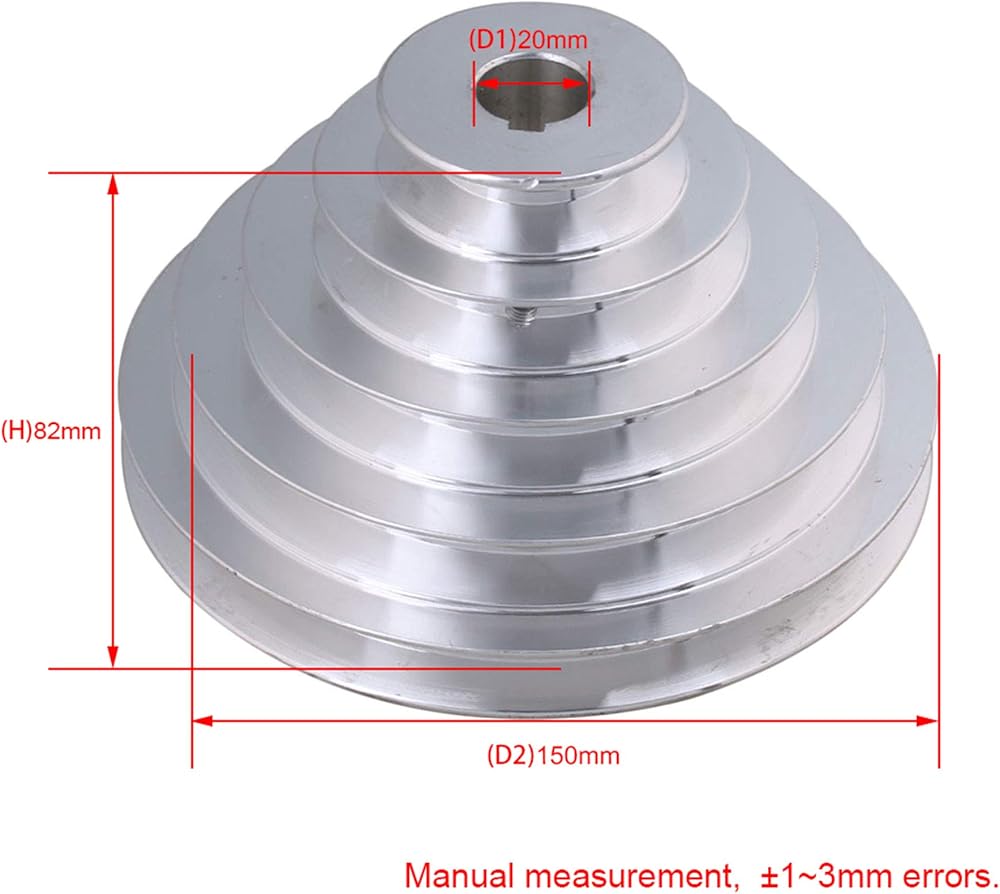

Hole Dia: 20mm
Height: 82mm
Outer Dia: 54,76,102,128,150mm
Size:15x8.2cm/5.9x3.23Inch(DxH)
Weight:608g

Features:
1.Made of high-quality aluminum, this product is tough and wear-resistant for long hours of operation, making it an excellent industrial replacement accessory.
2.Suitable for A type V-belt, timing belt.
3.5-slot design can be applied to different speed requirements.
4.V-Type 5 Step Pulley for Motor shaft drive.
5.5 Step Outer dia: 54mm ,76mm ,102mm ,128mm , 150mm.

Package include:
1 x Five Step Belt Pulley"
