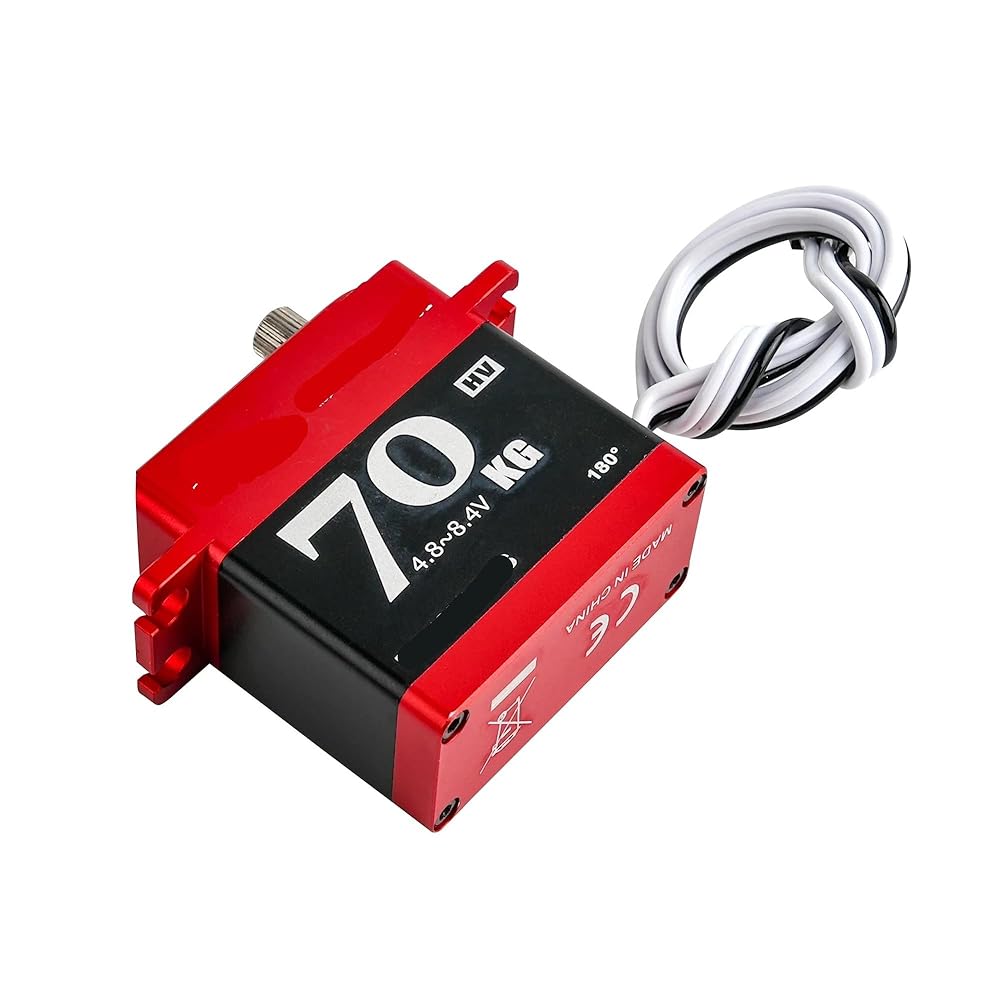

Steering Gear
Dimensions: 40.0*20.5*39.8mm
Weight: 87g
Operating voltage: 4.8V~8.4V
Working speed (4.8V): 0.15 seconds/60° when no load
Working speed (6.0V): 0.14 seconds/60° when no load
Operating speed (7.4V): 0.12 seconds/60° when no load
Working speed (8.4V): 0.1 seconds/60° when no load
Stall torque (4.8V): 58kg/cm
Stall torque (6.0V): 62kg/cm
Stall torque (7.4V): 68kg/cm
Stall torque (8.4V): 71kg/cm
Pulse width range: 500~2500 seconds
Neutral position: 1500s
Operating angle: 180° (500~2500 seconds)
Dead zone width: 3s
Rotation direction: counterclockwise (500~2500s)

Connecting wire: 300 mm
Motor: brushless motor
