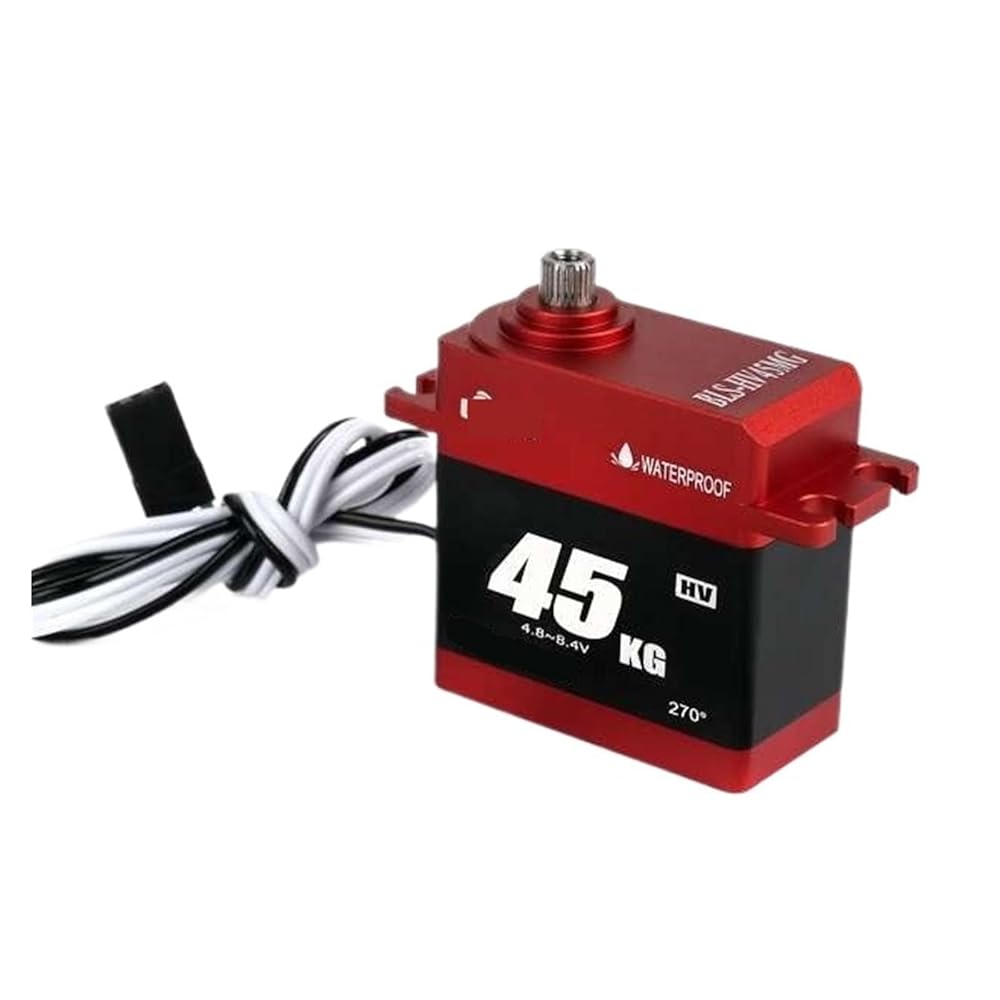

Steering Gear
Storage temperature range: -30°C-80°C
Operating temperature range: -10°C-60°C
Humidity range: 65% ± 10%
Dimensions: 40.0*20.5*39.8mm
Weight: 85g±5%
Speaker gear spline: 25T Diameter: 5.95mm
Connecting wire: 300mm±5mm
Motor: Brushless
Operating current 500mA-800mA 700mA-1200mA
Peak stall torque 36kg.cm 38kg.cm 40kg.cm 42kg.cm
Locked rotor current 5000-6000mA 6000-7000mA 7000-8000mA 8000-9000mA
Operating voltage: 4.8V 6.0V 7.4V 8.4V
Model: BLS-HV70MG
