1. Fit For LTZ400 (2003-2014) KFX400 (2003-2006) and DR-Z400 (2000-2015).

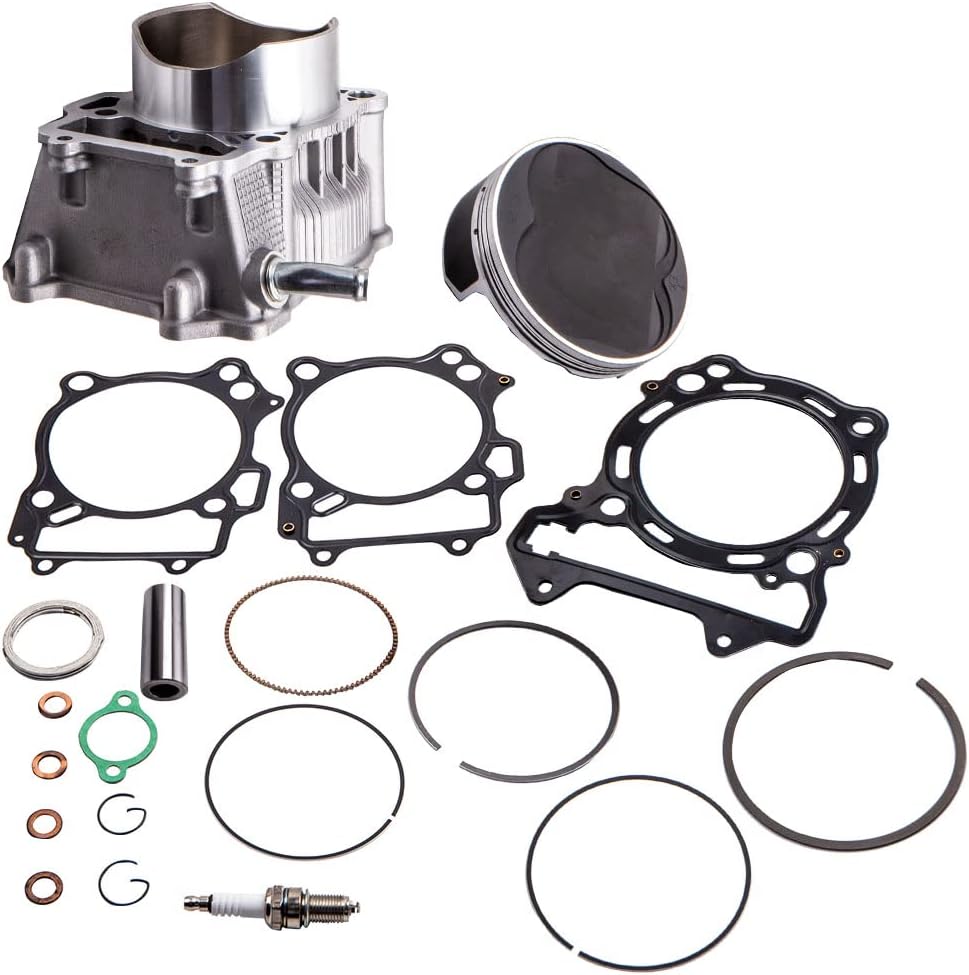

2. The complete kit includes cylinder block, piston, piston ring, pin, elastic retaining ring, gasket (cover/base), O-ring, gasket, and 1 spark plug.
3. The cylinder and piston are made of lightweight aluminum; Steel rings and pins are durable and long-lasting.
4. Verify the fit by matching the old part number with the measured value. Recommend professional installation (excluding instructions).
5. Installation tip: Align the piston rings correctly and lubricate them with oil for smoother assembly into the cylinder.
وصف
Fit For:
Fit For LTZ 400 models 2003-2014
Fit For KFX400 2003-2006
Fit For DR-Z400 2000-2015
Interchange Part Number:
For 11191-13E00, For 11241-29F00, For 12140-29F00, For 11210-29F20-0F0, For 12111-29F00-0F0, For 09160-10082,
For 11141-29F01, For 12151-24F10, For 09381-20004
Please double check the fit
Sepcifics:

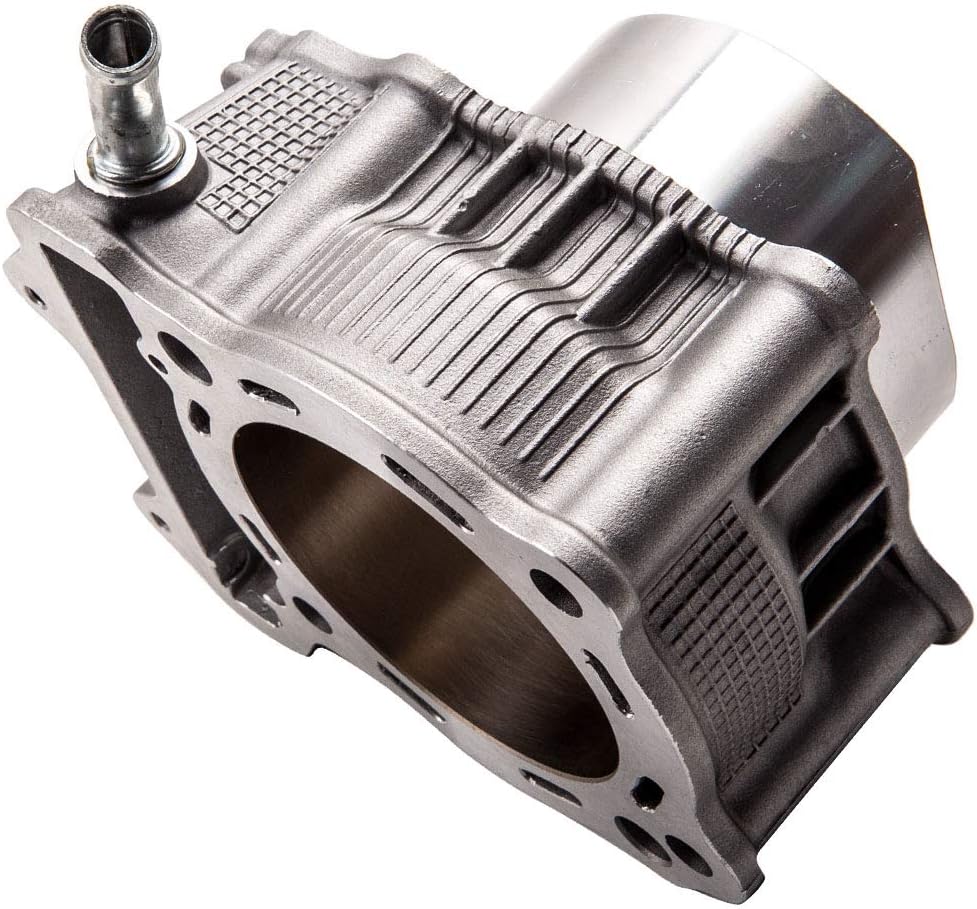

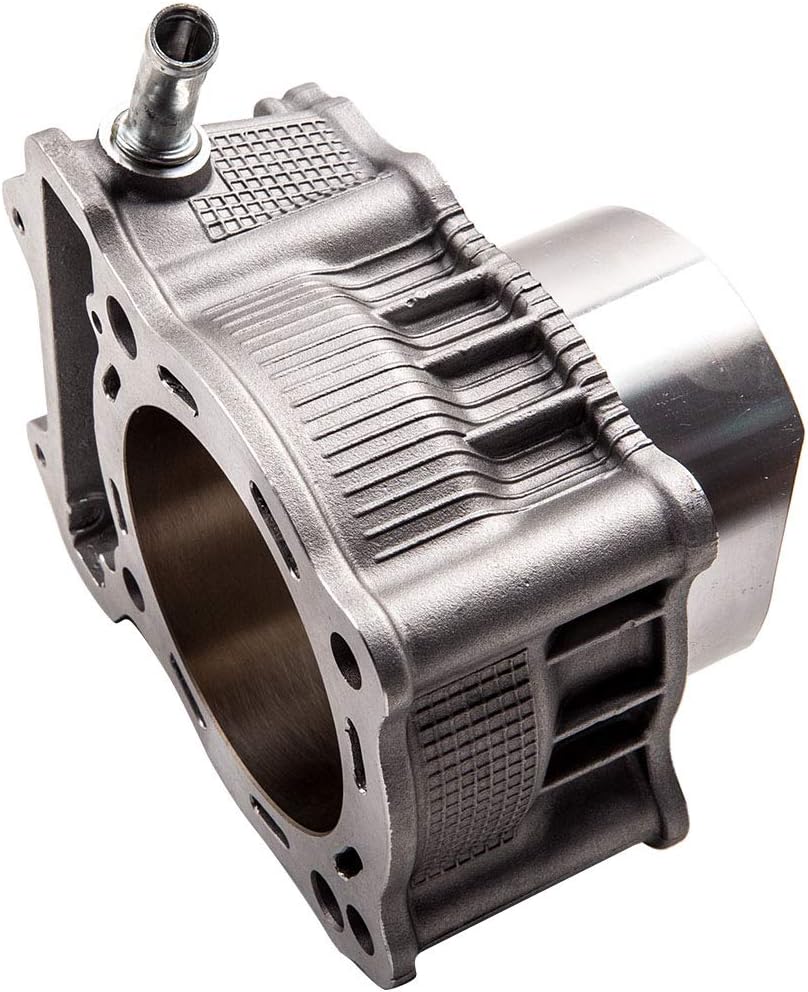

Cylinder: Aluminium

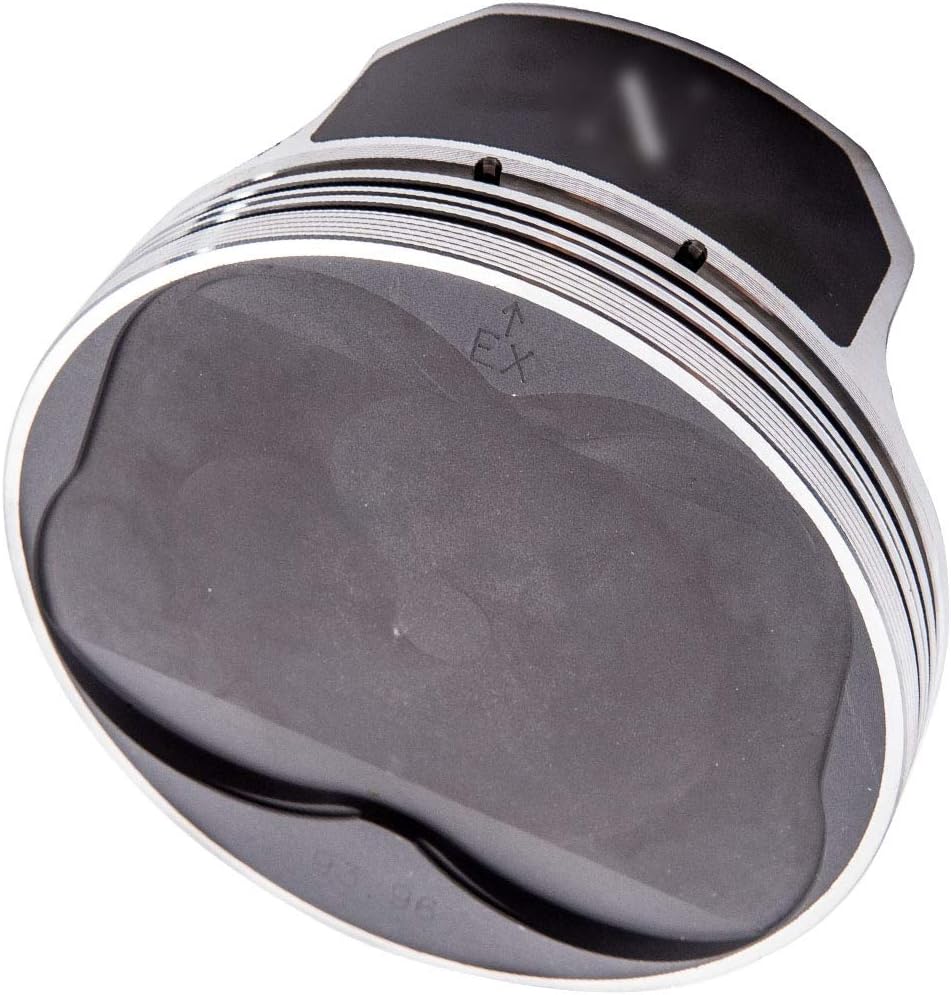

Piston: Aluminium
Piston Pin/Wrist pin/Circlips: Steel
Head Gasket: Iron
Cylinder Bore and Stroke:94mm x 62.6mm
Cylinder Displacement: 435cc
Piston Compression:12.3:1
Piston Rings:85.5mm/84.5mm/86.8mm
Package Contents:

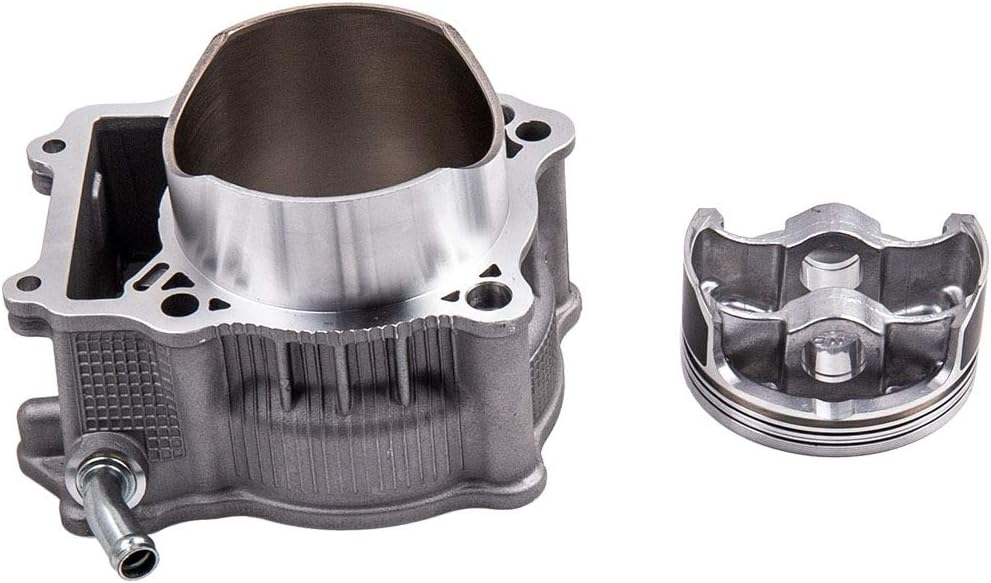

Cylinder Block
Piston
Piston Pin
Piston Rings
O-ring

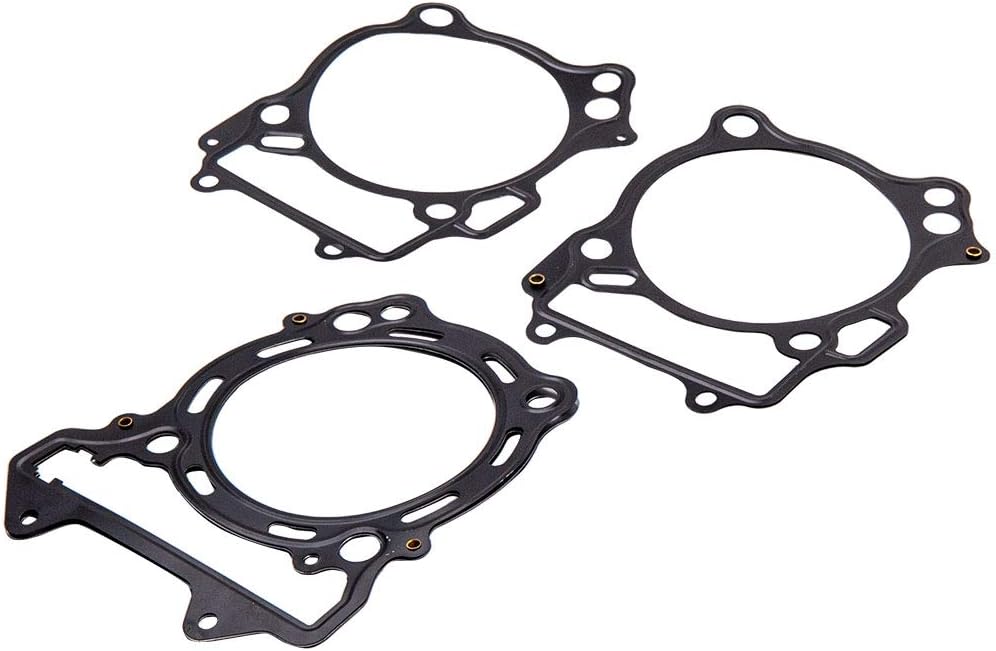

Head Gasket
Base Gasket
Circlips
Washers
1x Spark Plug
Install Steps
1. Make sure that the piston ring is installed correctly, and then align the piston belt ring with the cylinder block.
2. Gently hold the piston and ring by hand, and gently shake the cylinder block to make the piston and piston ring into the cylinder block.
3. Less oil can be applied outside the piston and piston ring or the lower part of the inner wall of the cylinder block to make the installation easier.
NOTE:
* Please compare your parts to ensure this part fits your vehicle
* Please confirm your old part number matches up with one of the part numbers listed above
* Professional installation is highly recommended (No Instruction Included)
