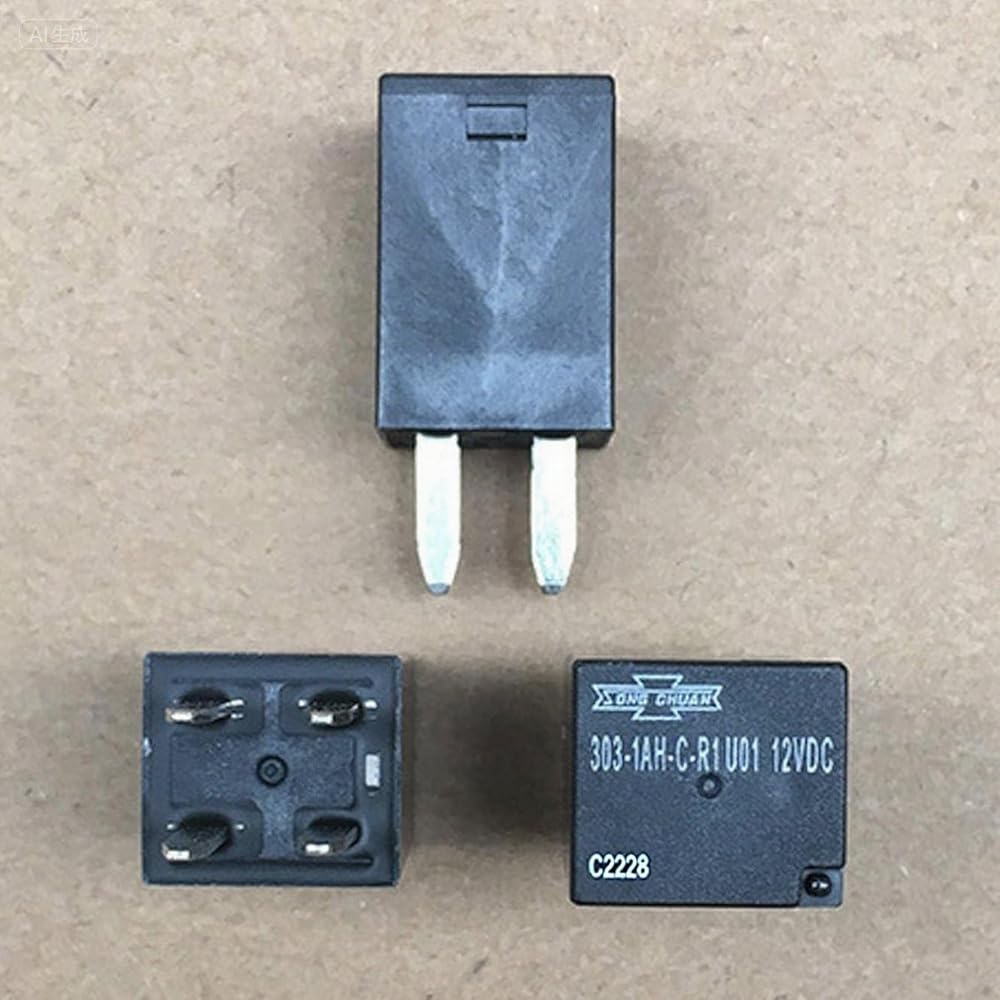

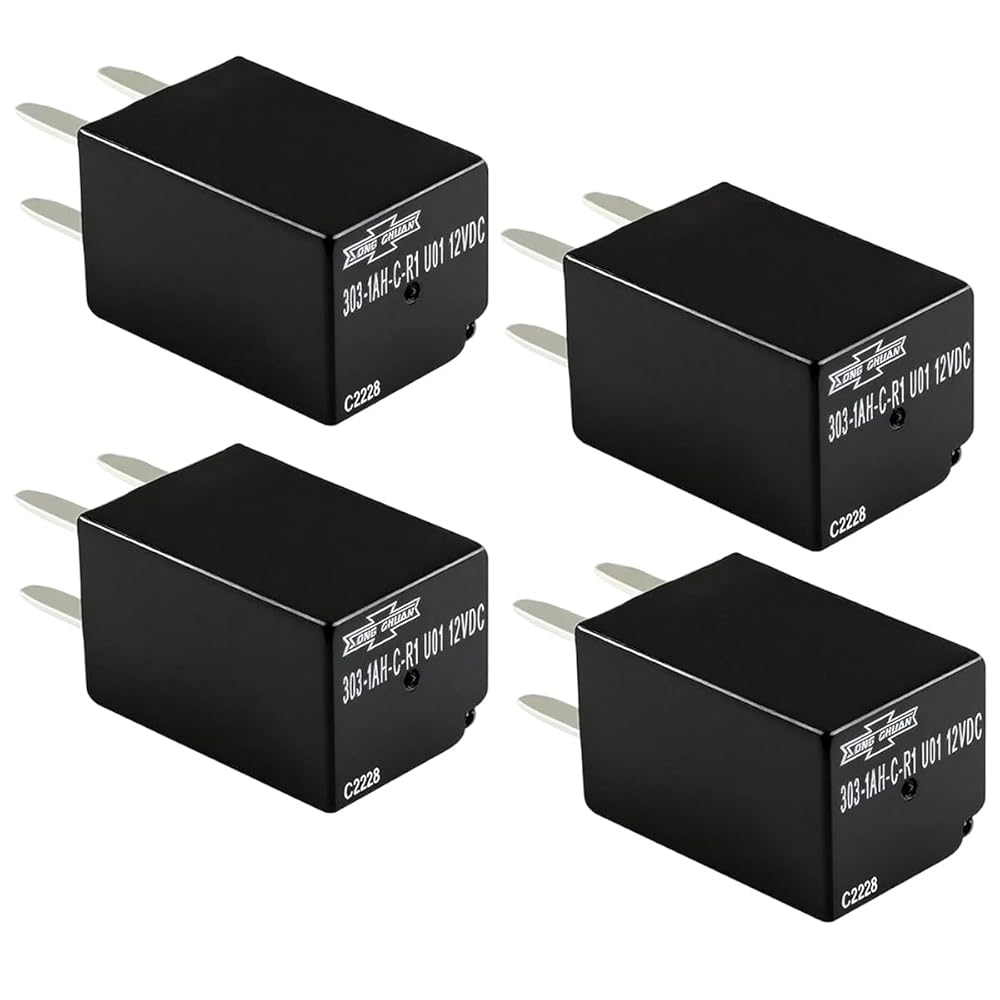

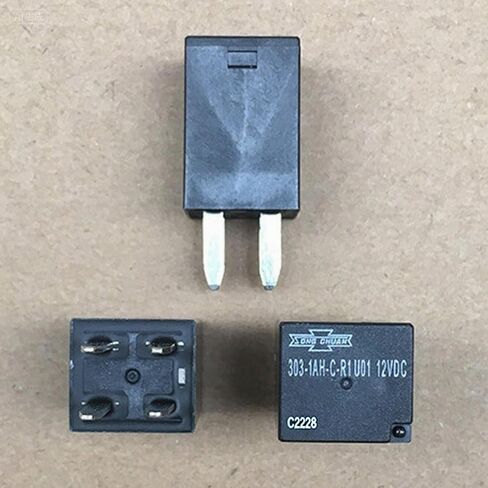

4 قطع 303-1AH-C-R1-U01 مرحل 12 فولت، Micro ISO 280 4-Pin SPST 20A، مقاوم مكبوت - يناسب Polaris RZR/Ranger/جنرال/Sportsman/ACE (2010-2020) مروحة تبريد ومضخة وقود - تحل محل OE 4016819، 4011283

عذرا، هذا المنتج غير متوفر
ماركة
Kwaich

مميزات خاصة

  • Specs + OE cross-refs: 12VDC automotive micro relay (ISO 280 footprint), SPST (1 Form A) 4-pin, 20A @ 14V; high-temp design; flux-tight enclosure; integrated coil suppression R1 (resistor). Compatible with OE 4016819, 4011283; cross-reference: compatible with HFV11/12-HS-R(257).
  • Operation & install location: Fits the fuse/relay box on applicable machines; typically controls cooling fan, fuel pump, horn and lights. ISO 280 terminals (#30 common, #87 NO output, #85/#86 coil). R1-type coil is not polarity-sensitive (diode versions are). Seat fully in the panel, then test.
  • Compatible with Polaris RZR (by years): Compatible with RZR 570 2012–2019, RZR 800 (all models) 2010–2014, RZR 900 (all models) 2011–2019, RZR 1000 2014–2019, RZR XP Turbo 2015–2020; verify OE 4016819/4011283 before purchase.
  • Compatible with Polaris Ranger (by years): Compatible with Ranger Crew 500/570/800 2010–2020; Ranger 1000/Ranger Crew 1000 2015–2020; Ranger XP 1000 2017–2020; confirm relay cavity and OE number match.
  • Compatible with Polaris General & ACE (by years): Compatible with General 1000/General 4 1000 2016–2020 and ACE 2017–2018 where OE 4016819/4011283 is specified.
  • Compatible with Polaris Sportsman (by years): Compatible with Sportsman 450/550/570 2011–2020 and Sportsman 850/1000 / XP 1000 2011–2020; check your parts diagram for the OE number above.
  • Common symptoms this fixes: Cooling fan not engaging, intermittent fan operation, no fuel-pump prime, inoperative horn/lights tied to this relay cavity; replacing a weak relay restores normal operation when the rest of the circuit is OK.
  • Complementary parts (for related fixes): If the fan motor or module has failed, pair this relay with compatible fan assemblies such as 2412447 / 2410366 / 2410901 / 2410288 / 2204192 (model-specific); these are frequently replaced together when the fan won't spin under load.

وصف

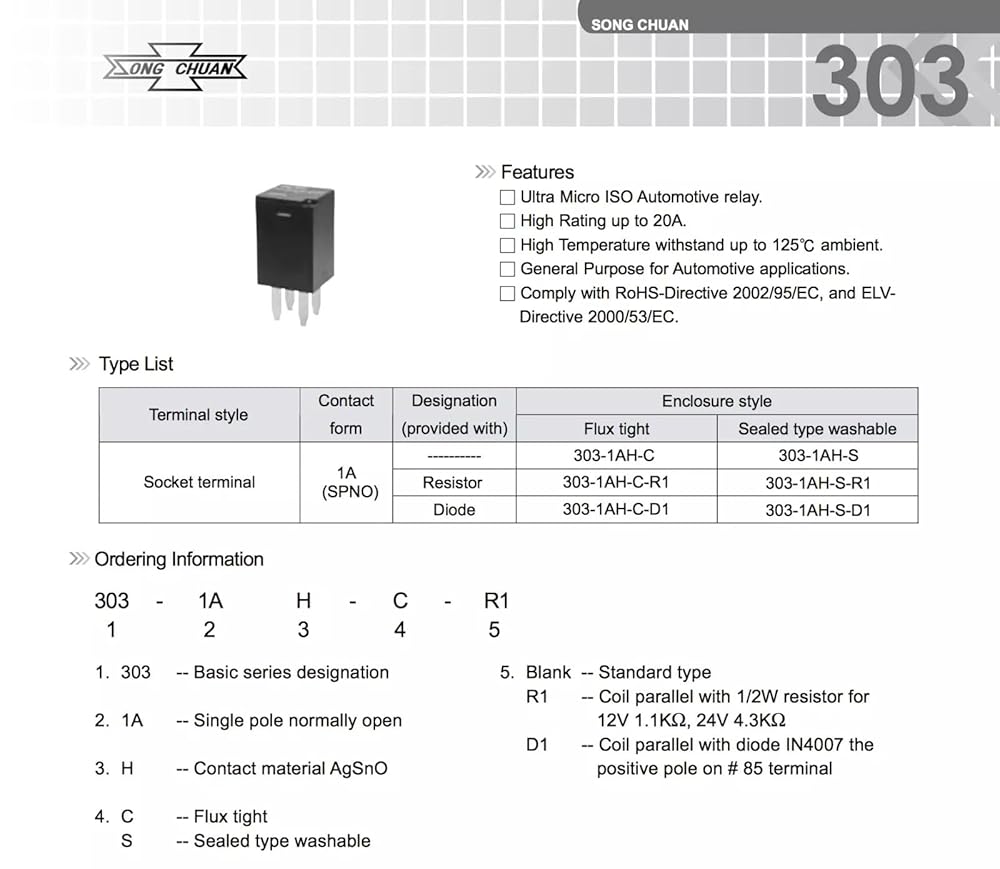

Micro ISO 280 12V Relay – SPST 20A – R1 Suppressed (303-1AH-C-R1-U01)This aftermarket relay matches the ISO 280 micro footprint and electrical behavior specified for OE 4016819 / 4011283. It uses a single-pole normally-open contact rated 20A @ 14V and an R1 (resistor) coil for reduced electromagnetic interference.

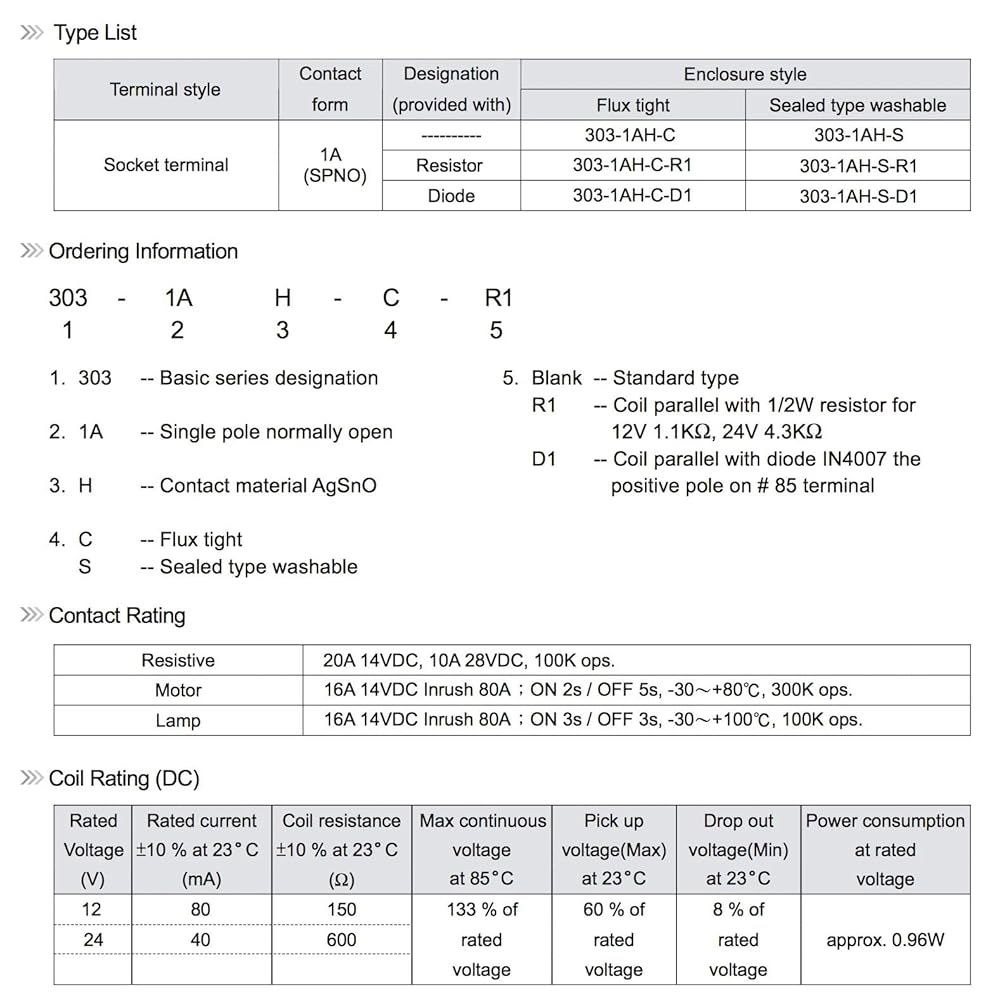

Voltage / Type: 12VDC, SPST (1 Form A), 4-pin micro ISO 280
Rating: 20A resistive @ 14V (automotive duty)
Coil suppression: R1 parallel resistor (non-polarized coil)
Enclosure: Flux-tight; compact high-temperature design

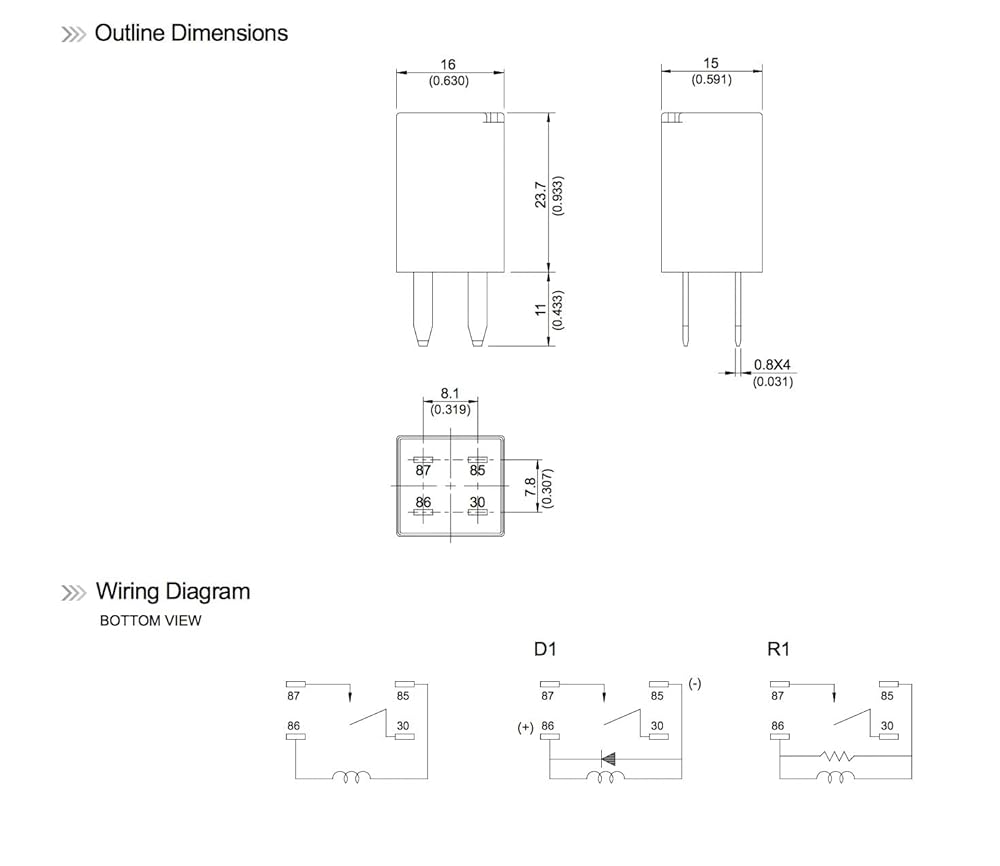

Terminals: #30 (common), #87 (NO output), #85/#86 (coil)
Form factor: 2.8 mm blade terminals; panel / fuse-box mount
Cross reference: Compatible with HFV11/12-HS-R(257)
Restores control of circuits commonly assigned to this cavity on compatible machines: radiator cooling fan, fuel pump, horn, and lighting. A healthy relay helps the fan engage at temperature and prevents intermittent no-start or overheating tied to relay contacts.
Compatible with Polaris RZR: 570 (2012–2019); 800 (2010–2014); 900 (2011–2019); 1000 (2014–2019); XP Turbo (2015–2020)
Compatible with Polaris Ranger: Crew 500/570/800 (2010–2020); 1000 & Crew 1000 (2015–2020); XP 1000 (2017–2020)
Compatible with Polaris General: 1000 / 4 1000 (2016–2020)
Compatible with Polaris Sportsman: 450/550/570 (2011–2020); 850/1000 / XP 1000 (2011–2020)
Compatible with Polaris ACE: selected models (2017–2018) where OE 4016819/4011283 is specified
Located in the vehicle's fuse/relay box; pull old relay straight up, align blades, and press the new relay fully into the cavity
R1 (resistor) coil is not polarity-sensitive; if your machine uses a diode-suppressed relay in another cavity, observe diode polarity
After installation, verify fan operation and that the engine reaches/holds normal temperature
Replaces OE: 4016819, 4011283 (verify by parts diagram/label on your original relay)
Cross reference: HFV11/12-HS-R(257) (spec-equivalent micro ISO 280 relay)
Radiator fan assemblies commonly paired during repairs (model-specific): 2412447, 2410366, 2410901, 2410288, 2204192
Note: This is an aftermarket replacement compatible with the OE numbers shown. It is not manufactured by or affiliated with any OEM. Always match the OE number and the cavity style before purchase.
