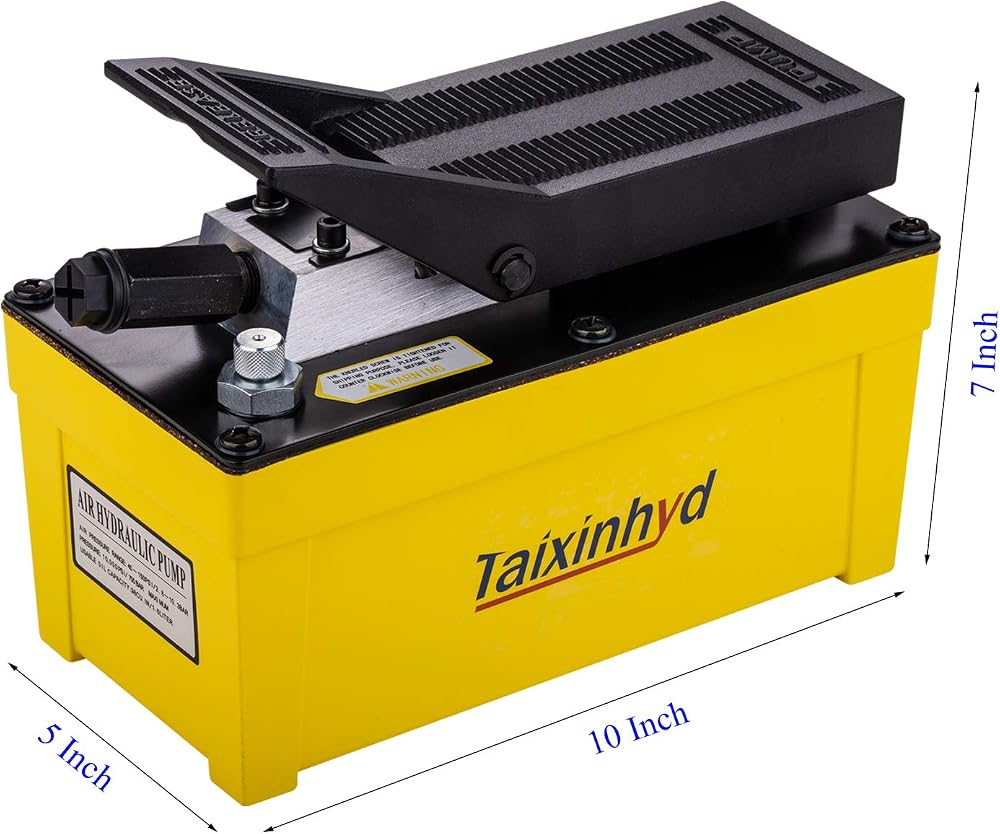

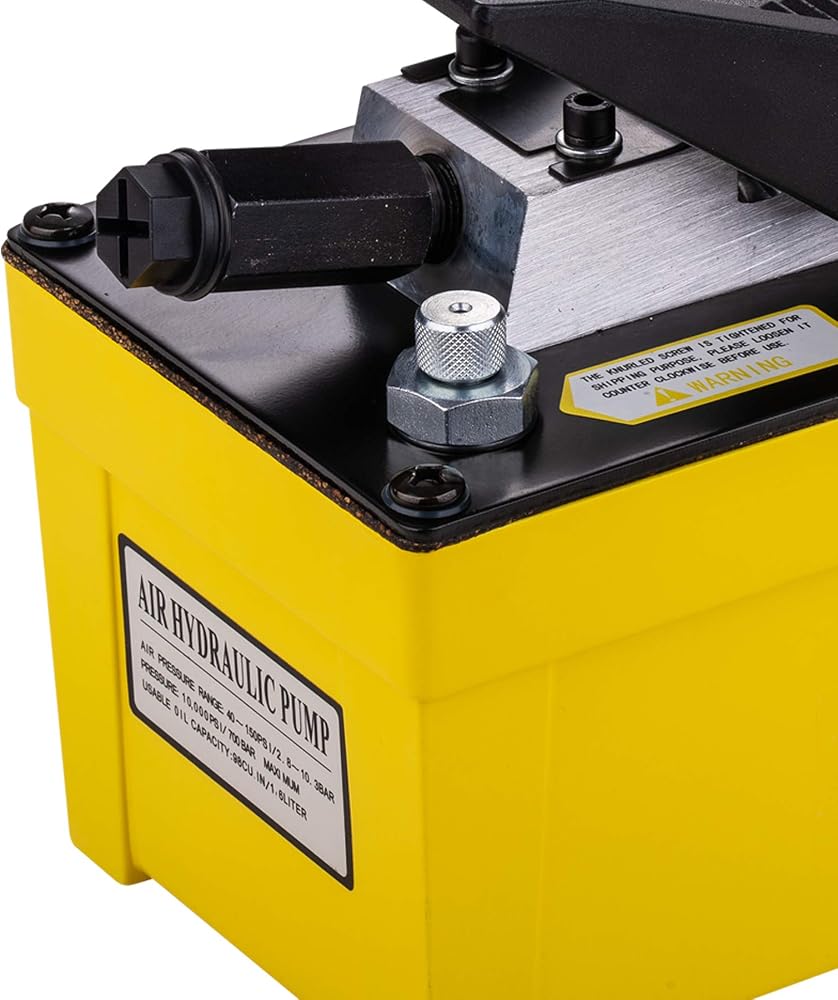

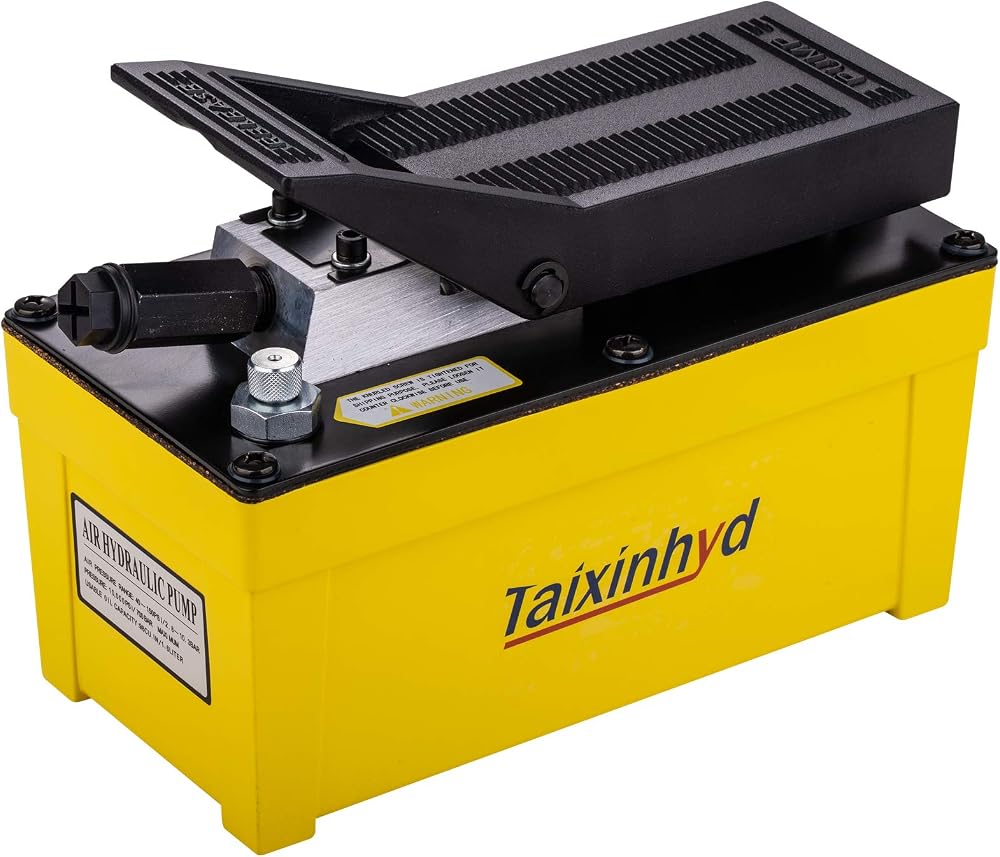

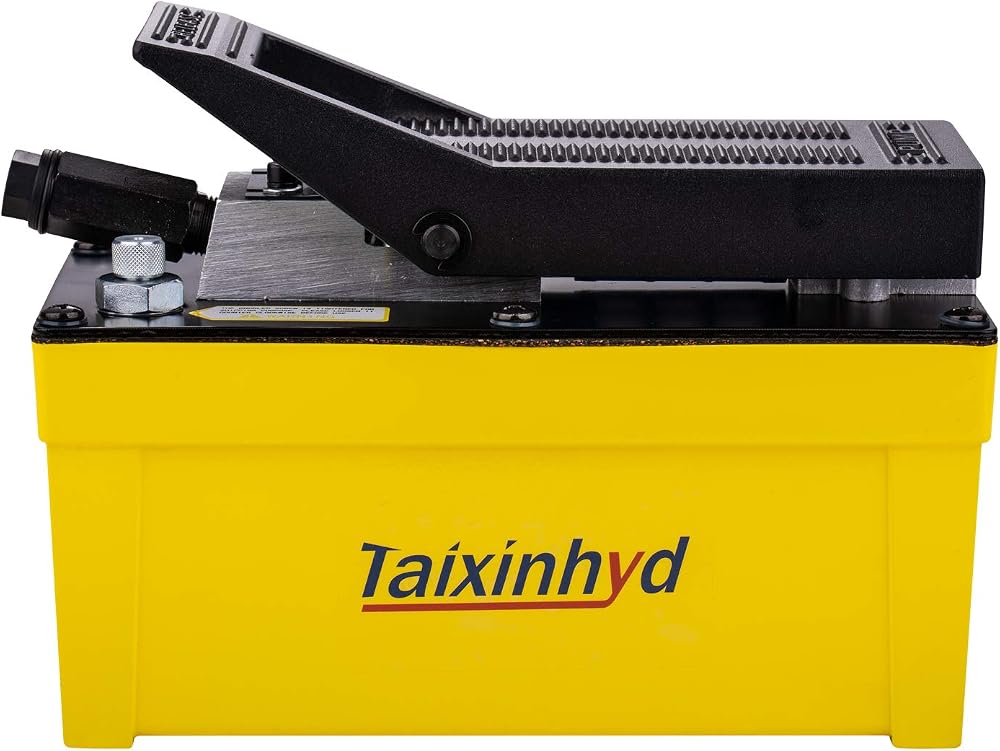

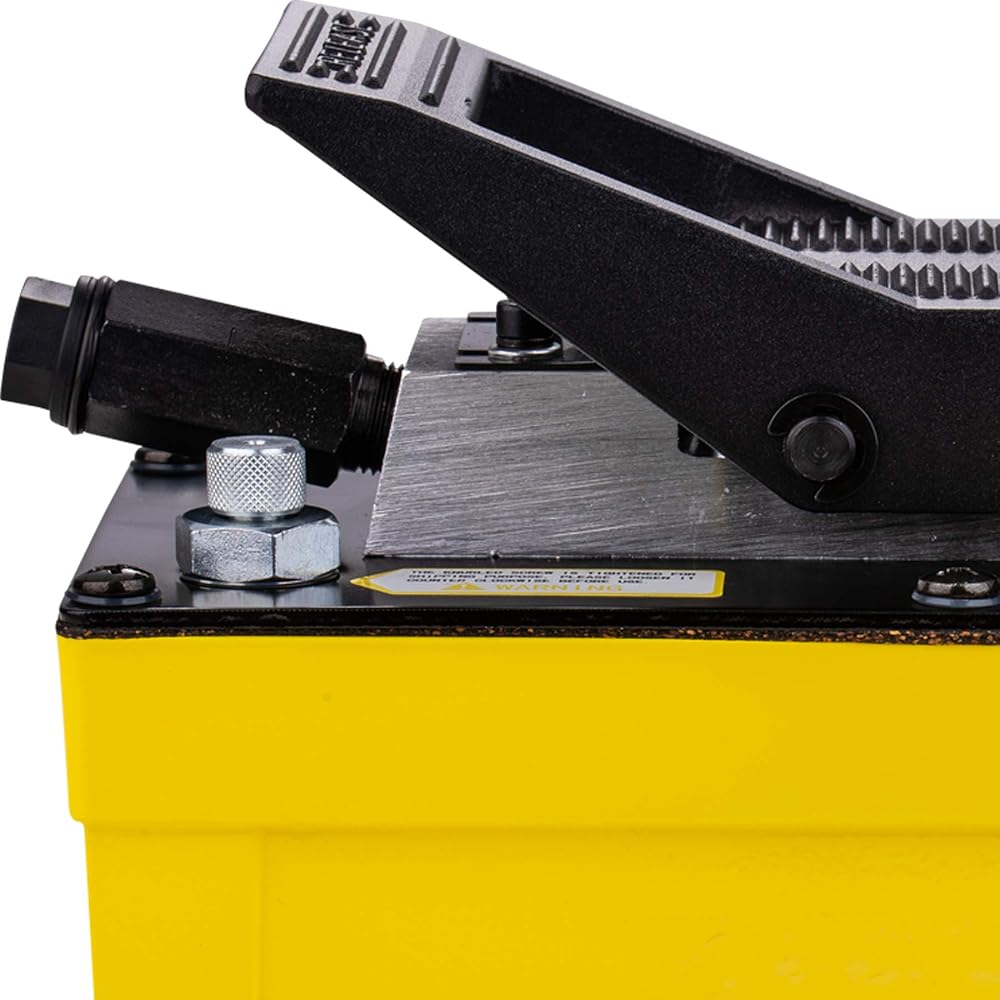

Taixinhyd Hydraulic Pump Air Hydraulic Foot Pump Aluminum Tank 98 CU.in 10000 PSI Air Actua Treadle Hydraulic Pump

SAR 796
Brand
Taixin
Weight
5.3 kg
– 1 +

Special Features

  • 1.Air hydraulic Pump -- Input Air Pressure: 40-150Psi（2.8-10.5bar）
  • 2.Max. Out Put Air Pressure: 10000Psi（700bar）, Max. Output Flow Rate: 1.7L（104cu.in）
  • 3.Air Hydraulic Pump Port Size: Air Port 1/4”NPT, Oil Port 3/8 NPT
  • 4.Max. Output Flow Rate NO LOAD: 850ml/min（52cu.in）, Max. Output Flow Rate (in3/min) LOAD: 170ml/min（10cu.in）
  • 5.Air consumption（under 100psi/6.9bar）: 11 SCFM（0.31 cu.m/min)

Description

Taixinhyd 10,000 PSI air/hydraulic foot pump requires 40-150 PSI air pressure
Designed to be used with single acting cylinders

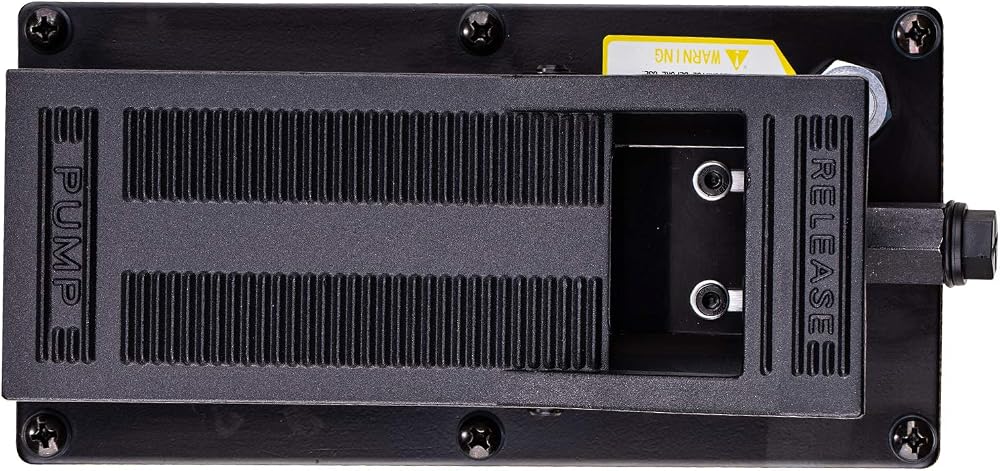

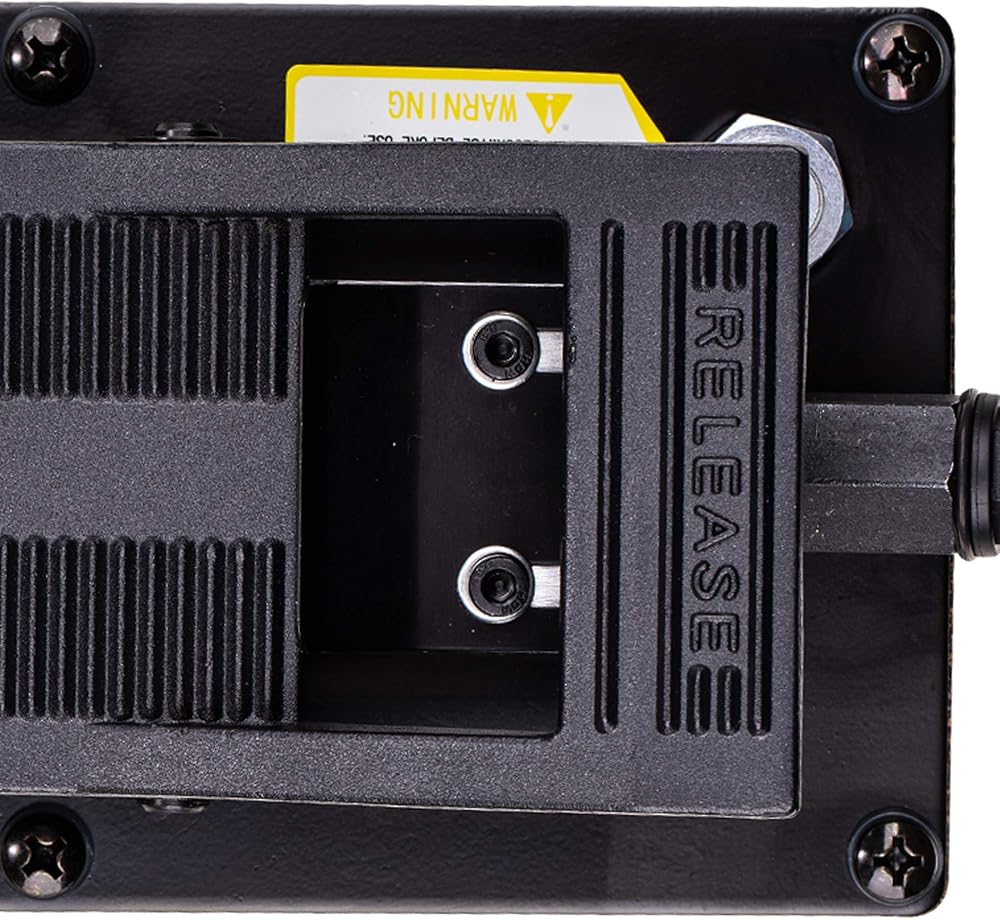

Provides hands free operation for pumping and releasing load
Usable fluid capacity 98 cubic inches
Flow rate 42 cu. in. with no load, 8.5 cu. in. with load
Complies with ASME PALD/2009 Safety Standards
Fast Acting With 1700cc Oil Reservoir
For Use On Ram Cylinders From 10 Ton Up To 40 Ton Capacity
