Cylinder Head Cylinder Crankshaft Assy For CF ATV UTV MOTO 500 X5 U5 Goes 520 525 CF188Engine Rebuild 0180-041000 0180-023100 0180-020002
CF listed part number is 0180-023100 0180-020002 0180-041000

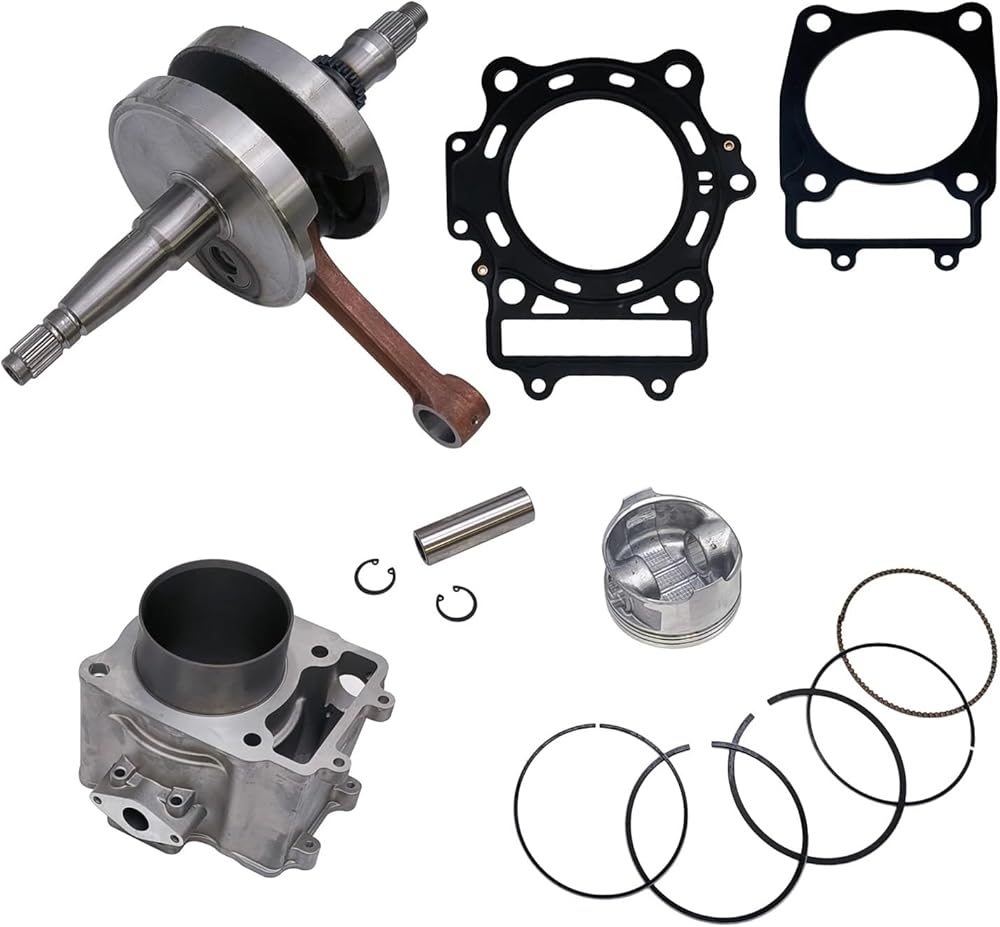

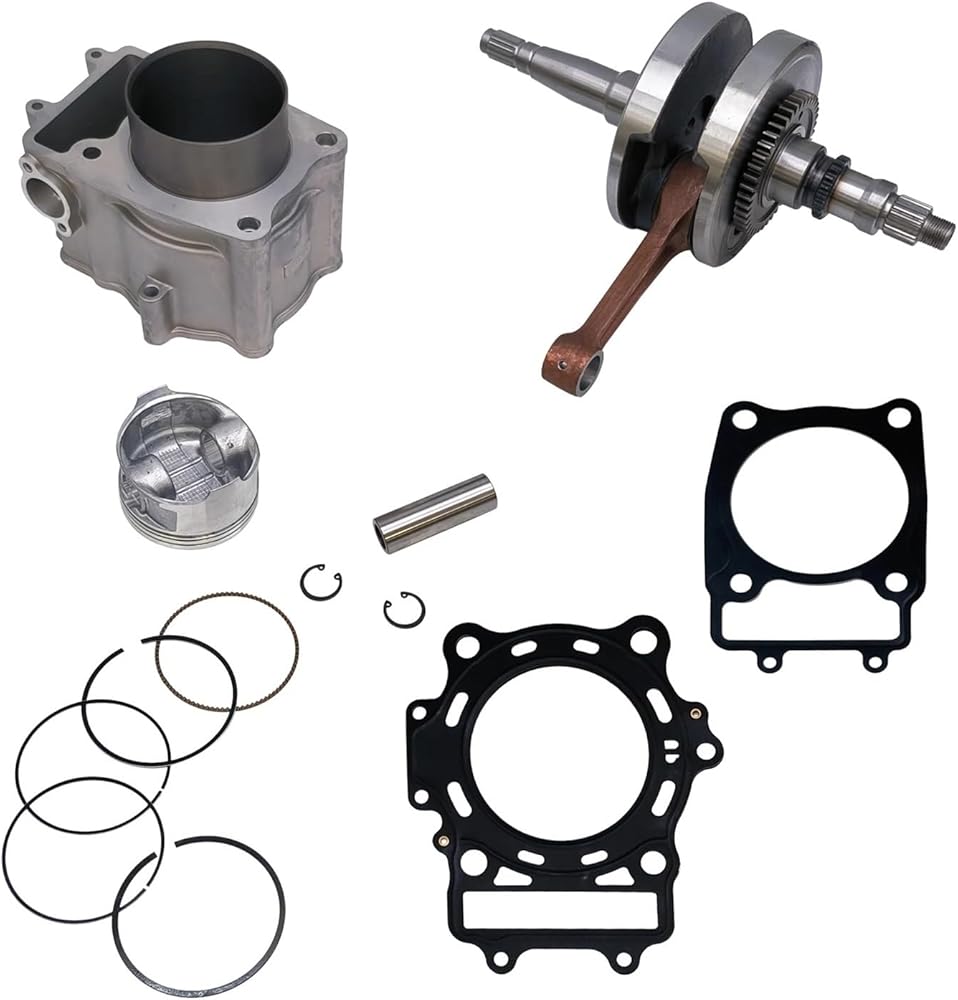

This set included
0180-041000 Crankshaft 1
0180-023100 CYLINDER 1
0180-040004 PISTON 1
0180-0400A0 CF500 PISTON RING 1
0180-040002 PISTON PIN 1
0180-040003-0050 CLIP, PISTON PIN 2
0180-023004 GASKET, CYLINDER 1
0180-022200 C5 GASKET,CYLINDER HEAD 1
0180-022008-0050 LOWER SEAT, SPRING 4
0180-022007-0050 UPPER SEAT SPRING 4
0010-060009 WASHER 6 6
0180-022014 WASHER, CYLINDER BOLT 4
01A0-022200 WATER OUTLET JOINT, CYLINDER HEAD 1
0180-021009-0080 SEAL COVER 1
0180-021002-0080 Adjust 2
0010-011700-0010 NUT M8 4
0010-021019-0010 BOLT M6×12 2
0010-080013-0010 Bolt M6X22 6
01A0-022102 Pipe Joint 1
0010-060012-0010 BOLT M6X30 6
0010-013008-0010 Bolt M6×35 5
0010-023010-0010 BOLT M6X20 6
0180-022003-0010 STUD M8×42 2
0180-022009-0010 Stud bolt M8x68 2
0180-022001-0020 Stud bolt M6x70 2
0010-021017-0030 Bolt M6×25 6
0010-021018-0010 Bolt M6X55 5
0180-022900 JOINT, CARBURETOR 1
0180-022810 Thermostat 1
0110-022400 SPARK PLUG 1
0180-022006-0050 Spring 4
0010-022006-0030 LOCK CLIP, 8
0180-020001 Cylinder head and cylinder head cover 1
0180-021008-0030 BOLT M14x1.25x12 2
0180-021005 ROCKER ARM SHAFT, 1
0180-021004 ROCKER ARM SHAFT, INTAKE 1
0180-022012-0010 CYLINDER BOLT(L) 2
0180-022013-0010 CYLINDER BOLT(R) 2
0180-022005 , 2
0180-022004 , INTAKE 2
0180-021200 ROCKER ARM COMP 1
0180-021100 ROCKER ARM COMP INTAKE 1
0180-022300 C5 Pipe Gasket 1
0010-022600 Water Temperature 1
This may fits
ENGINE 2010 CF188 500cc
ENGINE 2011 CF188 500cc
ENGINE 2012 CF188 500cc
ENGINE 2013 CF188 500cc
ENGINE 2014 CF188 500cc
ENGINE 2015 CF188 500cc
ENGINE 2016 CF188 500cc
ENGINE 2017 CF1
