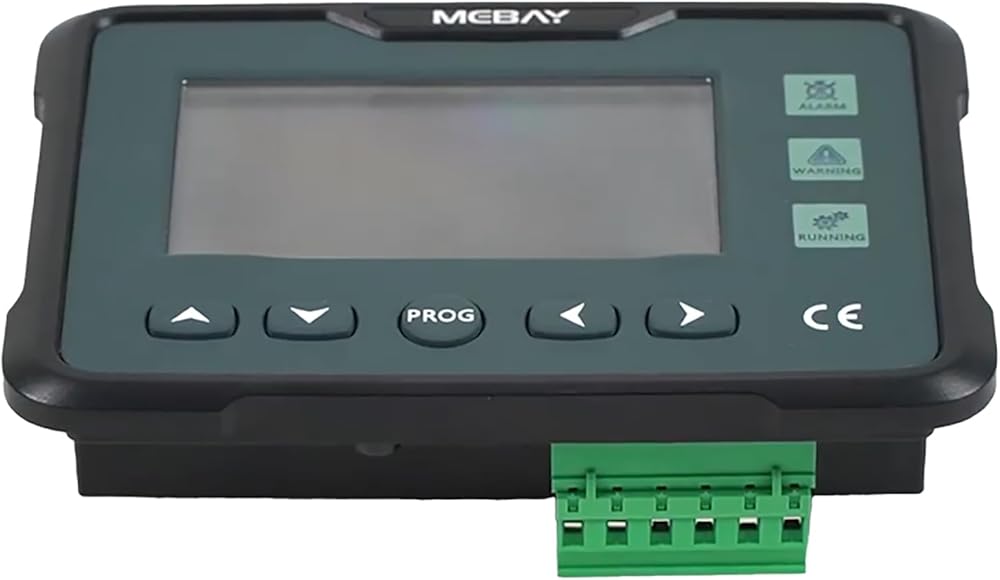

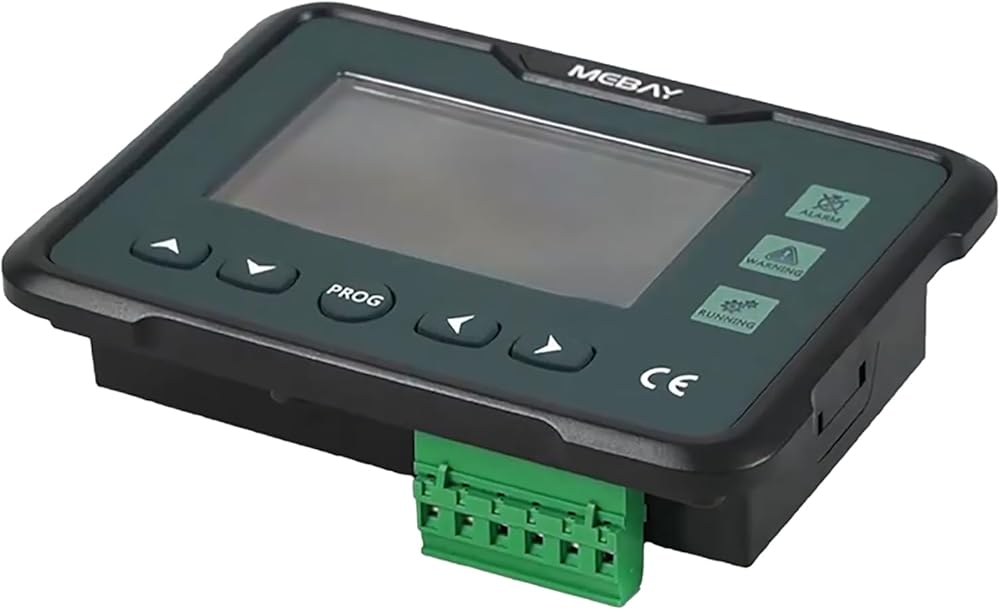

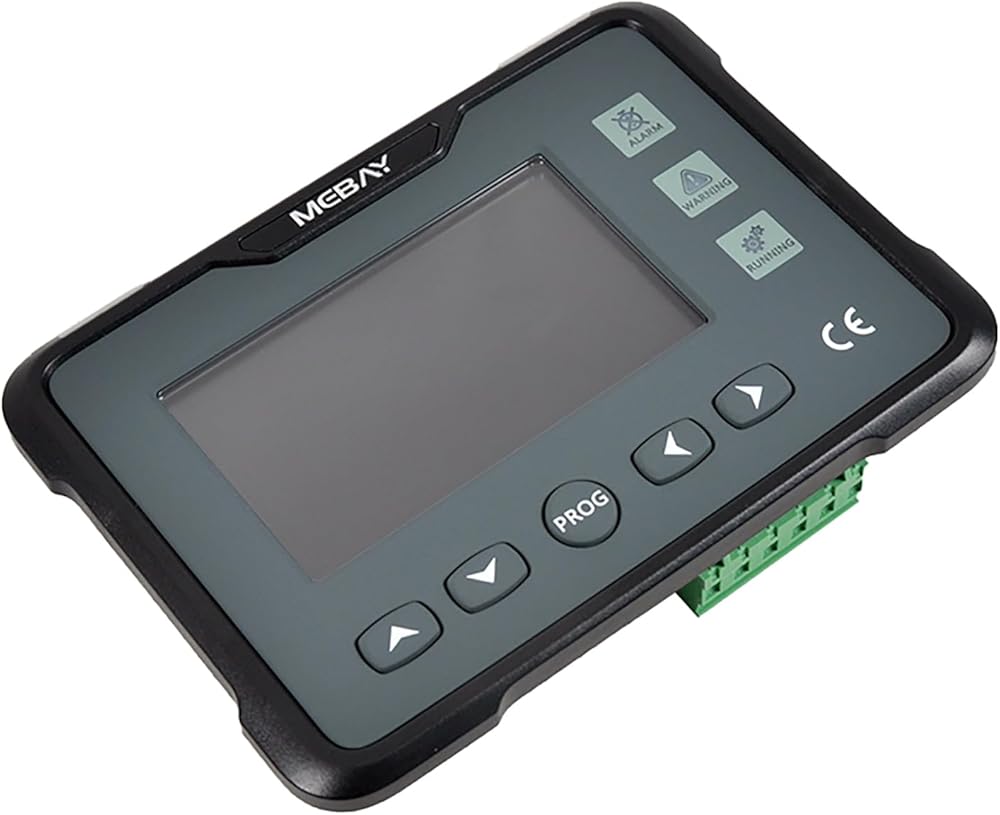

Original GM70CW Mebay Diesel Water Pump Meter Parameter Monitor PEMP

Diesel engine driven water pump meter, 4.3 inch color LCD screen, CAN interface, RS485 interface, USB interface, can set the main engine or auxiliary engine working mode, alarm protection output, water level + water pressure + fuel level sensor input. Speed can be adjusted by panel buttons and rotary encoder.

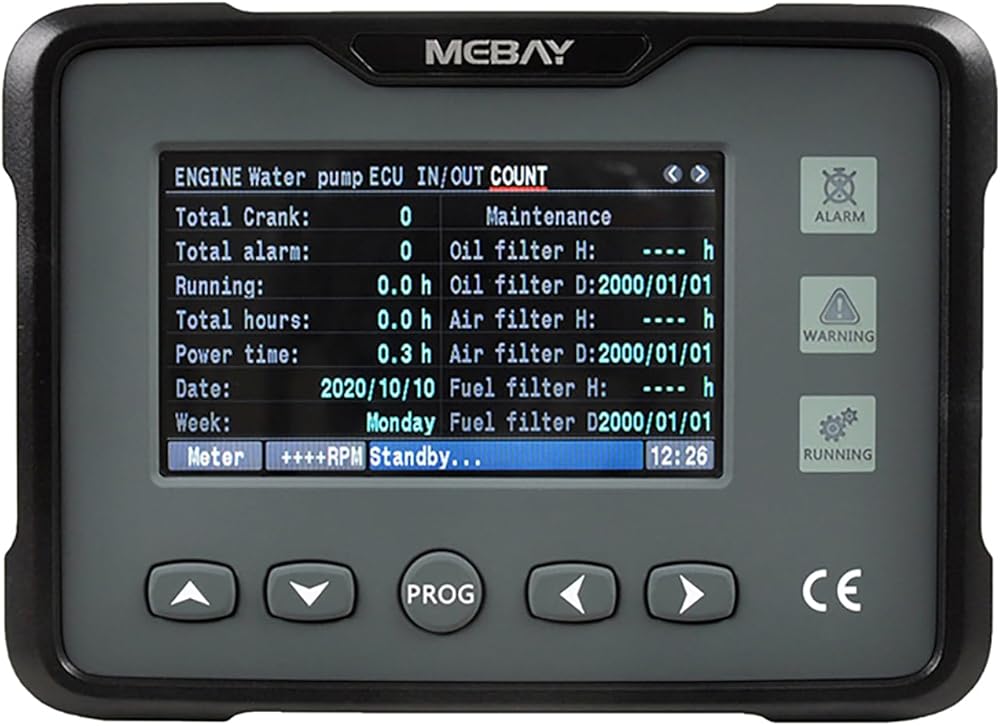

Parameters Display
Engine RPM
Engine oil pressure
Engine water temperature
Engine oil temperature
Engine fuel level
engine battery voltage
ECU related parameters
4 switches input status display
Output status display of 3 relays
Cumulative number of startups
Total number of alarms
Total Crank times
Current running time
Total running time
Maintenance notice
Parameters
Working voltage:DC8V----36V Continuous
Power consumption:
1.Standby:24V:MAX 1W
2.Working:24V:MAX 3W
MAX Accumulating Time:99999.9Hours（Min Store time:6min）

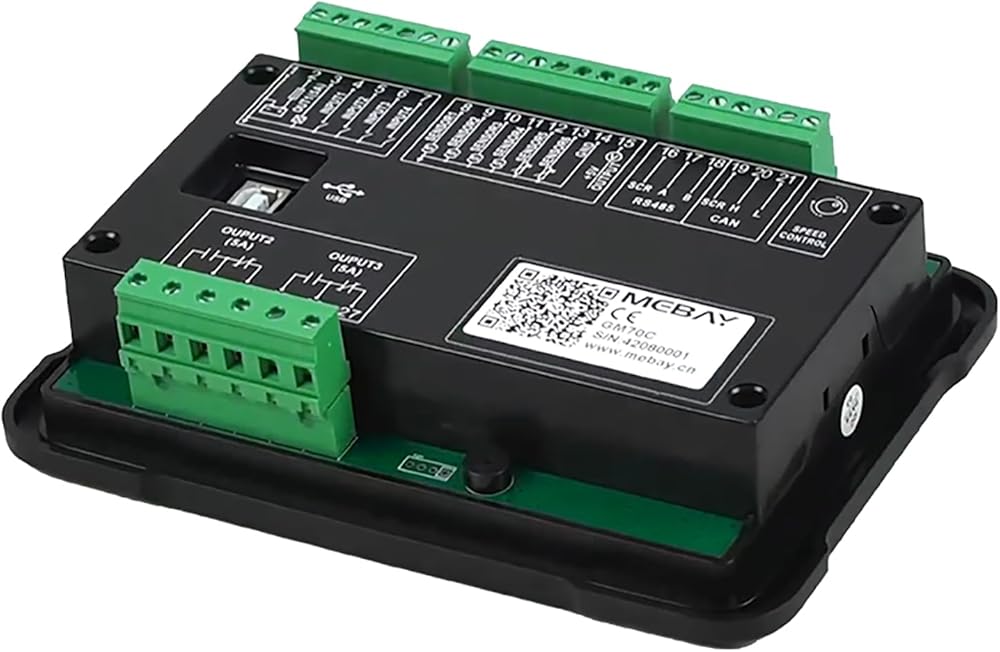

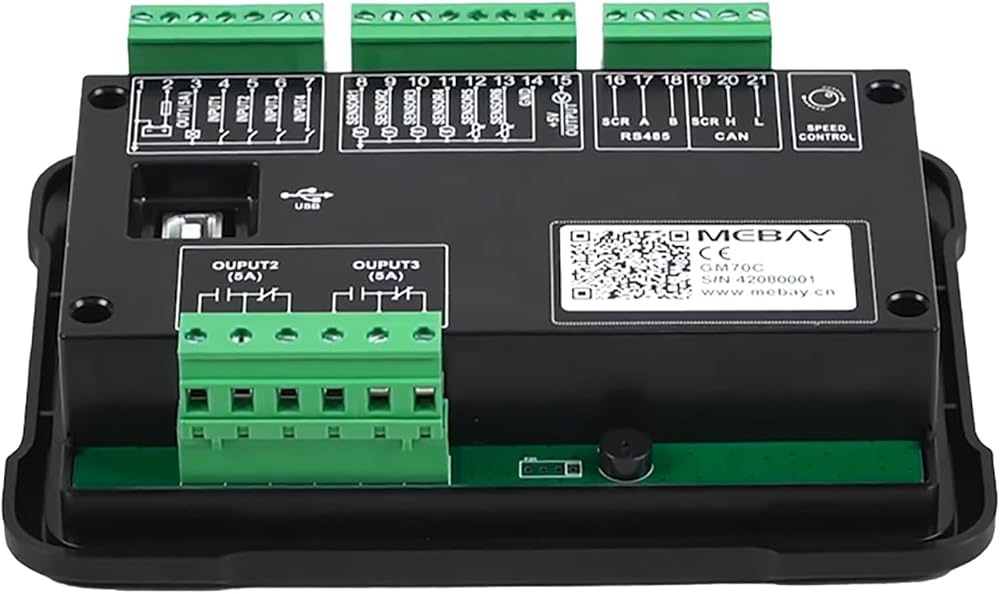

Programmable Relay output 1:Max 5Amp DC+VE Supply voltage
Programmable Relay output 2:250V/5 AMP Non-contact normally Open/Closed output
Programmable Relay output 3:250V/5 AMP Non-contact normally Open/Closed output
Switch value input:Available if connecting with Battery -
Working condition:-25-65℃
Storage condition:-40-85℃
Protection Level:
IP65:when waterproof rubber gasket is added between meter and its panel
Insulation strength:Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.
Overall dimension:175mm*128mm*39mm
Panel cutout:152mm*112mm
Weight:0.5Kg
