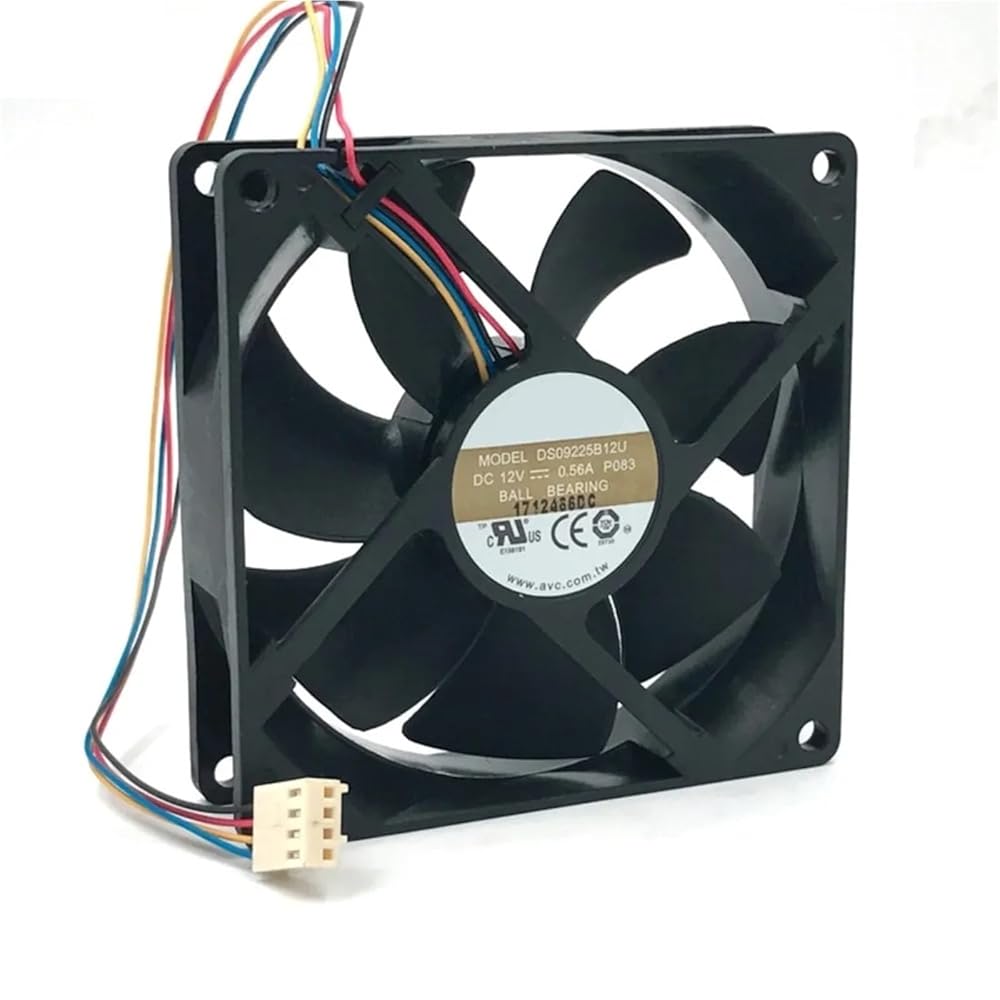

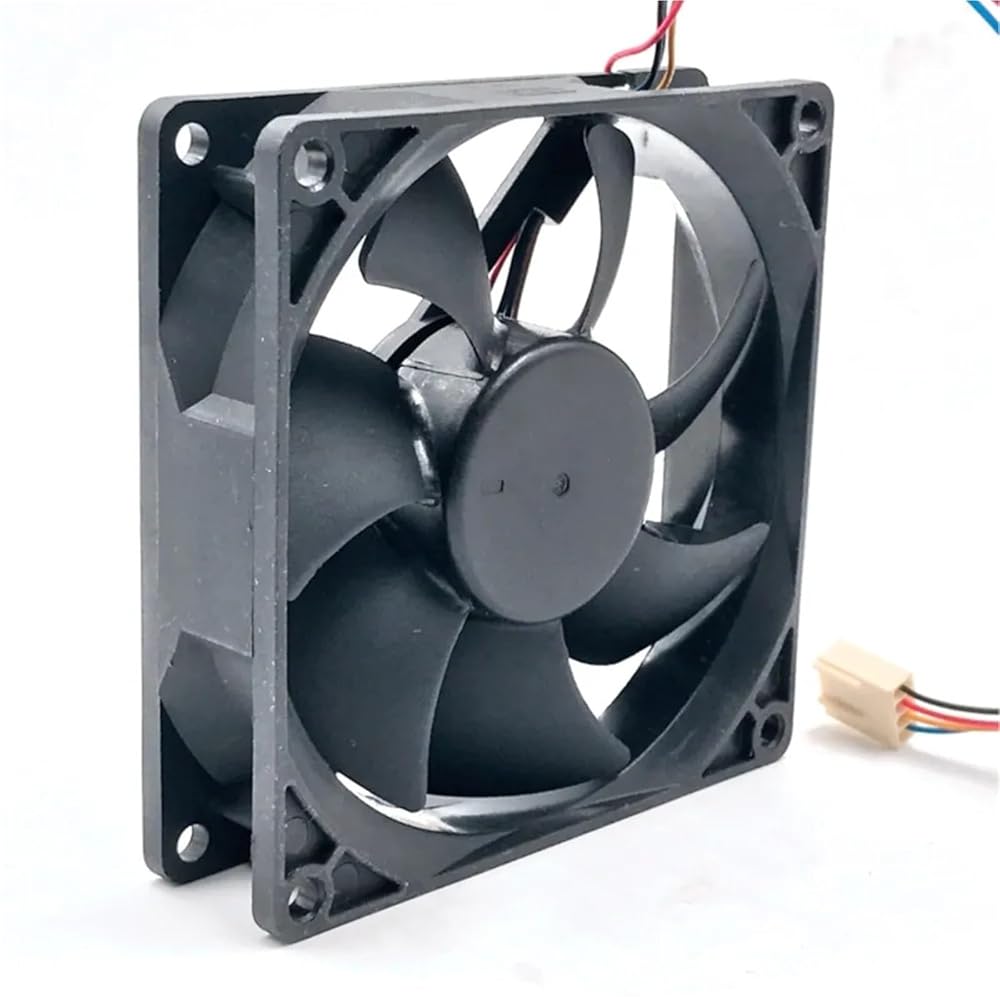

Radiator Fan
Model:DS09225B12U
Size:92 * 92 * 25mm (namely 90 * 90 * 25mm)
Voltage: 12V
Current:0.56A
Interface:Motherboard 4-pin
Length:15CM
Rotating speed:4200 RPM
Air volume:81CFM
Noise:18-40 DBA
Description: The fan with PWM temperature control function, the normal room temperature is very low, when the temperature inside the chassis or CPU will gradually speed up, both play a heat Use, and will not produce too much noise
Fan frame: injection molding, PBT +30% Glass fiber + VO level flame retardant
Blade: injection molding, PBT +30% Glass fiber + VO level flame retardant
Fan rotation: from the fan direction as the anti-clockwise operation
temperature:-20Degrees Celsius to +70Celsius Storage Temperature: -40Degrees Celsius to +80Degrees Celsius
Power range: rated power supply plus or minus15%
Insulation resistance: greater than500Megohm
Working life: Ambient temperature25Degrees100000hour
==========
Hign-concerned Chemical : None
Power Interface : 4PIN
Type : Server Fan
Model Number : DS09225B12U
