Resistors

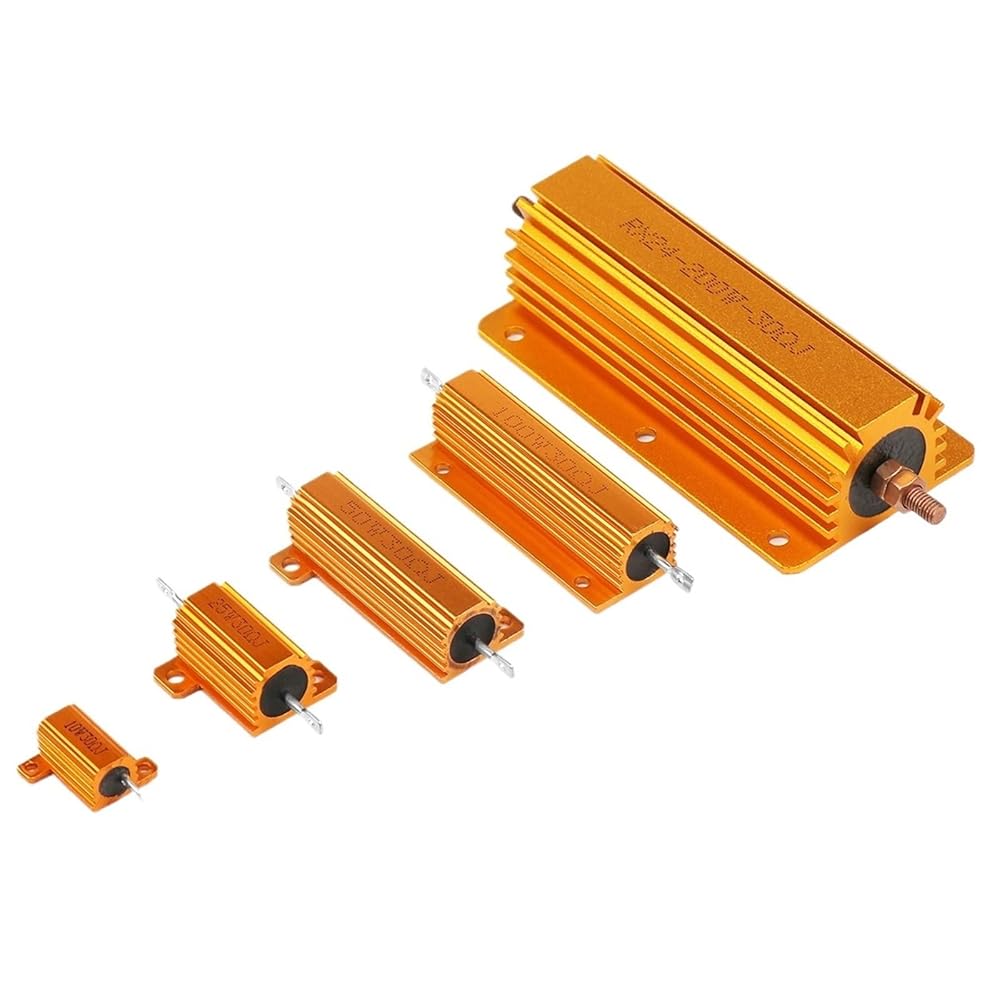

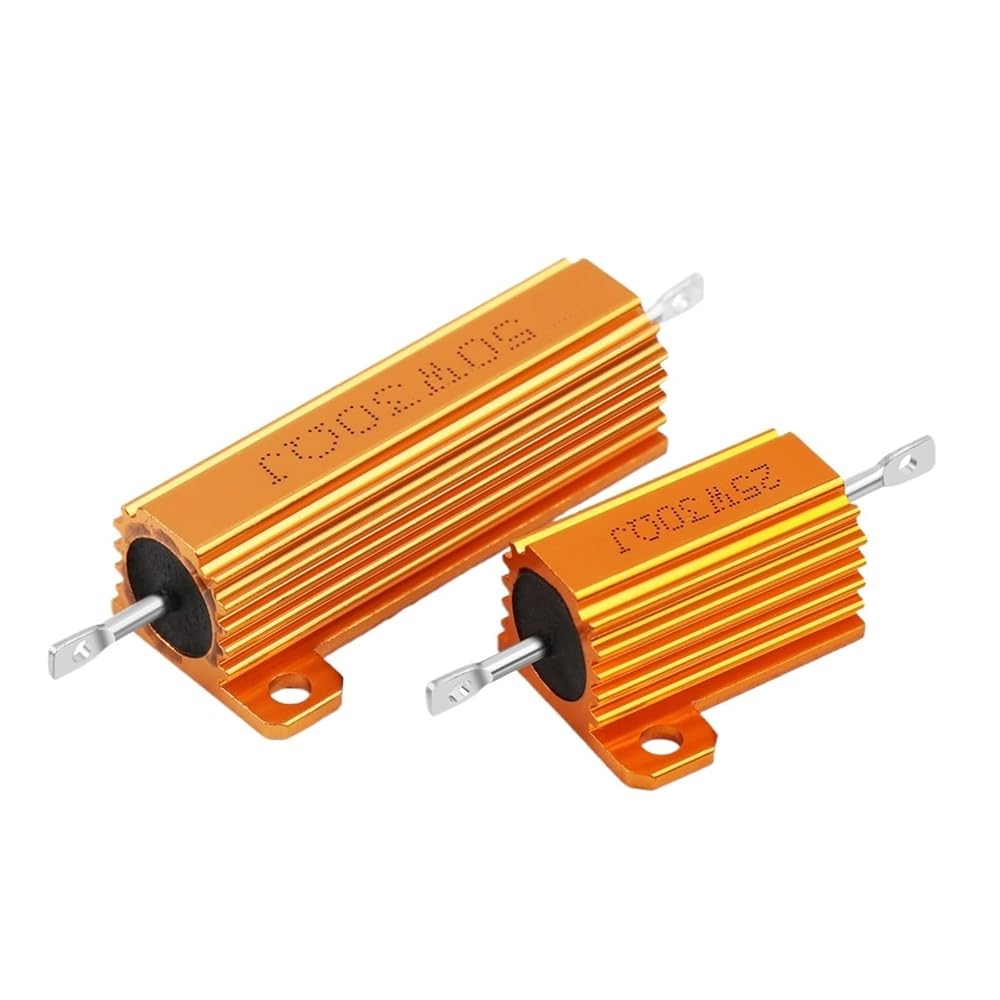

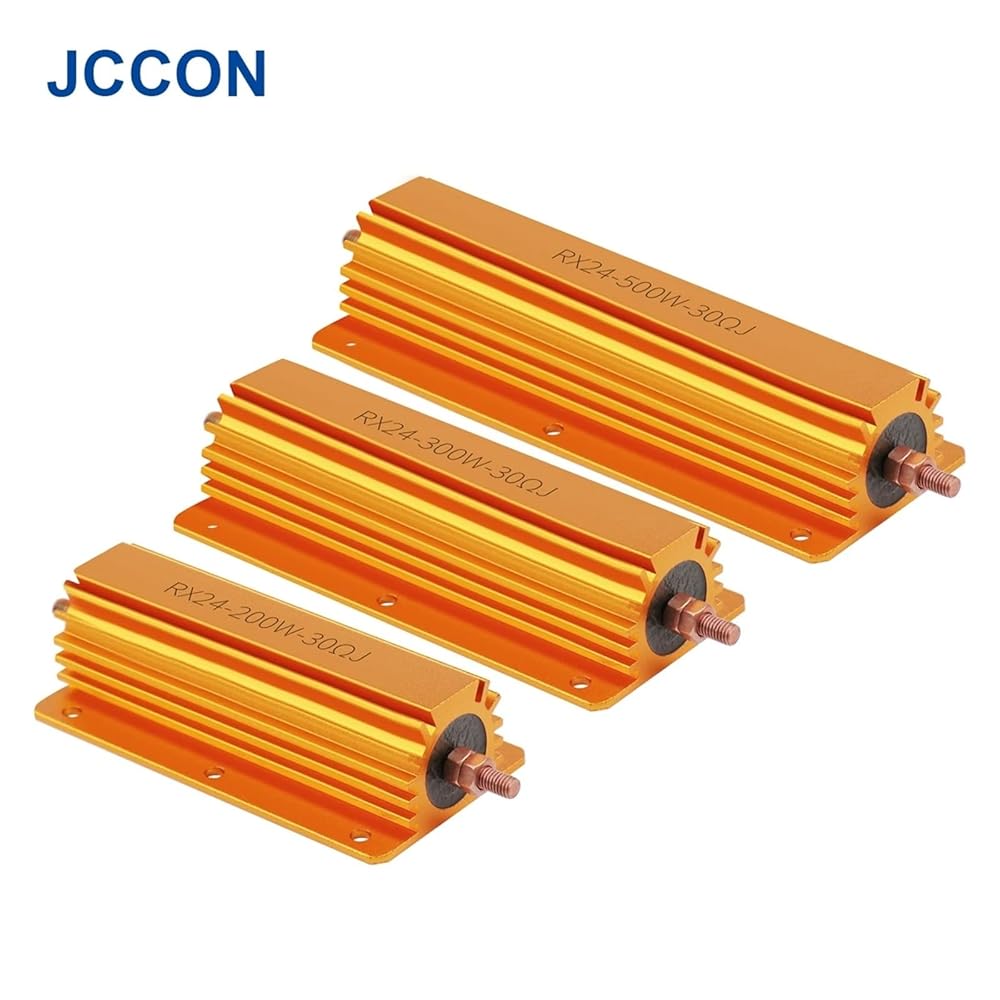

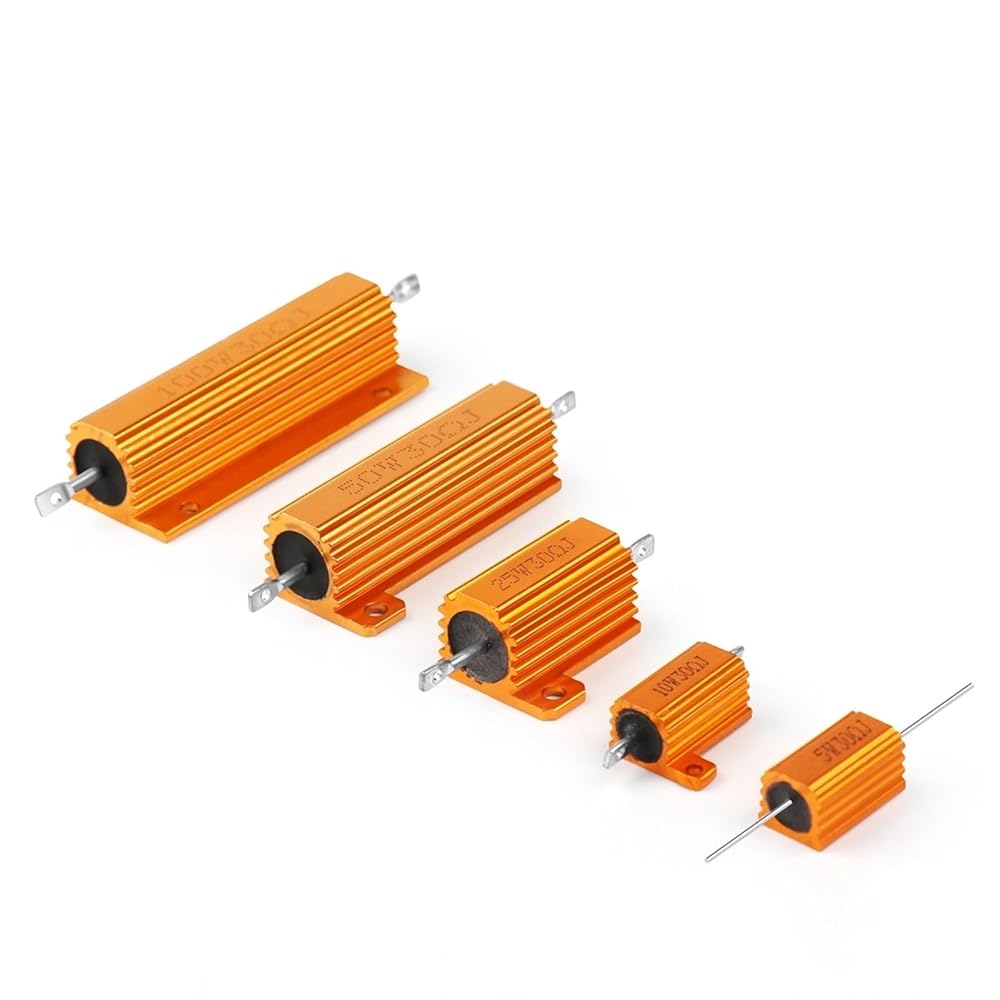

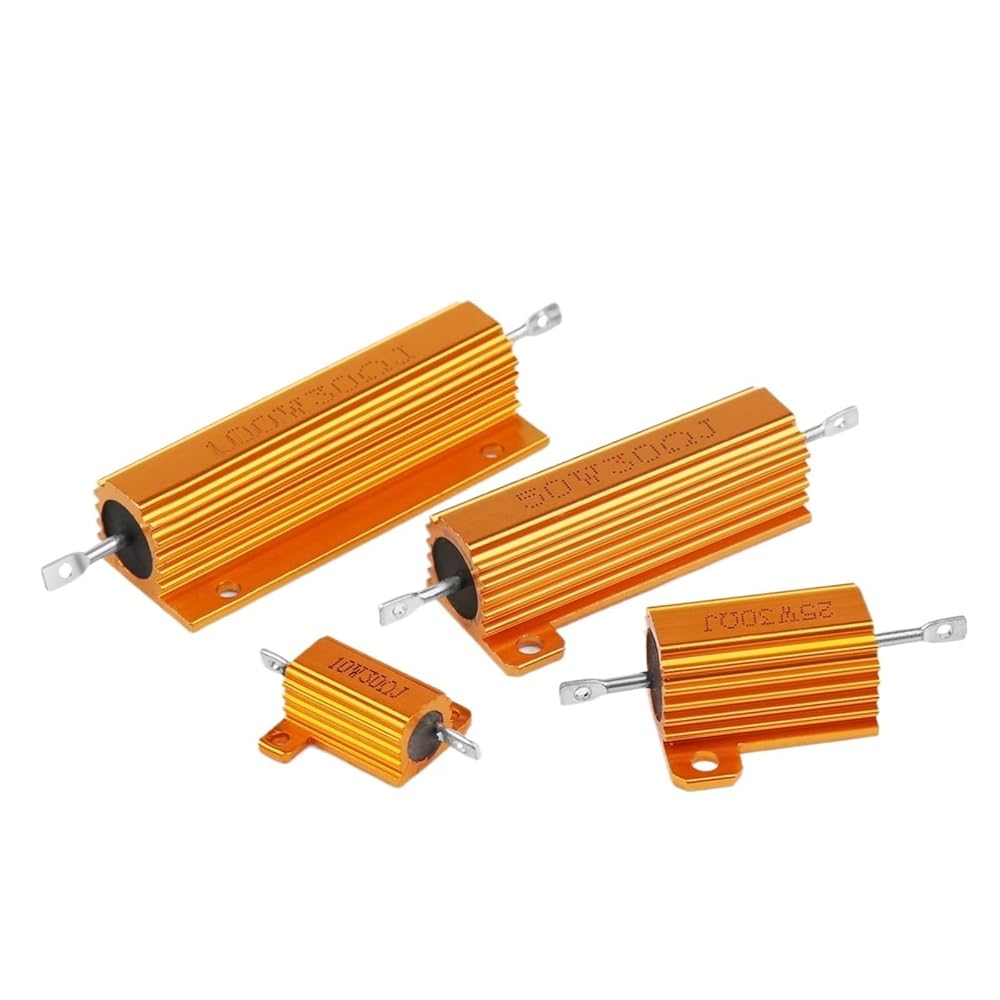

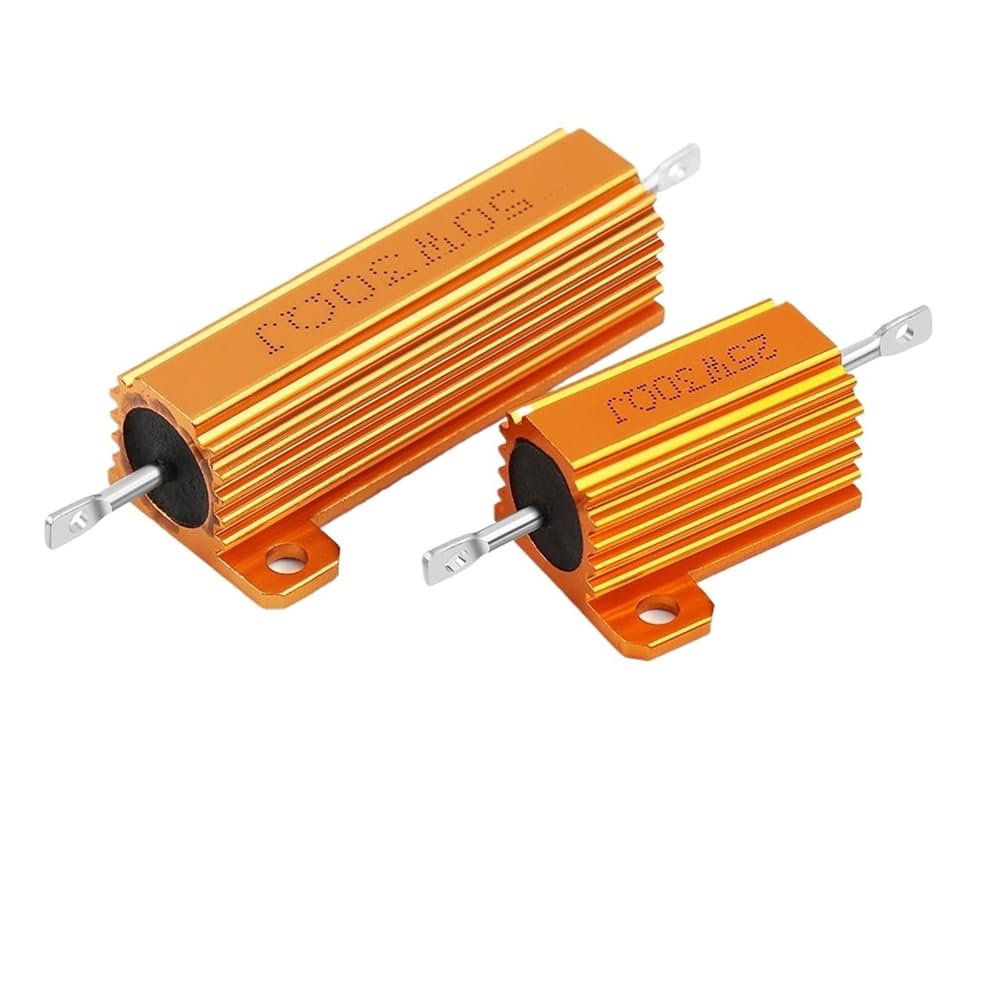

2Pcs 25W 50W 100W Aluminum Power Metal Shell Wirewound Resistor RX24 0.01R 0.02R 0.03R 0.05R ohm Gold Resistors
Size:
5W:19x11x10mm
10W:20x11x10.5mm
25W: 27x27x13mm
50W: 50x29x15.5mm
100W: 60x21x16mm
200W: 100x52x29mm
300W: 195x52x29mm
500W: 250x52x29mm
Model:
25W 0.01R
25W 0.02R
25W 0.03R
25W 0.05R
50W 0.01R
50W 0.02R
50W 0.03R
50W 0.05R
100W 0.01R
100W 0.02R
100W 0.03R
100W 0.05R
Oxidized gold aluminum shell
Using extremely positive alumina shell, anti-corrosion, good wear resistance, long service life
RX24 gold aluminum shell high-power resistor:
Mainly used in current-limiting protection circuits and measurement and control circuits, testing aging station power supplies, inverters, automotive LED lights, automation equipment, audio, elevators, frequency dividers
Tinned copper terminal
Lead-out terminals are made of tinned copper and stainless steel rods, which are anti-rust, anti-oxidation, dust-proof and anti-corrosion.
Surface concave-convex groove design
Concave-convex groove design, fully welded structure, with good reliability in operation.
Molded package wire wound resistor rod
Good heat dissipation, high insulation, environmental protection molded structure, safe and reliable
Installation instructions:
Multiple connection methods, easy to install
Under 50w, there are separate lead wires and screw-out installations, usually screw-out installations;
Above 75W is also called RXG screw, which is different from 50W screw type installation;
Good heat dissipation, suitable for heat sink installation:
.High insulation
.Fully welded structure
.Installed on the substrate to apply heat absorption effect
.Molded structure with environmental protection
.There is no inductive winding to limit low reactance components
.Good reliability in operation
Packgae Include:
2Pcs x Aluminum Metal Resistor
