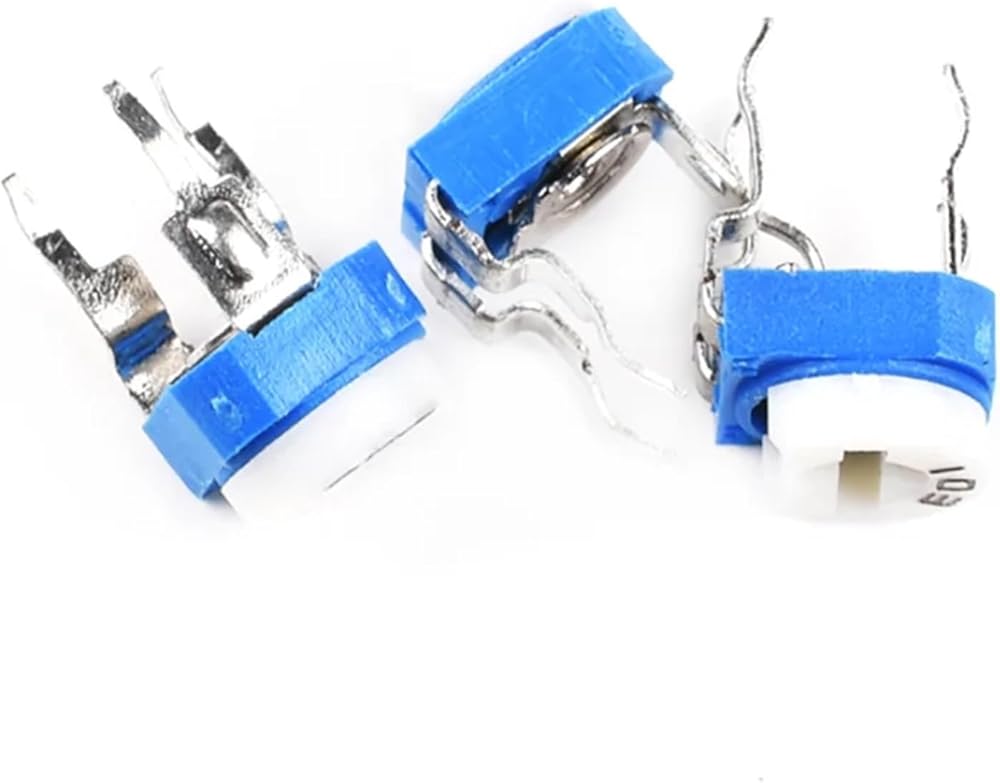

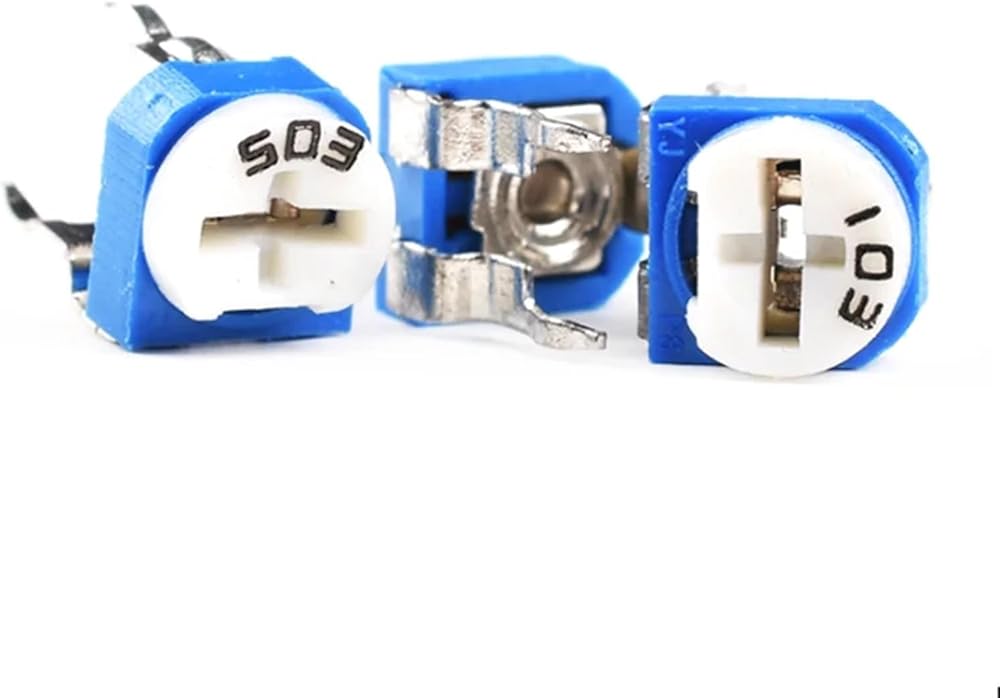

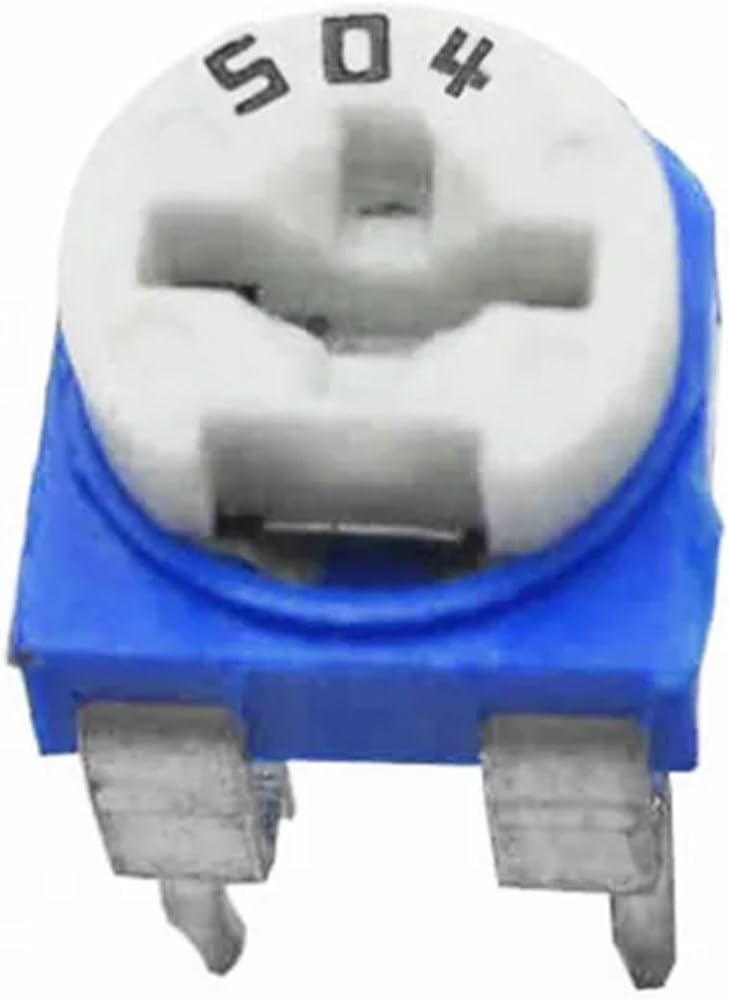

20-50PCS/Lot RM065 Potentiometer 100 200 500R 1 2 5 10K 20K 50K 100K 200K 500K 1M 101 201 501 102 502 Variable Trimmer Resistor
Specification:
Model number: RM065
Technology: Carbon Film Resistance
range (Ohms): 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K, 200K, 500K, 1M
Resistance Tolerance: ± 30%
Rotation angle: 210 ° ± 10 °
Starting : 2-35mN.m
Mechanical strength: resistance film can withstand 1kg pressure does not break
Resistance change characteristics: B
Maximum use voltage: 50V
Rate Power: 0.1W
Residual resistance: no more than 5% of the nominal resistance, the maximum does not exceed 20
Rotational life: no-load rotation after 100 laps, the maximum resistance change of ± 15%
Load life: load rated power 3 hours, the maximum resistance change of ± 5%
